BADU AK
BADU AK saltwater pool circulation pumps

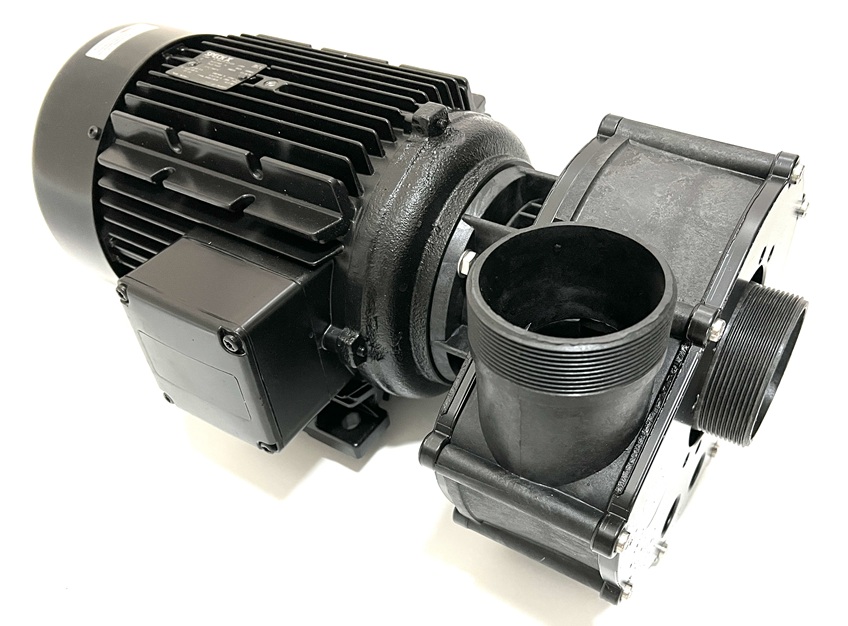

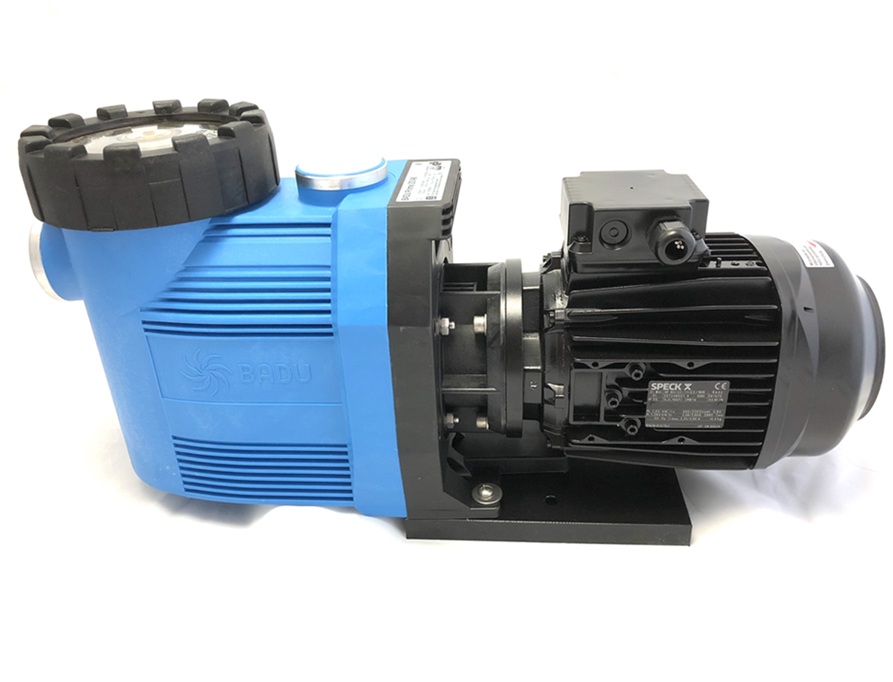

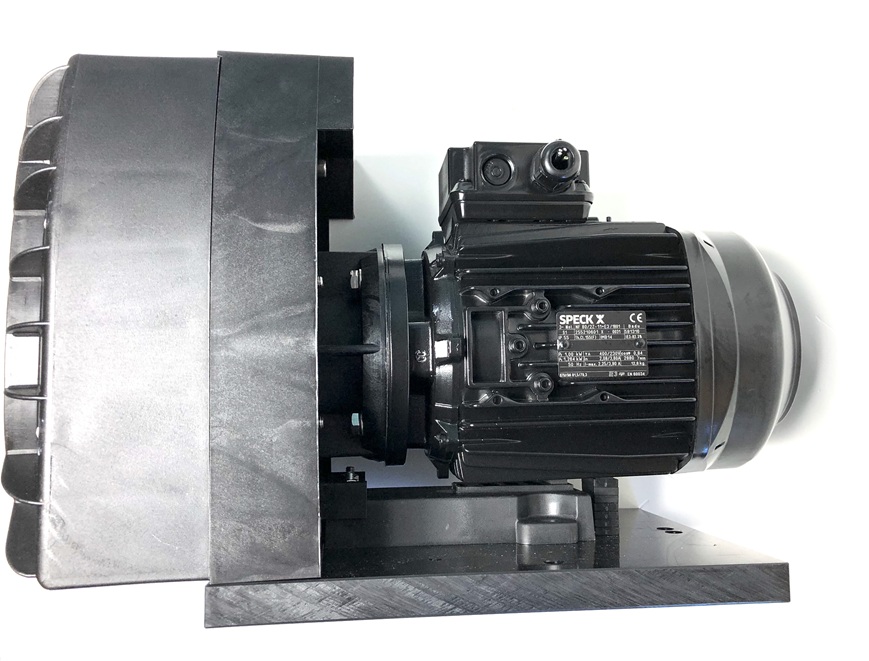

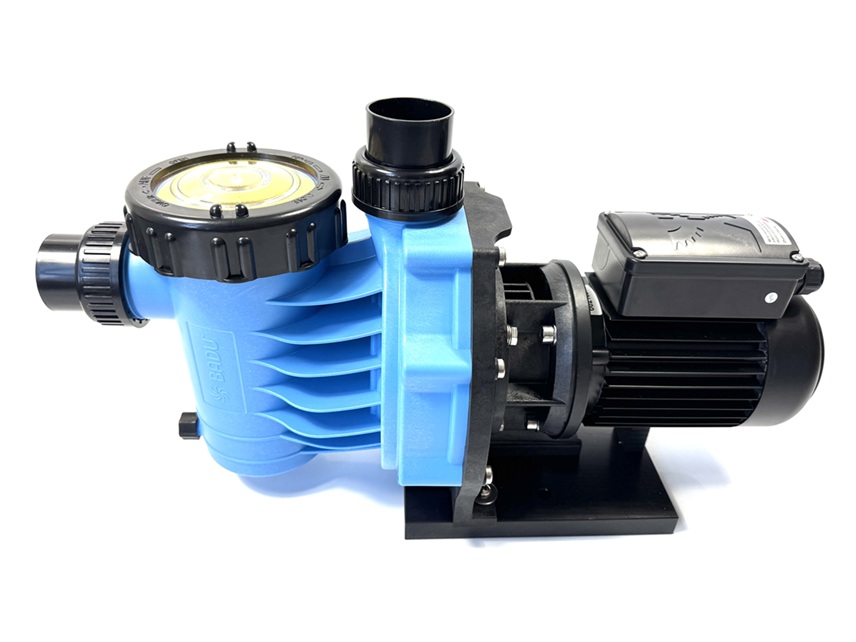

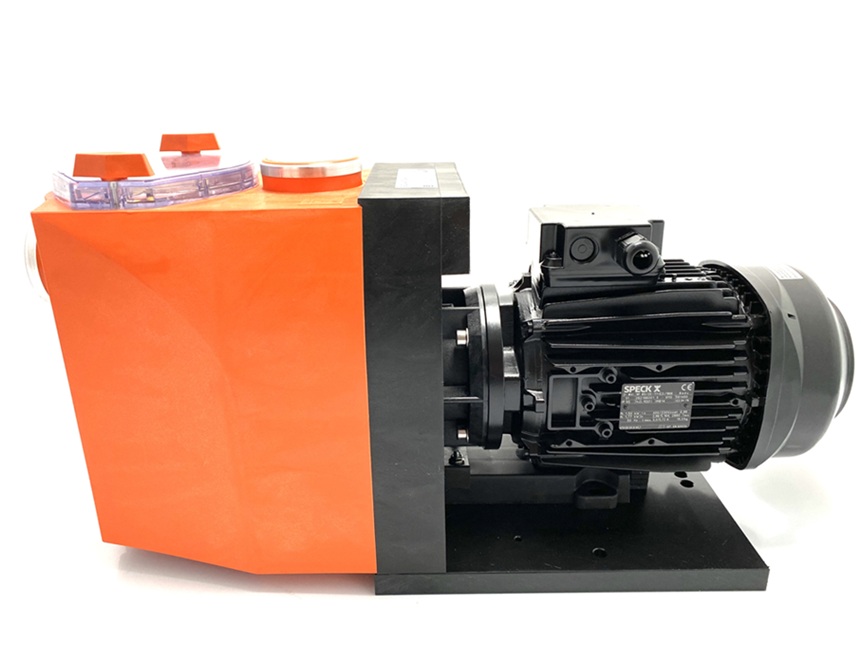

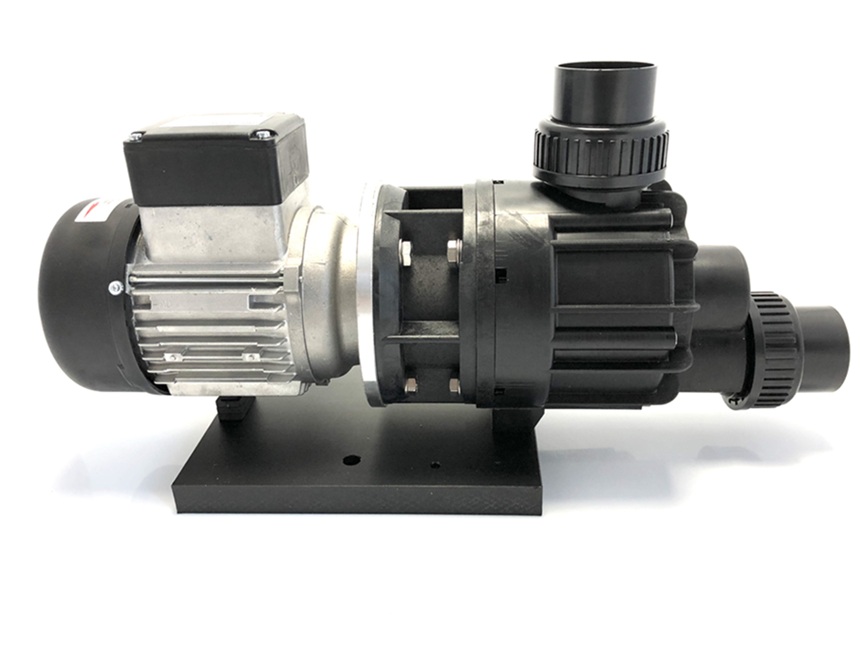

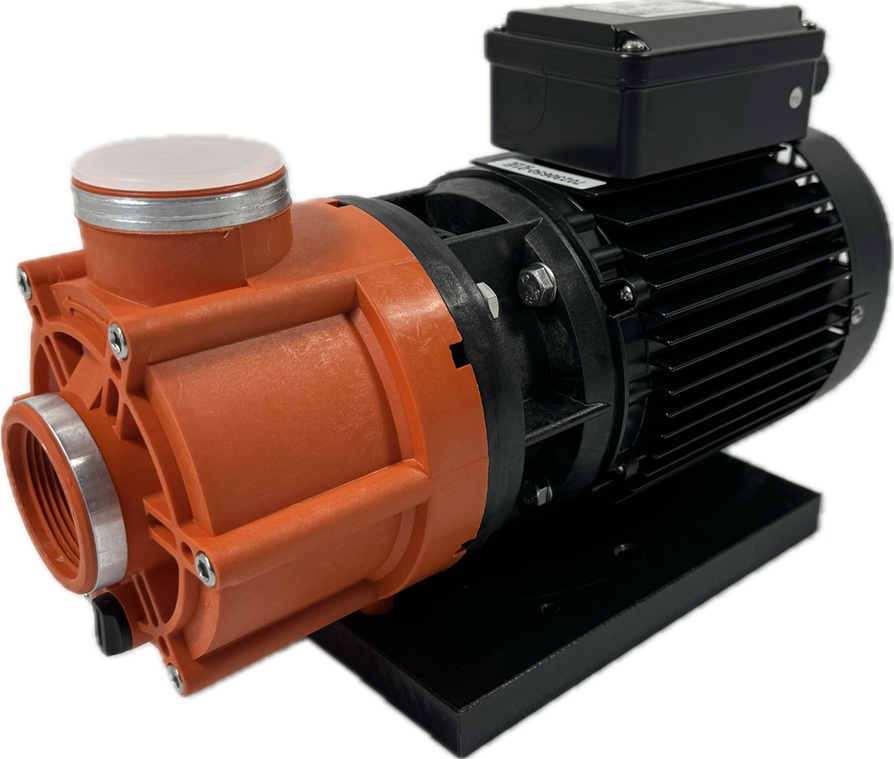

The "AK" version of the BADU pump corresponds to the standard variant, but the seal chamber is not mounted directly on the motor bearing on the A-side; instead it is separated from the motor by an intermediate lantern and a labyrinth disc. Due to this special design, these pumps are suitable for use with various saltwaters and challenging media.
Any escaping medium and crystallising minerals or salts therefore do not come into contact with the motor and the bearing. This enables a considerably longer service life compared with standard pumps for these applications.
Areas of application:
Thermal waters, thermal brine, marine aquaria with artificially treated saltwater, curing brine systems, and various problem media after verification of components and concentration.
When ordering, the medium must always be specified exactly so that the pump's resistance can be checked.
Almost every Speck BADU pool circulation pump can generally be supplied or converted to the "AK" version. If required or of interest, please do not hesitate to contact us.
Use of the pumps for swimming pools and their protection zones is only permissible if they are installed in accordance with DIN/VDE 0100 part 702. Please consult your qualified electrician!
The electrical connection should in any case be made by a qualified electrician.
Technical modifications reserved. Illustrations similar.
High-resolution product photo source: SPECK Pumpen
-
