BADU 44 AK

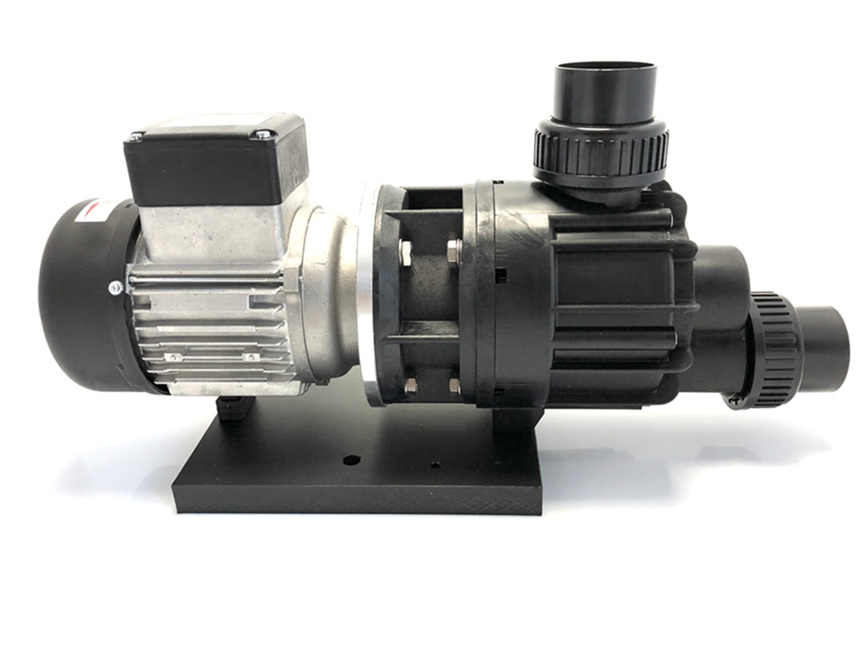

The non-self-priming circulation pumps BADU 44 AK-SSV in AK design, for saltwater, seawater and brine, with an intermediate lantern are the ideal jet pumps for bathtubs and whirlpools. The "AK" version of the BADU pump corresponds to the standard variant, but thanks to an intermediate lantern the seal chamber is not mounted directly on the A-side motor bearing; instead it is separated from the motor by an intermediate space and a labyrinth disc. Any escaping fluid and crystallising minerals or salts therefore do not come into contact with the motor and bearing. This considerably extends the service life compared with standard pumps for these applications.

Applications:
Thermal waters, thermal brine, seawater aquaria with artificially treated saltwater, salting installations and various problem media after inspection of components and concentration.
When ordering, the fluid must always be specified precisely so that the pump's chemical resistance can be checked.

Use of the pumps for swimming pools and their safety zones is only permitted if installed in accordance with DIN/VDE 0100 Part 702. Please consult your electrician.
The electrical connection should in any case be carried out by a qualified electrician.

Technical changes reserved. Illustrations may vary.
