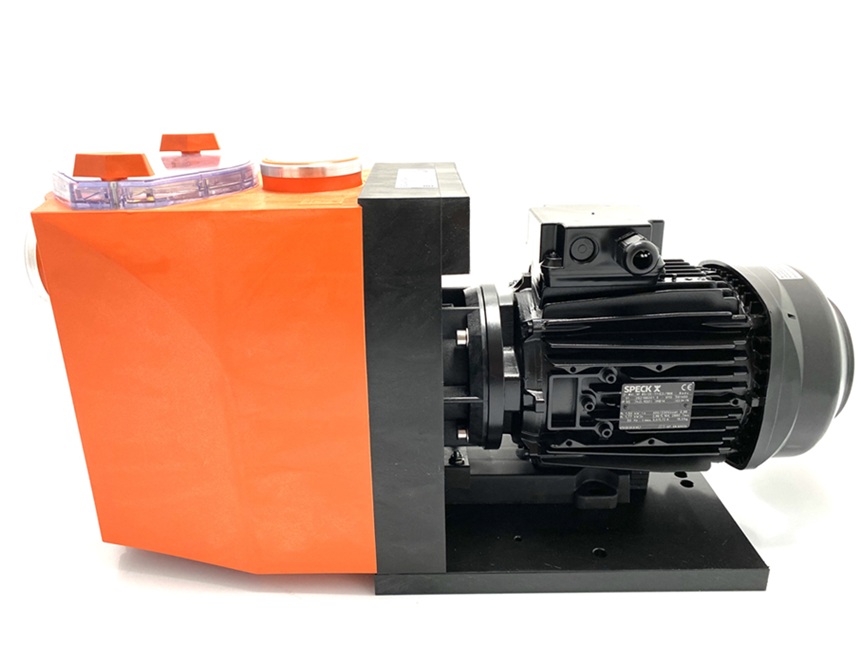

BADU 40 AK

High-quality, proven self-priming filter circulation pump in AK design, for saltwater, seawater, brine, with an intermediate chamber - installable up to a maximum of 3 m above or below the water level. The "AK" version of the BADU pump corresponds to the standard variant, but thanks to an intermediate chamber the seal housing is not mounted directly on the A-side motor bearing; it is separated from the motor by an additional intermediate space and a labyrinth plate. Any leaking medium and crystallising minerals or salts therefore do not come into contact with the motor and bearing. This allows for a significantly longer service life compared with standard pumps for these applications.

Applications:
Thermal waters, thermal brine, seawater aquaria with artificially treated seawater, brining plants, and various challenging media subject to review of components and concentrations.
When ordering, the medium must always be specified precisely so that pump compatibility can be checked.

Use of these pumps for swimming pools and their protective zones is only permitted if they are installed in accordance with DIN/VDE 0100 Part 702. Please consult your electrician.
Electrical connection should in principle be carried out by a qualified electrician.

Technical modifications reserved. Images similar.
