BADU 40 AK

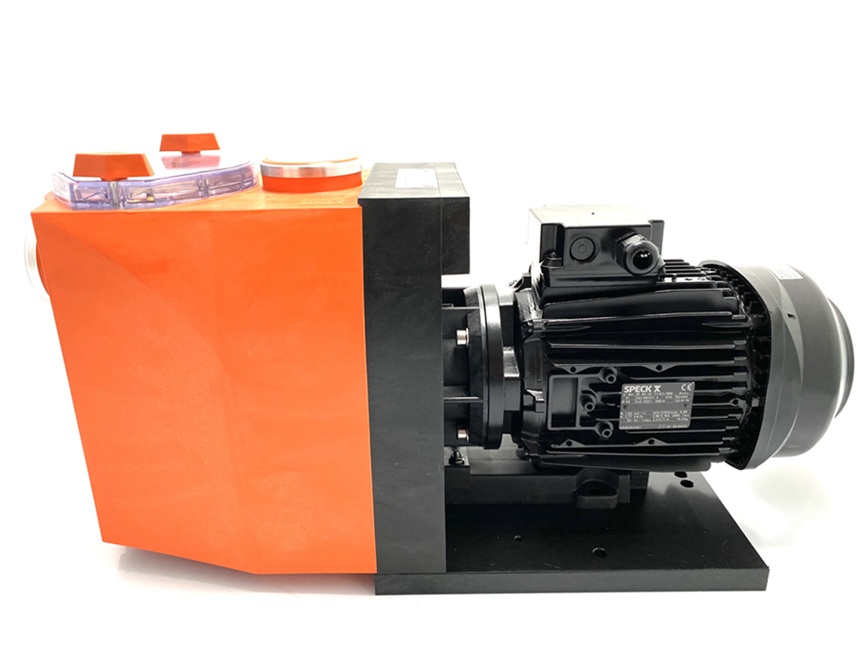

BADU 40 AK-SSV seawater pool circulation pumps
High-quality, proven self-priming filter circulation pump in AK design, for saltwater, seawater, brine, with an intermediate chamber - installable up to a maximum of 3 m above or below the water level. The "AK" version of the BADU pump corresponds to the standard variant, but thanks to an intermediate chamber the seal housing is not mounted directly on the A-side motor bearing; it is separated from the motor by an additional intermediate space and a labyrinth plate. Any leaking medium and crystallising minerals or salts therefore do not come into contact with the motor and bearing. This allows for a significantly longer service life compared with standard pumps for these applications.
Applications:
Thermal waters, thermal brine, seawater aquaria with artificially treated seawater, brining plants, and various challenging media subject to review of components and concentrations.
When ordering, the medium must always be specified precisely so that pump compatibility can be checked.
Use of the pumps for pools and their security zone is only permitted, if they are constructed according to DIN/VDE 0100 part 702. Please consult your qualified electrician!
The electrical connection should generally be installed and carried out by a qualified electrician.
Subject to technical modifications and errors.
