ZP Speedcontrol Comfort
€685.00
Available in approx. 14 days, delivery time 2-4 days
Product number: 18858
Product information "ZP Speedcontrol Comfort"
Electronic speed control with built-in frequency control, dry run protection and frost protection, ZP Speedcontrol Comfort, for optional control of pumps with alternating current or three-phase motors
Product benefits:
- Dry-run protection
- Frost protector
- Alarm recording
- Automatic reset function
- adjustable pressure 0.5 to 13 bar
- freely adjustable differential pressure and run-on time
- LCD clear text display, illuminated
- Connection possibility of AC- and DC pumps
- insulation-protected PVC housing IP 54
- PG connections with strain relief
Model
- With ART System (Automatic Reset Test). With dry-running, the system stops automatically and re-starts automatically in periodic cycles.
- Automatic recovery of system settings after a power failure
- Built-in pressure transmitter with digital display. Built-in flow sensor with permanent digital detection. Recording of operations and thus information about operating hours, number of starts, number of power interruptions. Alarm recording: Type and number of alarm messages from the date of commissioning
- Protection from wrong connection and overcurrent.
- Protection from short-circuit.
- Built-in protection against dry running
- AIS function (Anti-ice System) with integrated temperature sensor. If the temperature falls below 5°C, the pump will be activated to frost protection mode.
- Mains supply 230V (three-pin plug)
Application
- Control for individual pumps with three-phase motor (3 x 230 V, 10 MT) by means of frequency converter
Technical data
- Power supply: 230 V
- Frequency: 50/60 Hz
- Power P1: 2.200 W
- Nominal current: 9/10 (3x230V) A
- Max. temperature: 040 °C
- Max. flow rate: 10 m³/h
- Head up to: 15 m

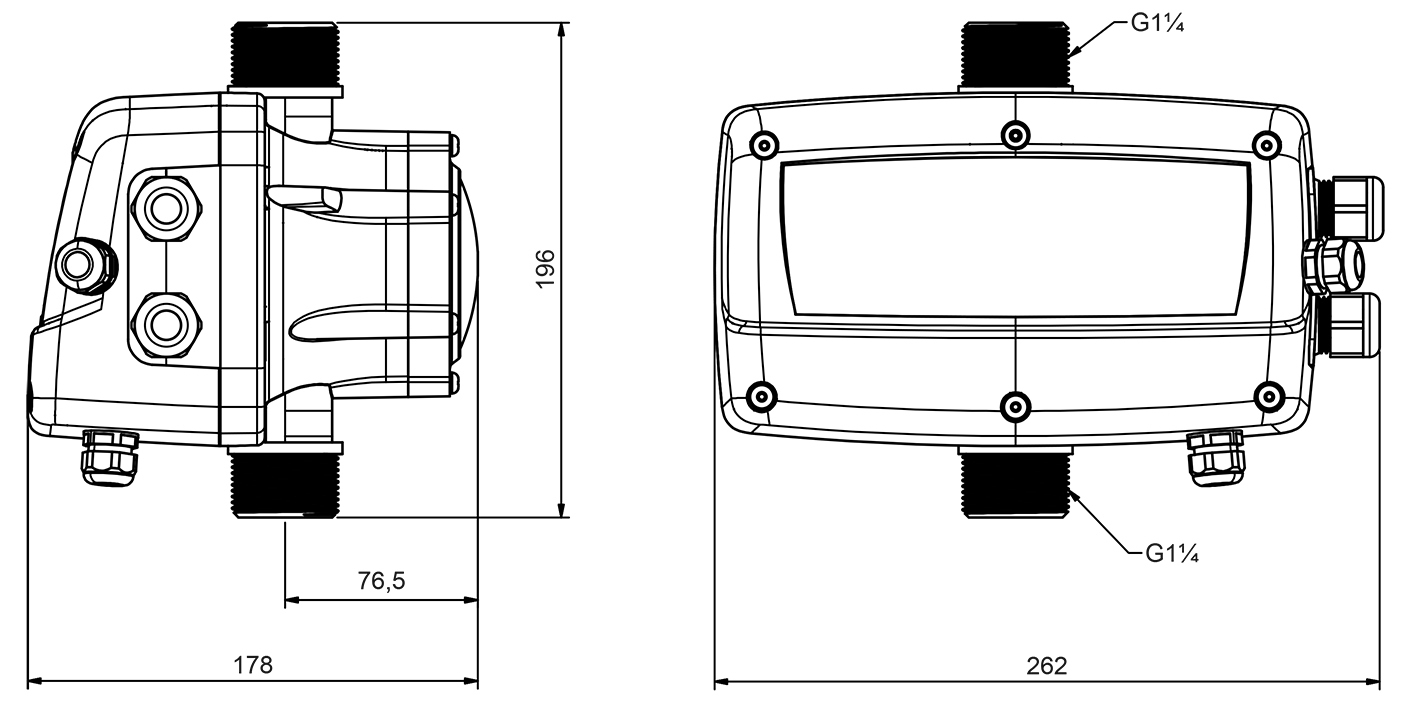

- Width: 178 mm
- Length: 262 mm
- P-dimensions (WxHxL): 190 mm x 210 mm x 295 mm
