ZP Speedcontrol Basic MT
€550.00
Available in approx. 14 days, delivery time 2-4 days
Product number: 20198
Product information "ZP Speedcontrol Basic MT"
Electronic speed control with built-in frequency control, dry run protection and frost control, ZP Speedcontrol Basic MT
Product benefits:
- Dry-run protection
- Frost protector
- Alarm recording
- Auto-reset function
- adjustable pressure 0.5 – 8 bar

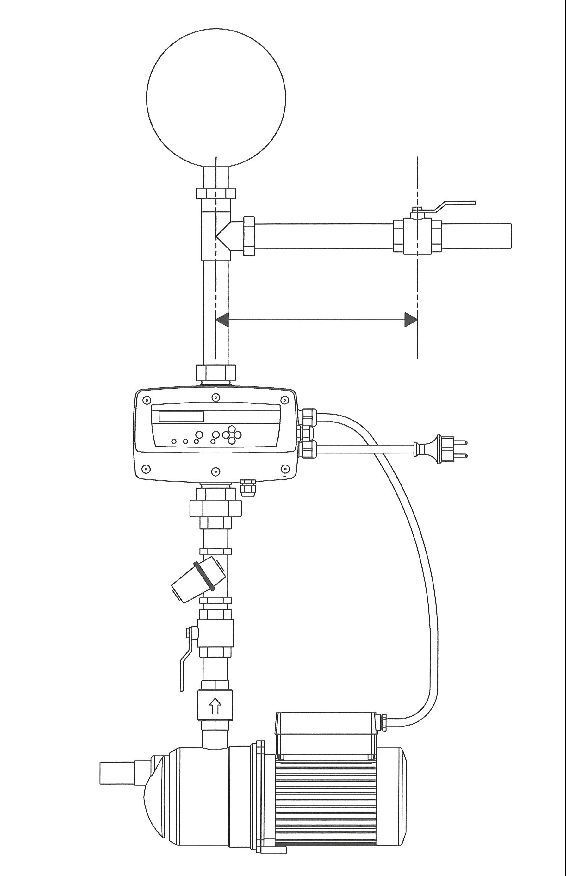

- very easy installation (by connecting the control and setting the desired pressure)
- insulation-protected PVC housing IP55
- PG connection with strain relief
Model
- With ART System (Automatic Reset Test). With dry-running, the system stops automatically and re-starts automatically in periodic cycles.
- Automatic recovery of system settings after a power failure
- Built-in pressure transmitter with digital display. Built-in flow sensor with permanent digital detection. Recording of operations and thus information about operating hours, number of starts, number of power interruptions. Alarm recording: Type and number of alarm messages from the date of commissioning
- Protection from wrong connection and overcurrent.
- Protection from short-circuit.
- Built-in protection against dry running
- AIS function (Anti-ice System) with integrated temperature sensor. If the temperature falls below 5°C, the pump will be activated to frost protection mode.
- Mains supply 230V (three-pin plug)
Application
- Control for individual pumps with three-phase motor (3 x 230 V, 10 MT) by means of frequency converter
Technical data
- Power supply: 1~230/3~230 V
- Frequency: 50/60 Hz
- Max. temperature: 040 °C
- Max. flow rate: 15,0 m³/h

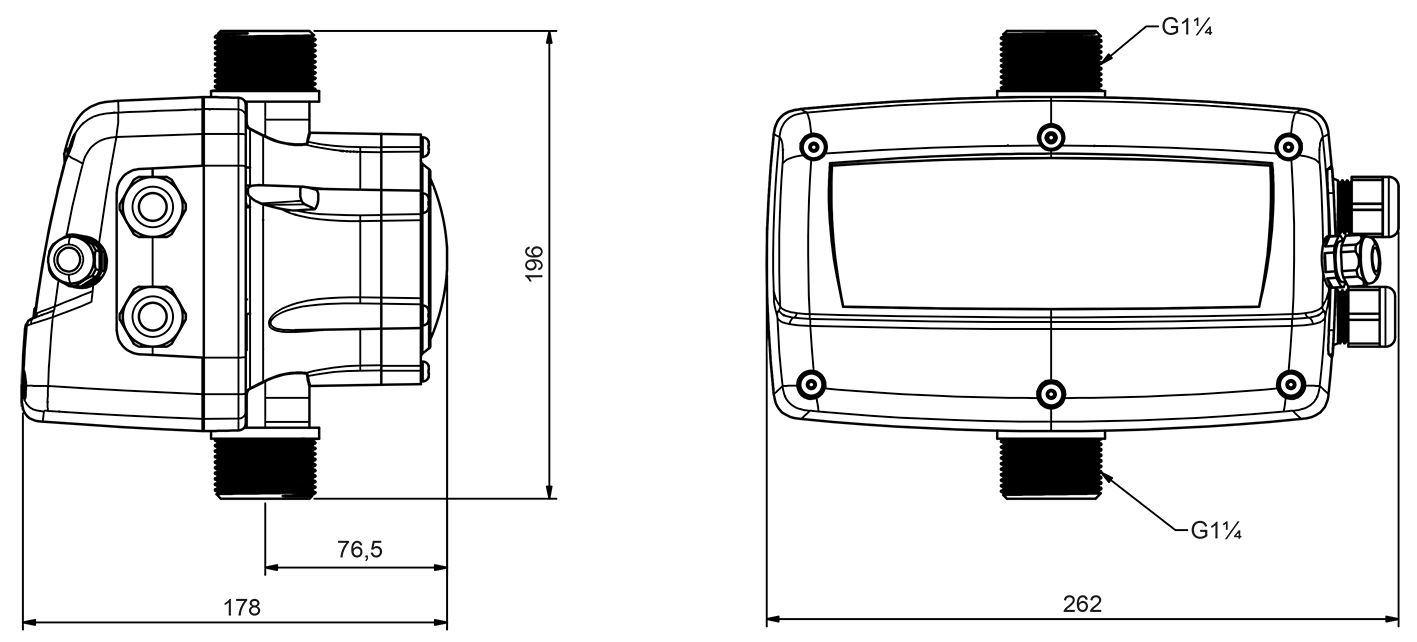

- Width: 178 mm
- Length: 262 mm
