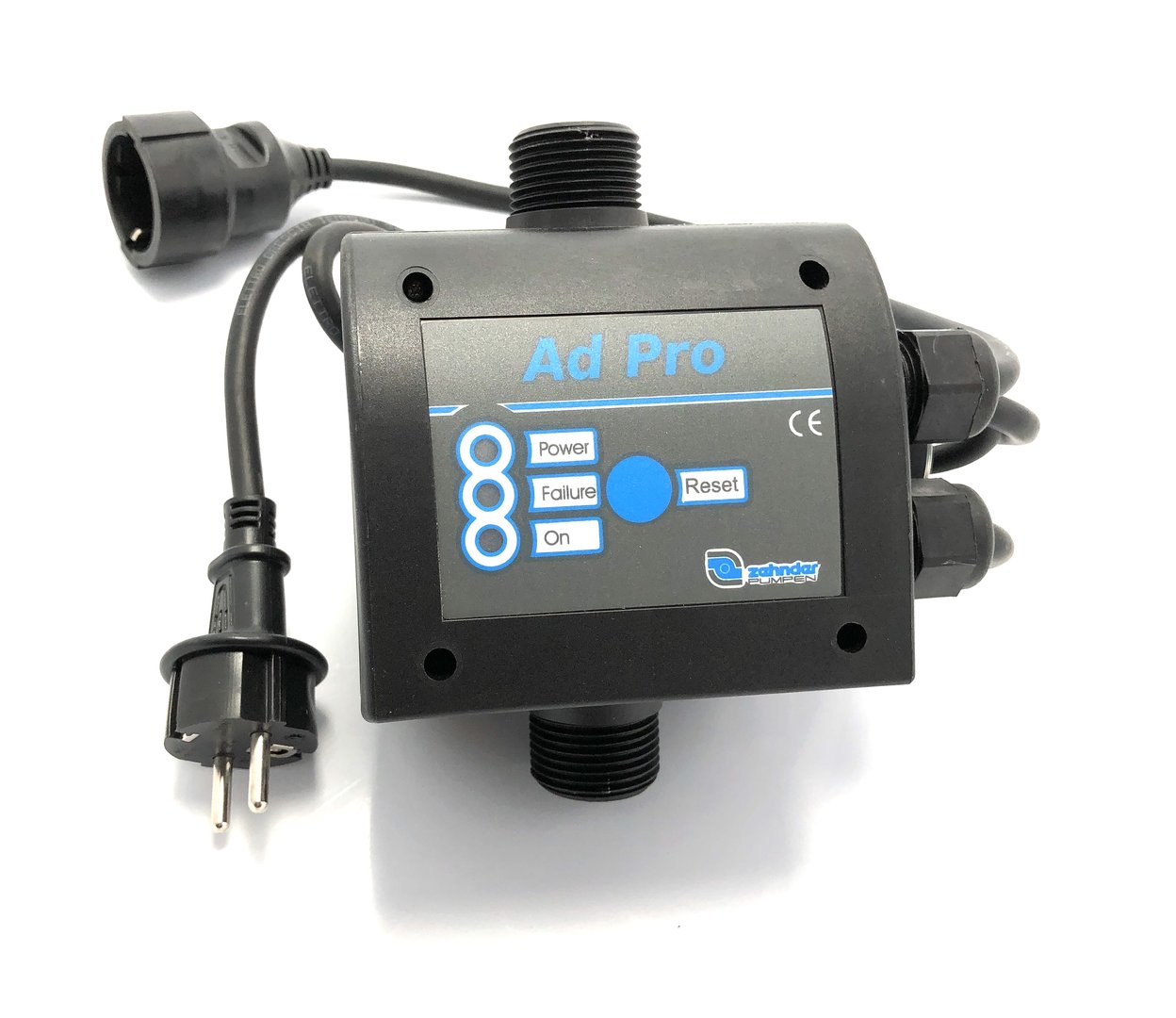

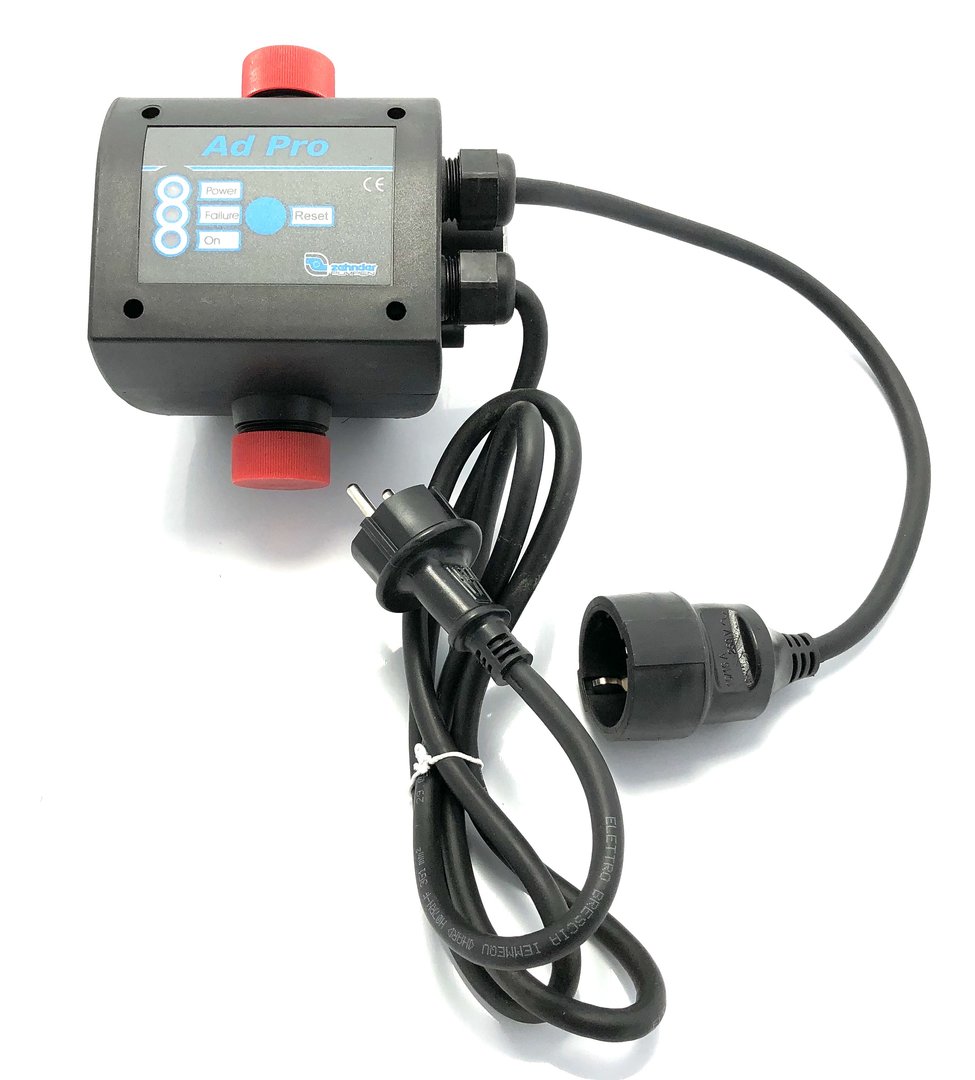

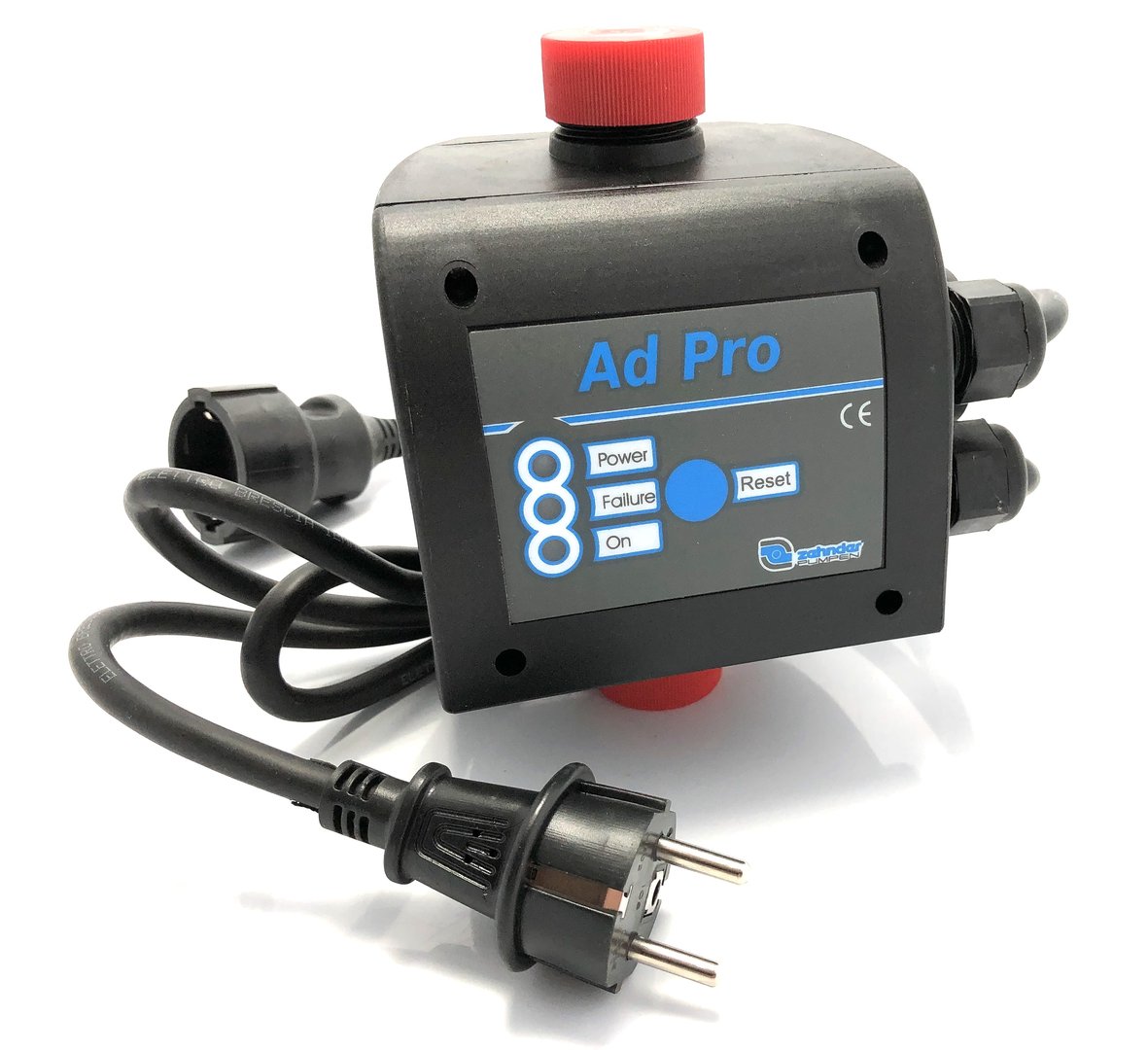

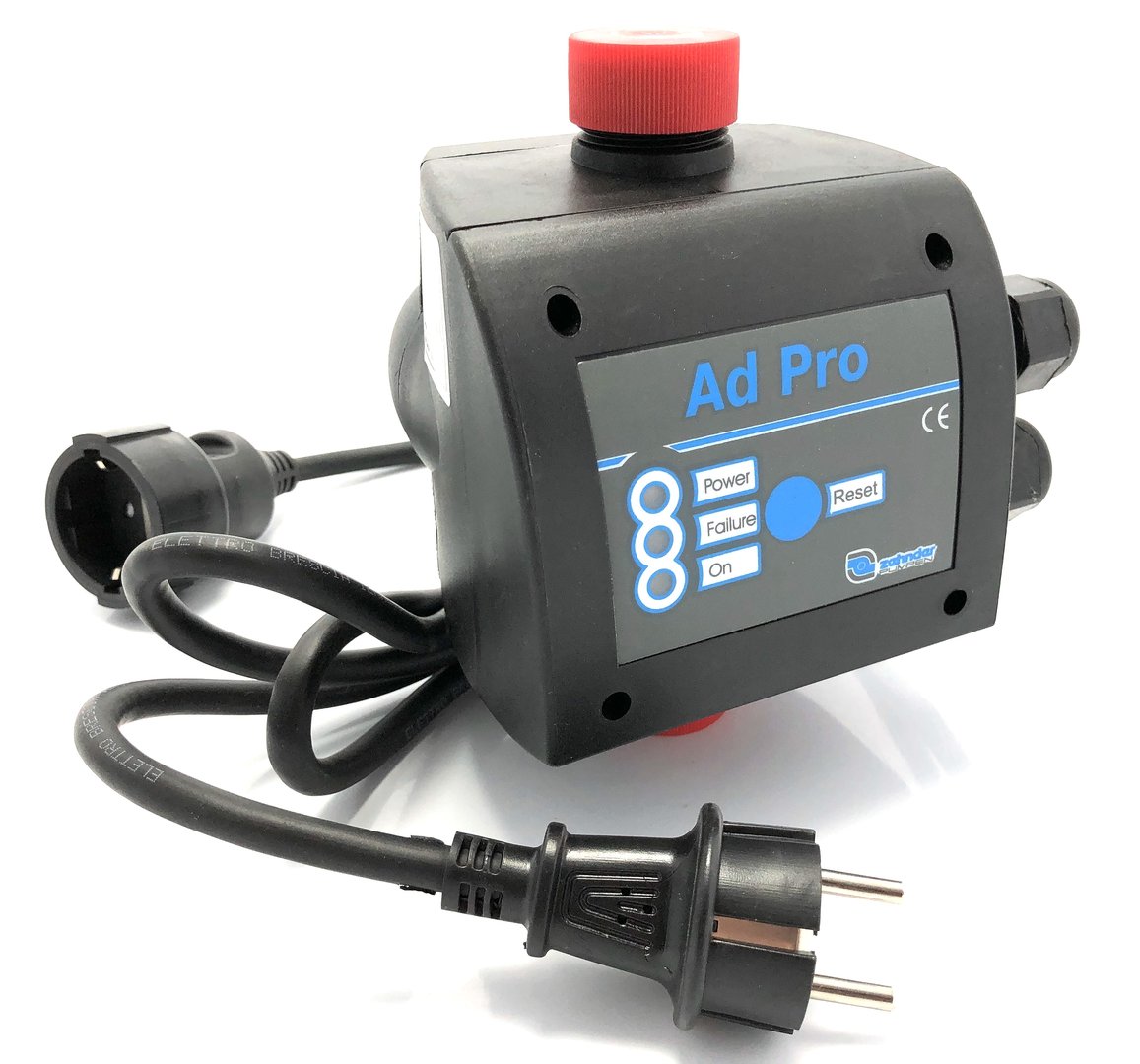

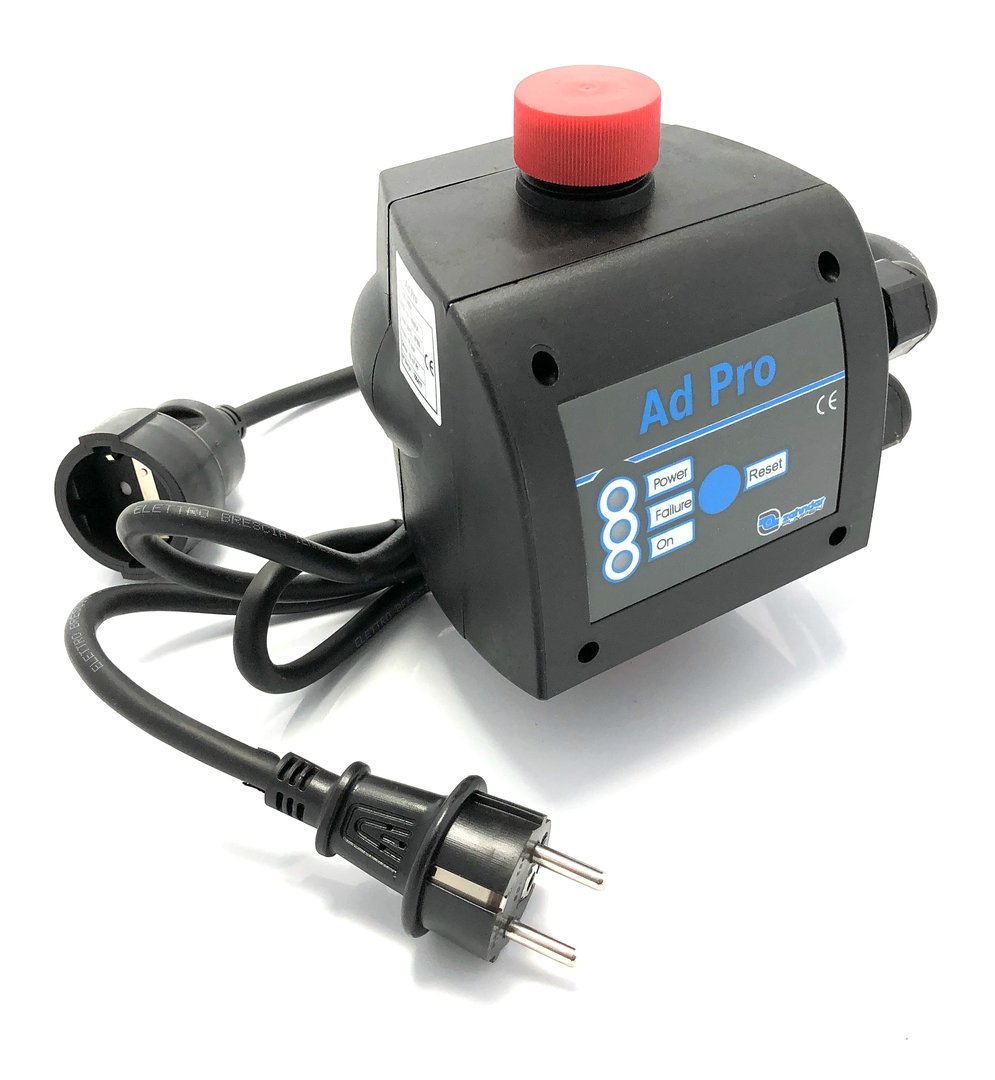

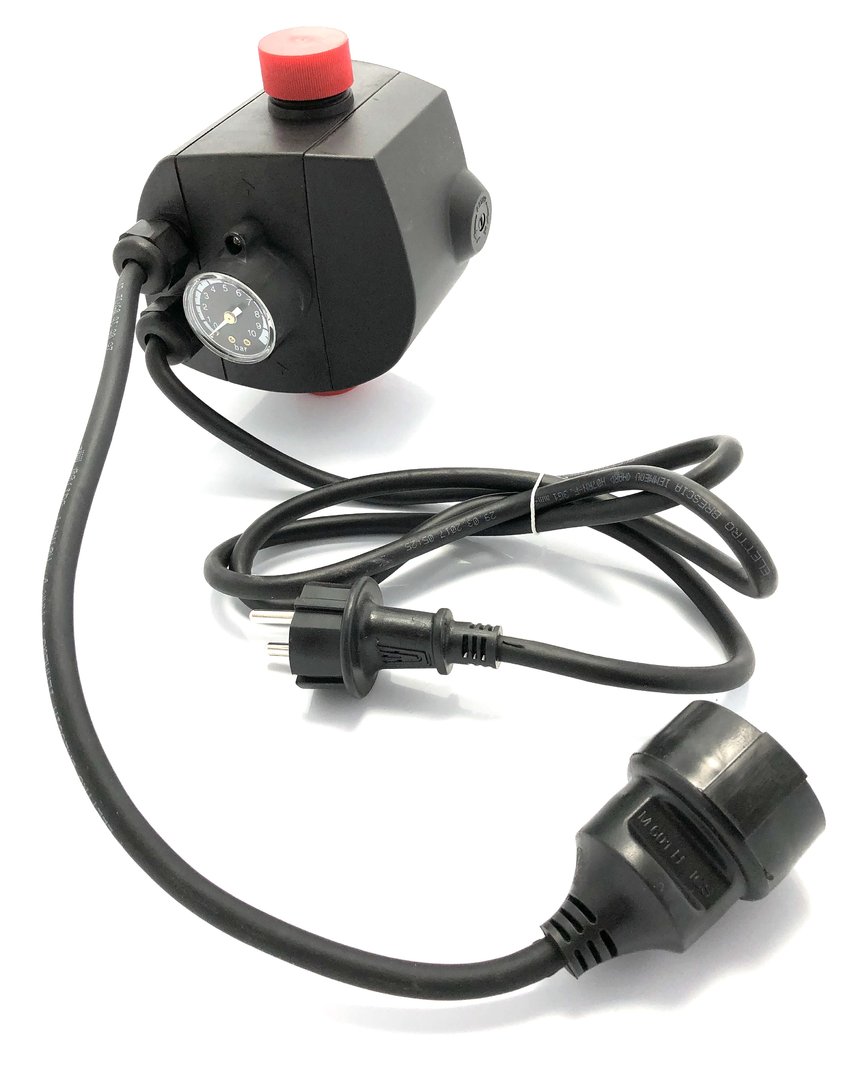

ZP Control Ad Pro
€175.00
Available, delivery time: approx. 2-4 days
Product number: 20293
Product information "ZP Control Ad Pro"
Electronic speed control with cable and coupling, with built-in dry run protection and non-return valve, ZP Control Ad Pro
Product benefits:
- Integrated dry-running protection
- Auto-reset function
- Easy to install
- Compact dimensions
- Requires no maintenance
Model
- exactly adjustable start pressure 1.5 - 3.0 bar
- built-in protection against dry running
- Protection against pressure shocks
- With ART System (Automatic Reset Test). With dry-running, the system stops automatically and re-starts automatically in periodic cycles.
- Protection class IP 65
Application
- The Ad Pro is a compact device for the automatic control and protection of electric pumps. It combines pressure switch, float switch and check valve.
Technical data
- Power supply: 230 V
- Frequency: 50/60 Hz
- Nominal current: 12 A
- Max. temperature: 060 °C

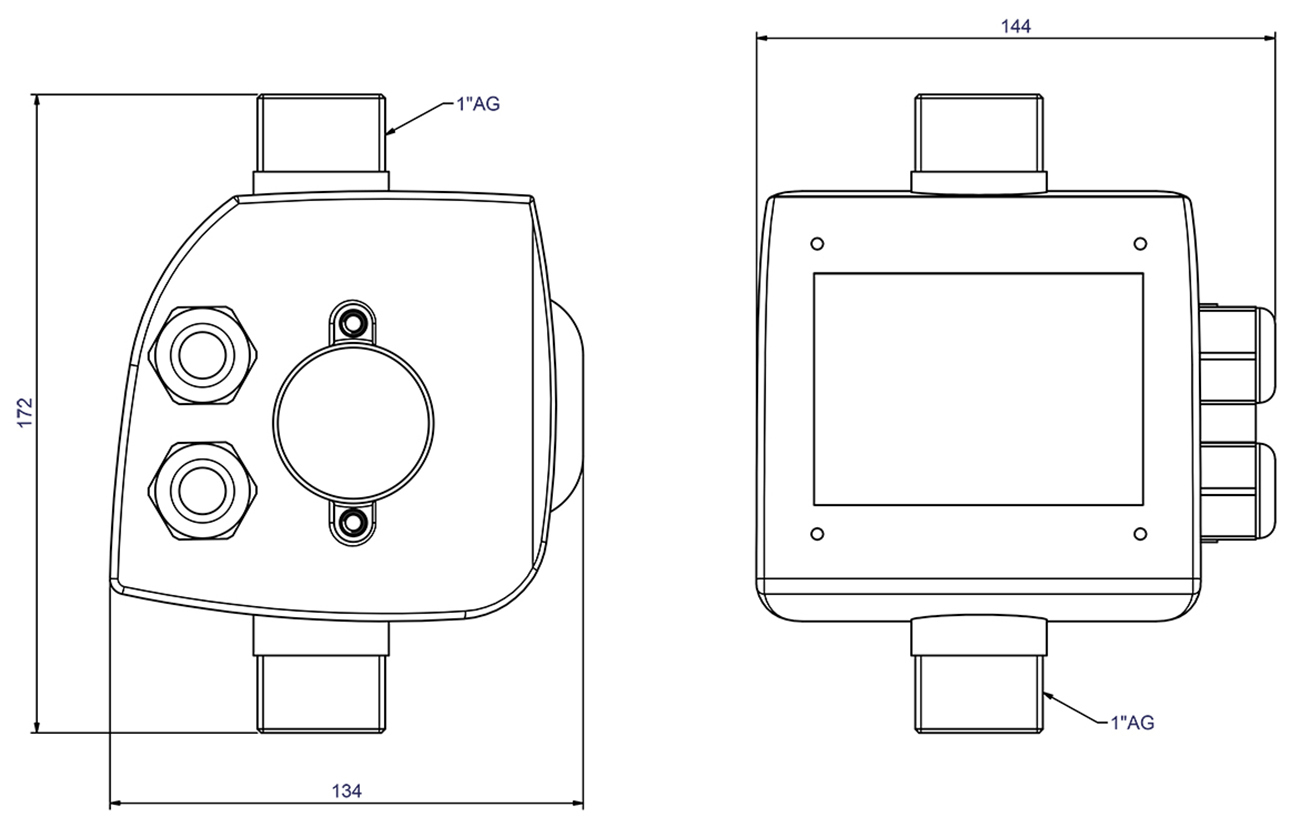

- Width: 144 mm
- Diameter: 162 mm
