W 80
€8,602.83
Available in approx. 14 days, delivery time 2-4 days
Product number: 10537
Product information "W 80"
Single-pump sewage lifting unit W 80, 400 V, with vortex pump and comfortable level control, for pumping of domestic or commercial sewage
Model
- polyethylene container with 350 litres capacity and up to 175 litres switching volume
- vortex pump with large solids handling
- mechanical seal and shaft seal with intermediate oil chamber
- pump housing with cast-on outlet bend DN 100
- lateral inlet with loose-type flange DN 100
- additional connection 1 ½“ for manual diaphragm pump
- air vent with loose-type flange DN 100 (Ø 110 mm)
- operation temperature max. 55°C
- operating mode S3 - 25%
- protection grade IP 57 - temporarly submersible

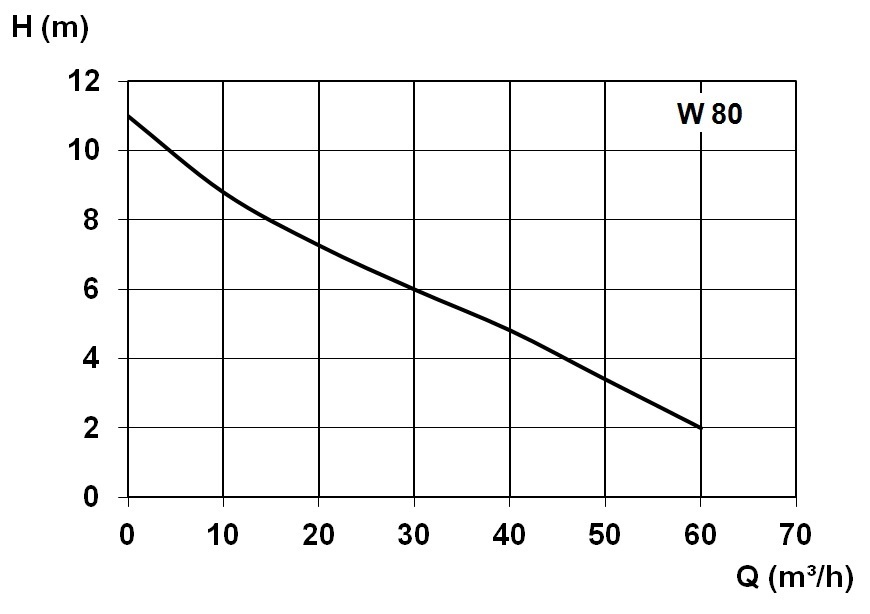

- Max. flow rate 60,0 m³/h
- Head up to 11,0 m
Application
- drainage of sewage from apartment buildings or industrial enterprises etc.
- above-ground installation in frost-free rooms below the backflow level
Scope of delivery
- pre-assembled lifting unit with 3,5 m connection cable to the motor and 3,5 m pneumatic tube to the control
- incl. ZPS1: comfortable, pneumatic level control with microcontroller, LCD plain text display for filling level, maintenance, operating hours, fault message and alarm signal in switchbox for indoor installation
- Attention! Non-return valve, gate valve and further junction fittings optional
