WUZ 100 4,0, 400 V
€12,177.67
Available in approx. 14 days, delivery time 2-4 days
Product number: 10546
Product information "WUZ 100 4,0, 400 V"
Single-pump sewage lifting unit WUZ 100 4,0 400 V with single-channel impeller pump with fibre cutting insert and large solids handling and comfortable level control, as pre-assembled lifting unit for pumping of domestic or commercial sewage
Model

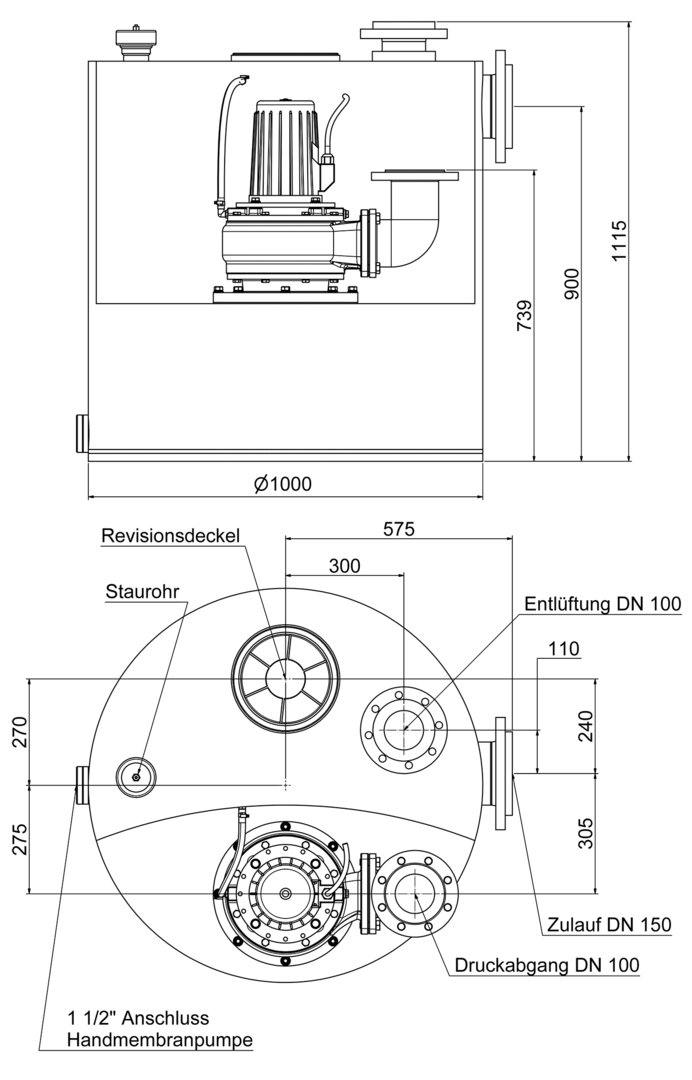

- polyethylene container with 480 litres capacity and up to 270 litres switching volume
- single-channel impeller pump with fibre cutting insert and large solids handling
- mechanical seal and shaft seal with intermediate oil chamber
- pump housing with flanged outlet bend DN 100
- lateral inlet with loose-type flange DN 150
- additional connection 1 ½“ for manual diaphragm pump
- air vent with loose-type flange DN 100 (Ø 110 mm)
- operation temperature max. 55°C
- operating mode S3 - 25%
- protection grade IP 57 - temporarly submersible
Application
- drainage of sewage from apartment buildings or industrial enterprises etc.
- above-ground installation in frost-free rooms below the backflow level
Scope of delivery
- pre-assembled lifting unit with 3,5 m connection cable to the motor and 3,5 m pneumatic tube to the control
- incl. ZPS1: comfortable, pneumatic level control with microcontroller, LCD plain text display for filling level, maintenance, operating hours, fault message and alarm signal in switchbox for indoor installation
- Attention! Non-return valve, gate valve and further junction fittings optional
