BADU Eco Flex

Product information "BADU Eco Flex"

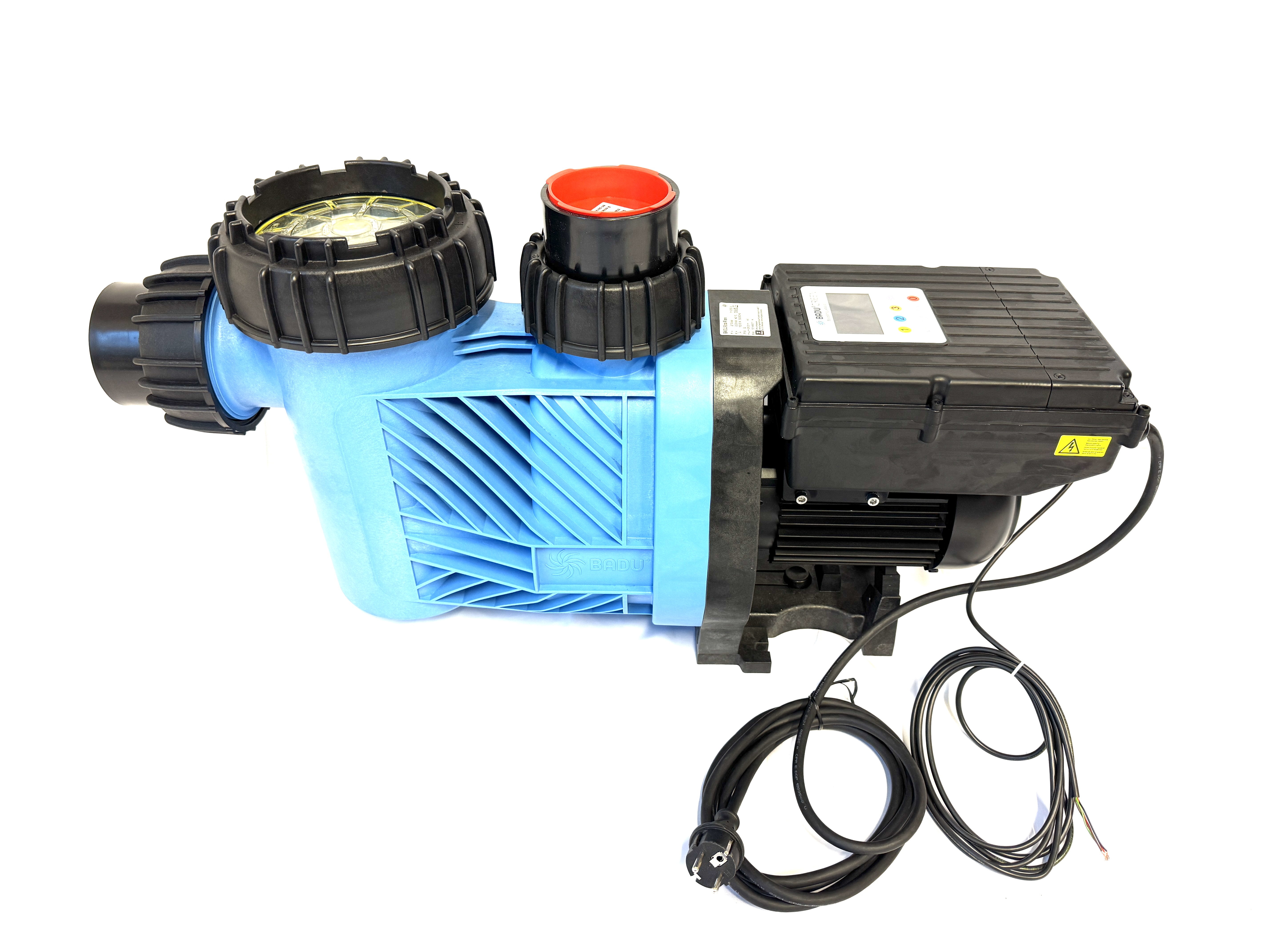

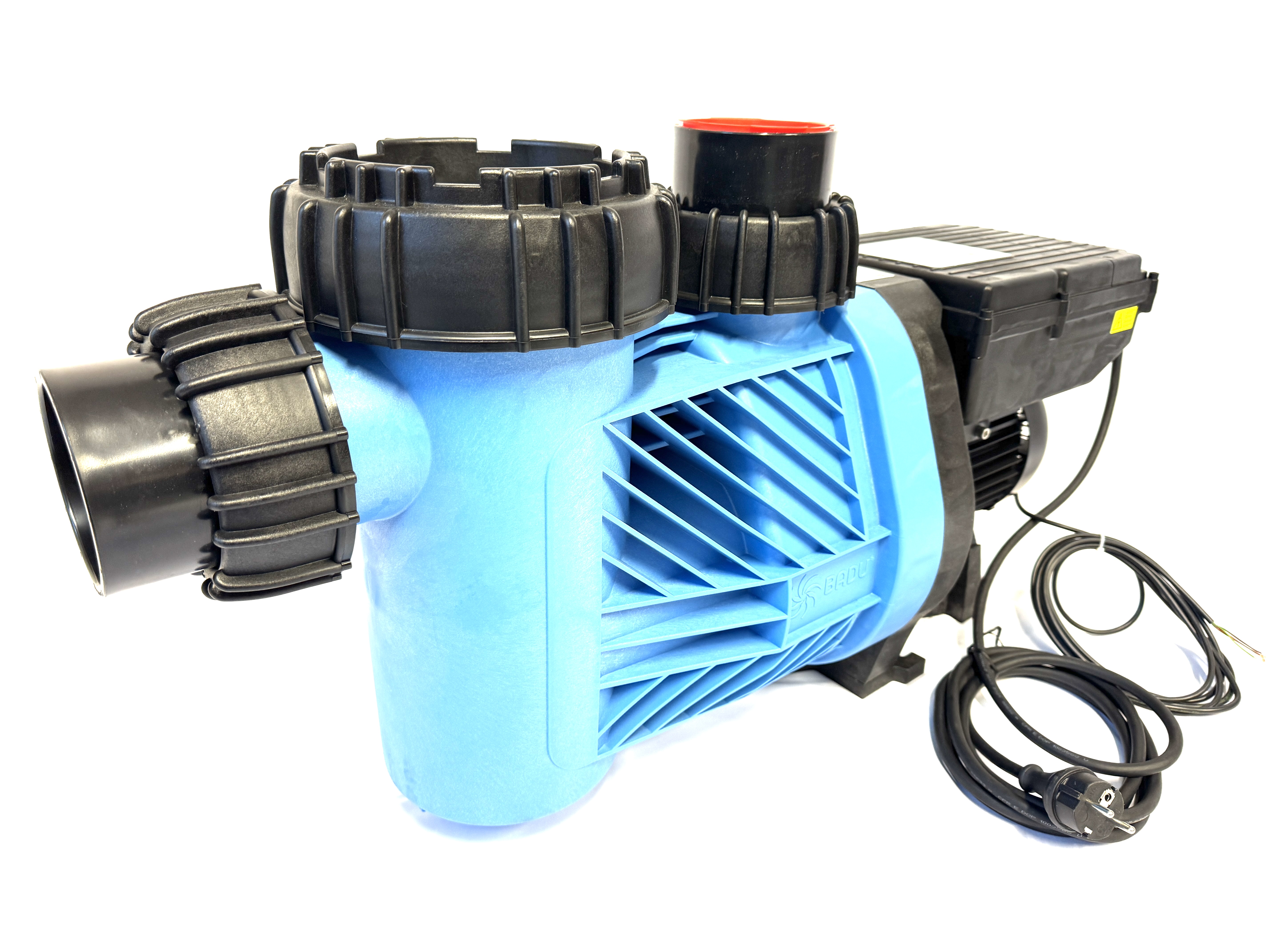

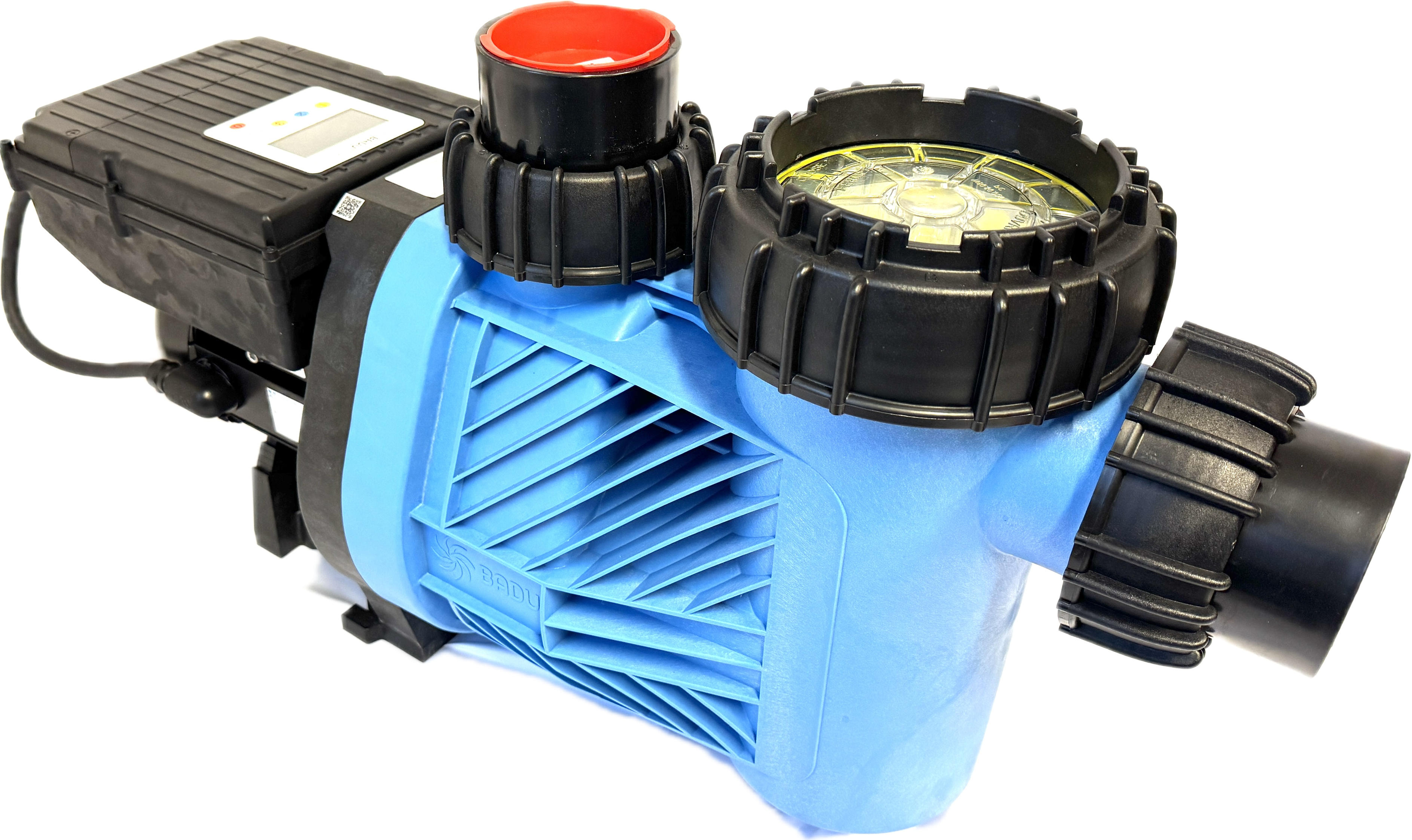

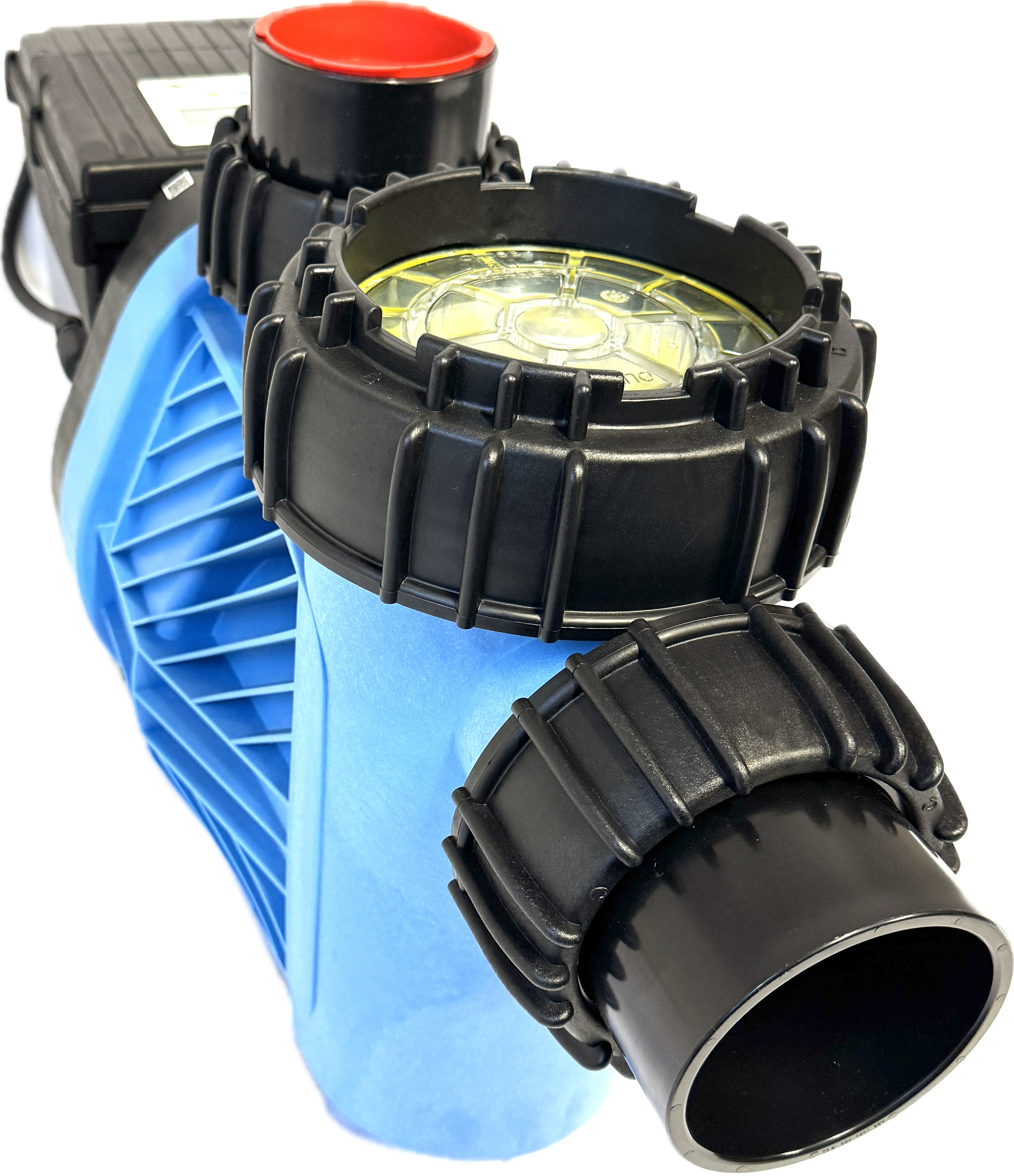

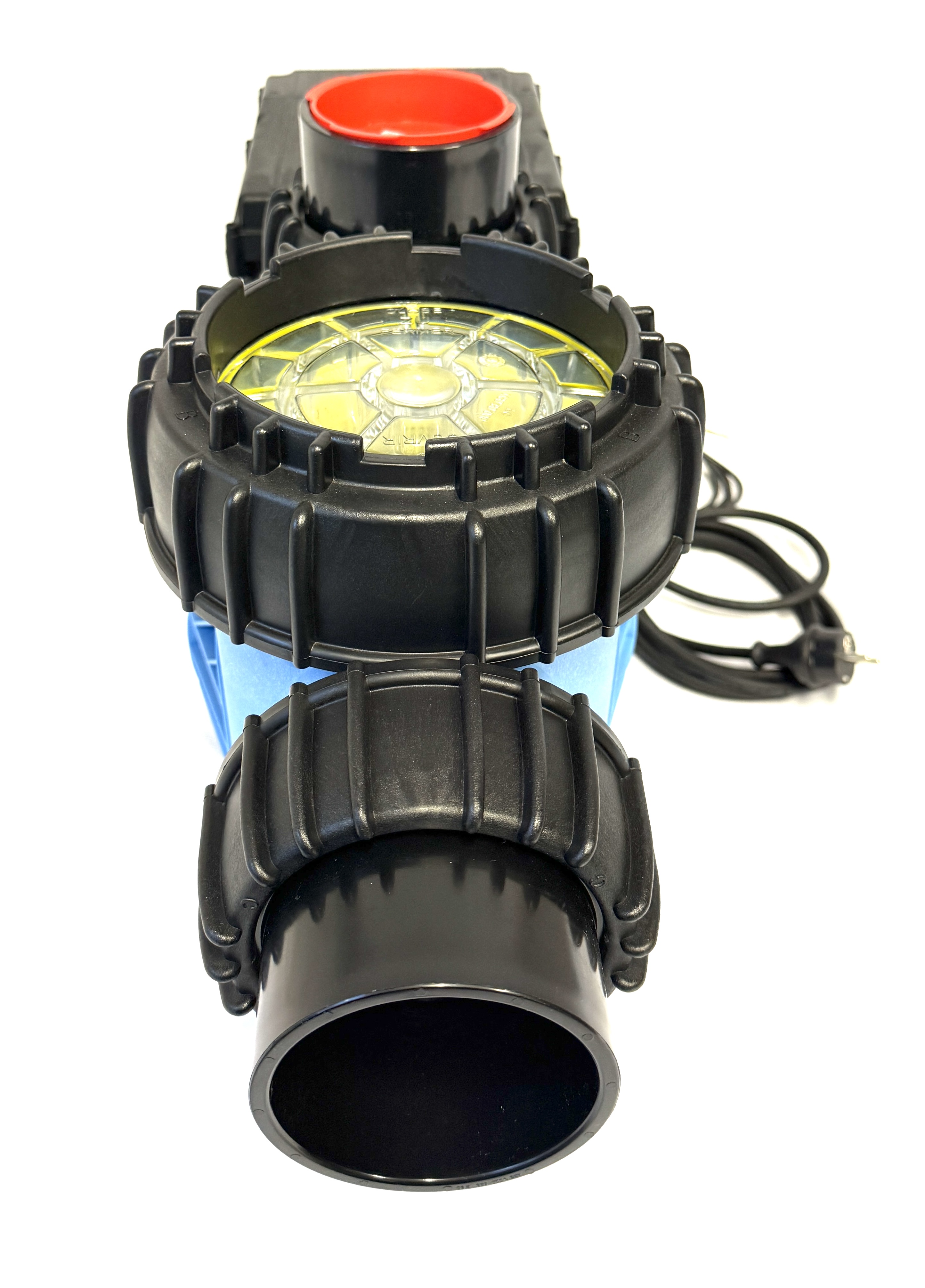

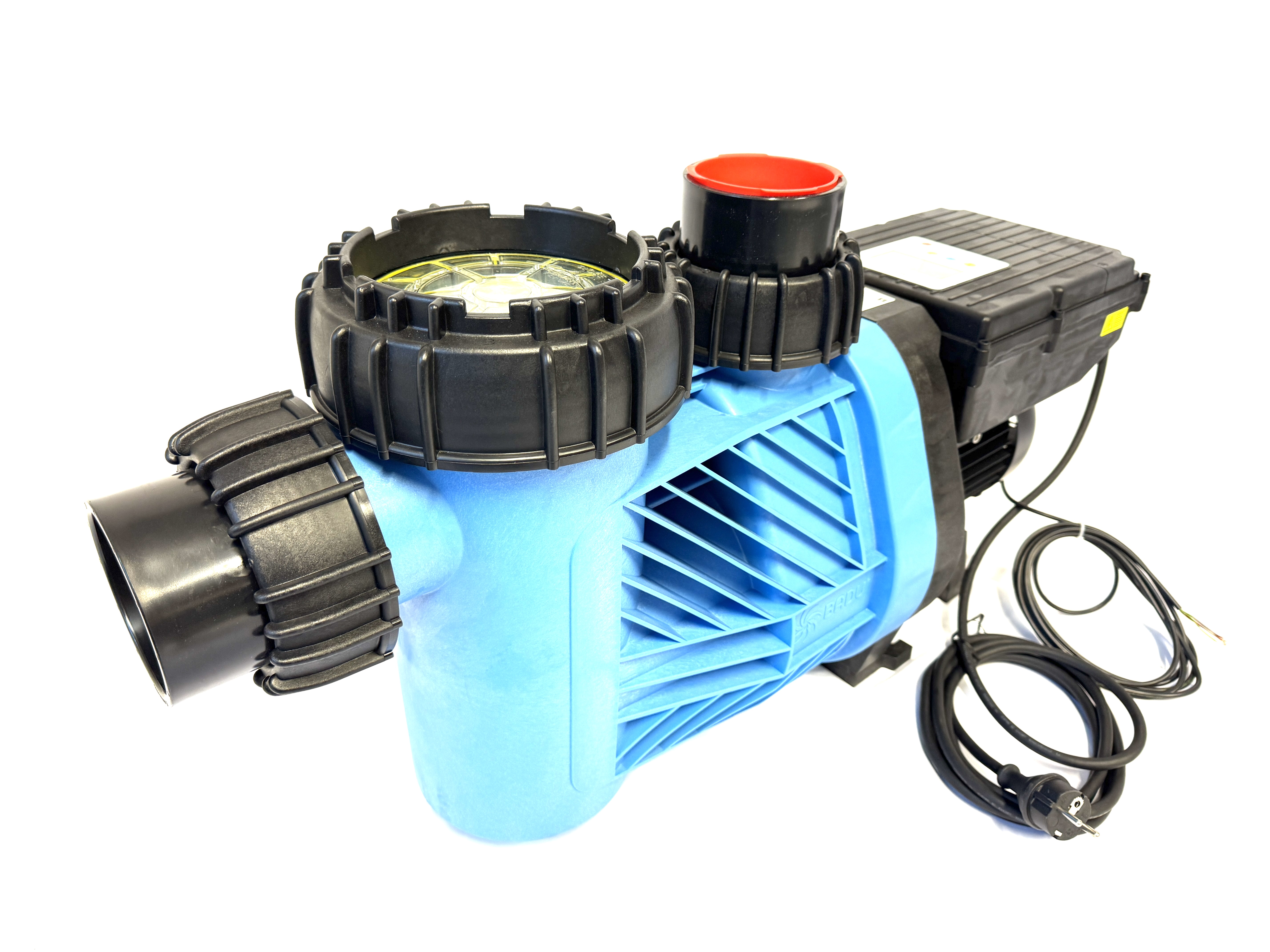

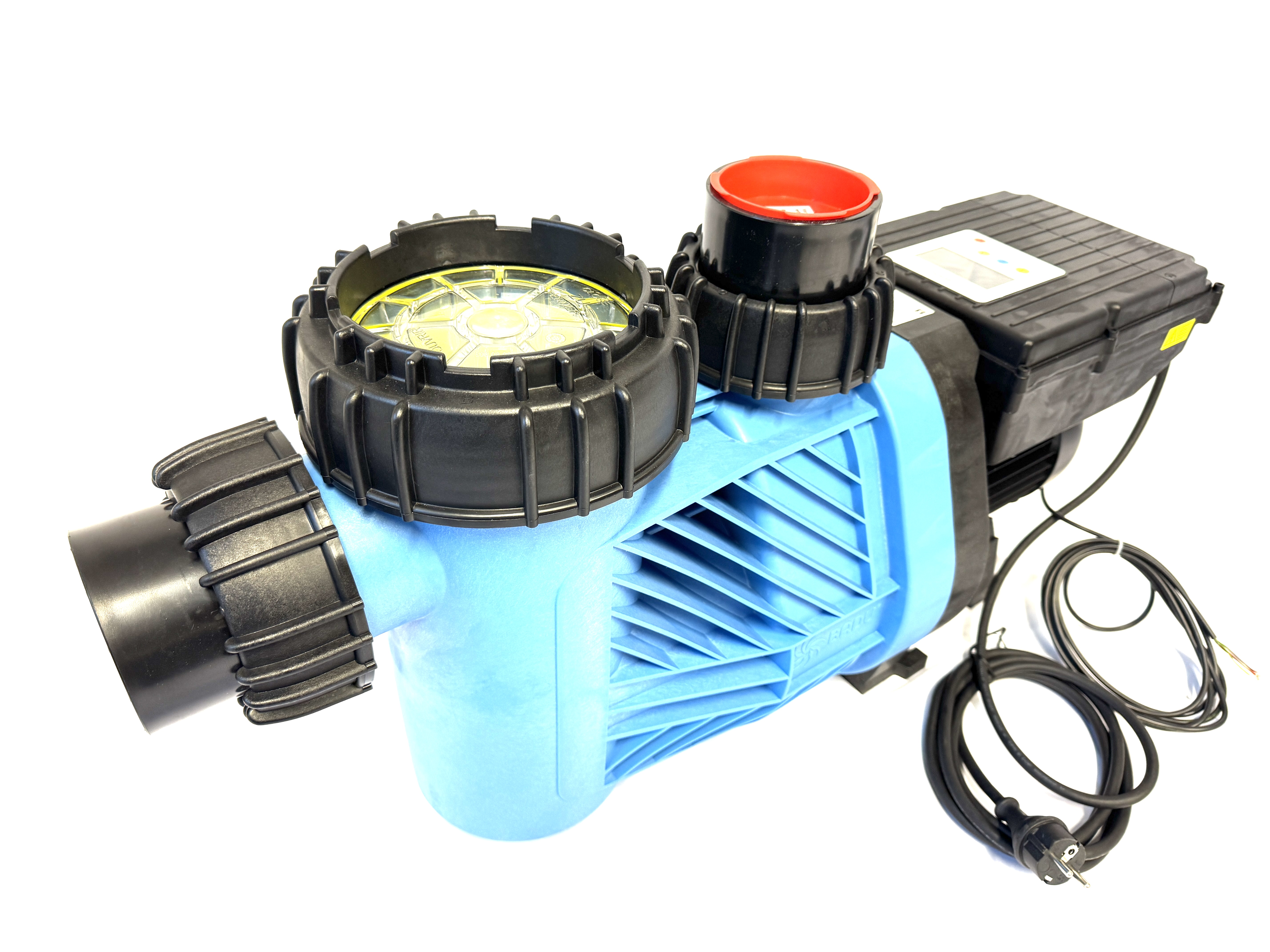

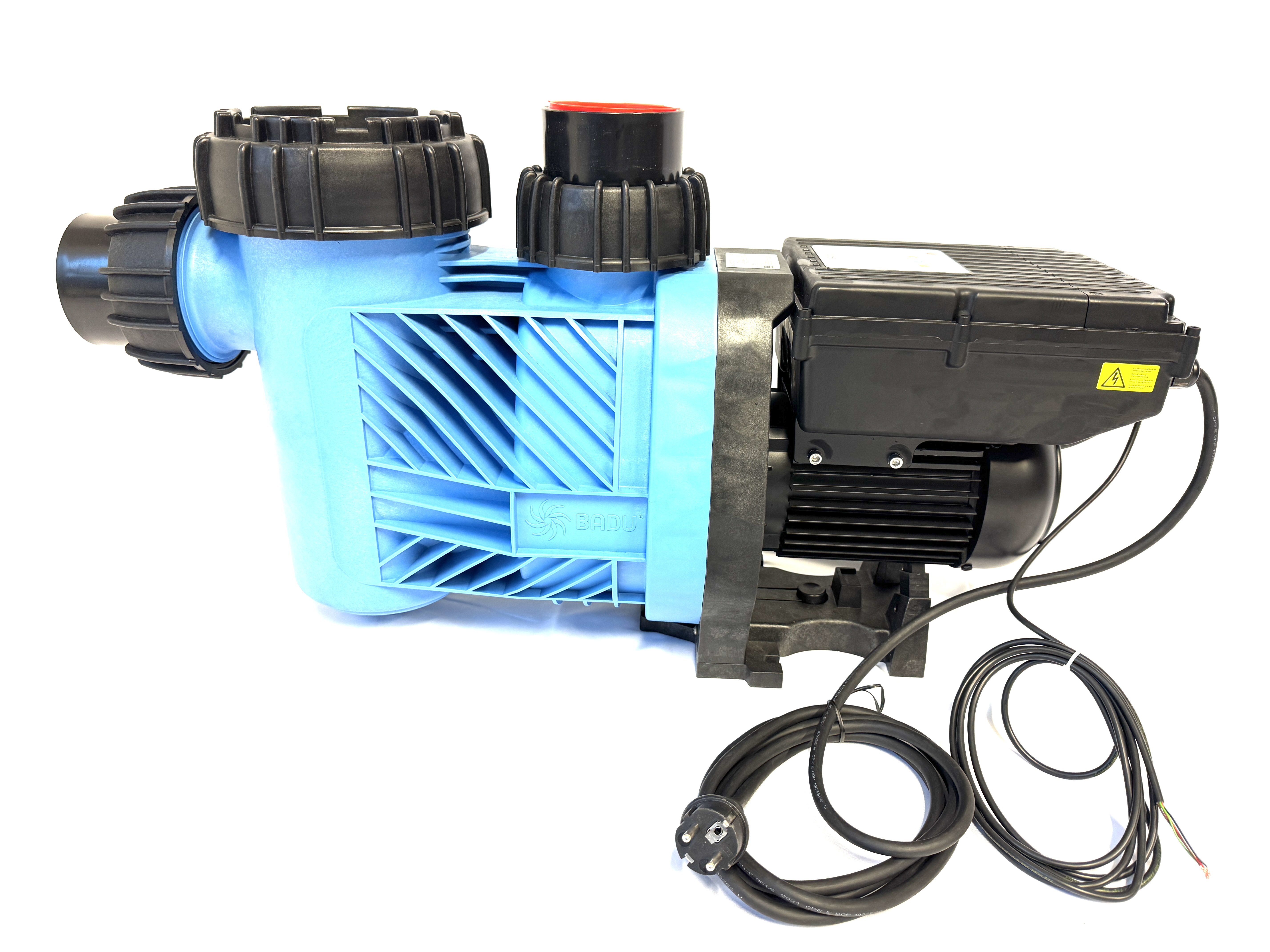

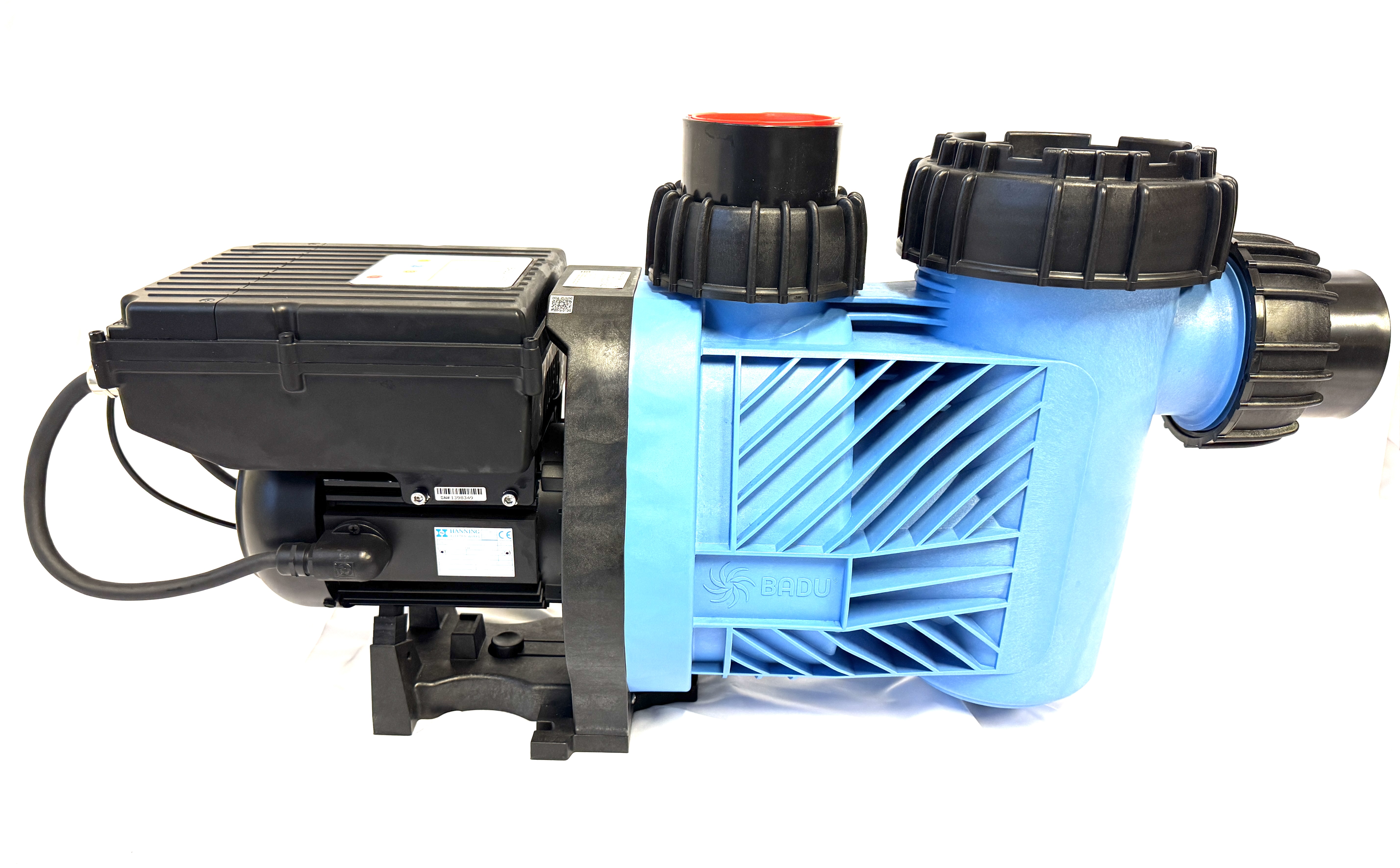

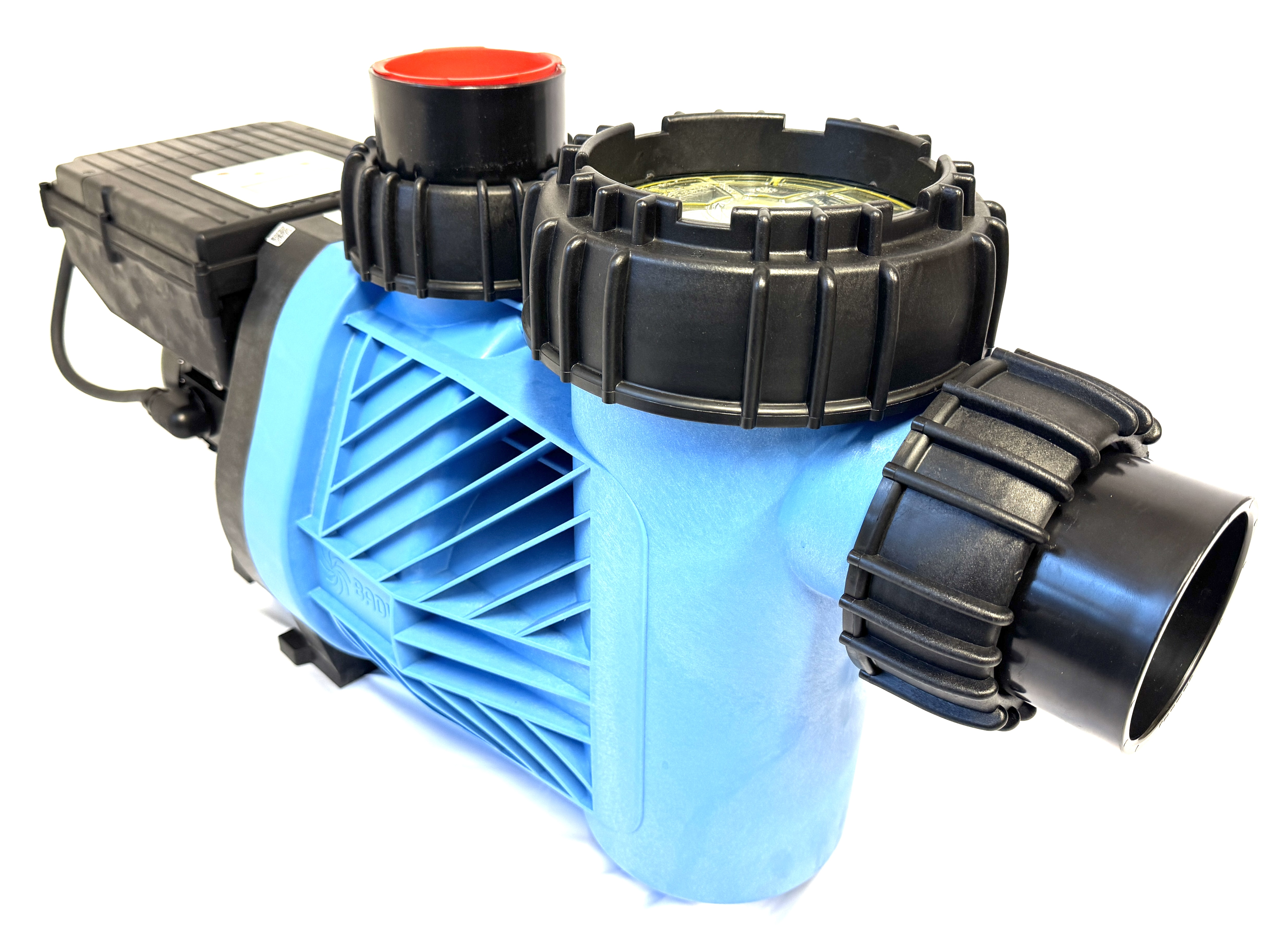

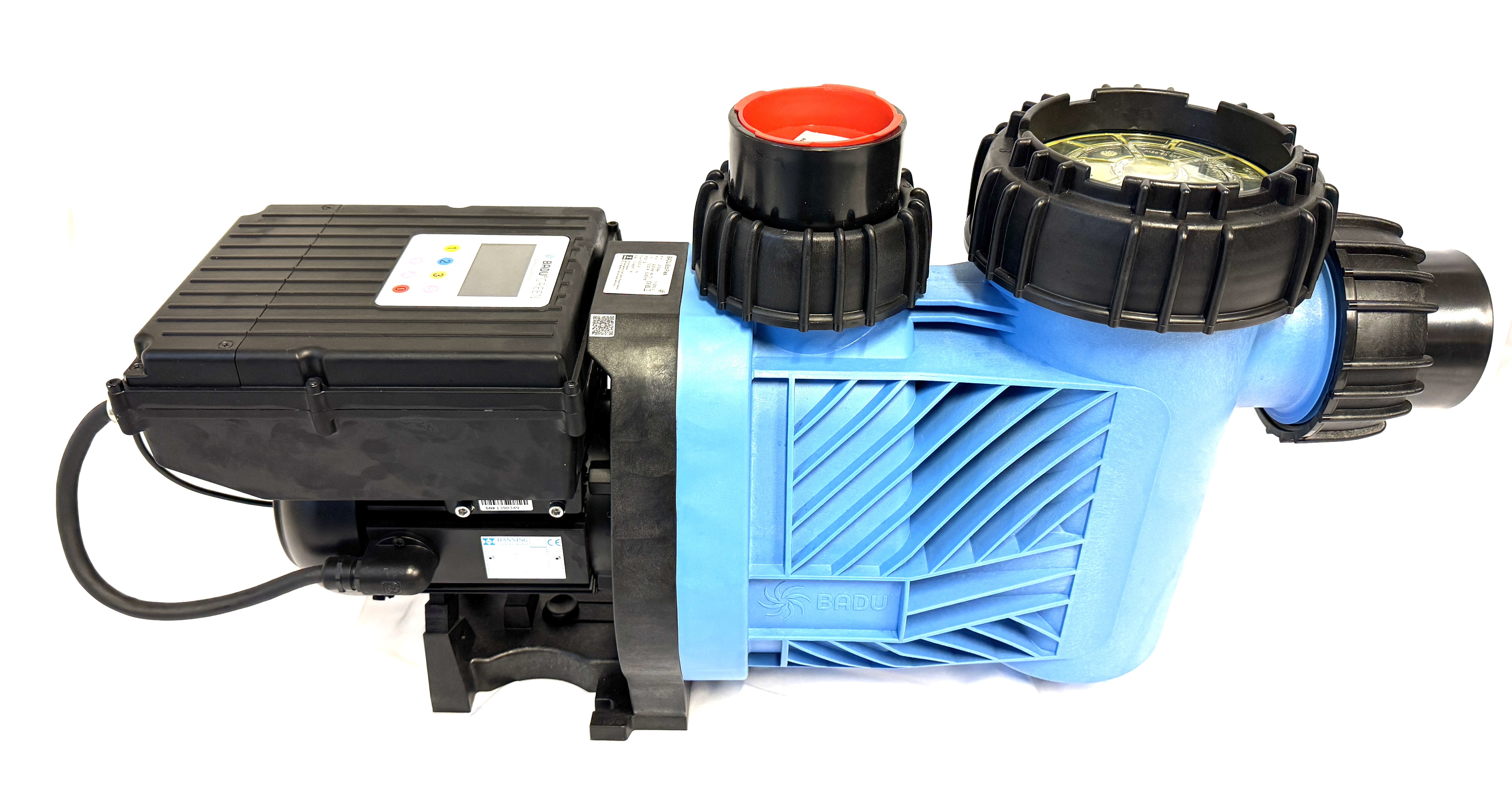

Self-priming filtration circulation pump BADU Eco Flex, alternating current version, with modern, highly efficient motor technology, replaces its predecessor model BADU Eco Motion and BADU 90/40 Eco MV-E. Identical connection measurements, no modification of piping system necessary.

1~230 V
H max. = 20,0 m
Q max. = 40,0 m³/h
Power input P1 (kW): 0,08-2,60
Power output P2 (kW): 0,05-2,20
Rated current = 0,45-12,00 A
Inlet / outlet connection(Da): 90mm/90mm
Weight= approx. 24,5 kg



Strainer basket

PP

Mechanical seal

carbon / ceramic / NBR

Installation

Built-in pool

Pool equipment

Circulation pumps

Gland housing

PP TV 40, PP TV 40

Pool type

Naturpool / Schwimmteich

Diffuser

PP GF 30, PP GF 30

Pump casing

PP GF 30

Impeller

PPE GF 30

Screws

stainless steal

Strainer basket in mm

approx. 3,0 x 2,8

Strainer capacity in l

approx. 6

Intermediate housing

PP GF 30

Glue socket

ABS, ABS

Filter size in mm

920 – 1100

Class

PREMIUM

Lid

PC, transparent / PA 66 GF 30, PC, transparent / PA 66 GF 30

Flow rate Q in m³/h

max. 40

Total head H in m WS

max. 20

Pool size in m³

30 – 200

Motor performance in kW (P2)

max. 2,20

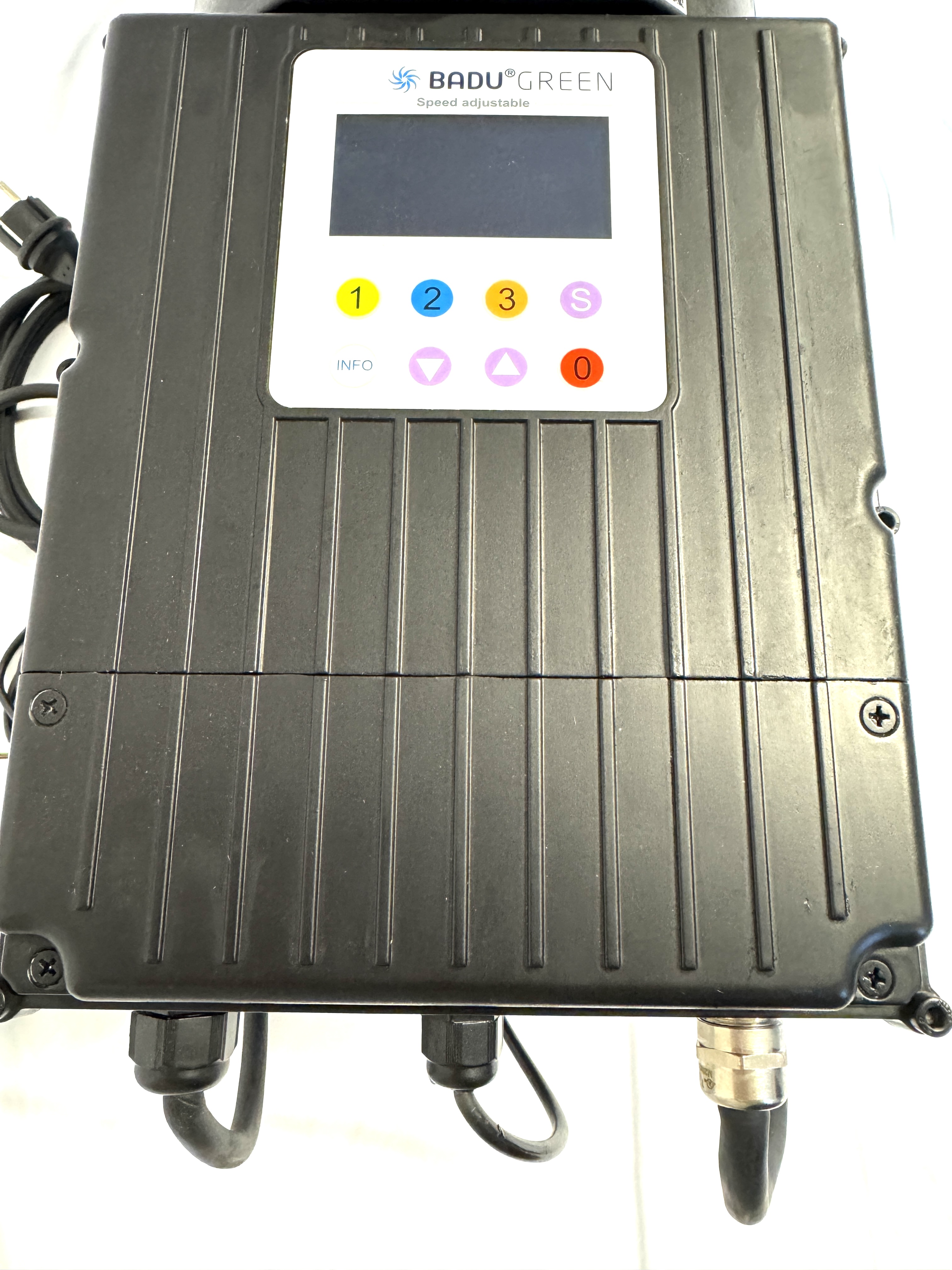

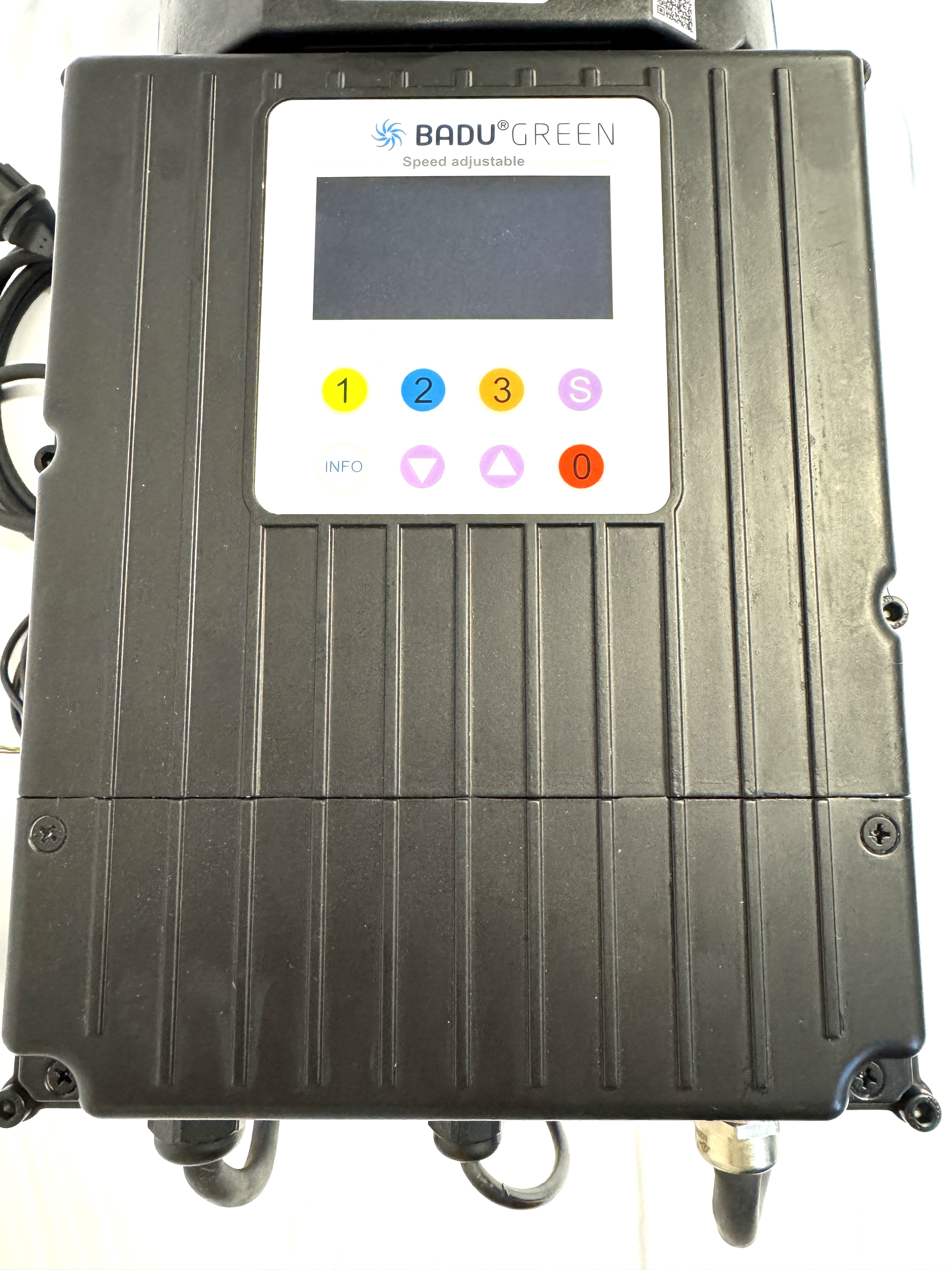

With its motor concept, the BADU Eco Flex becomes an energy-conscious circulation pump for large pools. In the private and public sector, it can be used for pools with a size of 30 – 200 m³. A plug-in converter mounted on the motor allows a space-saving design. The plain text display allows user-friendly programming. The simple programming via touchpad as well as a multitude of analogue and digital interfaces make the application even more effortless.

Field of application

Swimming pool water circulation through a filter system. The pump can be installed max. 3 m above or below water level.

Design

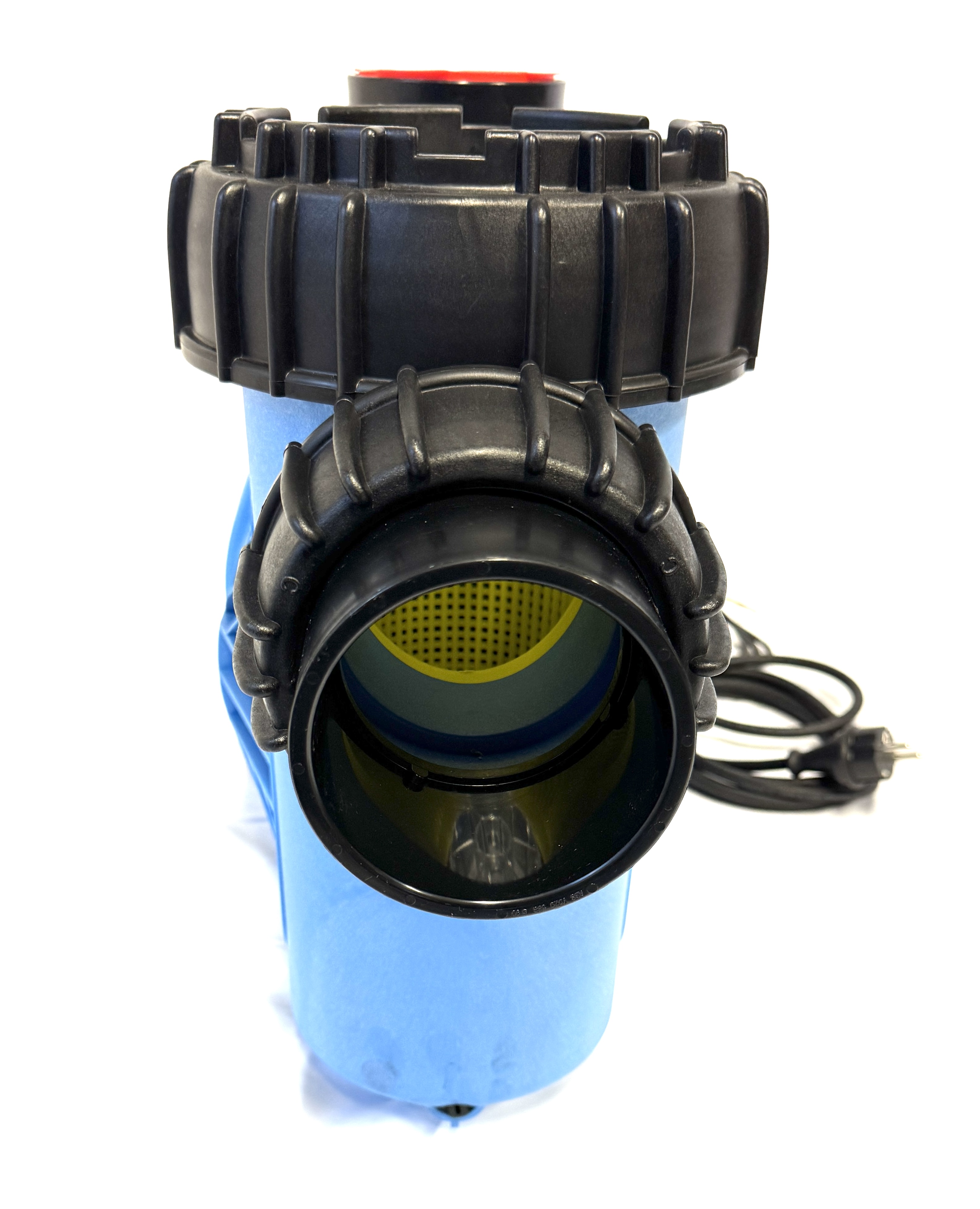

Monoblock-type pump with integrated strainer tank. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve. Motor/pump shaft has no contact with the pool water providing complete electrical separation.



Special motors on request.

The above mentioned pumps can be used for pool water with a salt concentration of up to 0.5%, i. e. 5 g/l.

For higher salt concentrations please contact us.

Also available in AK version
