BADU 90 Eco Motion
€1,781.00
No longer available
Product information "BADU 90 Eco Motion"
Self-priming filtration circulation pump BADU Eco Motion, alternating current version (replaces BADU 90 Eco Motion). No longer available, replaced by BADU Eco Flex
1~230 V
H max. = 20,0 m
Q max. = 43,0 m³/h
Power input P1 (kW): max.=2,70
Power output P2 (kW): max.=2,20
Rated current = max. 13,0 A
Rotational speed = min. 1000 U/min / max. 2850 U/min
Inlet / outlet connection(Rp): 90mm/90mm
Weight= 26 kg
High comfort, low consumption.

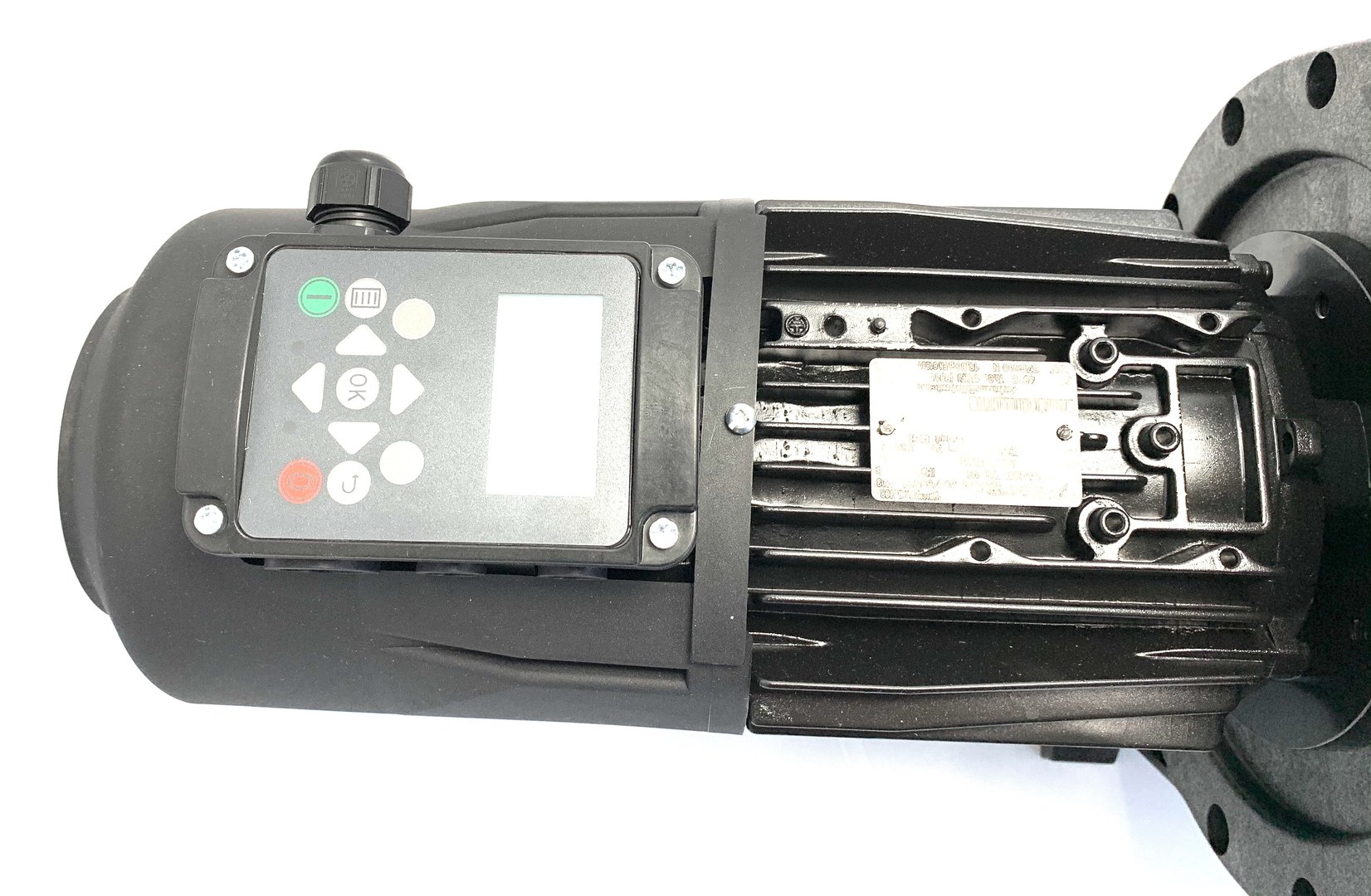

Highly efficient package for the major tasks in the premium sector: a converter fitted on to the motor in modular form with a plug-in principle combined with the BADU Prime 40. The user-friendly intuitive operation via touchpad, as well as serial interfaces, hardly allow for any more comfort in a pump!
Here you will find our product video.
Swimming pool water circulation through a filter system. The pump can be installed max. 3 m above or below water level.

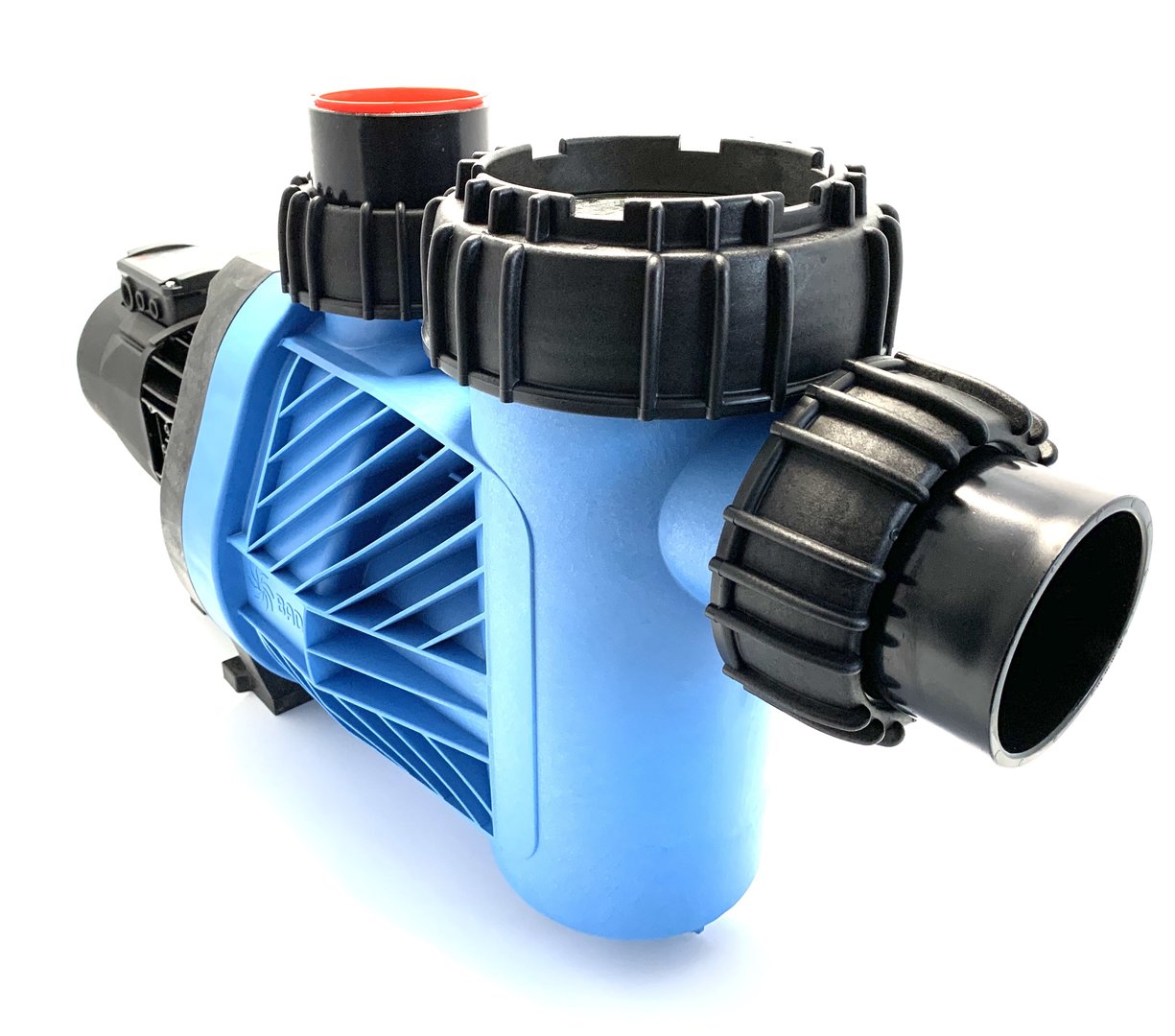

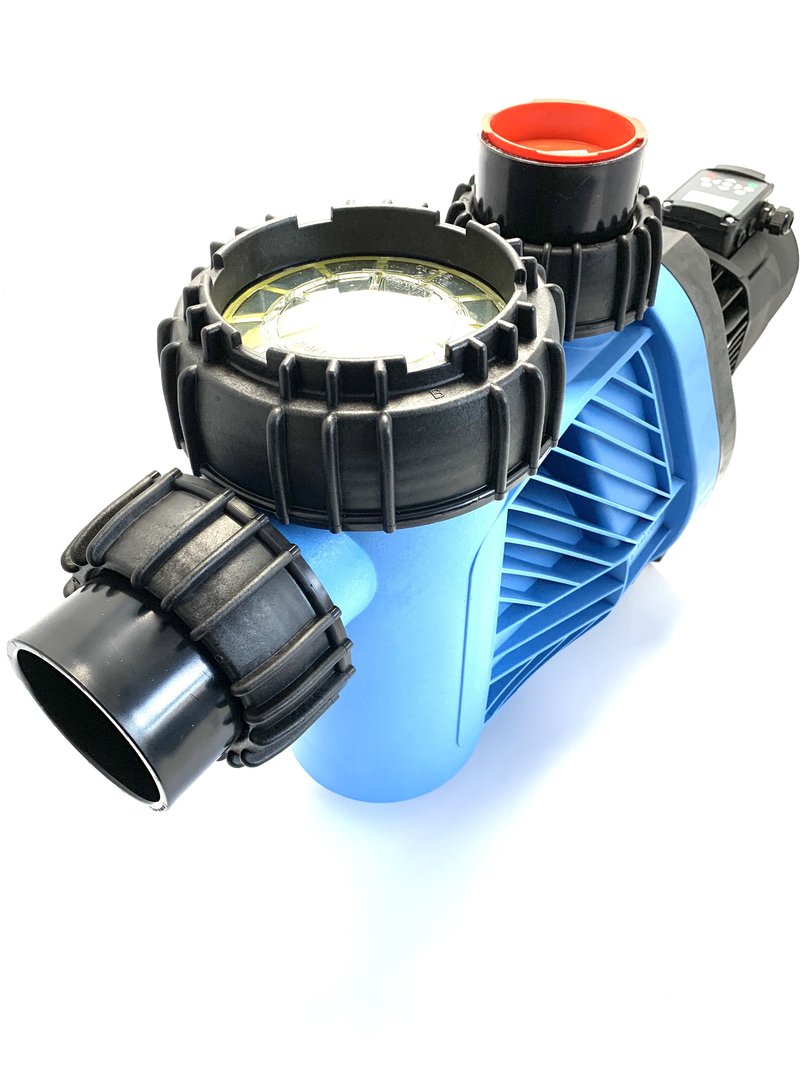

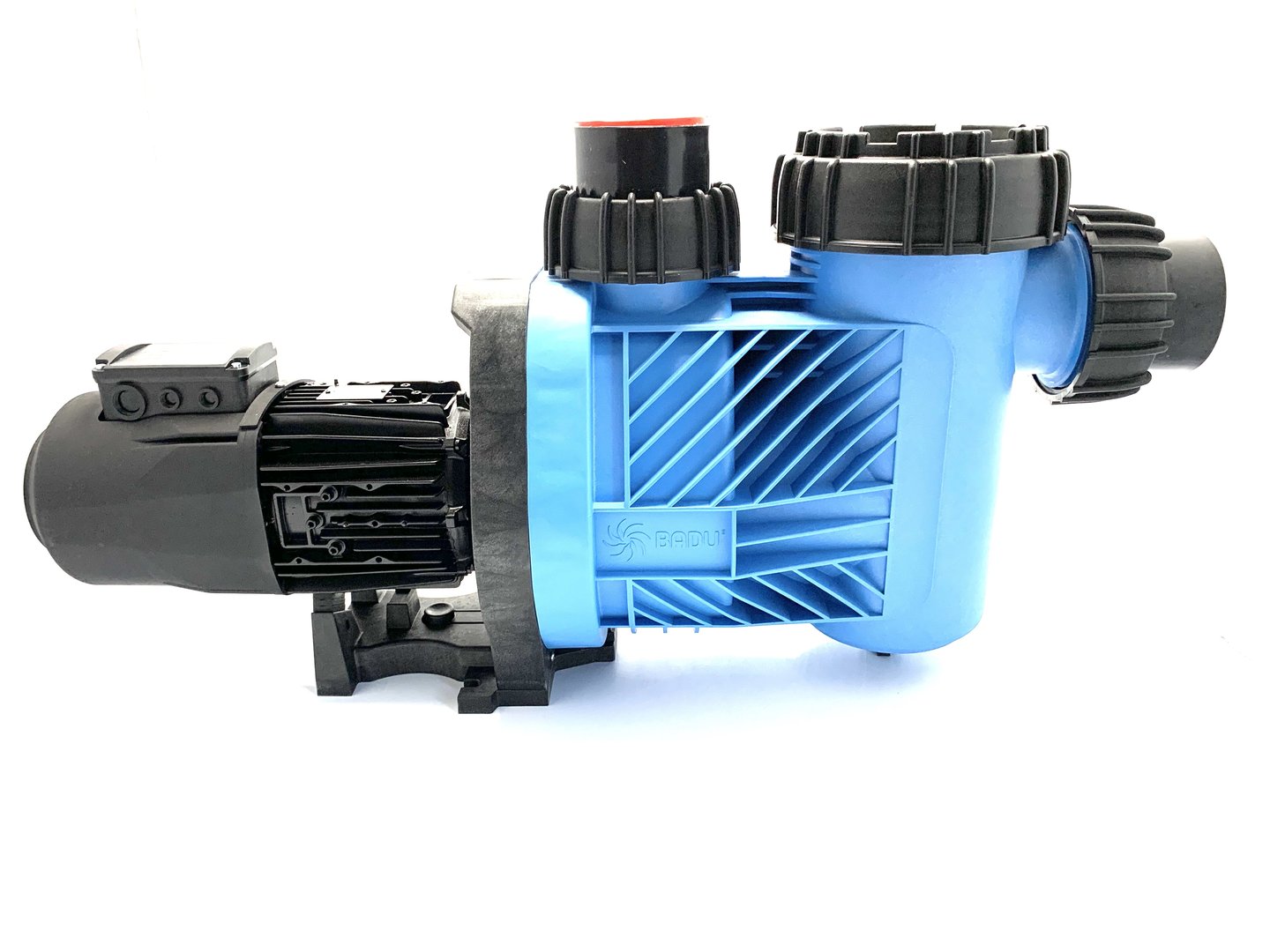

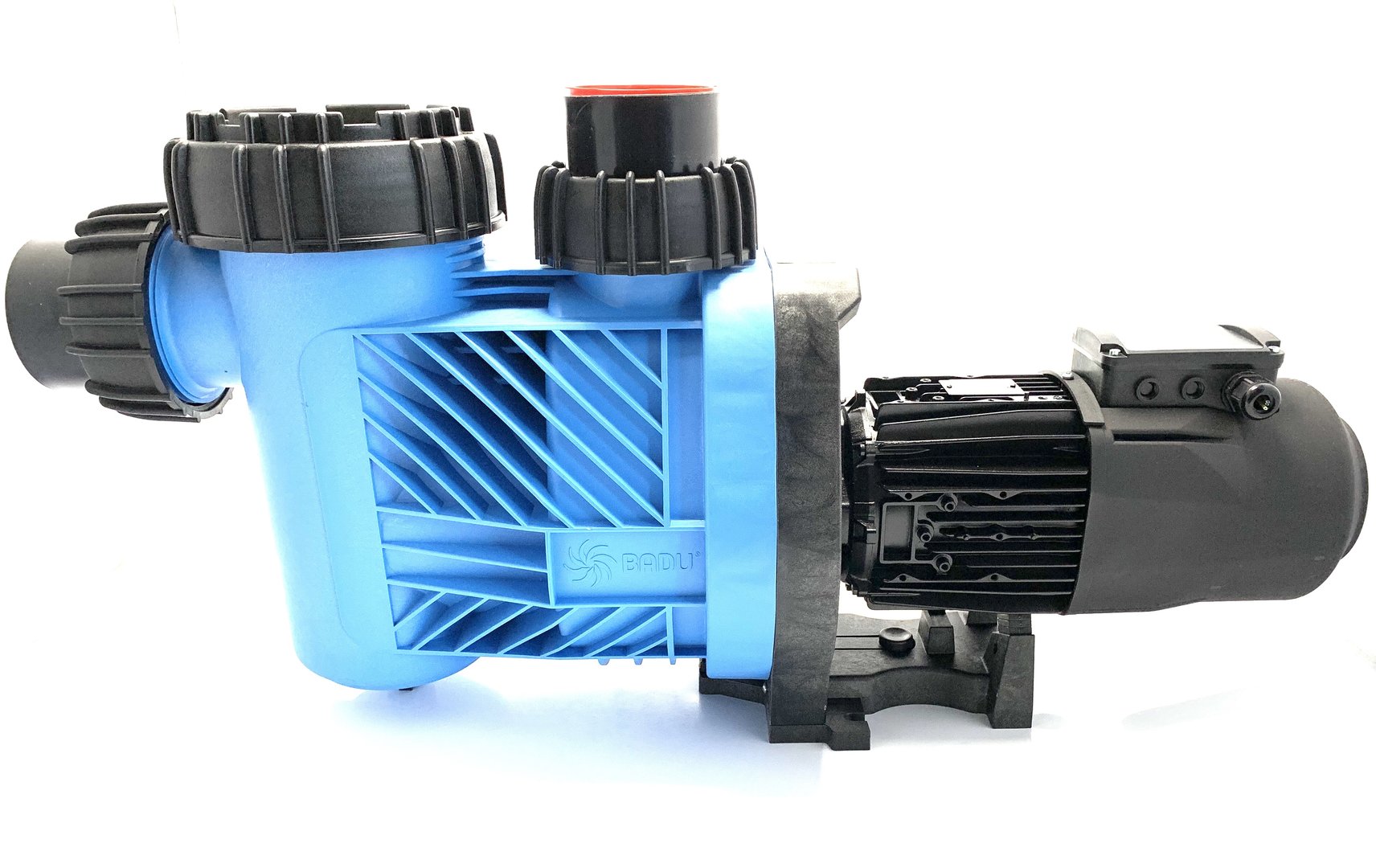

Monoblock-type pump with integrated strainer tank. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve. Motor/pump shaft has no contact with the pool water providing complete electrical separation.
| Pool equipment: | Circulation pump |
| Pool size in m³: | 30 - 200 |
| Filter size in mm: | 920 - 1100 |
| Flow rate Q in m³/h: | max. 40 |
| Total head H in m WS: | max. 20 |
| Motor performance in kW (P2): | max. 2.20 |
| Strainer capacity in l: | approx. 6 |
| Strainer basket mesh size in mm: | approx. 3.0 x 2.8 |
| Pool type: | Indoor pool, Natural pool/swimming pond |
| Installation: | Built-in pool |
| Class: | PREMIUM, GREEN |
| Pump casing: | PP GF 30 |
| Diffuser: | PP GF 30 |
| Impeller: | PPE GF 30 |
| Strainer basket: | PP |
| Mechanical seal: | carbon / ceramic / NBR |
| Screws: | stainless steel |
| Intermediate housing: | PP GF 30 |
| Gland housing: | PP TV 40 |
| Glue socket: | ABS |
| Lid: | PC, transparent / PA 66 GF 30 |
Special motors on request.
The above mentioned pumps can be used for pool water with a salt concentration of up to 0.5%, i. e. 5 g/l.
For higher salt concentrations please contact us.
Also available in AK version
TECHNICHAL DATA manufacturer's page
