BADU Prime Eco VS
Product information "BADU Prime Eco VS"

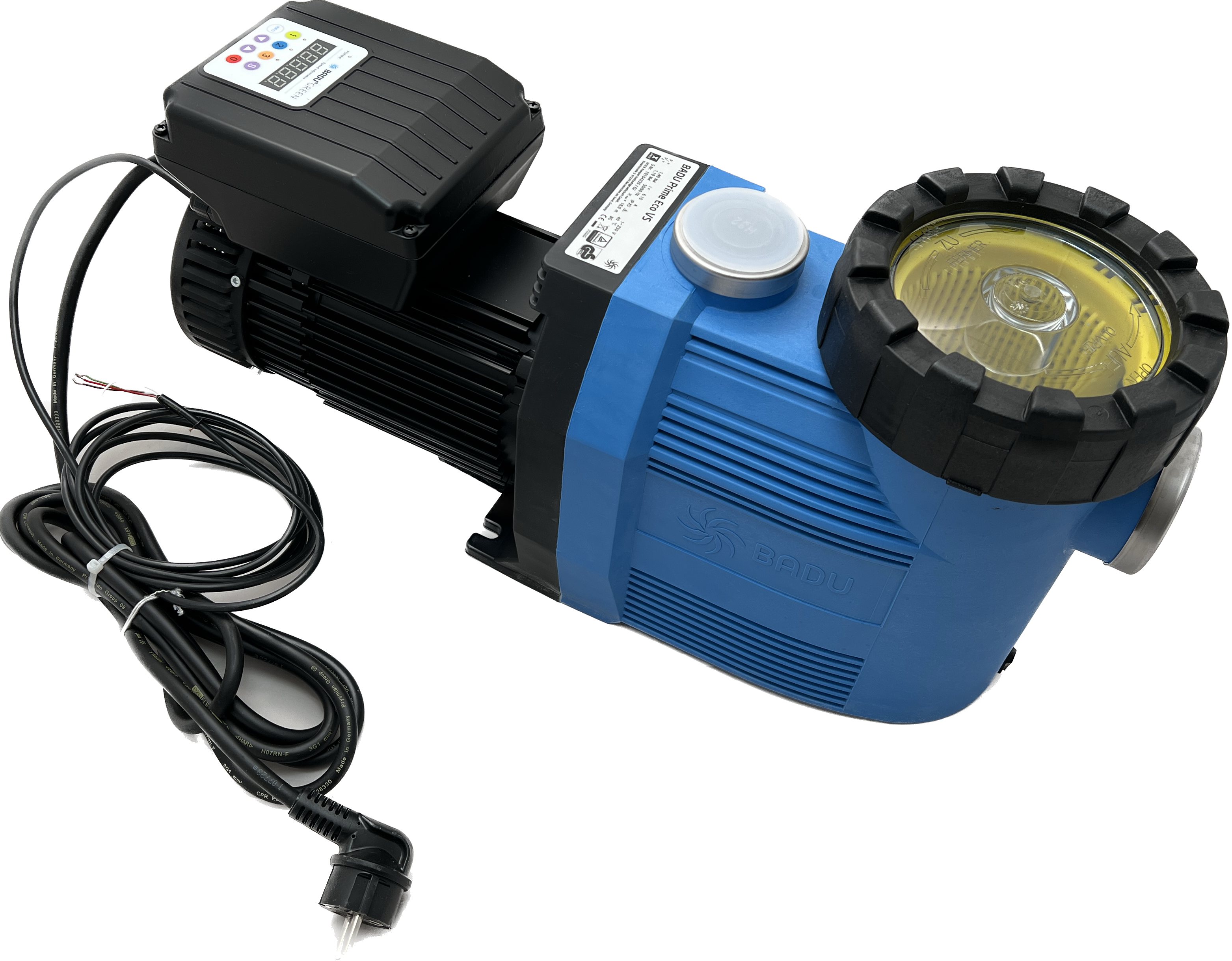

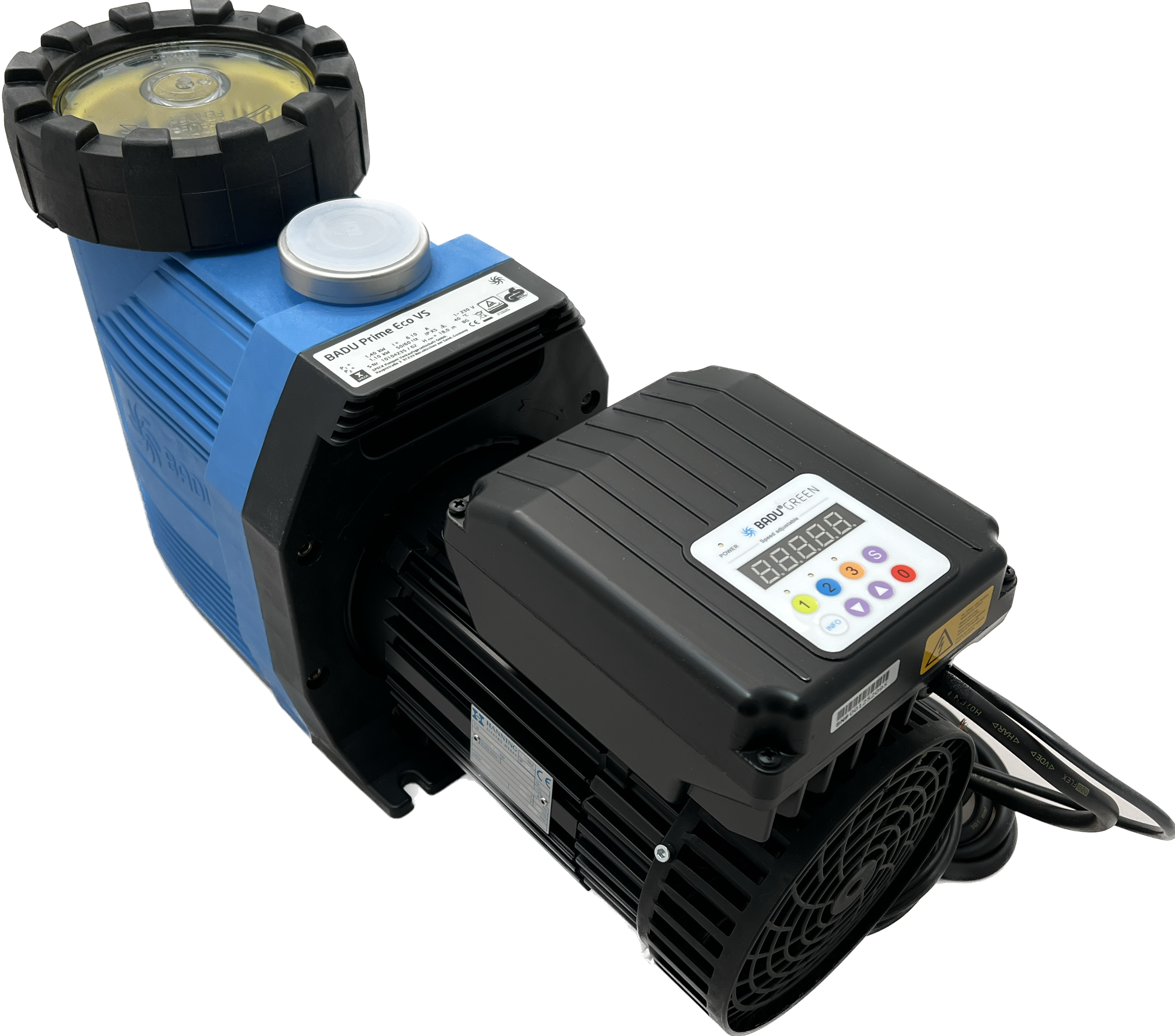

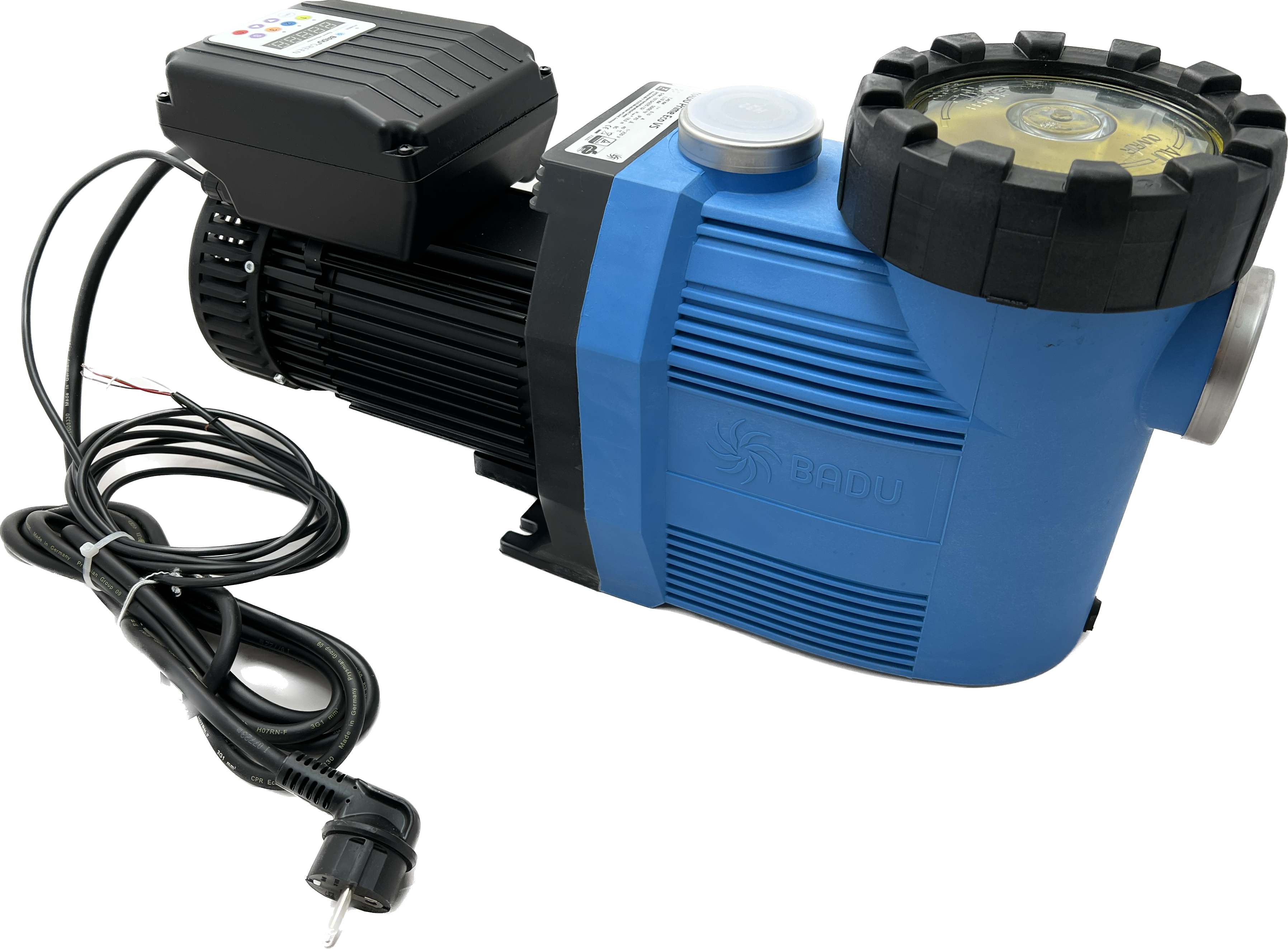

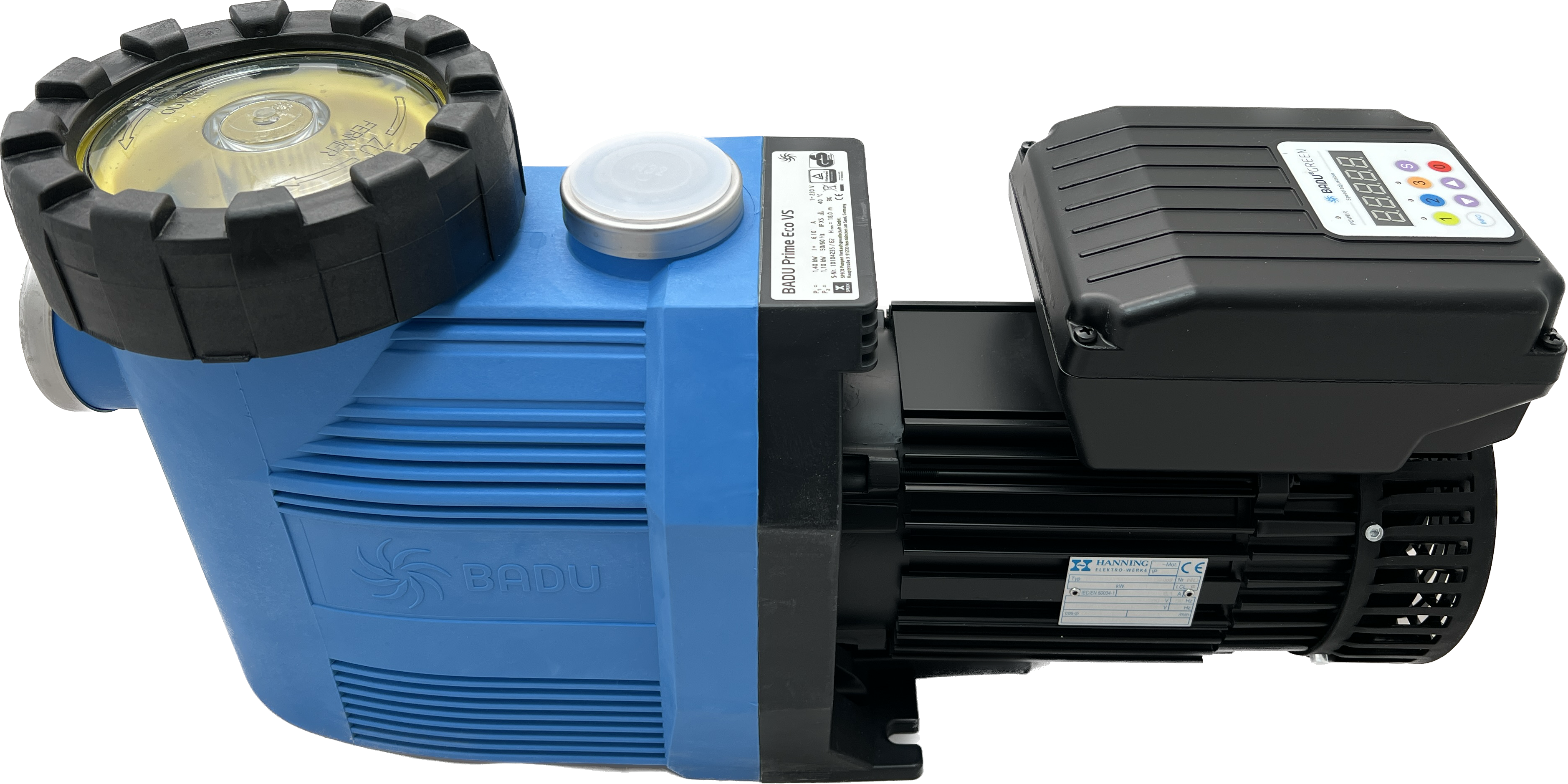

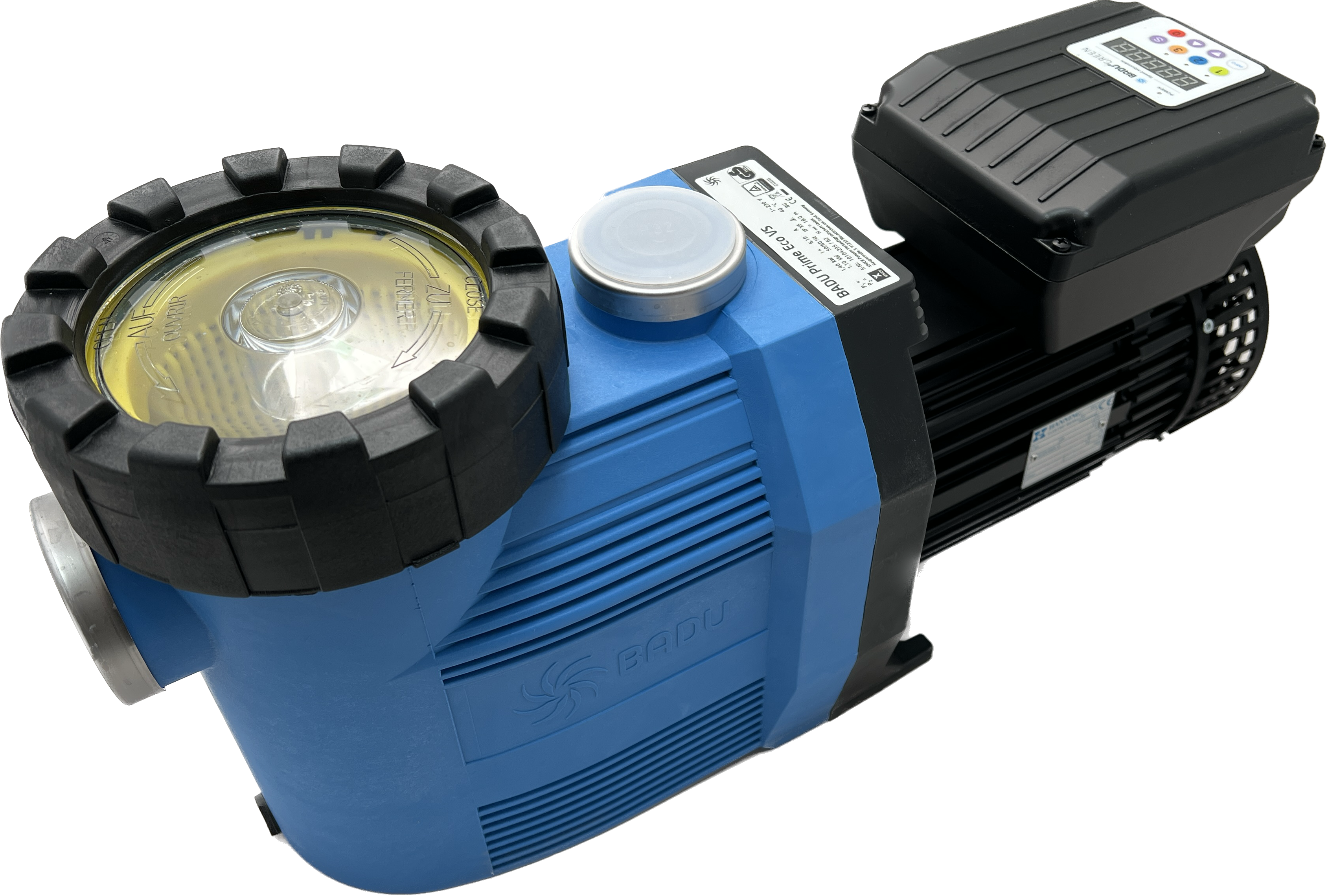

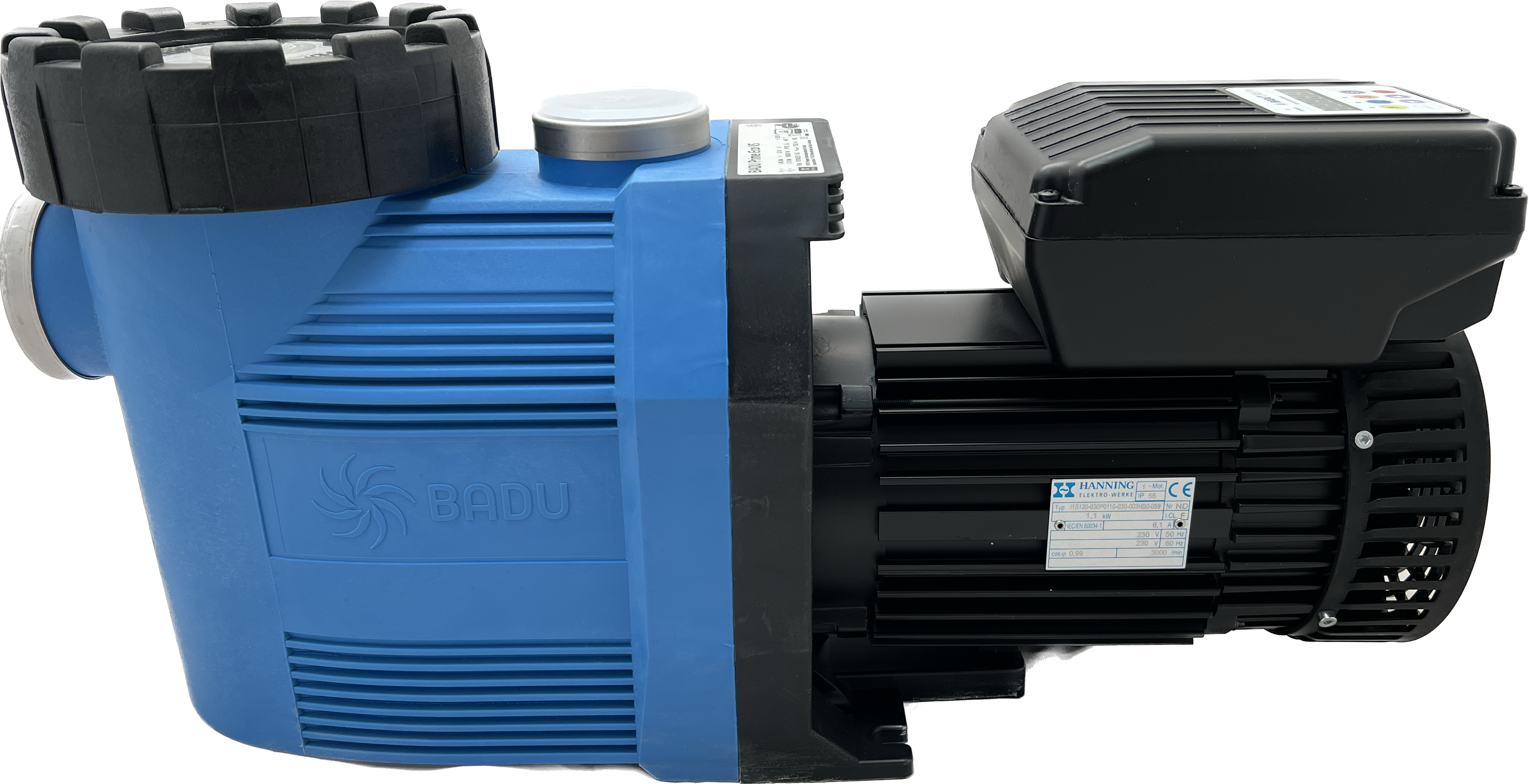

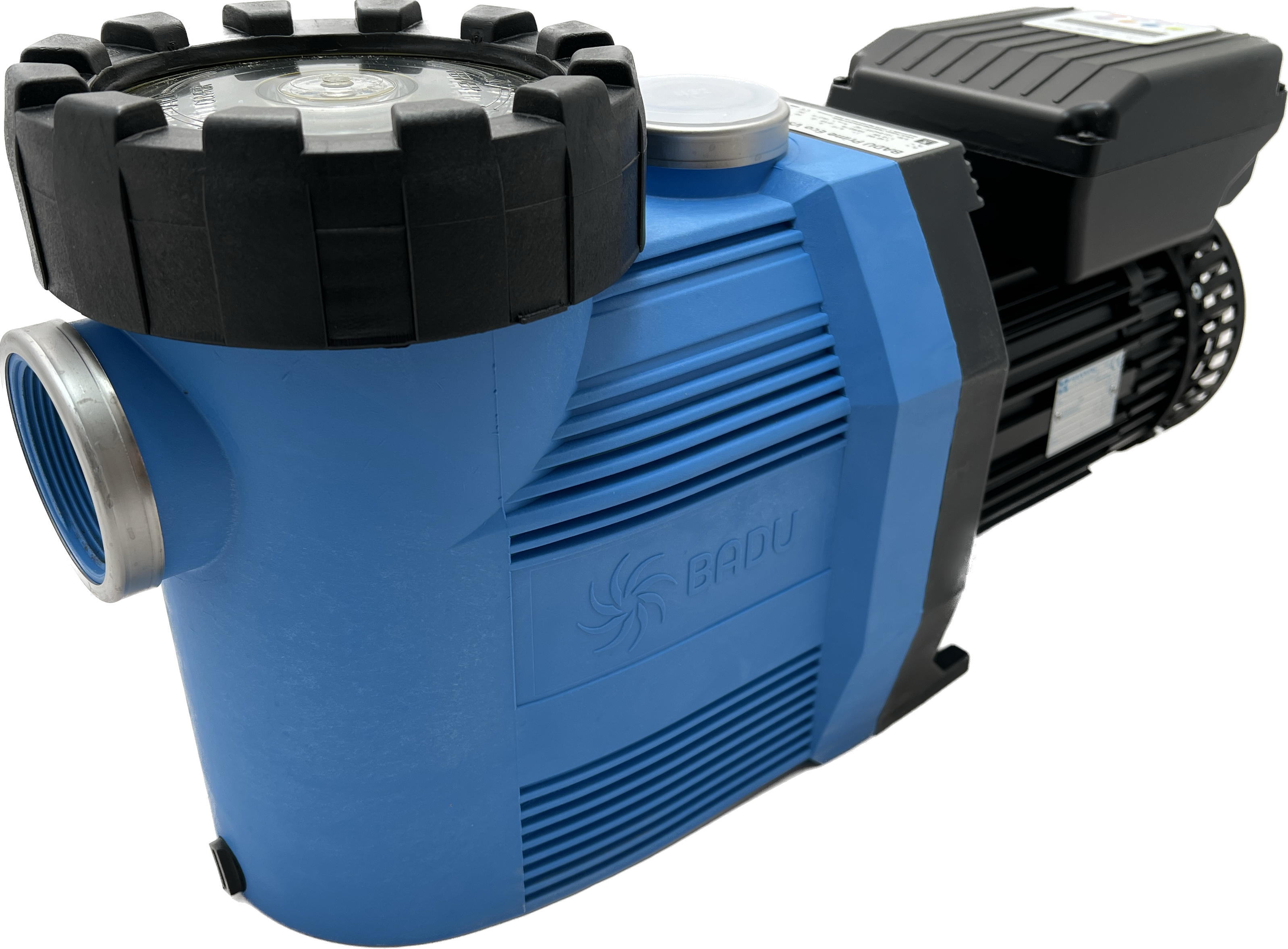

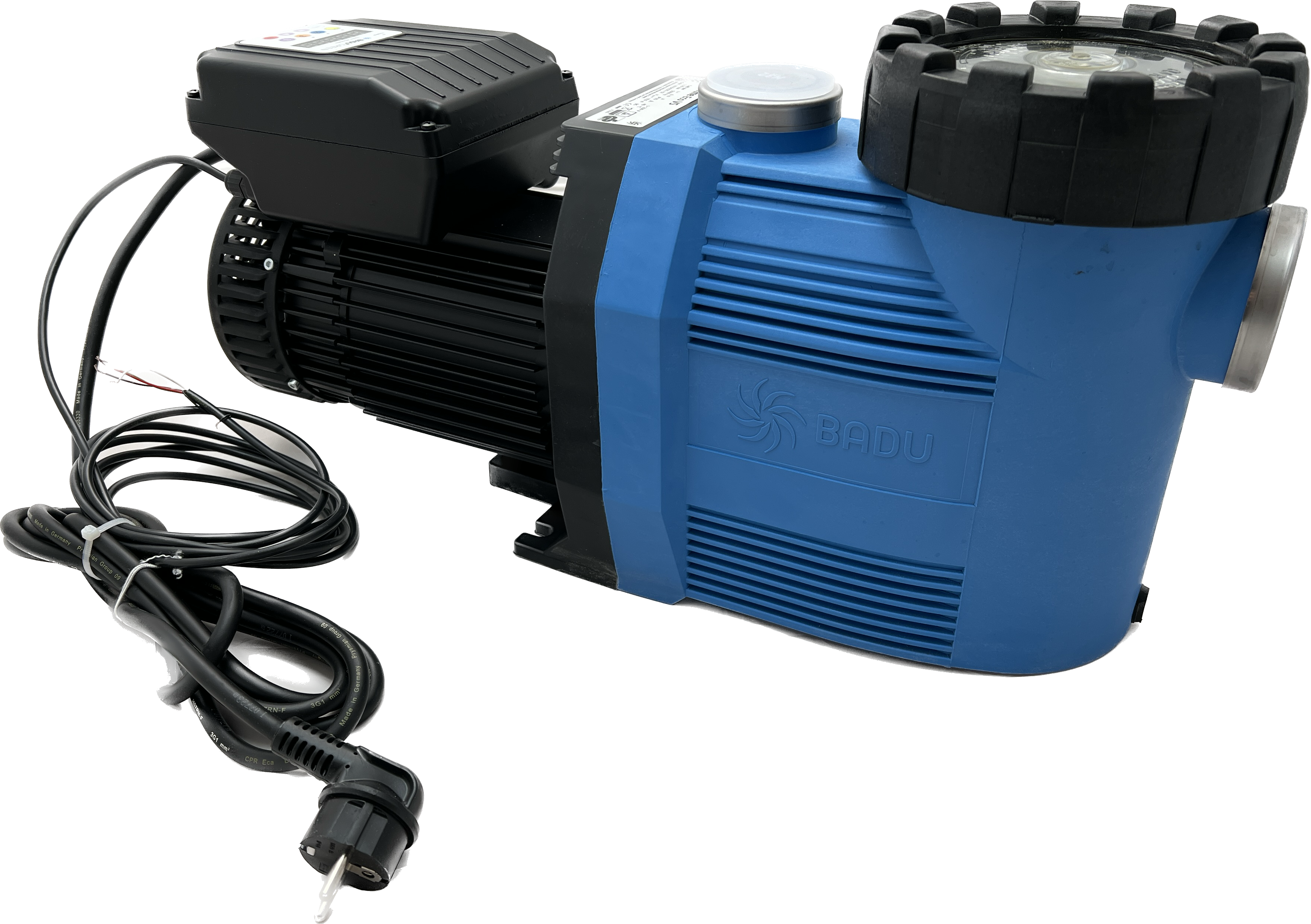

Self-priming filtration circulation pump BADU Prime Eco VS, alternating current version, for pool sizes of approximately 30-120 m³, replaces its predecessor model BADU 90 Eco VS
1~230 V
H max. = 18,0 m
Q max. = 28,5 m³/h
techQ = 14 m³/h
techH = 8 m
Pool size: 30 - 120 m³
Power input P1 (kW): min.=0,08 / max.=1,40
Power output P2 (kW): min.=0,03 / max.=1,10
Nominal current = 0,60 - 6,10 A
Rotation speed = min. 1000 U/min / max. 3000 U/min
Inlet/outlet (Rp): 2"/1 1/2"
Weight= 11,5 kg

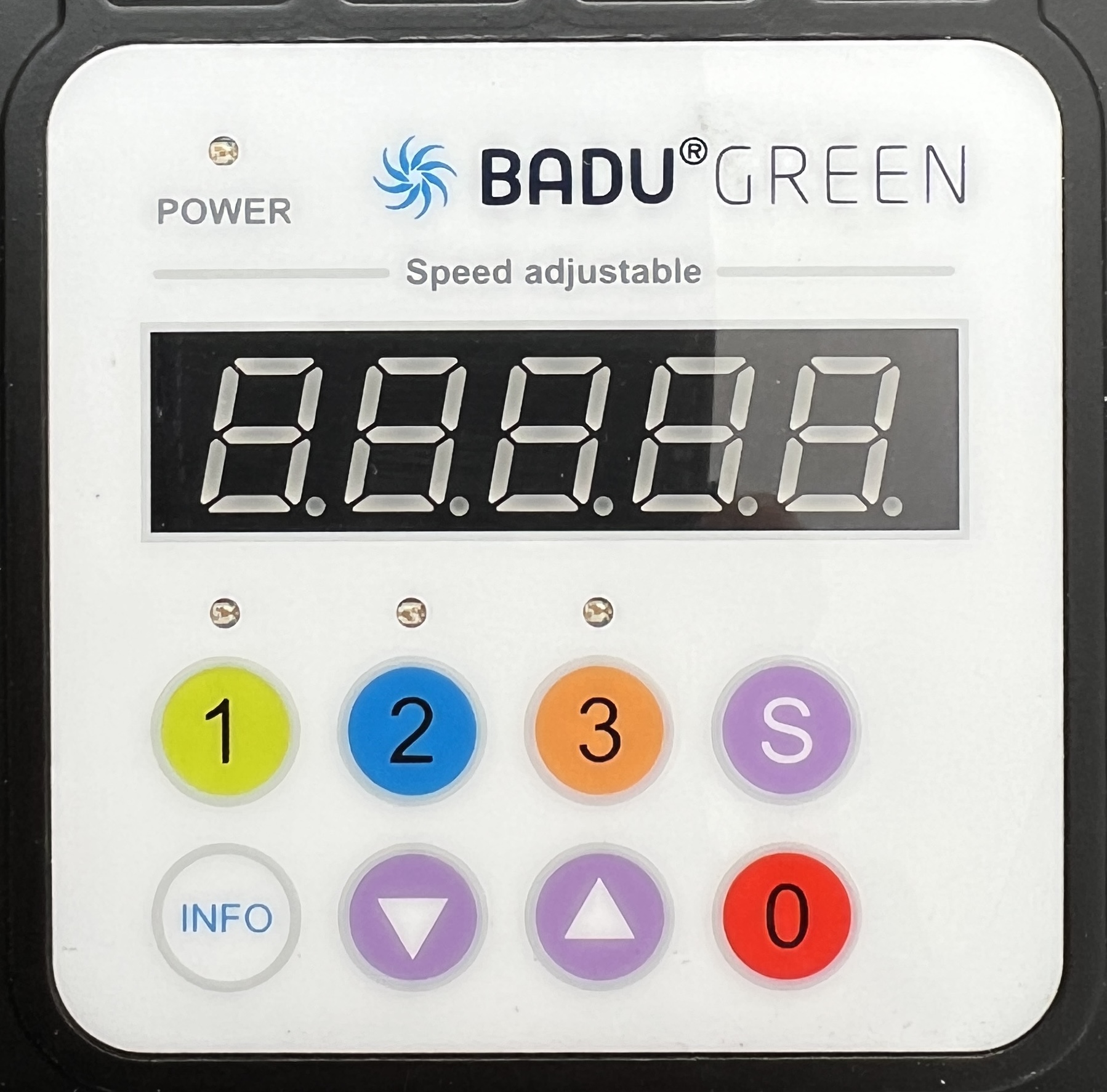

This circulation pump combines the successful construction of the BADU Prime with a synchronously compact power unit to create a highly efficient power packet with space-saving construction. A built-in control panel and easy to navigate menu provide for simple management of the motor. Can be controlled using the BADU Eco Logic remote control.
Swimming pool water circulation through a filter system. The pump can be installed max. 3 m above or below water level.
Monoblock-type pump with integrated strainer tank. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve. Motor/pump shaft has no contact with the pool water providing complete electrical separation.
| Pool size in m³: | 30 - 90 |
| Filter size in mm: | 400 - 500, 500 - 610 |
| Flow rate Q in m³/h: | max. 28 |
| Total head H in m WS: | max. 18 |
| Motor performance in kW (P2): | 1.10 |
| Strainer capacity in l: | approx. 3 |
| Strainer basket mesh size in mm: | approx. 3.2 x 2.6 |
| Pool type: | Indoor pool, Outdoor pool, Natural pool/swimming pond |
| Class: | PREMIUM, GREEN |
| Pump casing: | PP GF 30 |
| Diffuser: | PA 66 GF 30 |
| Impeller: | PP GF 30 |
| Strainer basket: | PP |
| Mechanical seal: | carbon / ceramic / NBR |
| Screws: | stainless steel |
| Intermediate housing: | PP TV 40 |
| Gland housing: | PP TV 40 |
| Lid: | PC, transparent / PA 66 GF 30 |
Special motors on request.
The above mentioned pumps can be used for pool water with a salt concentration of up to 0.5%, i. e. 5 g/l.
For higher salt concentrations please contact us.
Also available in AK version
