Miniboy 1,5 W

Single-pump sewage lifting unit Miniboy 1,5 W, 230 Volt, with vortex pump and comfortable level control, for pumping of domestic sewage

No longer available, replacement only with Kompaktboy lifting-unit.

Please contact us to find a suitable replacement unit.

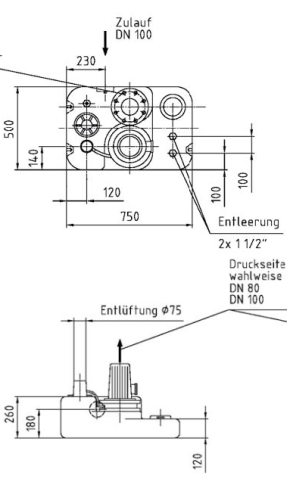

 • Polyethylene container with 55 l effective capacity (35 l switching capacity)
 • Simplex unit fitted with a single phase vortex pump
 • Sealed with a mechanical seal and shaft seal with intermediate oil chamber
 • Discharge either DN 80 or DN 100
 • 2 inlet for PP pipe DN 100
 • Additional connections 1 1/2“ for manual diaphragm pump
 • Air vent DN 70 (Ø 75)
 • incl. ZPS1: comfortable, pneumatic level control with microcontroller, LCD plain text display for filling level, maintenance, operating hours, fault message and alarm signal in switchbox for indoor installation
 • 3,5 m power cable from motor
 • P2=1,5 kW, P1=2,0 kW
 • 230 Volt
 • 9,3 A
 • 1400 U/min

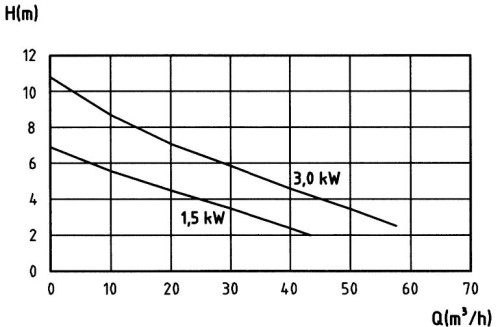

 • Qmax.=40 m³/h
 • Hmax.=7,0 m

Scope of delivery:

Simplex unit with non-return valve DN 80 or DN 100, flexible connection with fasteners for discharge pipe and air vent, and DN 80 or DN 100 flanged discharge pipe and a control unit

TECHNICAL DATA *PDF*
