Boy 3,0 D 400 V

• polyethylene container with 140 litres capacity and up to 70 litres switching volume
• vortex pump with high efficiency
• mechanical seal and shaft seal with intermediate oil chamber

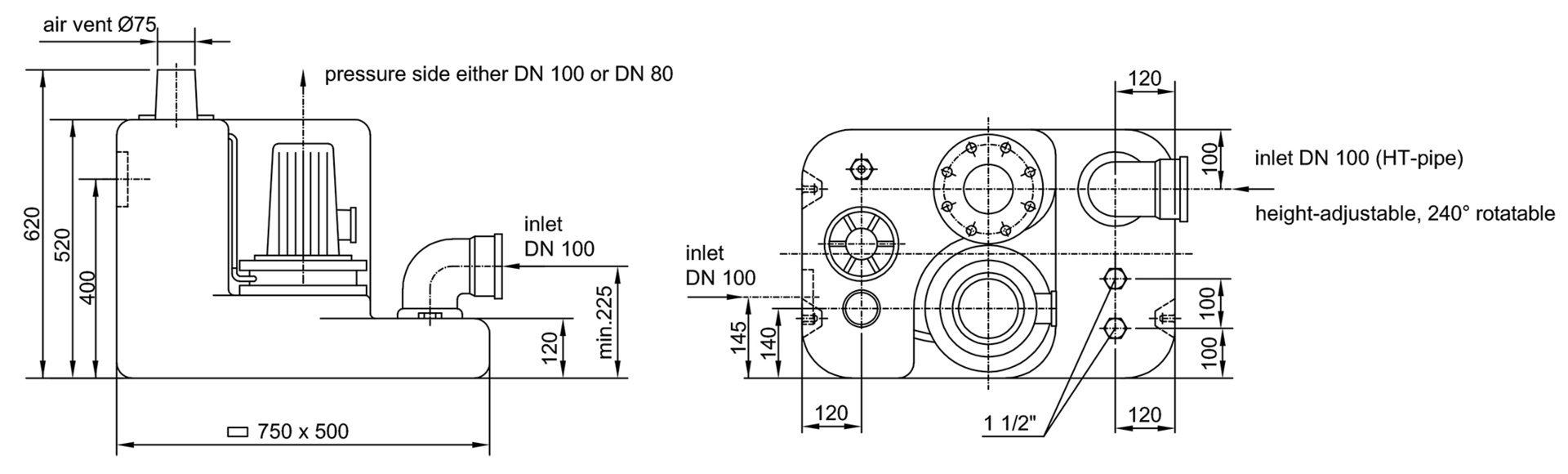

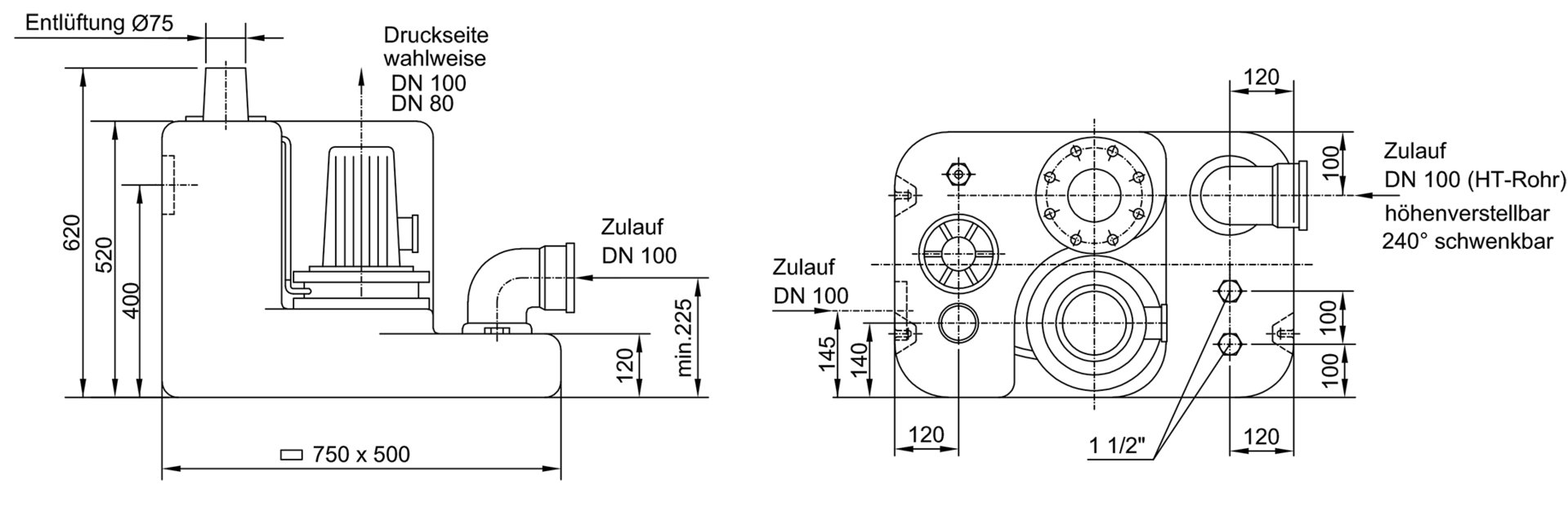

• inlets: 2 x DN 100
• additional connections 1 ½“ for manual diaphragm pump
• air vent DN 70 (Ø 75mm)
• operation temperature max. 55°C
• operating mode S3 - 25%
• protection grade IP 68 - fully submersible

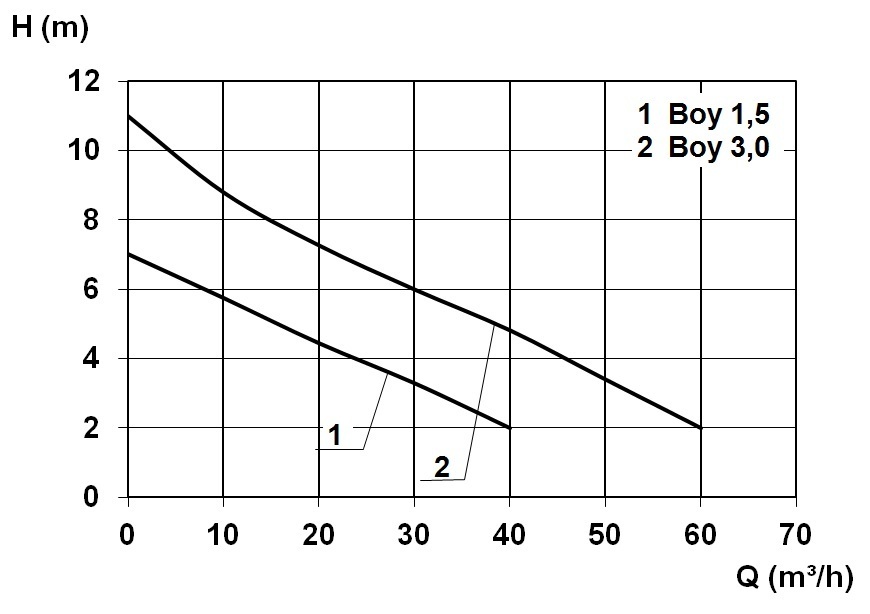

• Max. flow rate 60,0 m³/h
• Head up to 11,0 m

• pumping of domestic sewage from basement apartments, single-family houses or apartment buildings
• above-ground installation in frost-free rooms below the backflow level

• pre-assembled lifting unit with 3,5 m connection cable to the motor and 3,5 m pneumatic tube to the control
• incl. non-return valves DN 100 (DN 80 optional)
• connection flange piece DN 100 for pressure pipe (DN 80 optional)
• flexible connection with tension clamps for pressure pipe and ventilation pipe
• incl. ZPS1: comfortable, pneumatic level control with microcontroller, LCD plain text display for filling level, maintenance, operating hours, fault message and alarm signal in switchbox for indoor installation

TECHNICAL DATA manufacturer's page
