BADU Prime Neo VS
€1,220.00
Available, delivery time: approx. 2-4 days
Product information "BADU Prime Neo VS"
Self-priming filtration circulation pump BADU Prime Neo VS, alternating current version, for pool sizes of approximately 30-120 m³, replaces its predecessor model BADU Prime Eco VS
1~230 V
H max. = approx. 19.7 m
Q max. = approx. 32.5 m³/h
Pool size: approx. 30 - 120 m³
Power input P1 (kW): min.=0,03 / max.=1,40
Power output P2 (kW): min.=0,01 / max.=1,10
Nominal current = 0,50 - 6,10 A
Rotation speed = min. 600 U/min / max. 3400 U/min
Inlet/outlet (Rp): 2"/1 1/2"

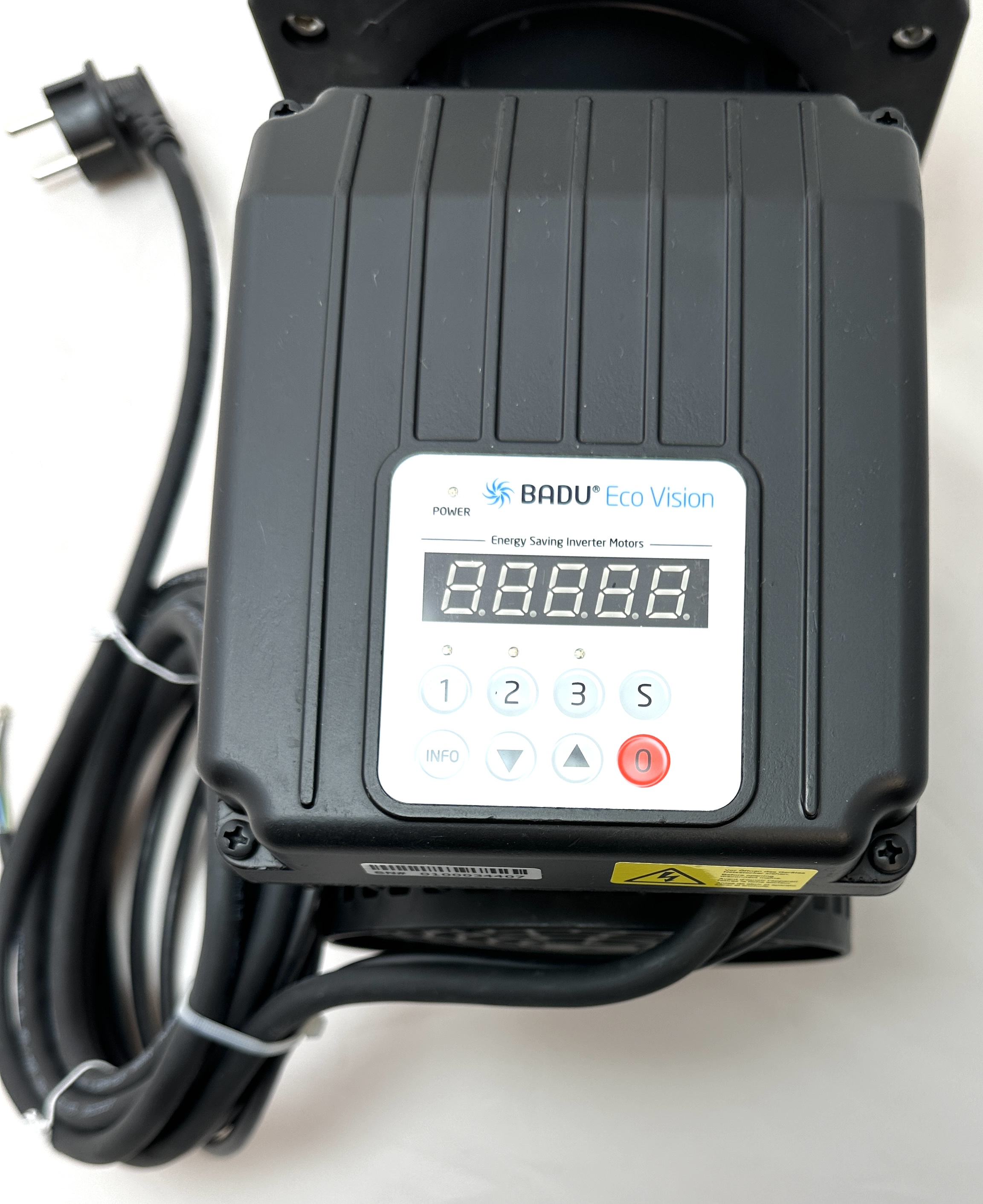

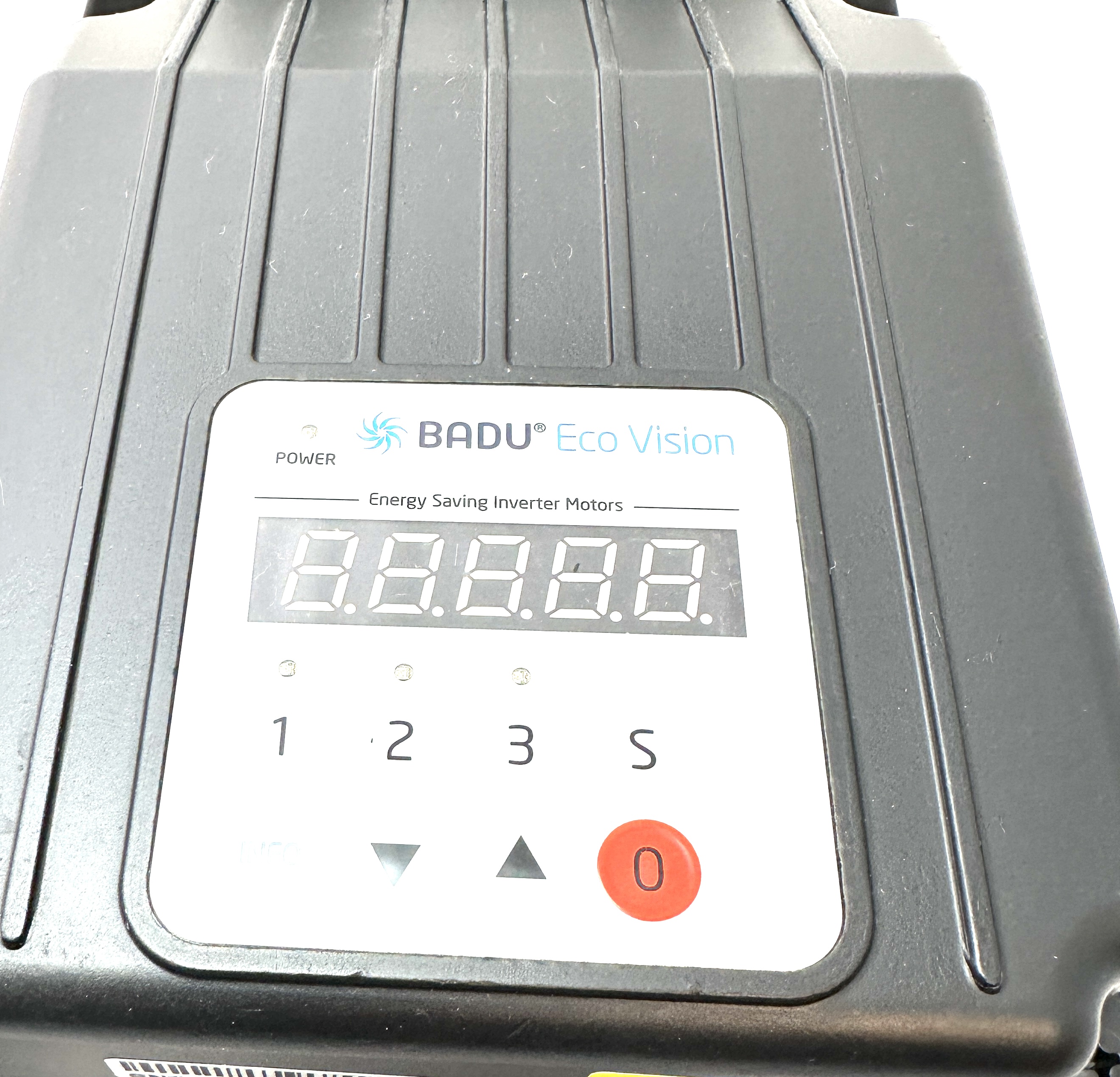

This circulation pump combines the successful construction of the BADU Prime with a synchronously compact power unit to create a highly efficient power packet with space-saving construction. A built-in control panel and easy to navigate menu provide for simple management of the motor. Can be controlled by App and WLAN by optional remote control BADU NetLink.
Swimming pool water circulation through a filter system. The pump can be installed max. 3 m above or below water level.
Monoblock-type pump with integrated strainer tank. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve. Motor/pump shaft has no contact with the pool water providing complete electrical separation.
| Pool size in m³: | 30 - 120 |
| Filter size in mm: | 400 - 500, 500 - 610 |
| Flow rate Q in m³/h: | max. 32.5 |
| Total head H in m WS: | max. 19.7 |
| Motor performance in kW (P2): | 1.10 |
| Strainer capacity in l: | approx. 3 |
| Strainer basket mesh size in mm: | approx. 3.2 x 2.6 |
| Pool type: | Indoor pool, Outdoor pool, Natural pool/swimming pond |
| Class: | PREMIUM, GREEN |
| Pump casing: | PP GF 30 |
| Diffuser: | PA 66 GF 30 |
| Impeller: | PP GF 30 |
| Strainer basket: | PP |
| Mechanical seal: | carbon / ceramic / NBR |
| Screws: | stainless steel |
| Intermediate housing: | PP TV 40 |
| Gland housing: | PP TV 40 |
| Lid: | PC, transparent / PA 66 GF 30 |
Special motors on request.
The above mentioned pumps can be used for pool water with a salt concentration of up to 0.5%, i. e. 5 g/l.
For higher salt concentrations please contact us.
Also available in AK version
