BADU Eco Soft
€1,309.00
Available in approx. 14 days, delivery time 2-4 days
Product information "BADU Eco Soft"
Self-priming filtration circulation pump with electronic rotation speed control BADU Eco Soft for pool sizes of approximately 30-90 m³.
1~230 V
Hmax: 22 m
Qmax: 28 m³/h
Pool size: 30 - 90 m³
Motor performance: 0.75 kW
Power input P1: 0,06 - 1,10 kW
Power output P2: 0,03 - 0,75 kW
Rated current: 0,45 - 5,00 A
Inlet / outlet connection (d): 63/50

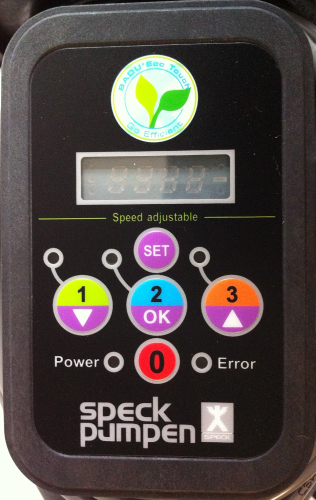

The performance can be set in steps of 1 %. The pump makes full use of the motor at every operating point. Three performance stages, as well as the suction time, can be programmed individually. The optimum setting for the most effective application and highest efficiency is guaranteed in each performance range. The BADU Eco Soft can be controlled potential-free and can be connected to our BADU Eco Logic pump control, BADU Logic 3 filter control, a timer or the building service engineering.
Swimming pool water circulation through a filter system. The pump can be installed max. 3 m above or below water level.
Monoblock-type pump with integrated strainer tank. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve. Motor/pump shaft has no contact with the pool water providing complete electrical separation.
| Pool equipment: | Circulation pump |
| Pool size in m³: | 30 - 90 |
| Flow rate Q in m³/h: | max. 28 |
| Total head H in m WS: | max. 22 |
| Motor performance in kW (P2): | max. 0.75 |
| Strainer capacity in l: | approx. 3 |
| Strainer basket mesh size in mm: | approx. 3.2 x 2.6 |
| Pool type: | Outdoor pool, Indoor pool, Natural pool/swimming pond |
| Installation: | Built-in pool, Above ground pool |
| Class: | PREMIUM, GREEN |
| Pump casing: | PP TV 20 |
| Diffuser: | PA 6 GF 15 |
| Impeller: | PA 66 GF 30 |
| Strainer basket: | PP |
| Mechanical seal: | carbon / ceramic / NBR |
| Screws: | stainless steel, galvanized |
| Intermediate housing: | PP TV 40 |
| Gland housing: | PP TV 40 |
| Glue socket: | ABS |
| Lid: | PC, transparent / PA 66 GF 30 |
The above mentioned pumps can be used for pool water with a salt concentration of up to 0.5%, i. e. 5 g/l.
For higher salt concentrations please contact us.
Also available in AK version
