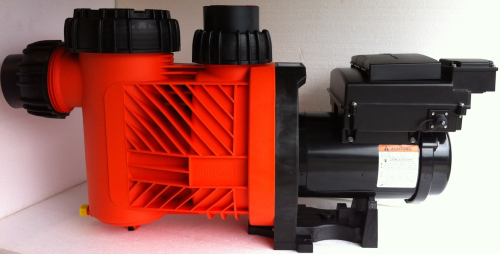

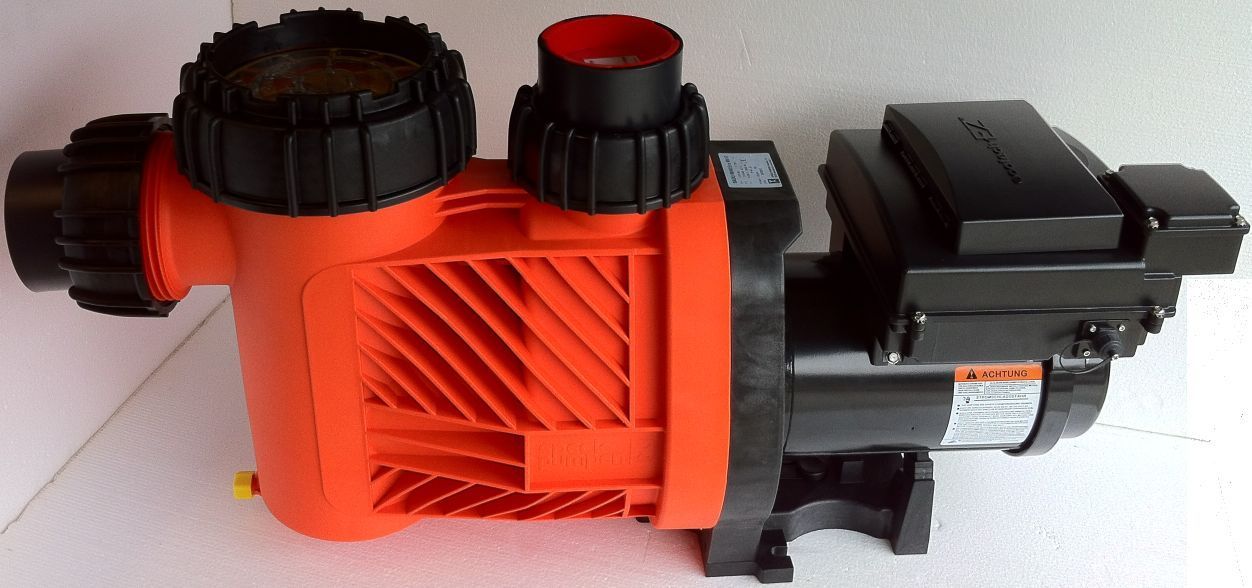

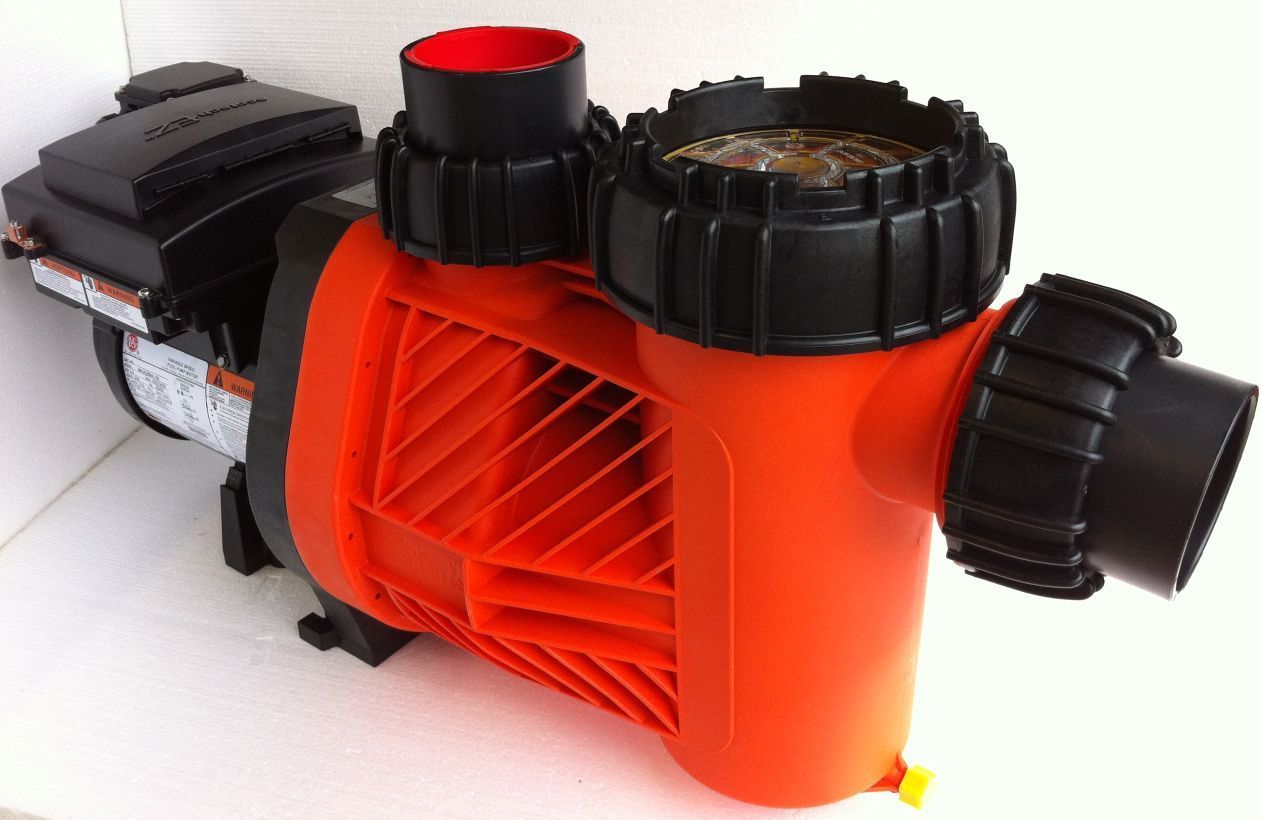

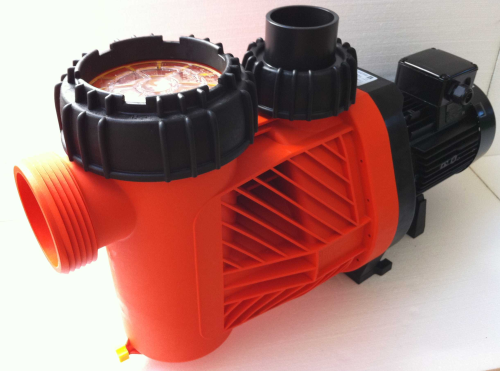

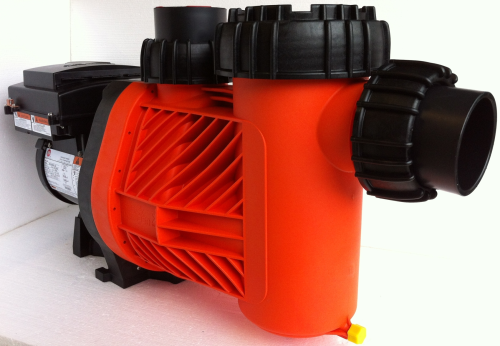

BADU 90/40 Eco MV-E

Self-priming filtration circulation pump BADU 90/40 Eco MV-E, BADU Prime 40 Eco MV-E, alternating current version. Replaced by successor BADU Eco Flex

1~230 V
H max. = 20,0 m
Q max. = 46,0 m³/h
techQ = 15 m³/h
techH = 6 m
Pool size: 150 - 200 m³
Power input P1 (kW): min.=0,11 / max.=2,50
Power output P2 (kW): min.=0,09 / max.=2,20
Rated current = 0,60 - 12,0 A
Rotational speed = min. 1035 U/min / max. 3425 U/min
Inlet/outlet (d): 90mm/90mm
Weight= 28,5 kg

Special motors on request.

The above mentioned pumps can be used for pool water with a salt concentration of up to 0.5%, i. e. 5 g/l.

For higher salt concentrations please contact us.

Also available in AK version
