BADU Eco Future
€1,350.00
Available, delivery time: approx. 2-4 days
Product information "BADU Eco Future"

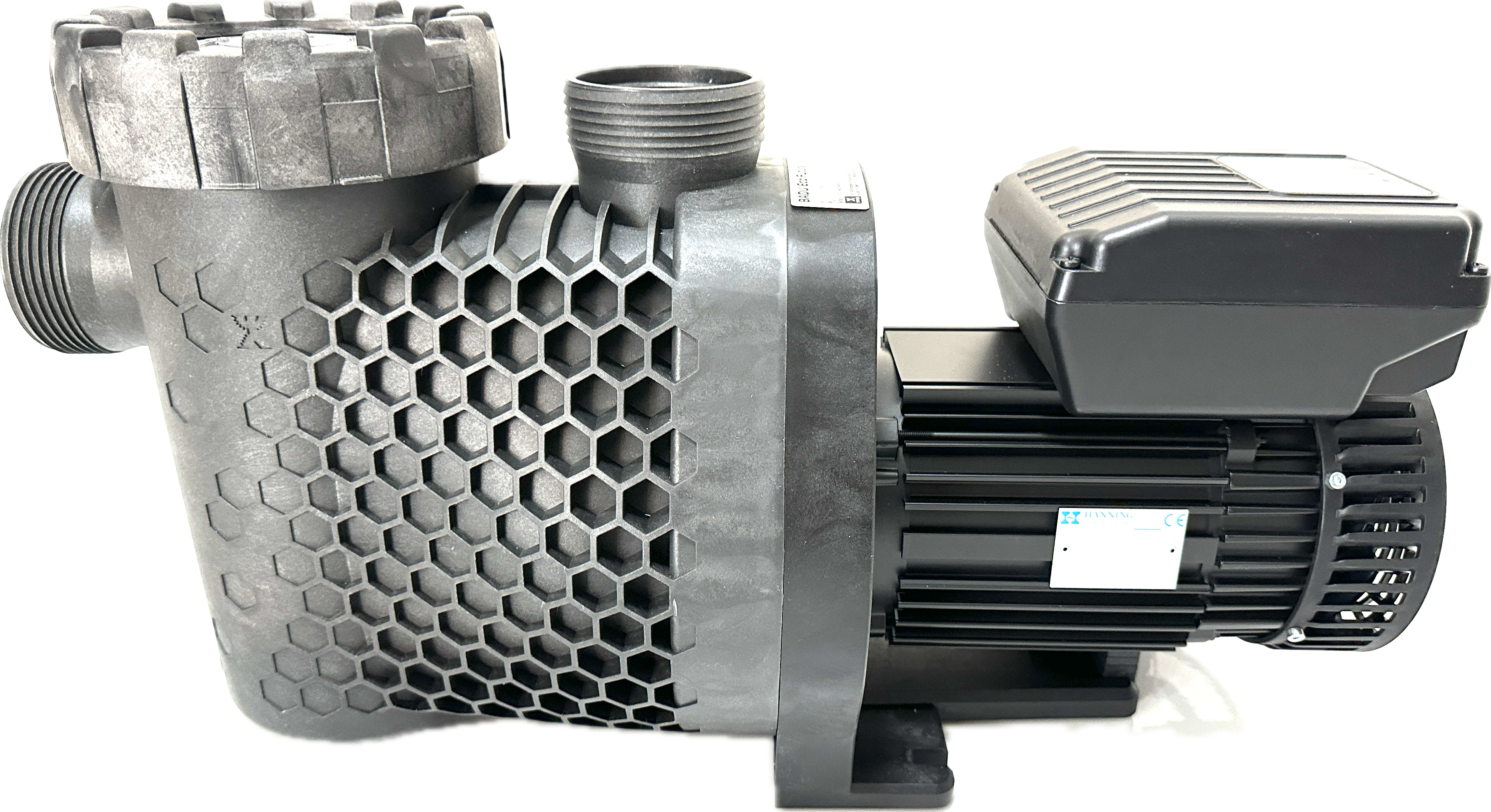

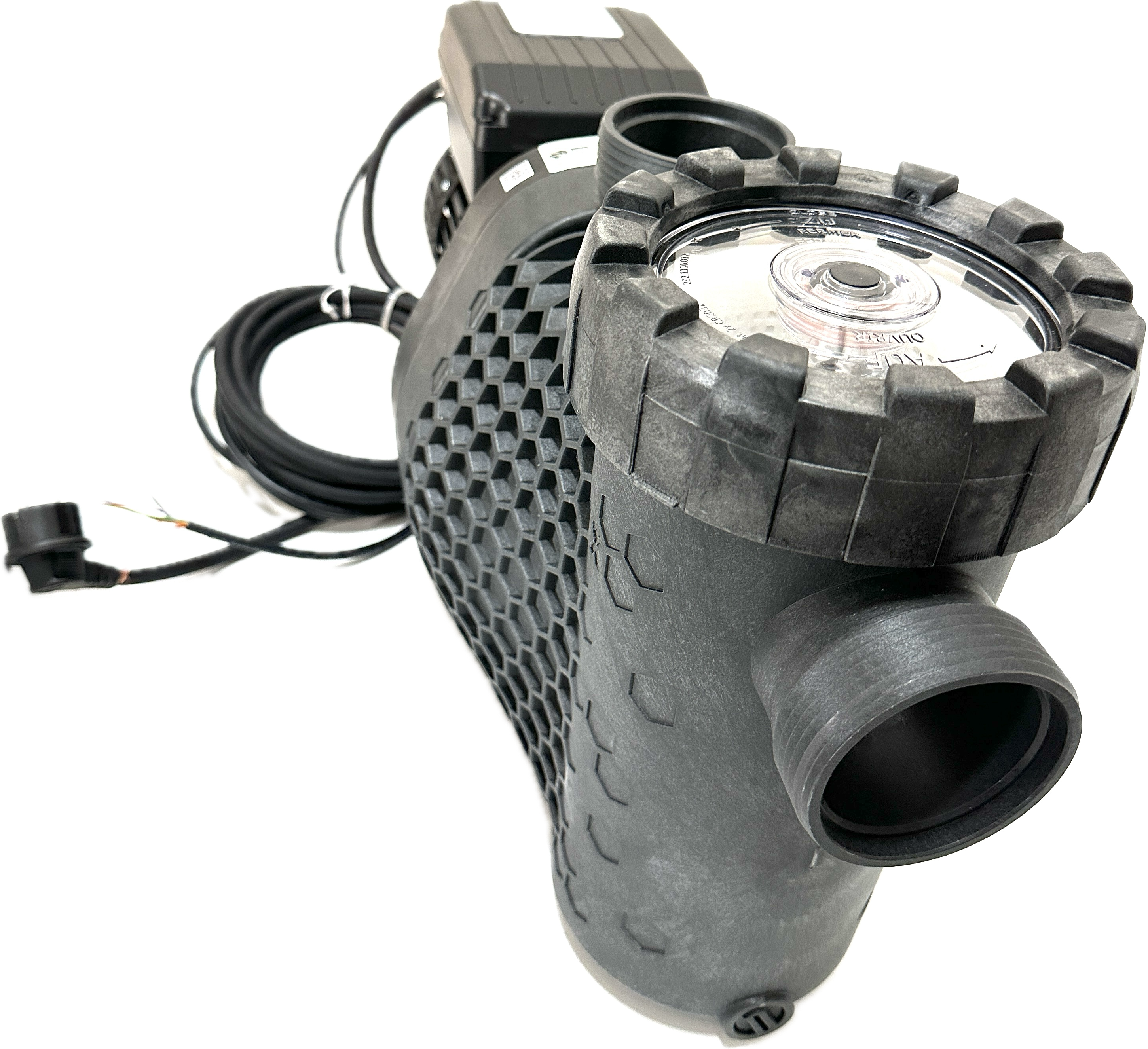

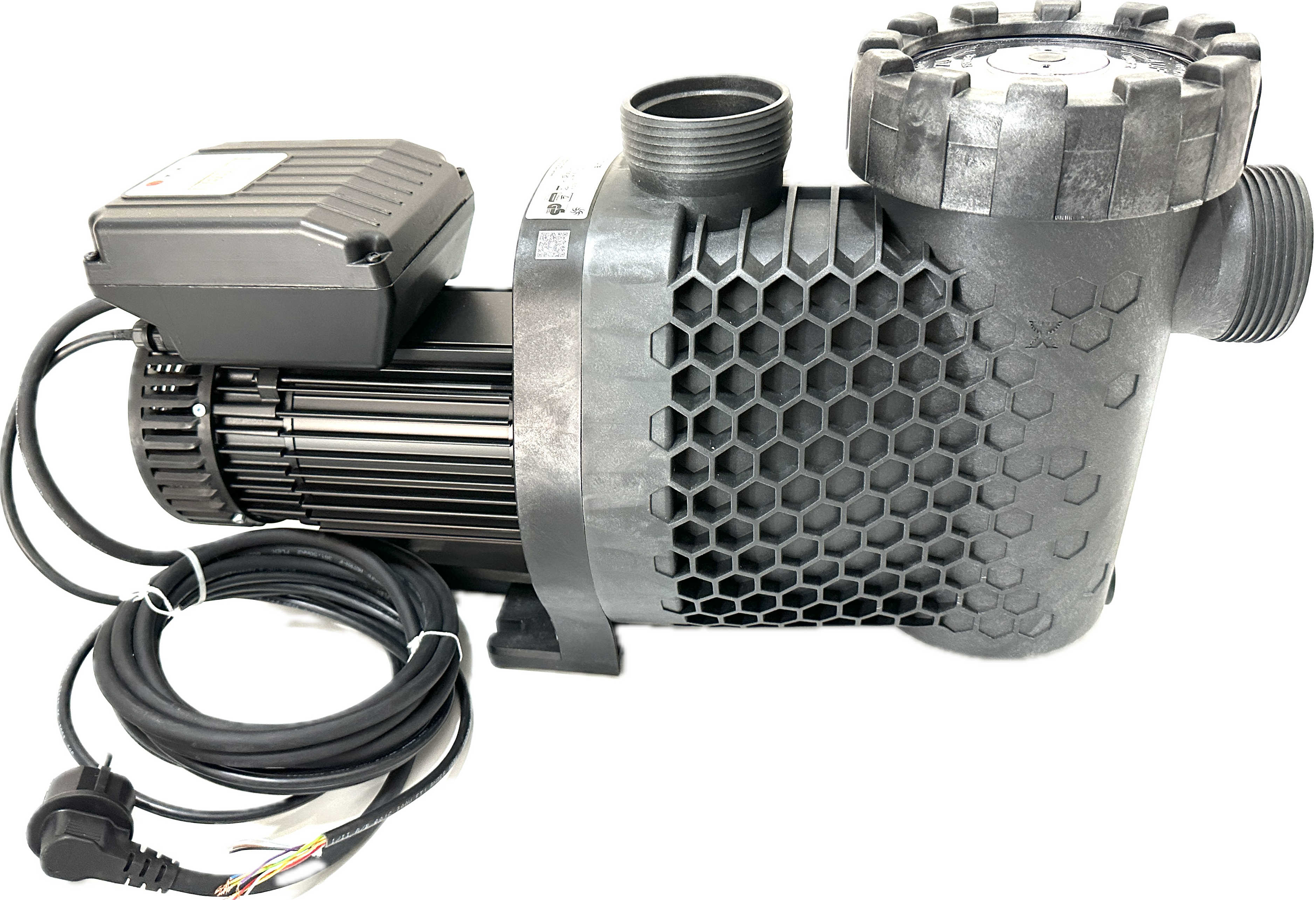

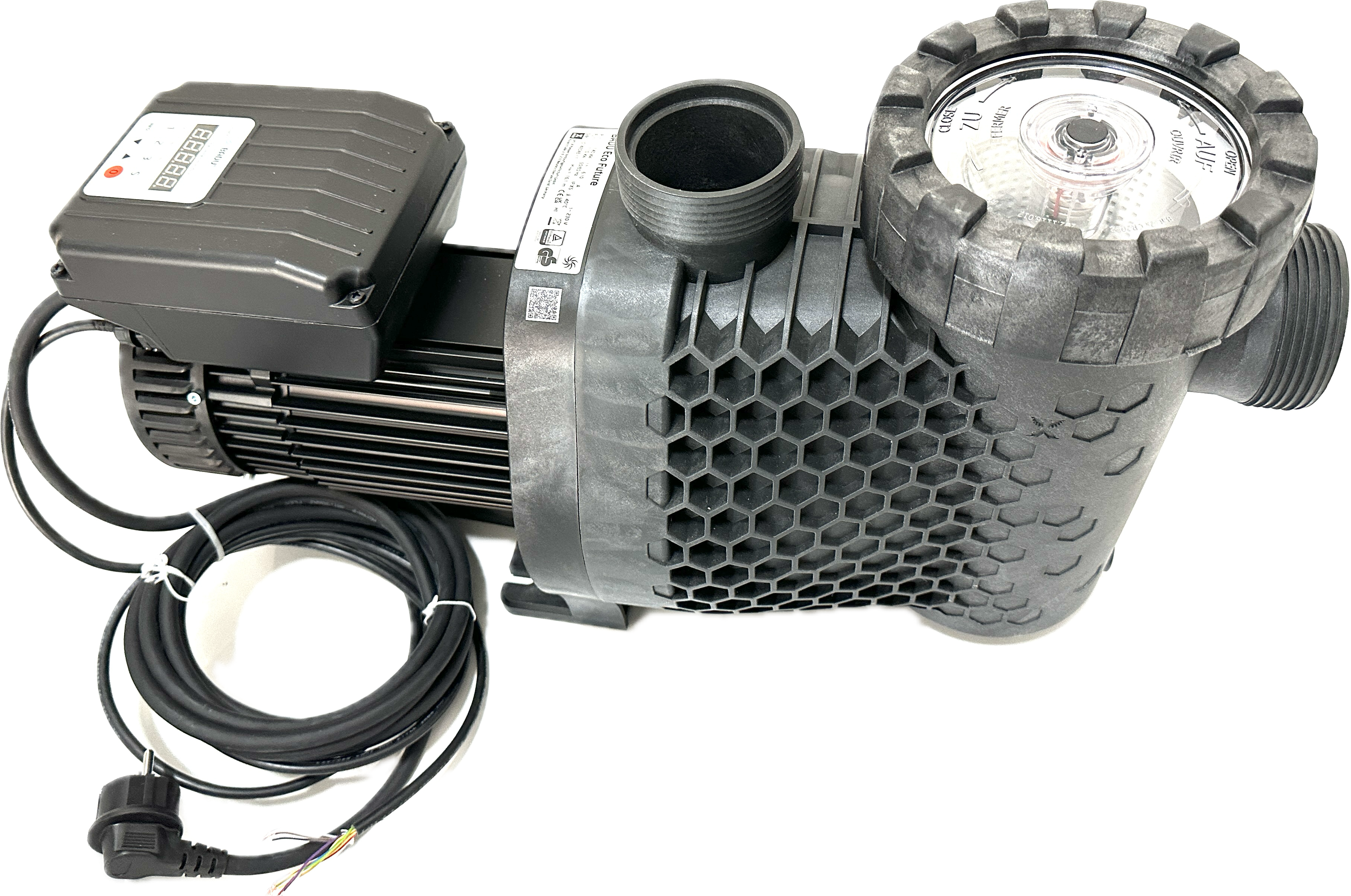

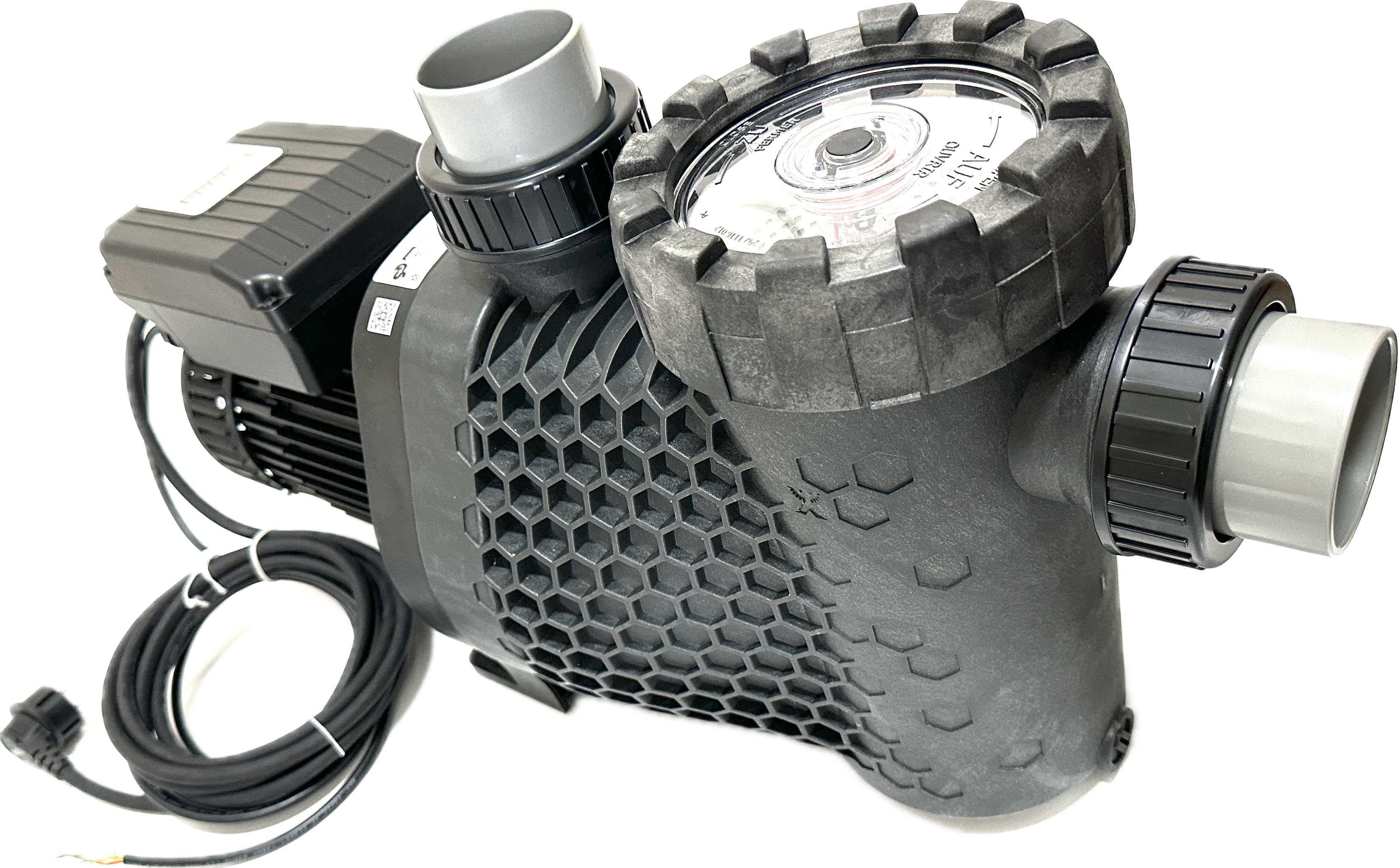

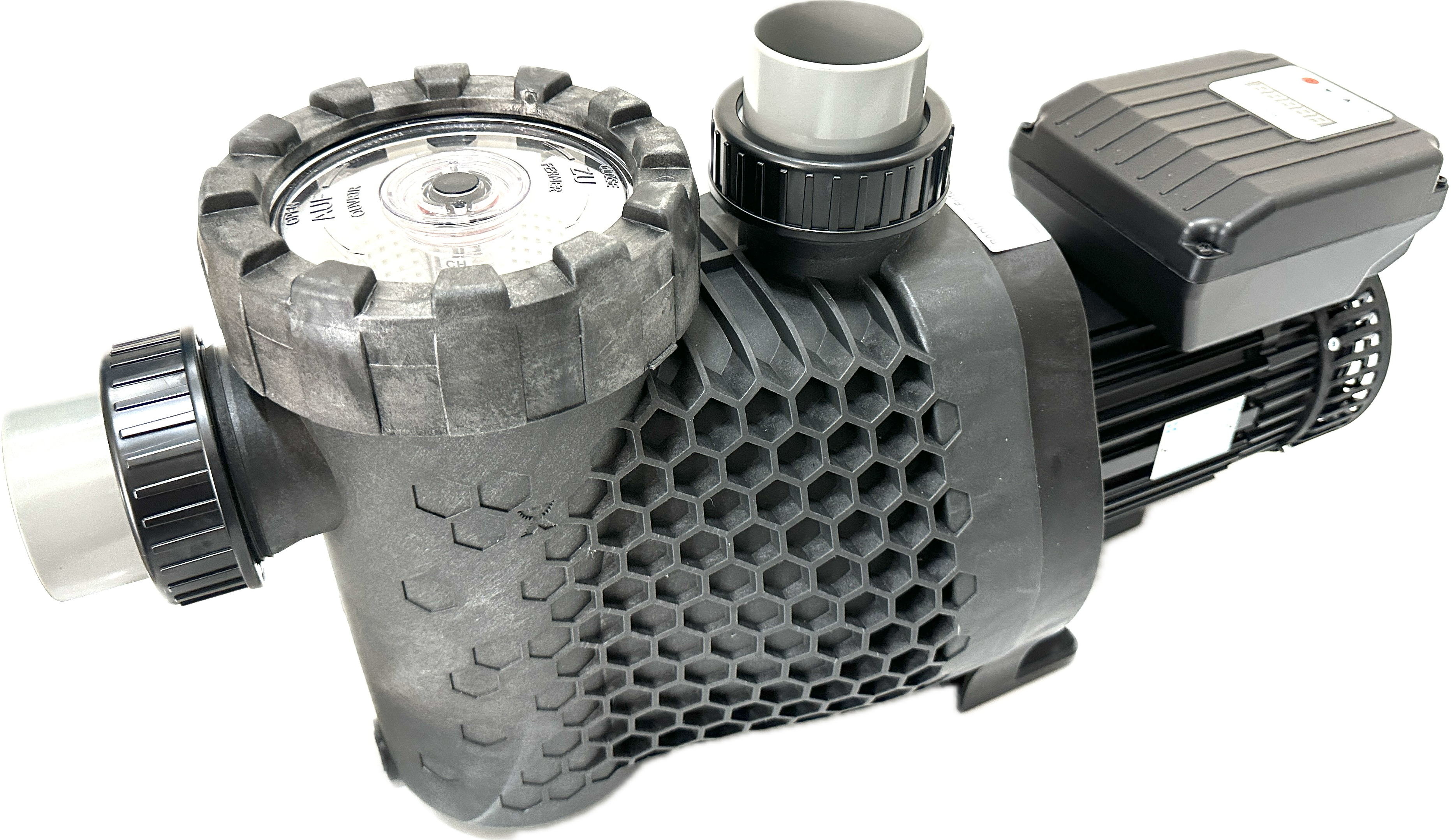

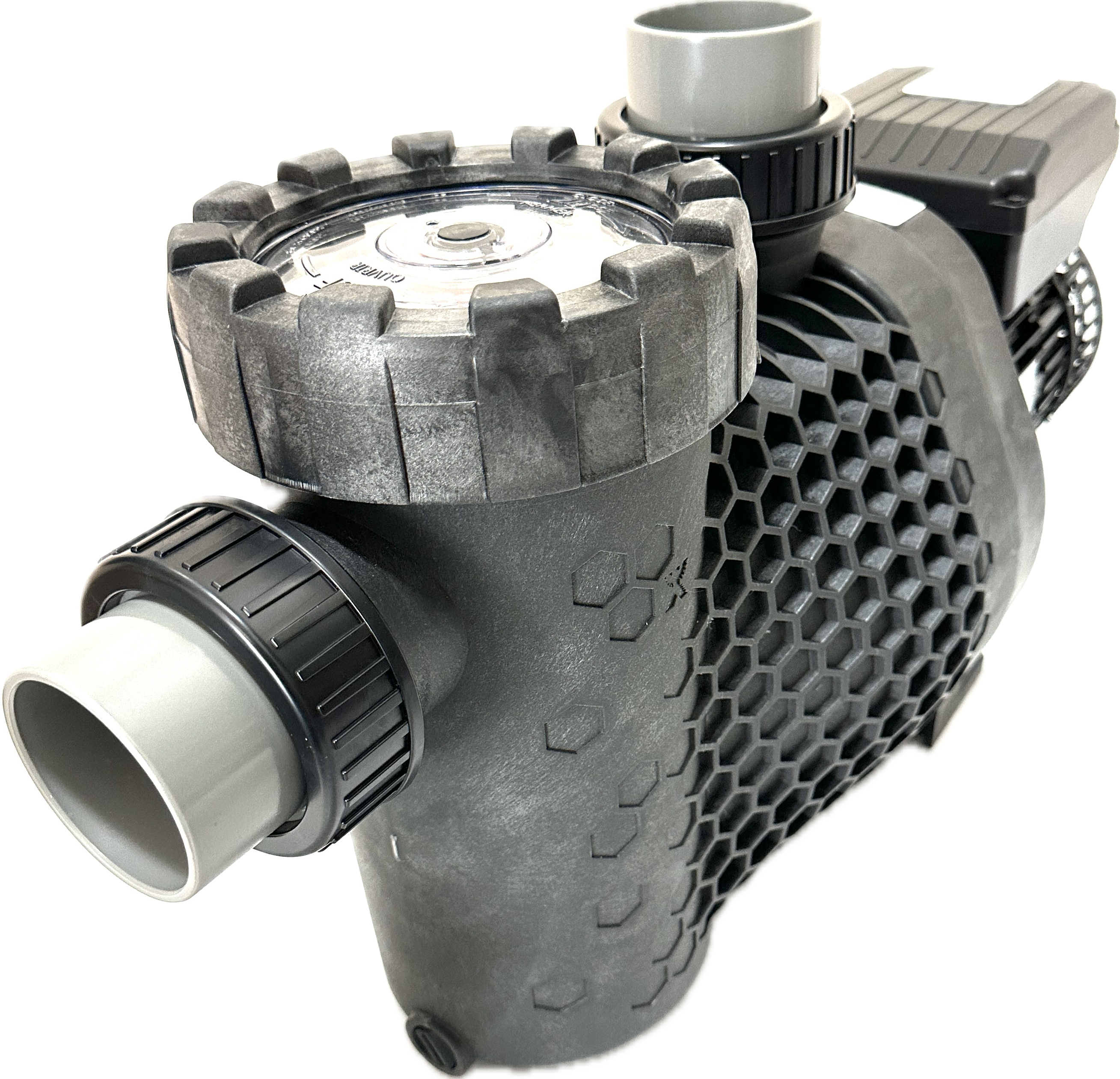

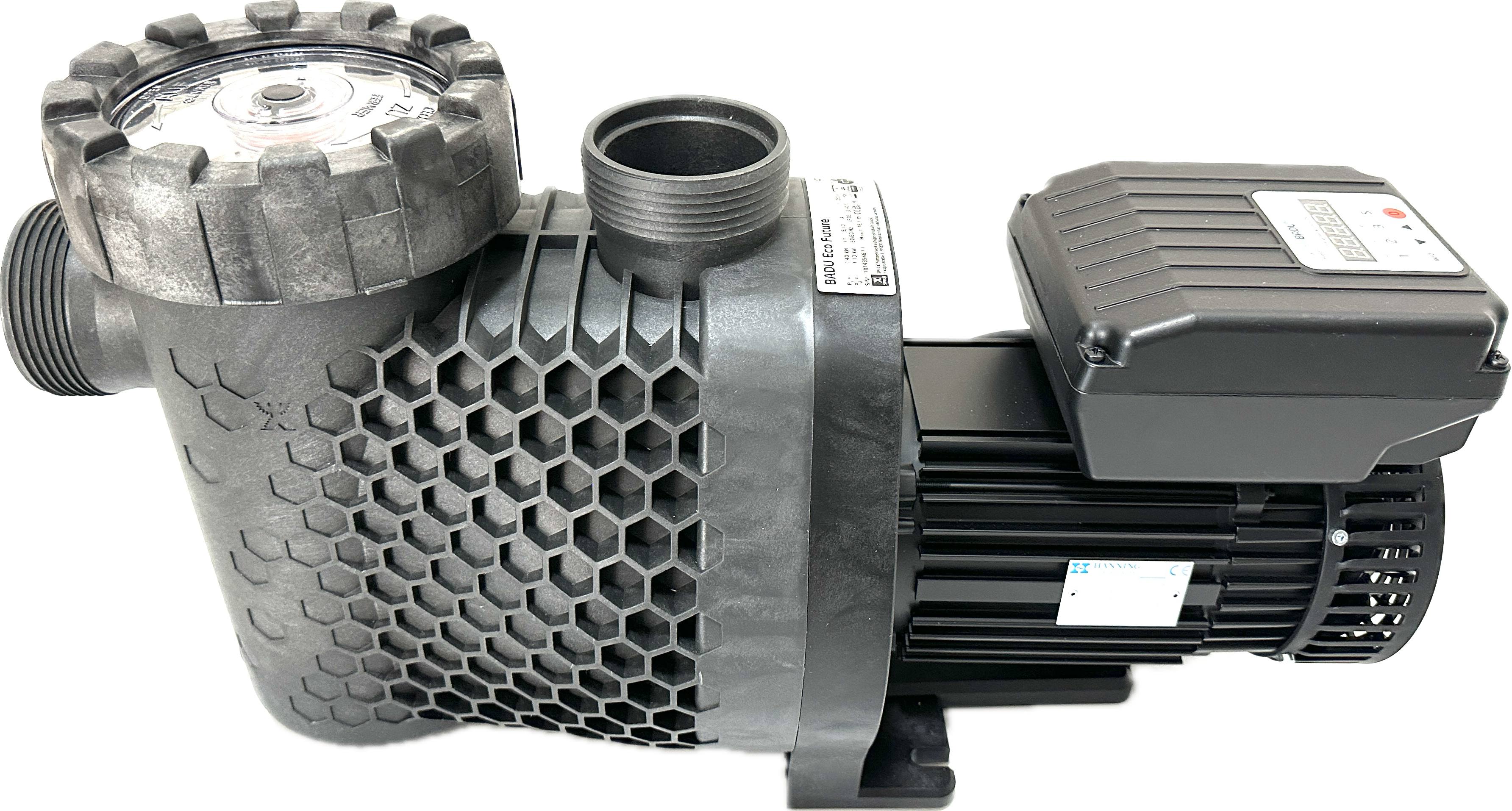

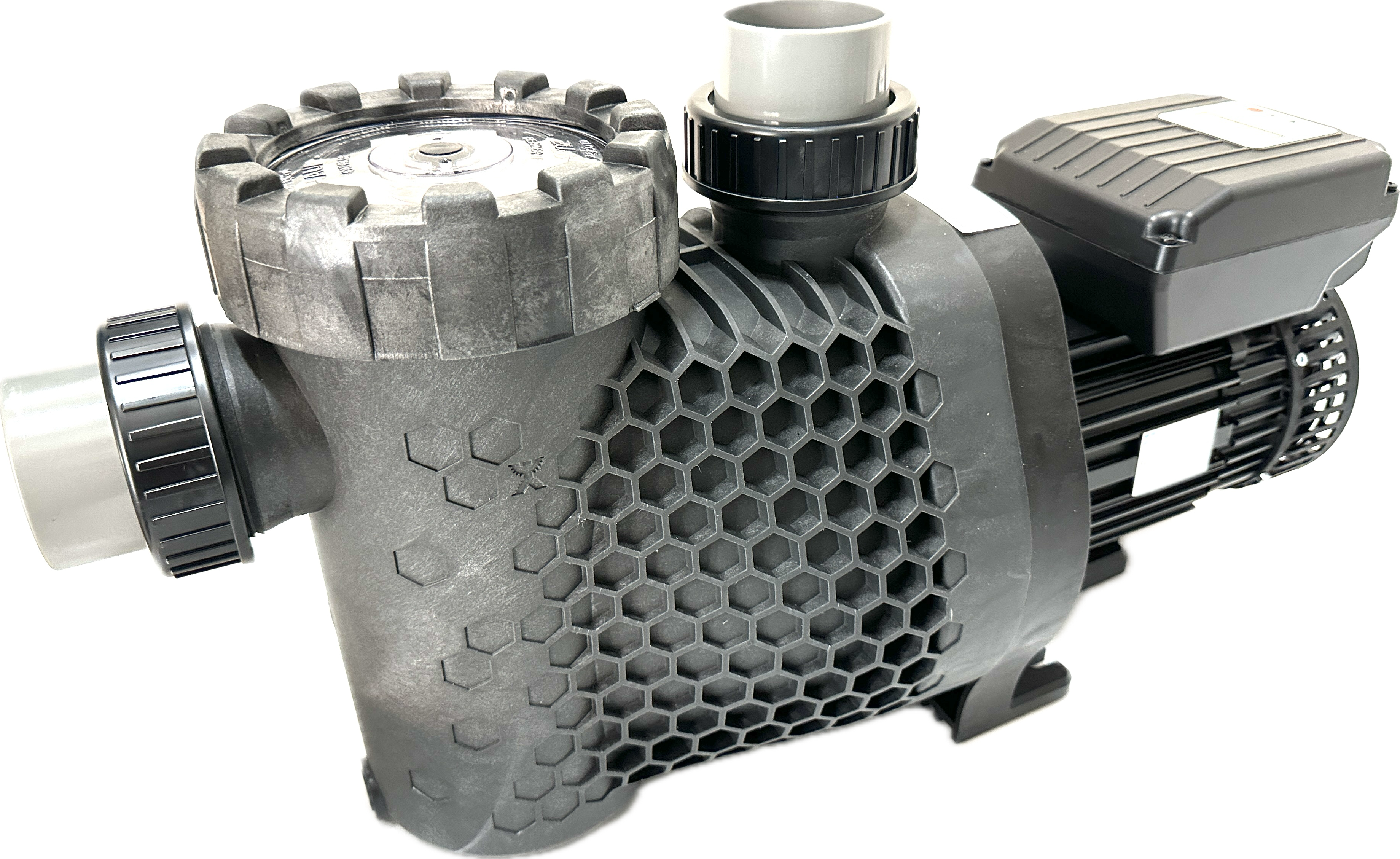

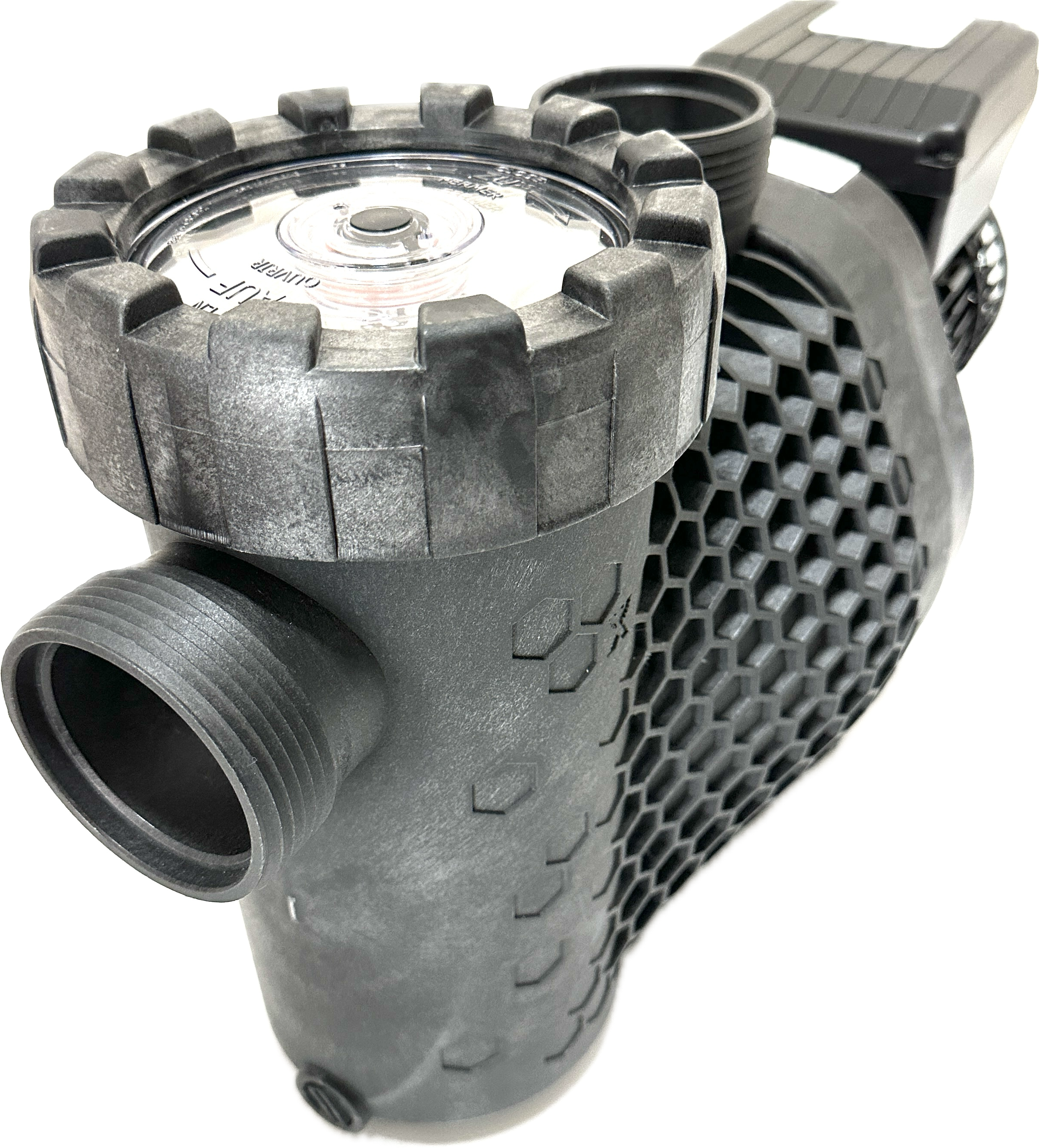

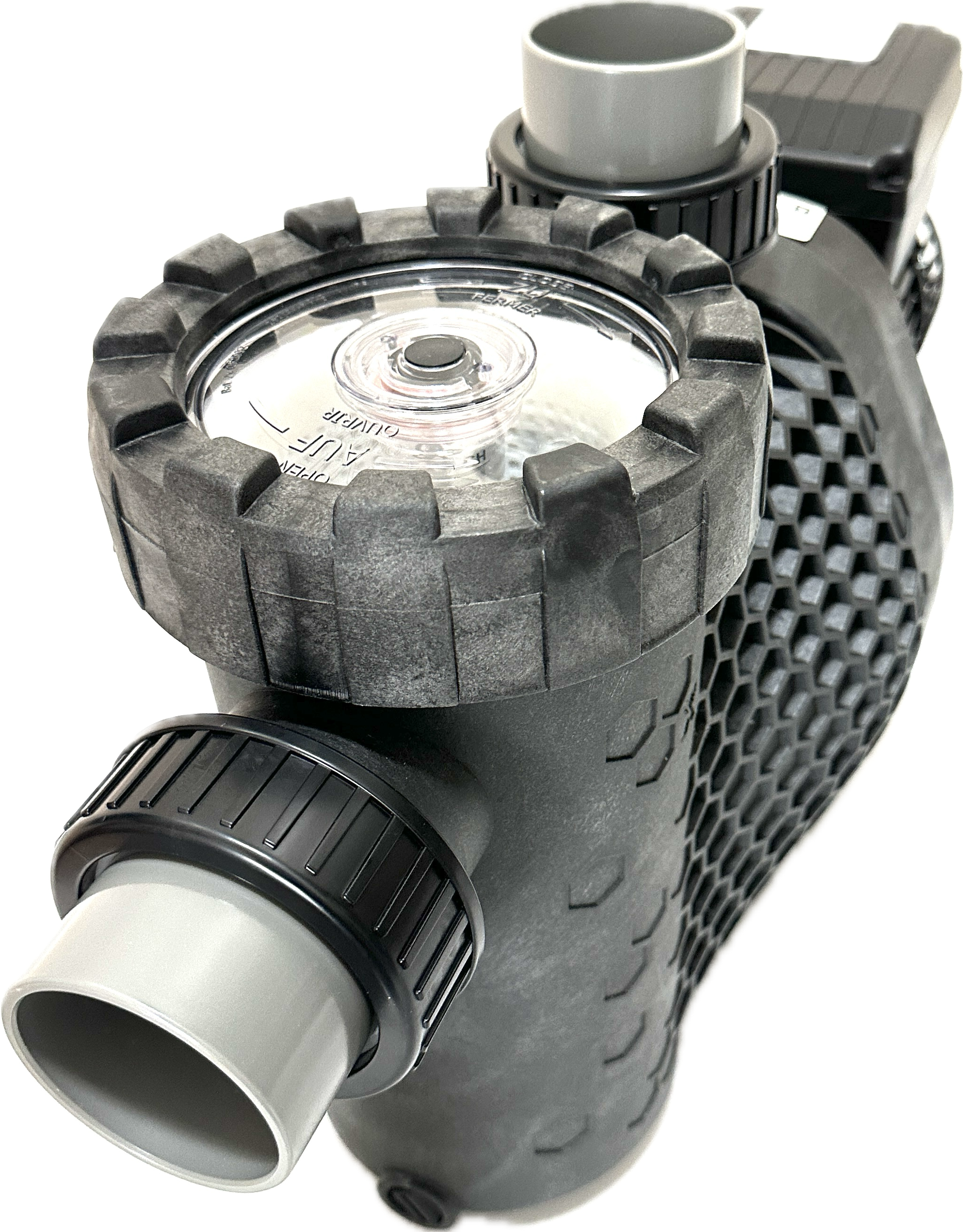

Self-priming filtration circulation pump BADU Eco Future, alternating current version for pool water circulation in filtration units
1~230 V
H max. = 20,3 m
Q max. = 39,0 m³/h
Power input P1 (kW): 0,03-1,40
Power output P2 (kW): 0,01-1,10
Rated current = 0,5-6,10 A
Inlet (Sa)/ outlet connection(Da): 63mm/63mm
| Strainer basket | bio based plastic |
|---|---|
| Mechanical seal | |
| Installation | |
| Pool equipment | |
| Gland housing | bio based plastic |
| Pool type | Nature pool / Swim pond |
| Diffuser | bio based plastic |
| Pump casing | bio based plastic |
| Impeller | |
| Screws | |
| Strainer basket in mm | |
| Strainer capacity in l | approx. 3 |
| Intermediate housing | bio based plastic |
| Glue socket/union nut | PVC-U, ABS |
| Class | |
| Lid | PC, transparent / bio based plastic |
With its new motor generation, the BADU Eco Future becomes an energy-conscious circulation pump for pools. A plug-in converter mounted on the motor allows a space-saving design. The plain text display allows user-friendly programming. The simple programming via touchpad as well as a multitude of analogue and digital interfaces make the application even more effortless.
Swimming pool water circulation through a filter system. The pump can be installed max. 3 m above or below water level.
Monoblock-type pump with integrated strainer tank. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve. Motor/pump shaft has no contact with the pool water providing complete electrical separation.
Special motors on request.
The above mentioned pumps can be used for pool water with a salt concentration of up to 0.5%, i. e. 5 g/l.
For higher salt concentrations please contact us.
Also available in AK version
