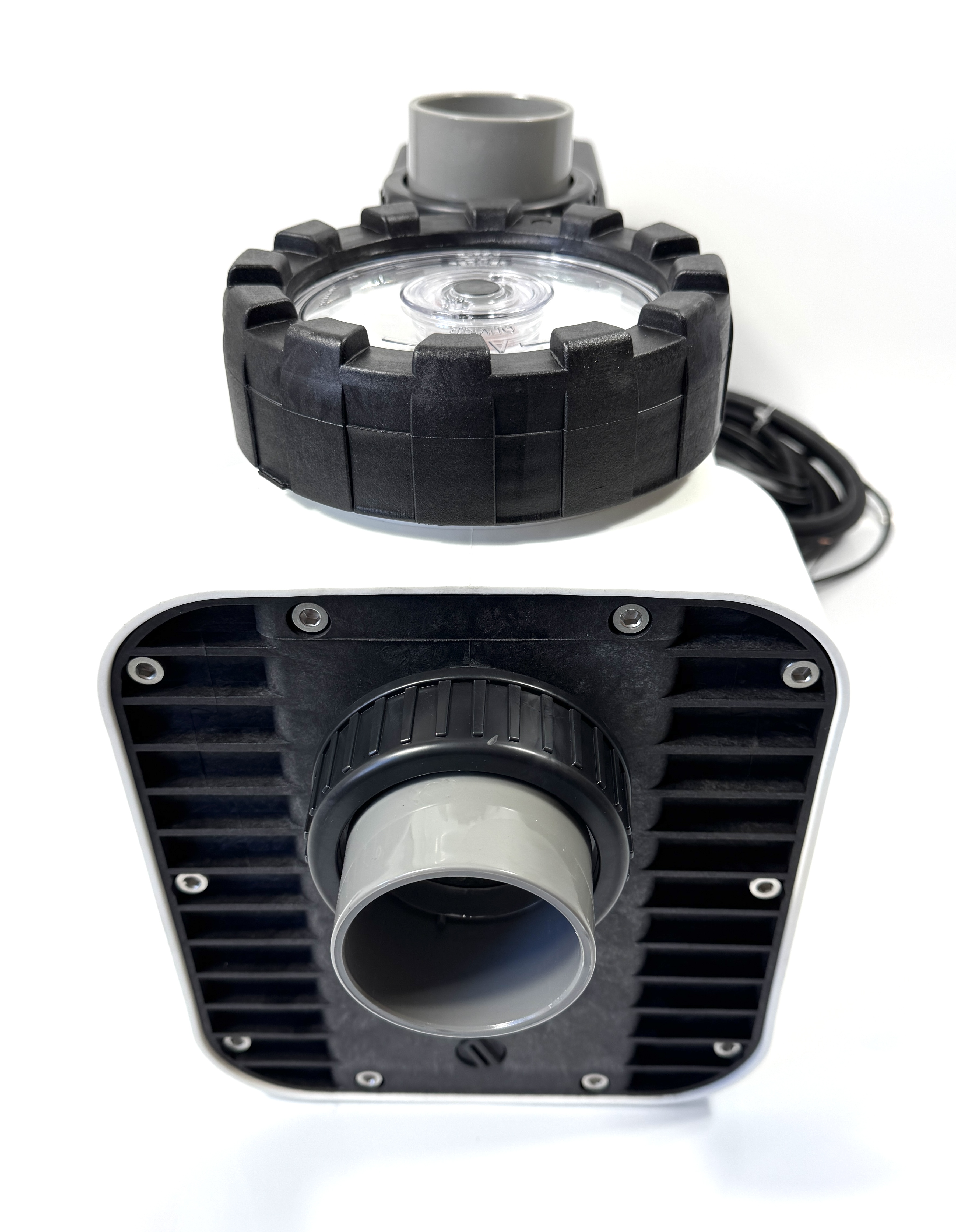

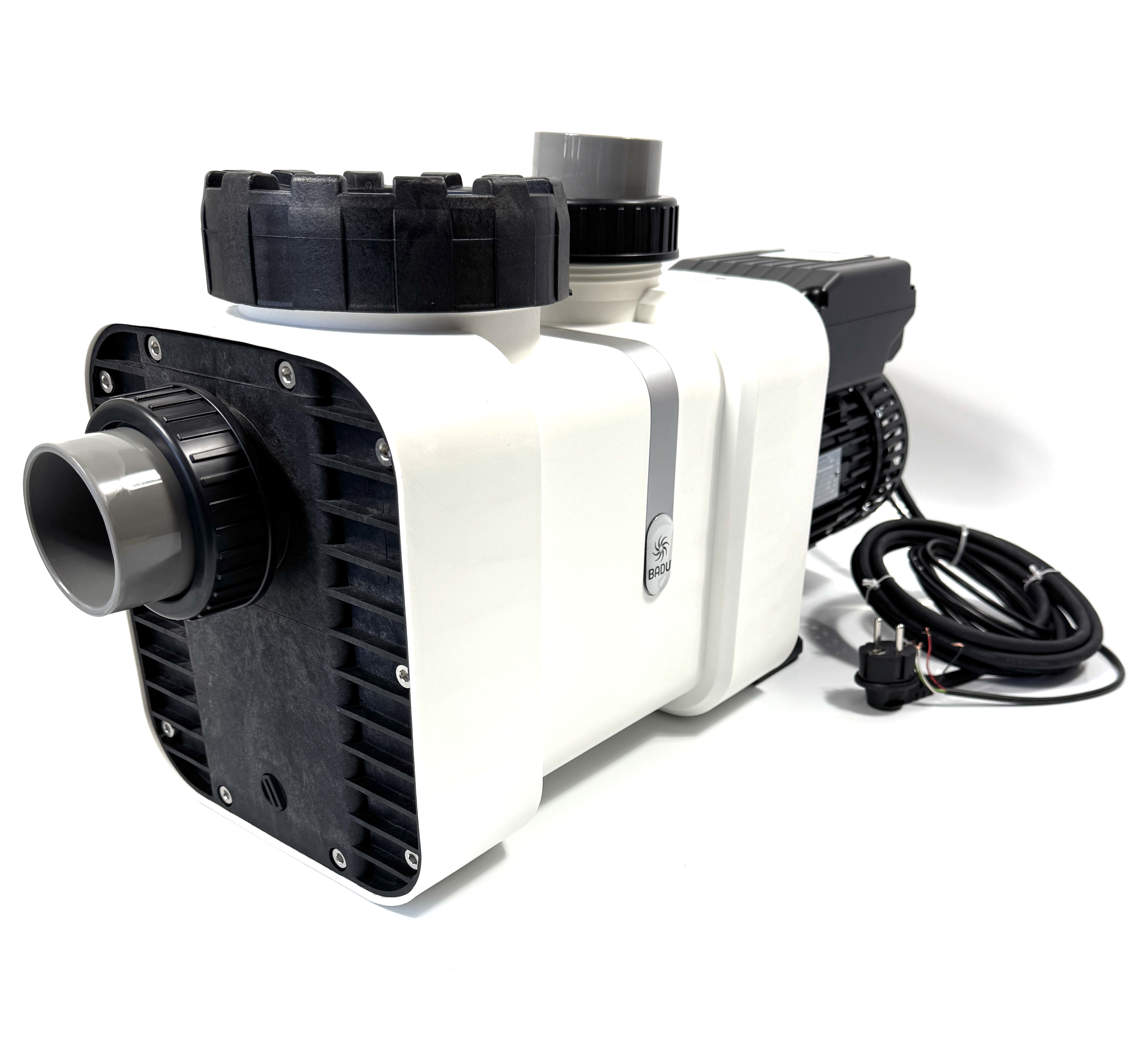

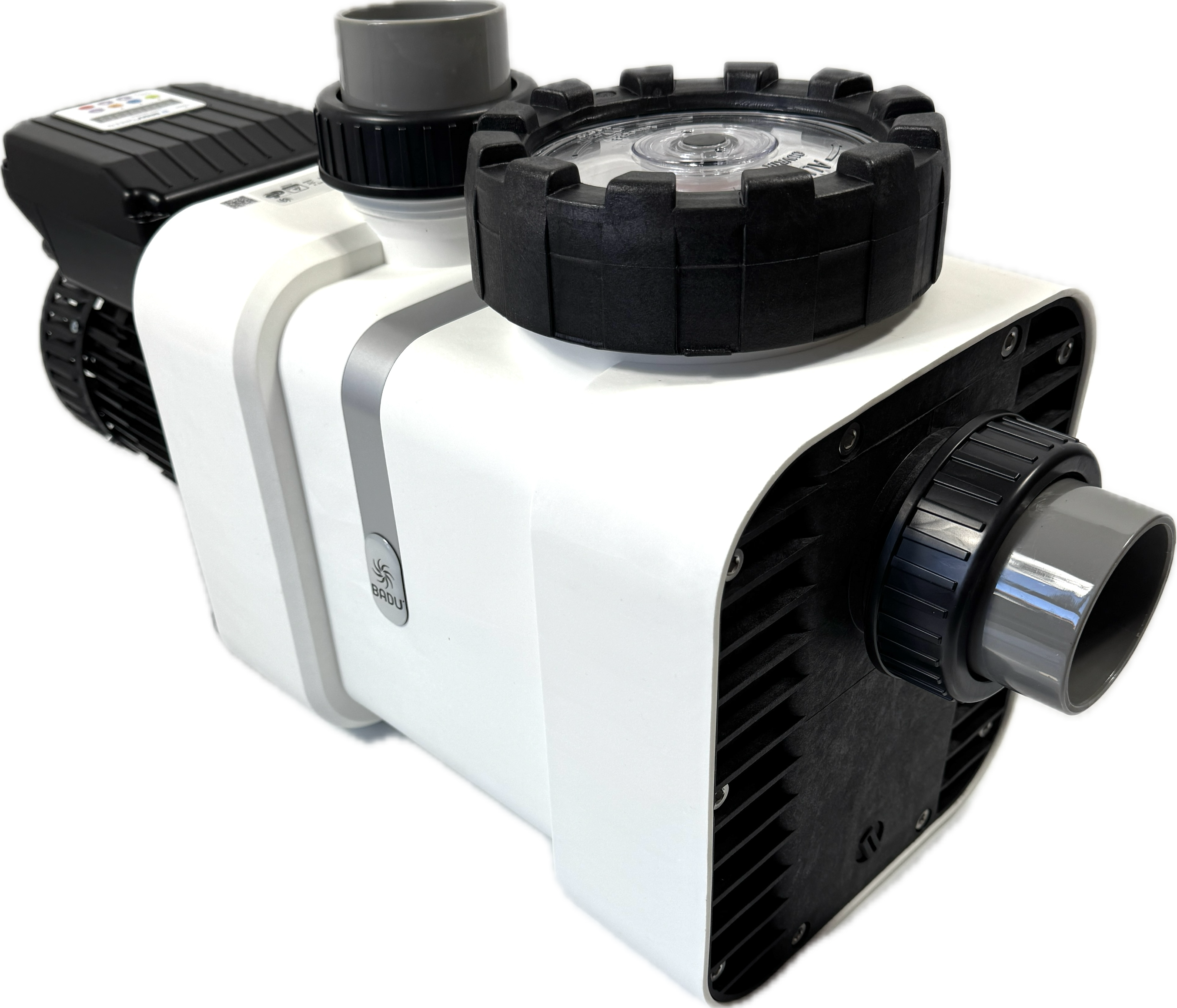

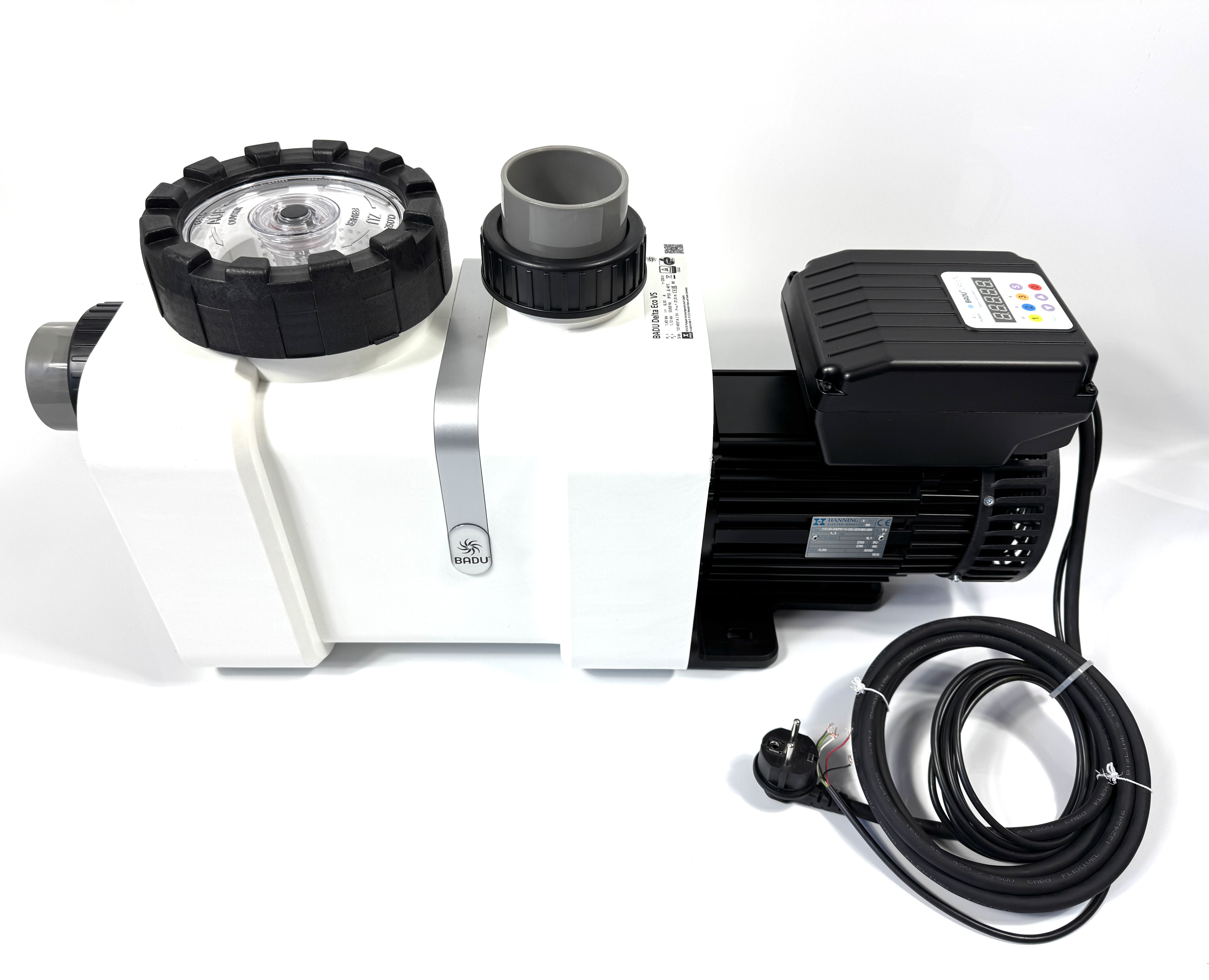

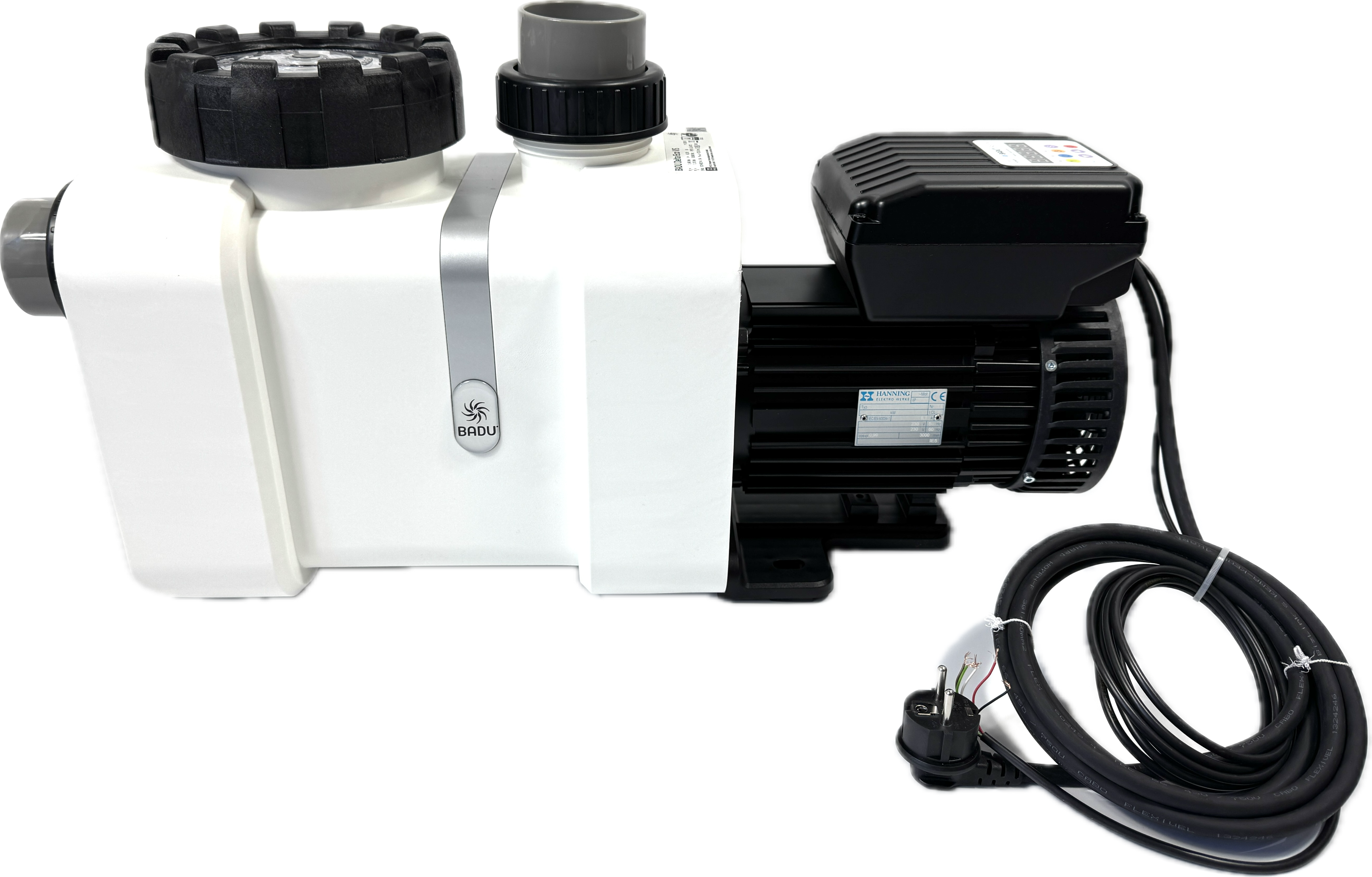

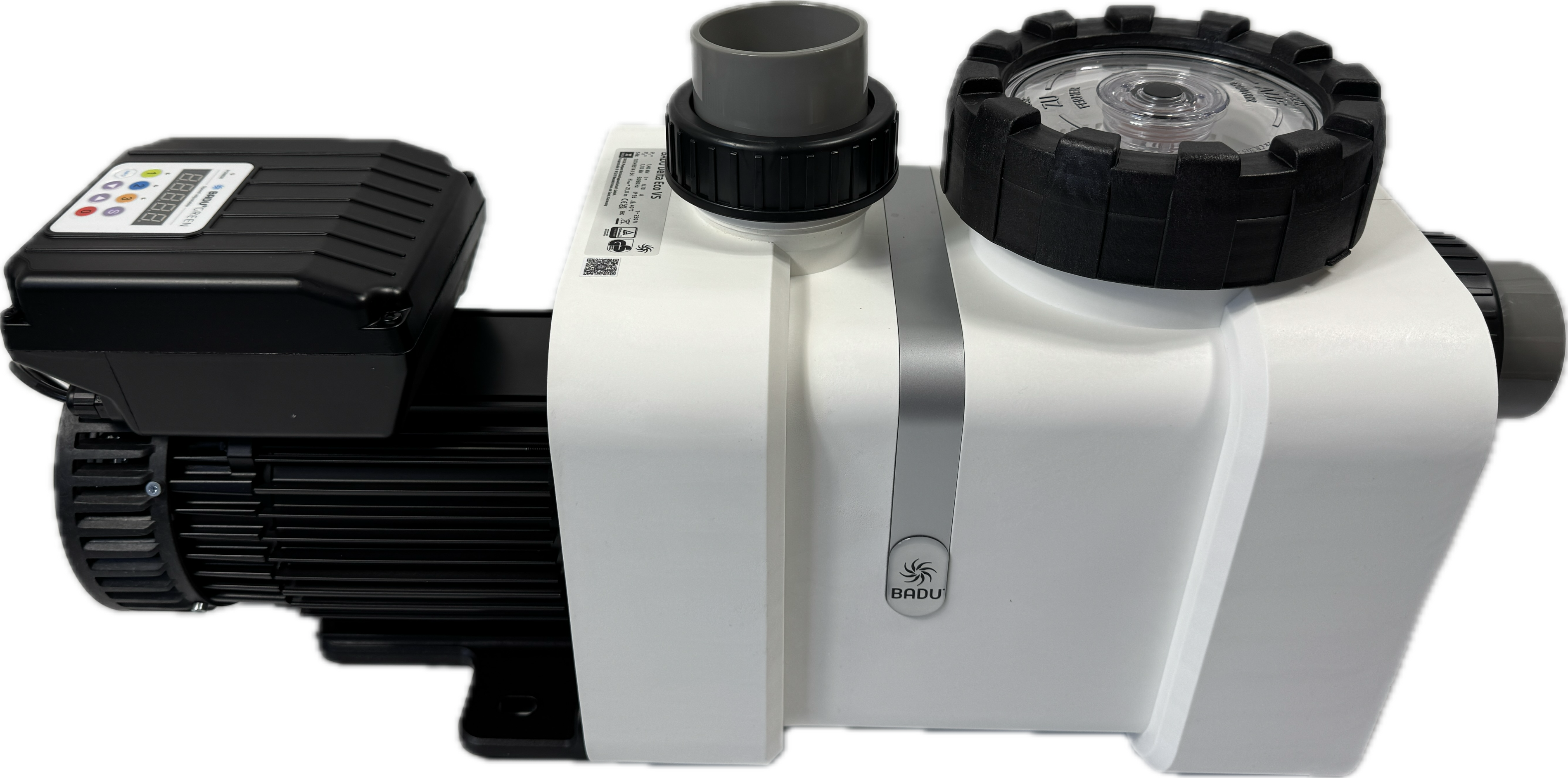

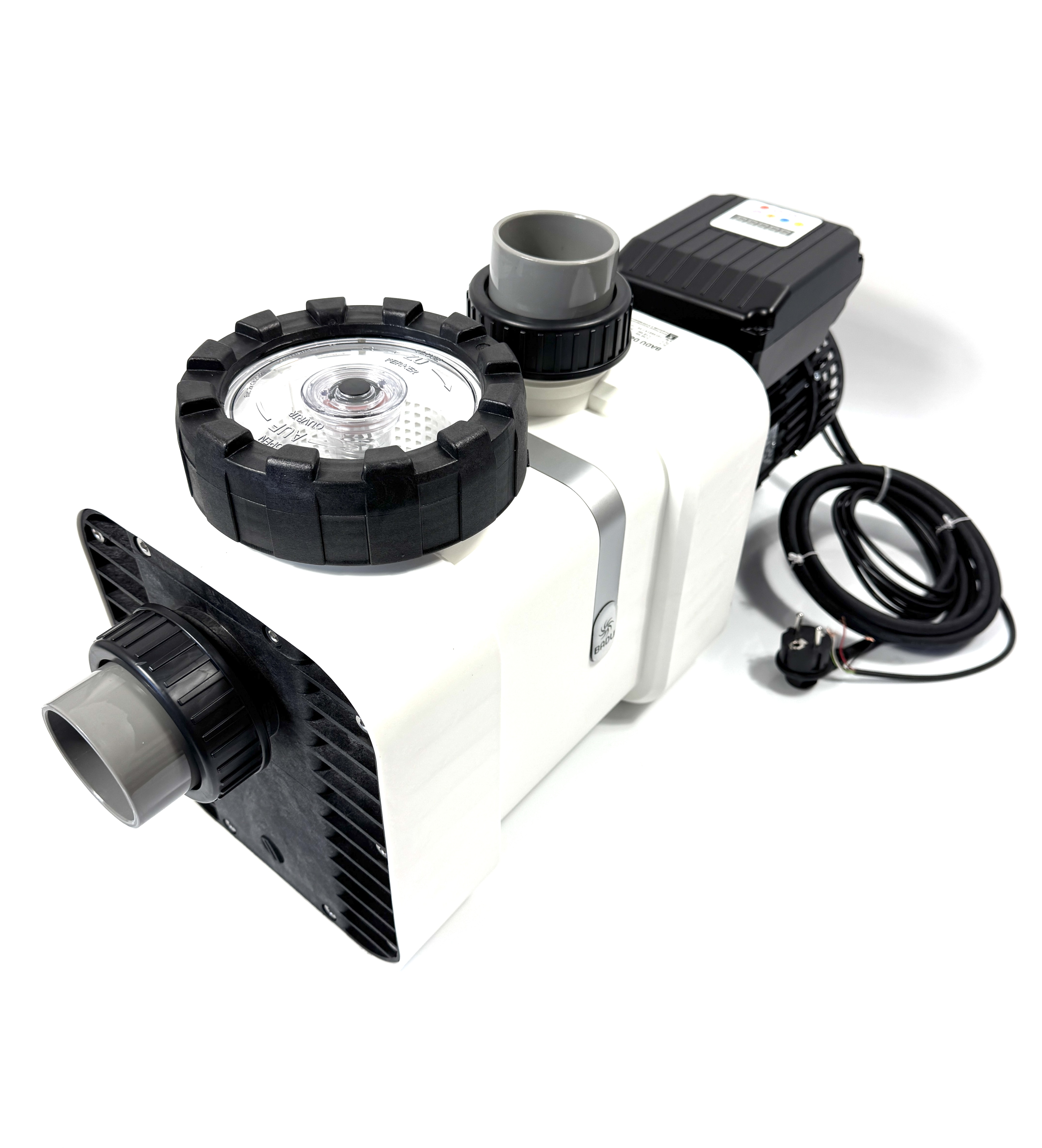

BADU Delta Eco VS
€1,700.00
Available in approx. 14 days, delivery time 2-4 days
Product information "BADU Delta Eco VS"

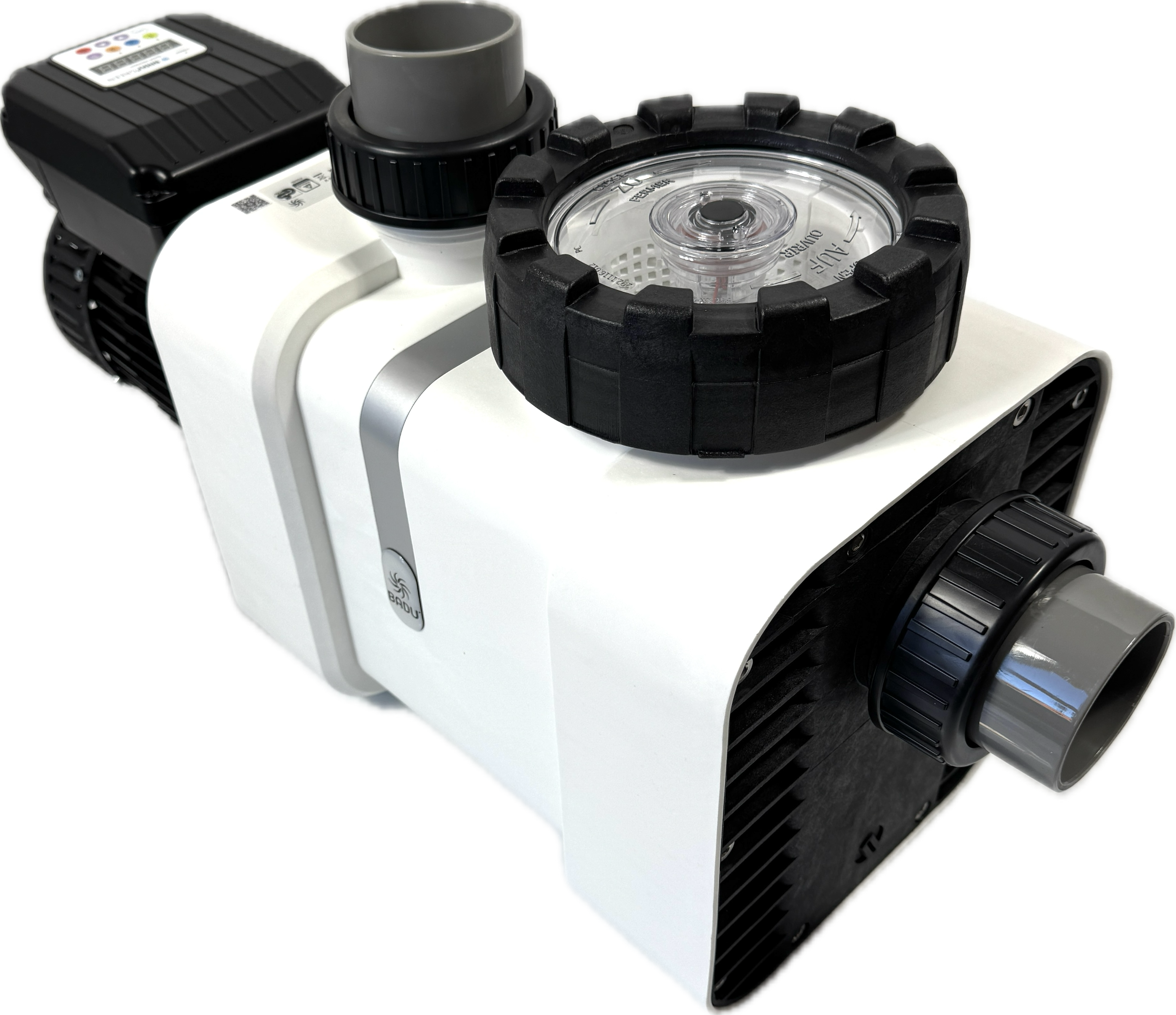

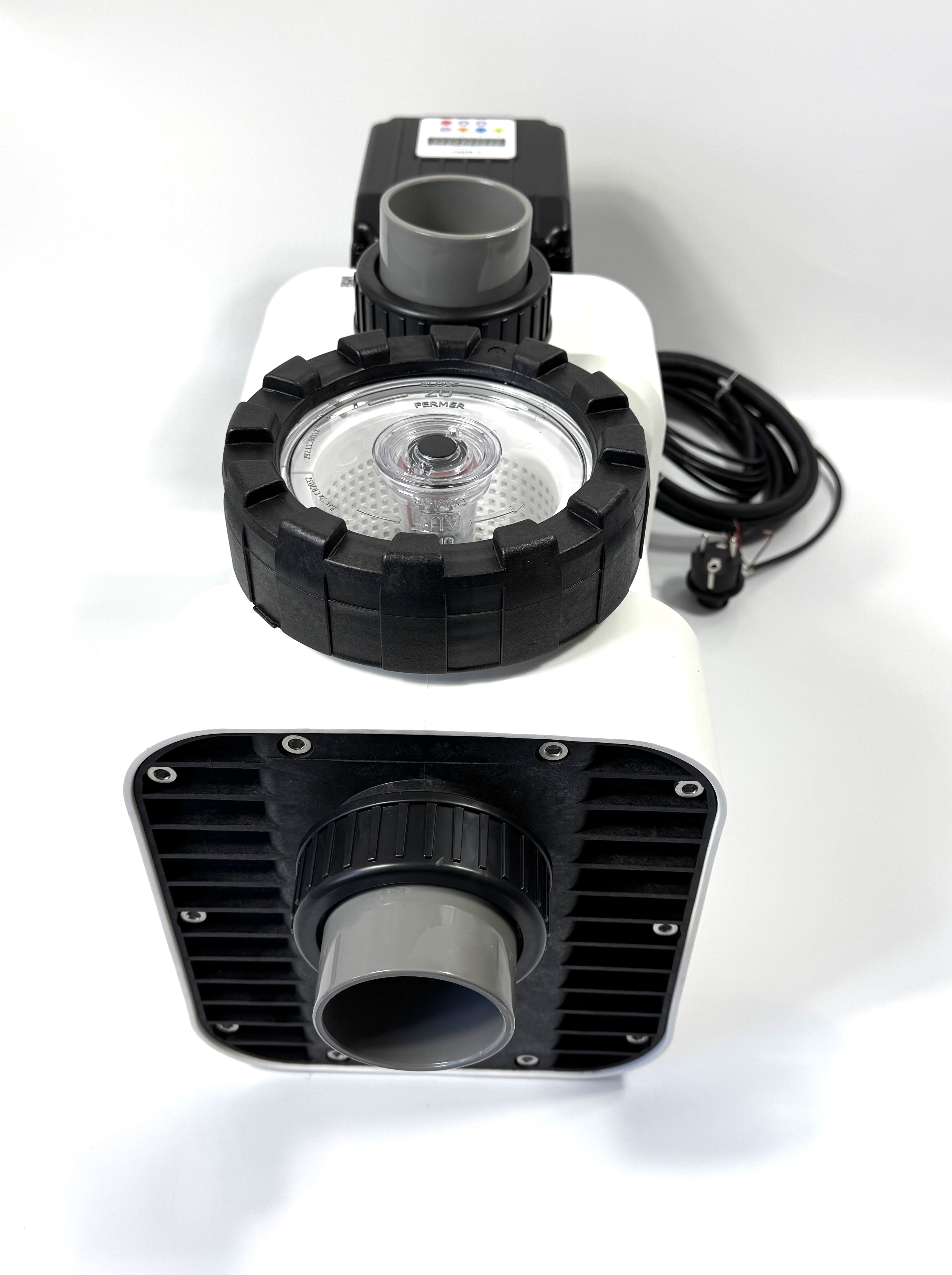

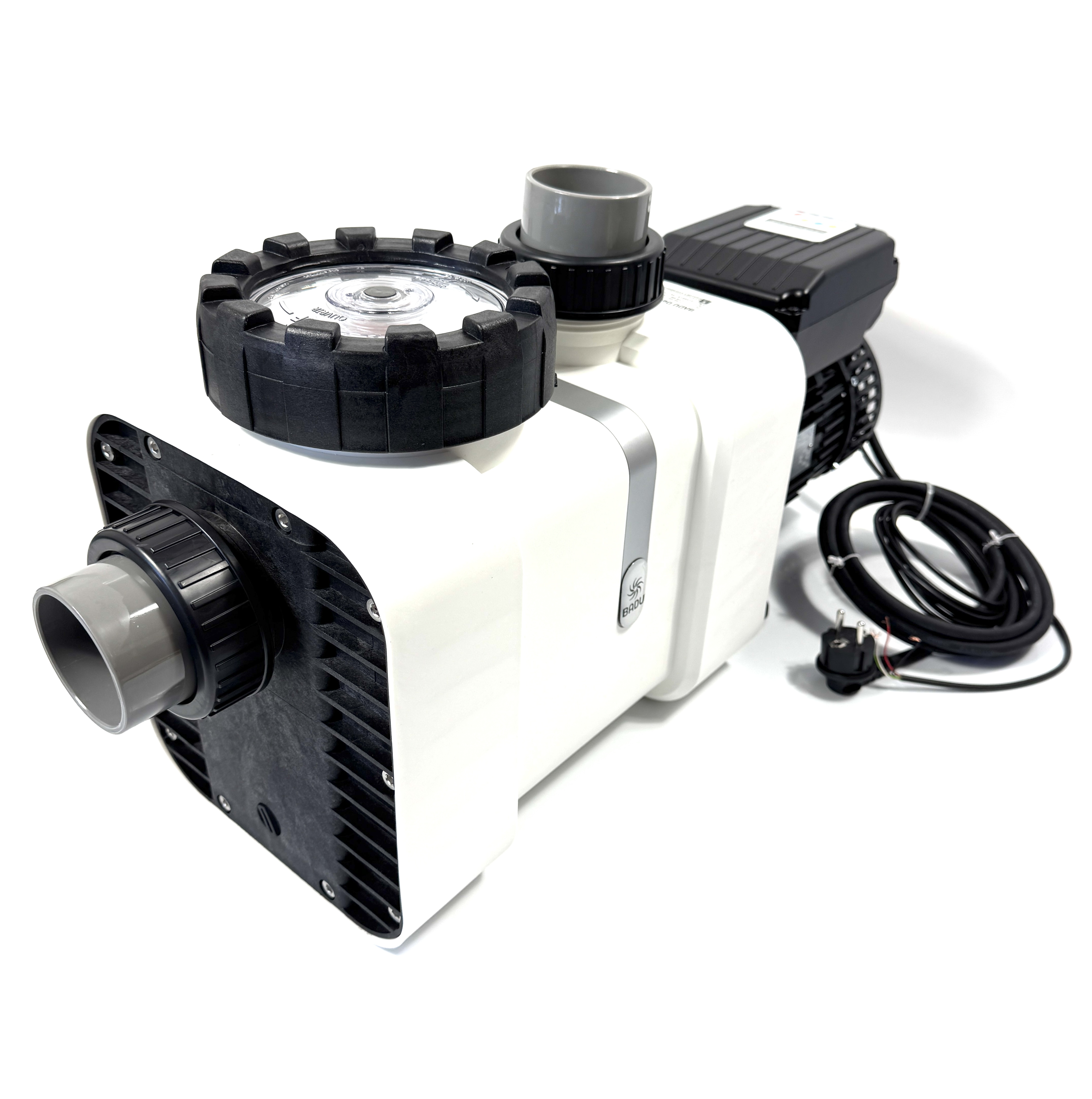

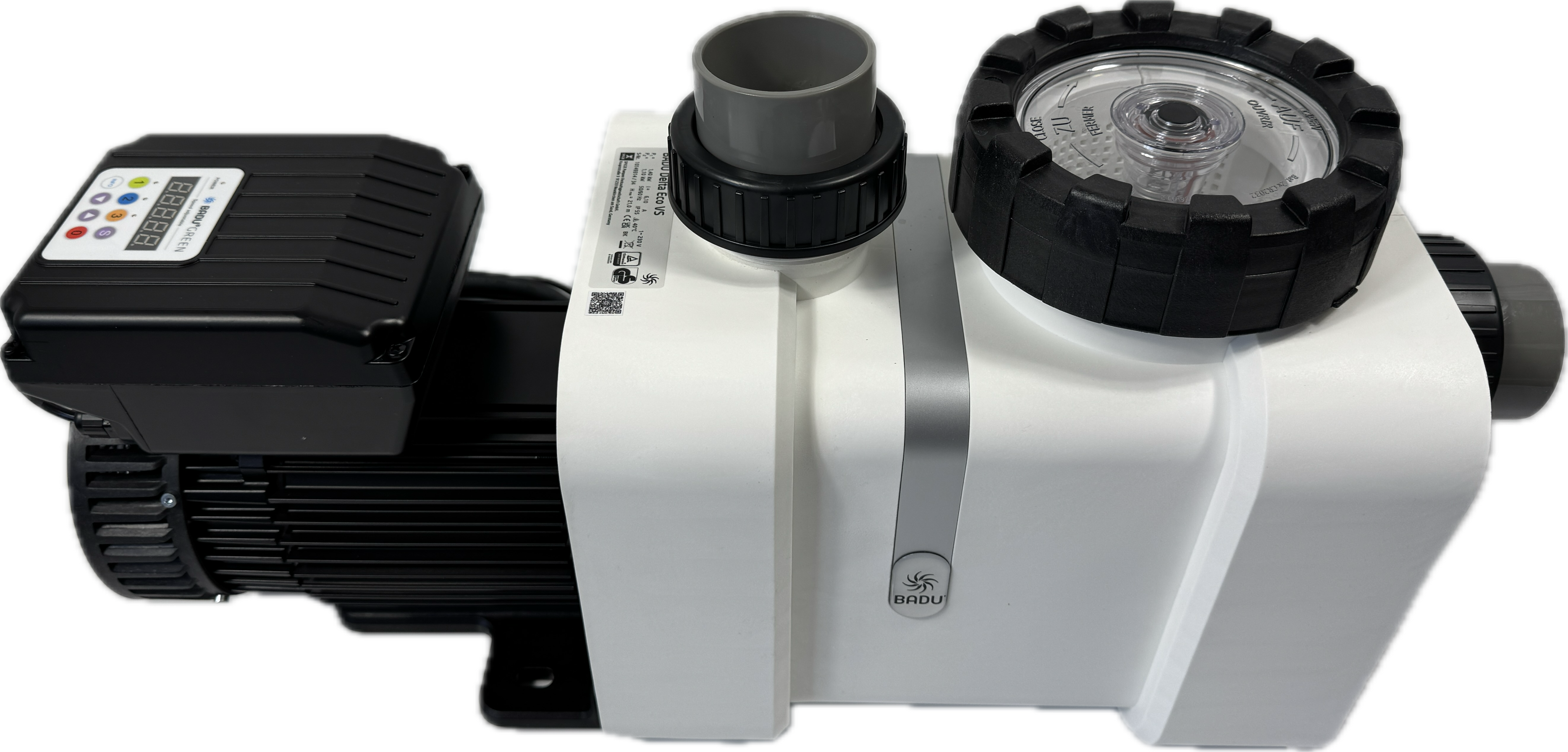

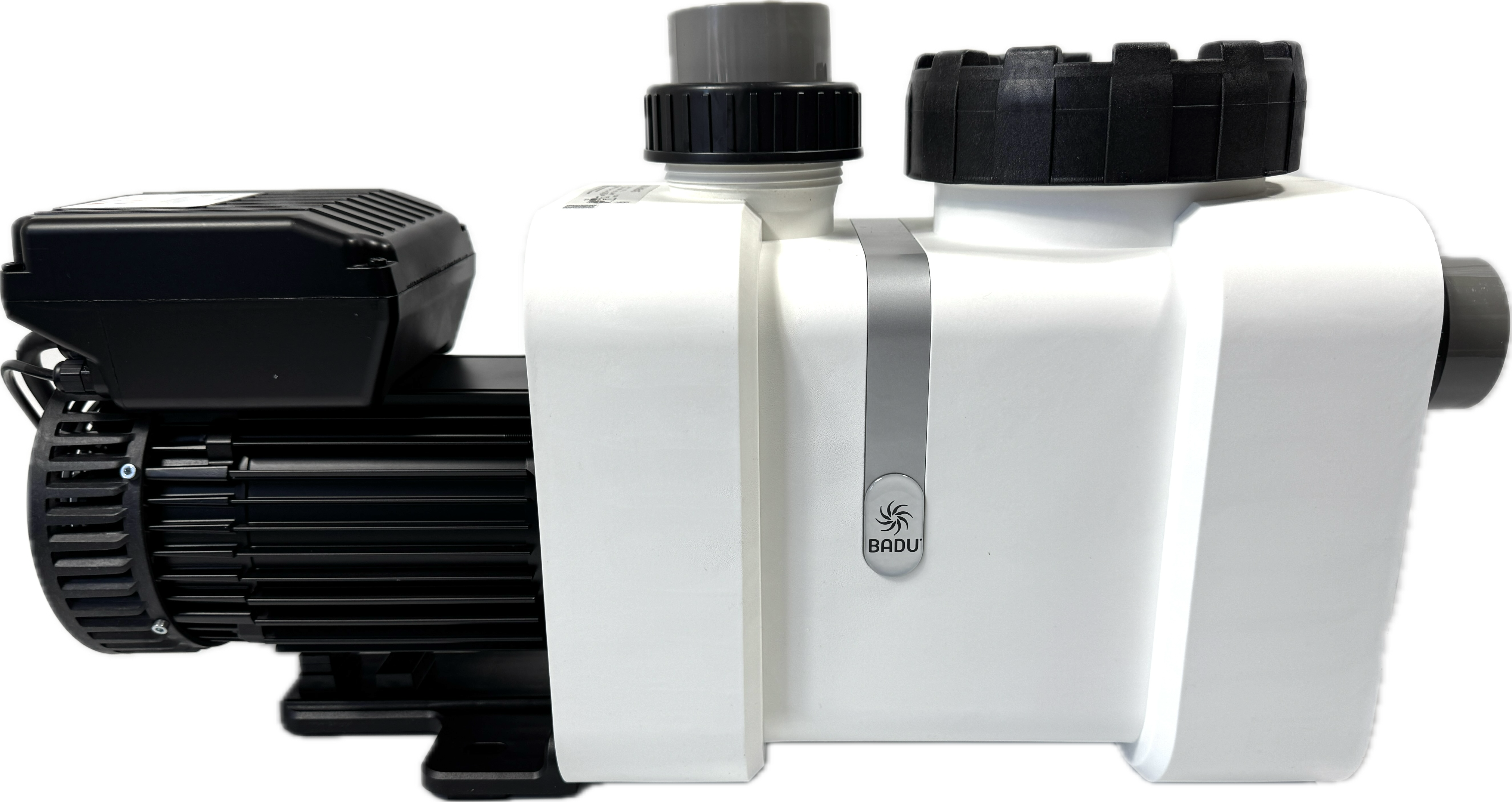

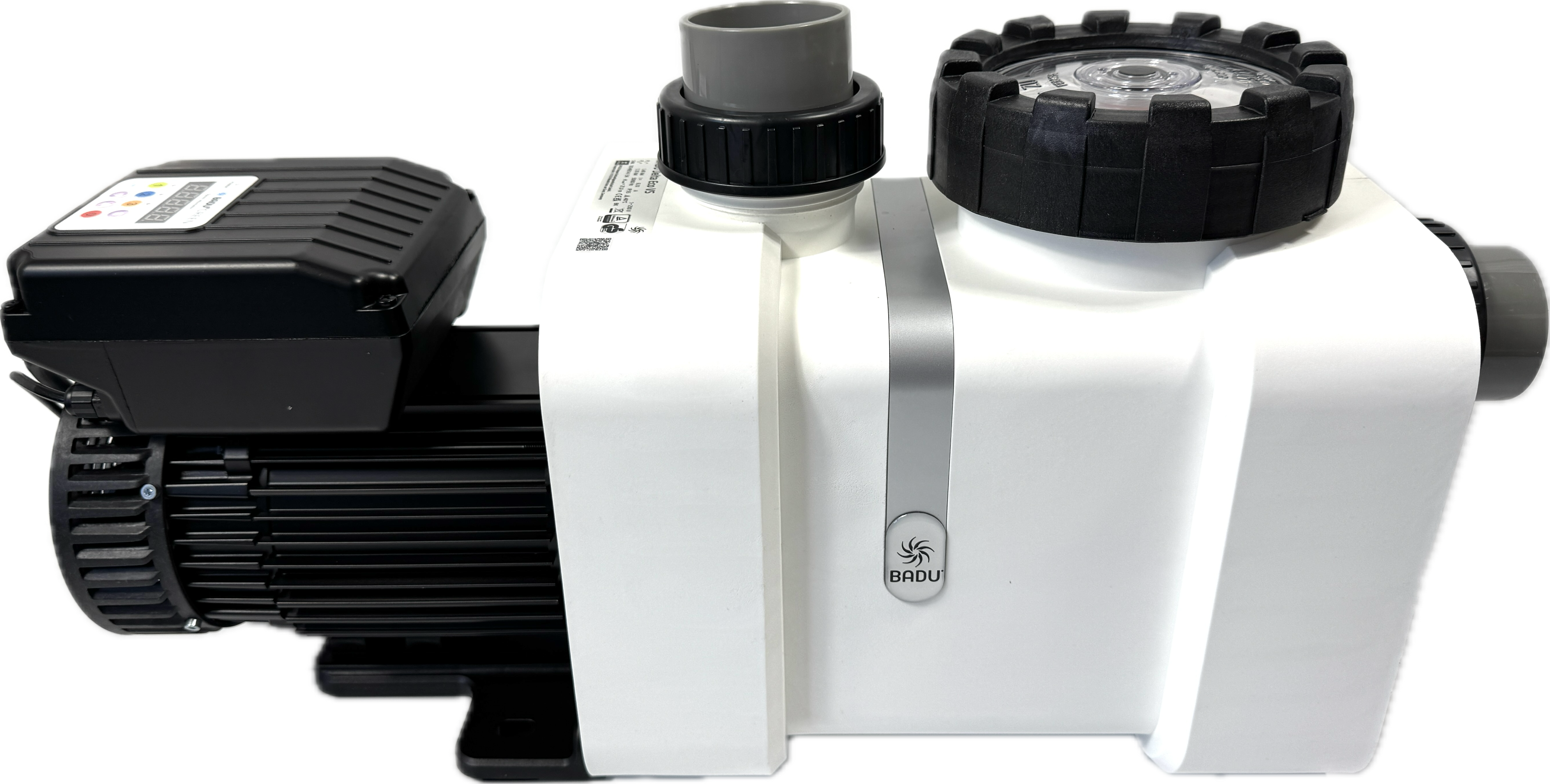

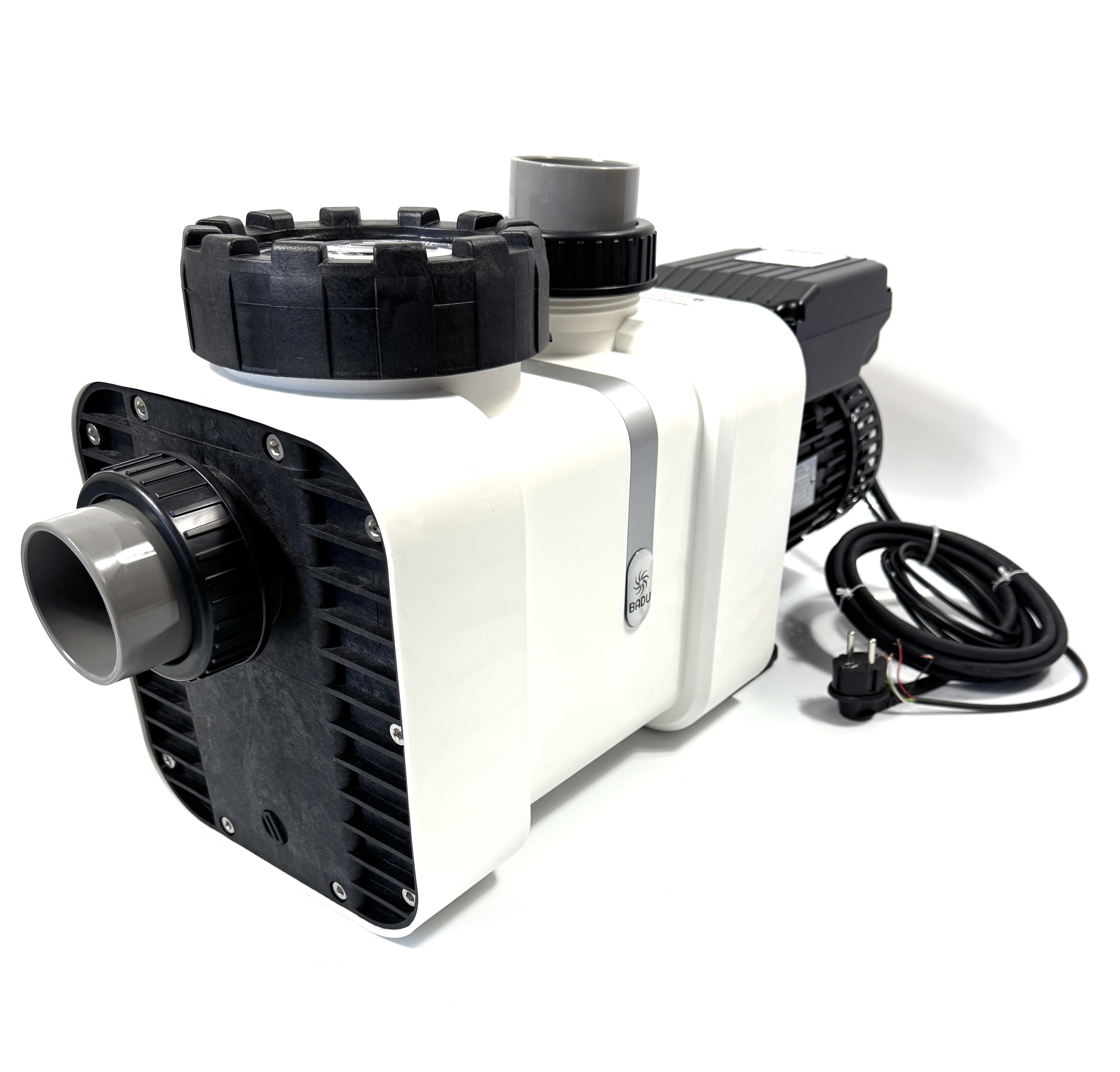

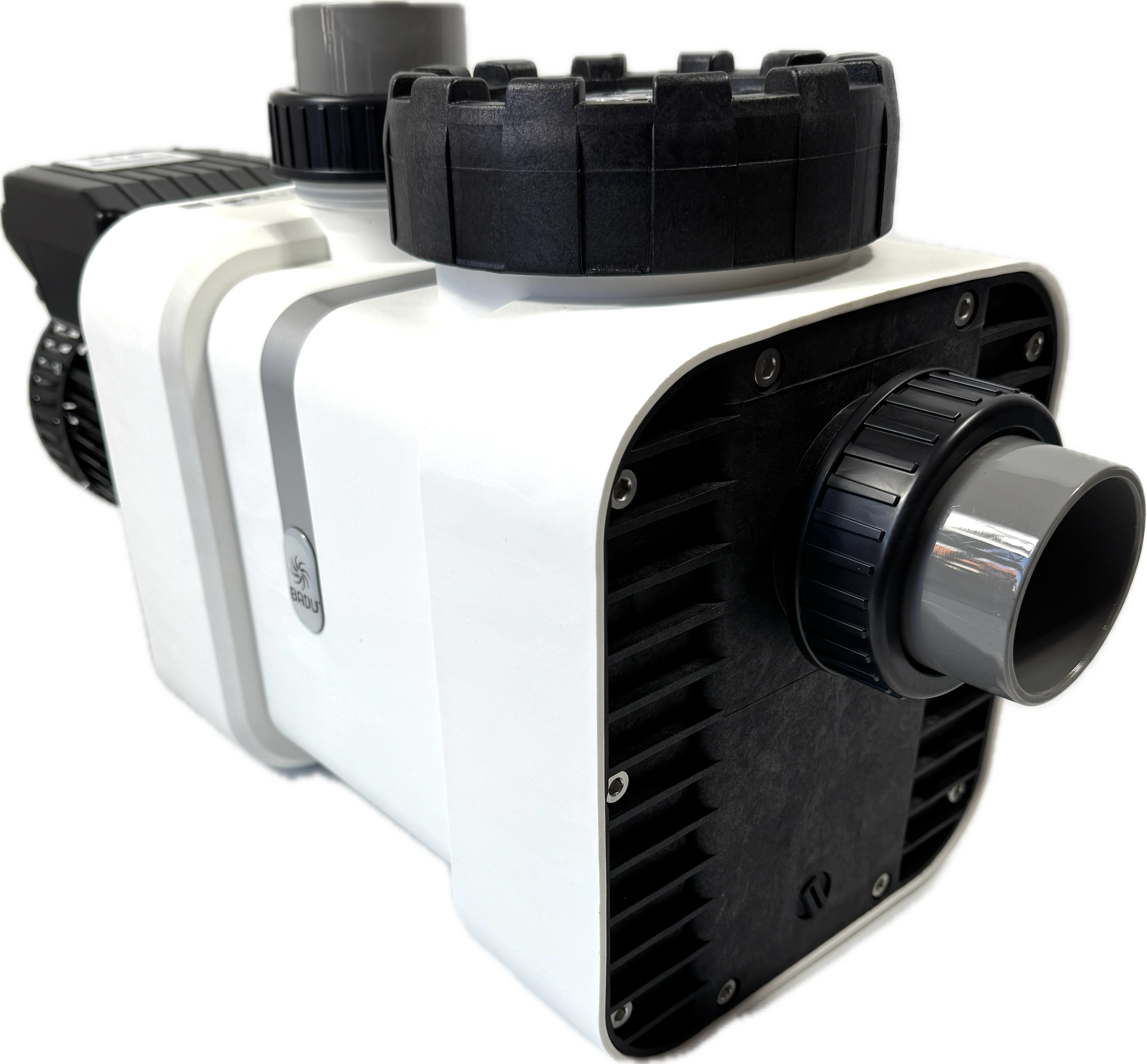

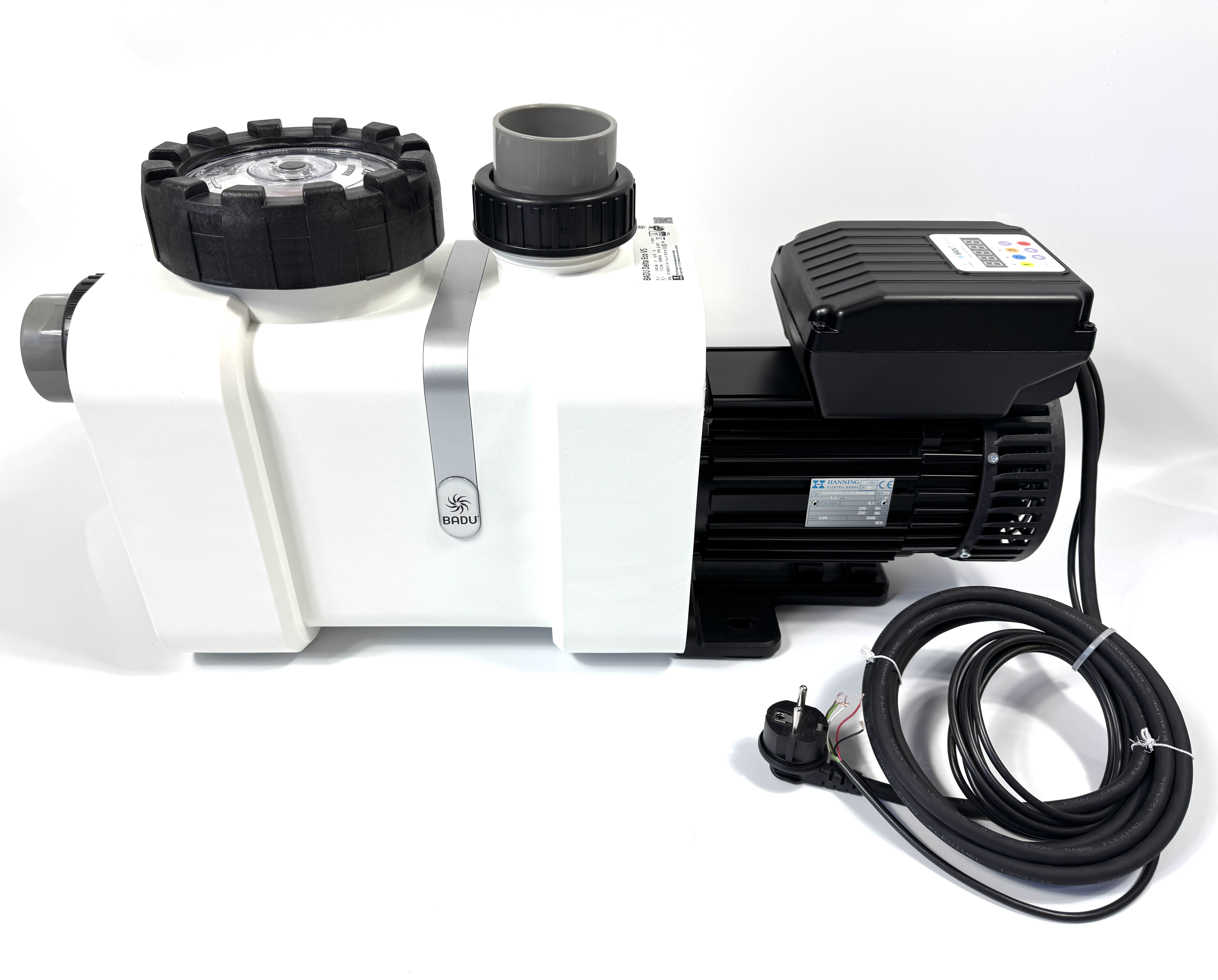

Self-priming filtration circulation pump BADU Delta Eco VS, alternating current version, with frequency controlled permanent magnet motor
1~230 V
H max. = approx. 20.7 m
Q max. = approx. 37 m³/h
Sound pressure level Lpa (1m) [dB(A)] 35,7-66,5
Power input P1 (kW): min.=0,03 / max.=1,40
Power output P2 (kW): min.=0,01 / max.=1,10
Nominal current = 0,50 - 6,10 A
Rotation speed = min. 600 U/min / max. 3400 U/min
Inlet/outlet (Da): 63 mm / 63 mm

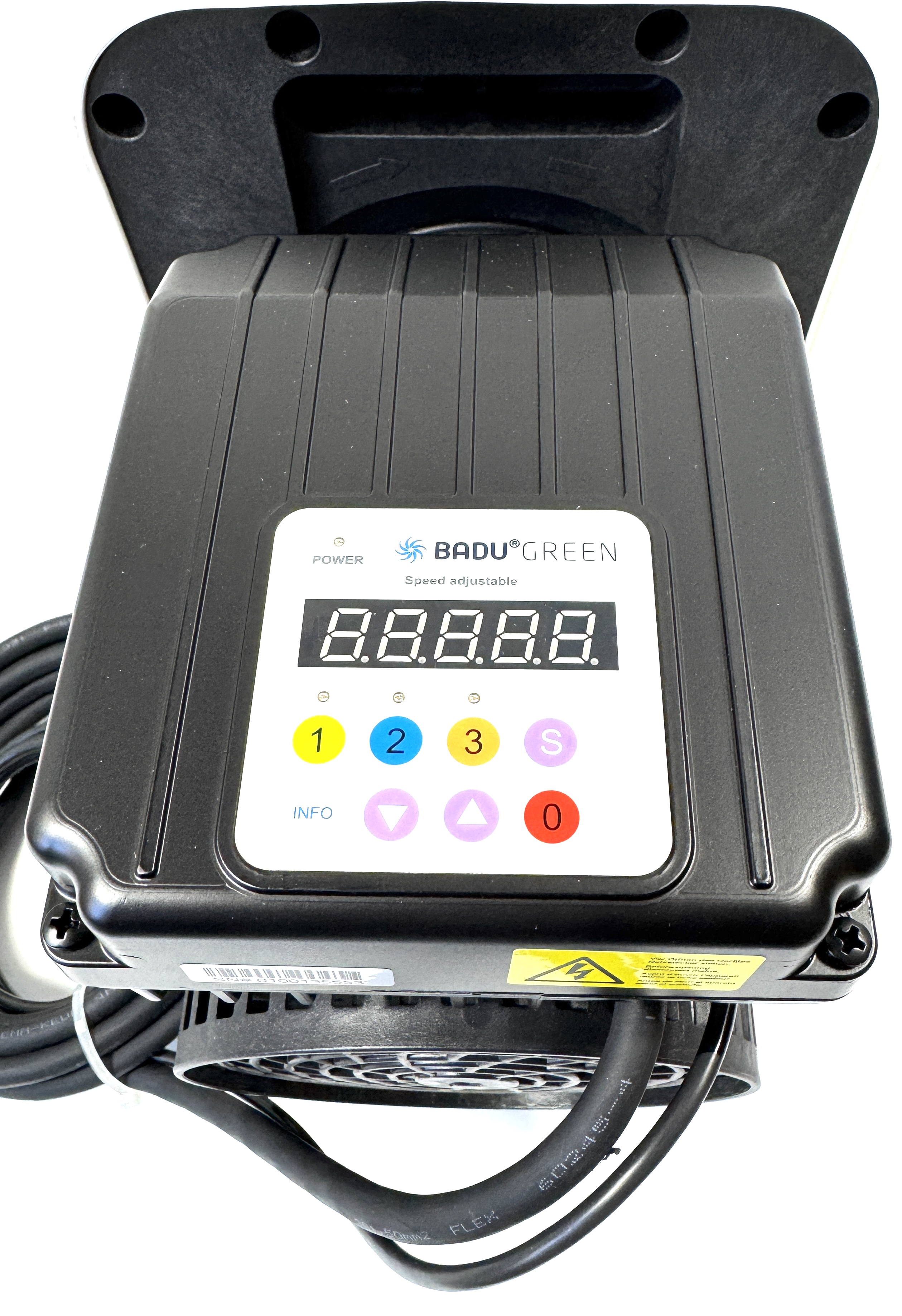

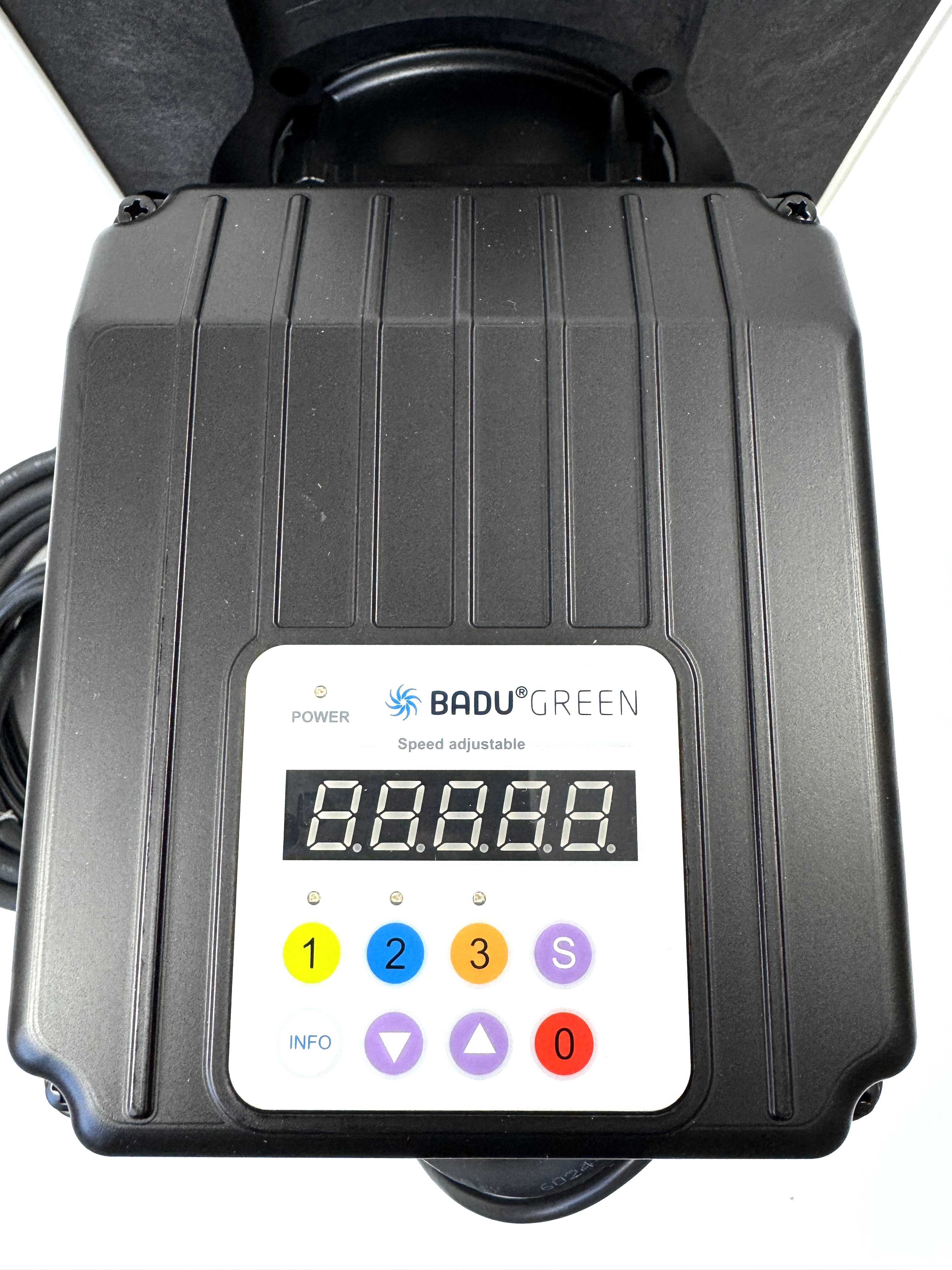

This circulation pump combines the professional construction of the BADU Delta with a synchronously compact power unit to create a highly efficient power packet with space-saving construction. A built-in control panel and easy to navigate menu provide for simple management of the motor. Can be controlled by App and WLAN by optional remote control BADU NetLink.
Swimming pool water circulation through a filter system. The pump can be installed max. 3 m above or below water level.

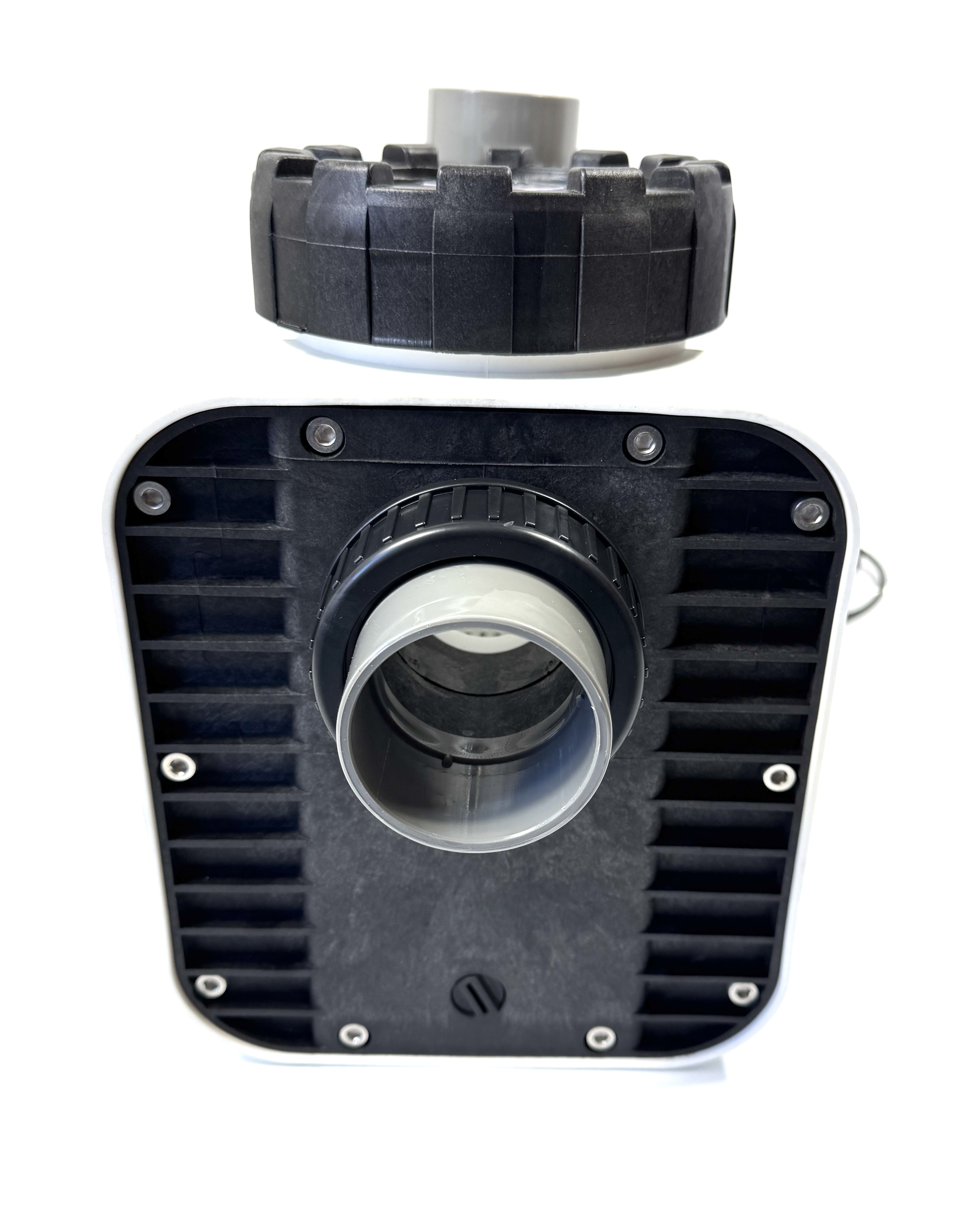

Monoblock-type pump with integrated strainer tank. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve. Motor/pump shaft has no contact with the pool water providing complete electrical separation.
Special motors on request.
The above mentioned pumps can be used for pool water with a salt concentration of up to 0.5%, i. e. 5 g/l.
For higher salt concentrations please contact us.
Also available in AK version
