BADU Alpha 12
€459.95
Available in approx. 14 days, delivery time 2-4 days
Product information "BADU Alpha 12"

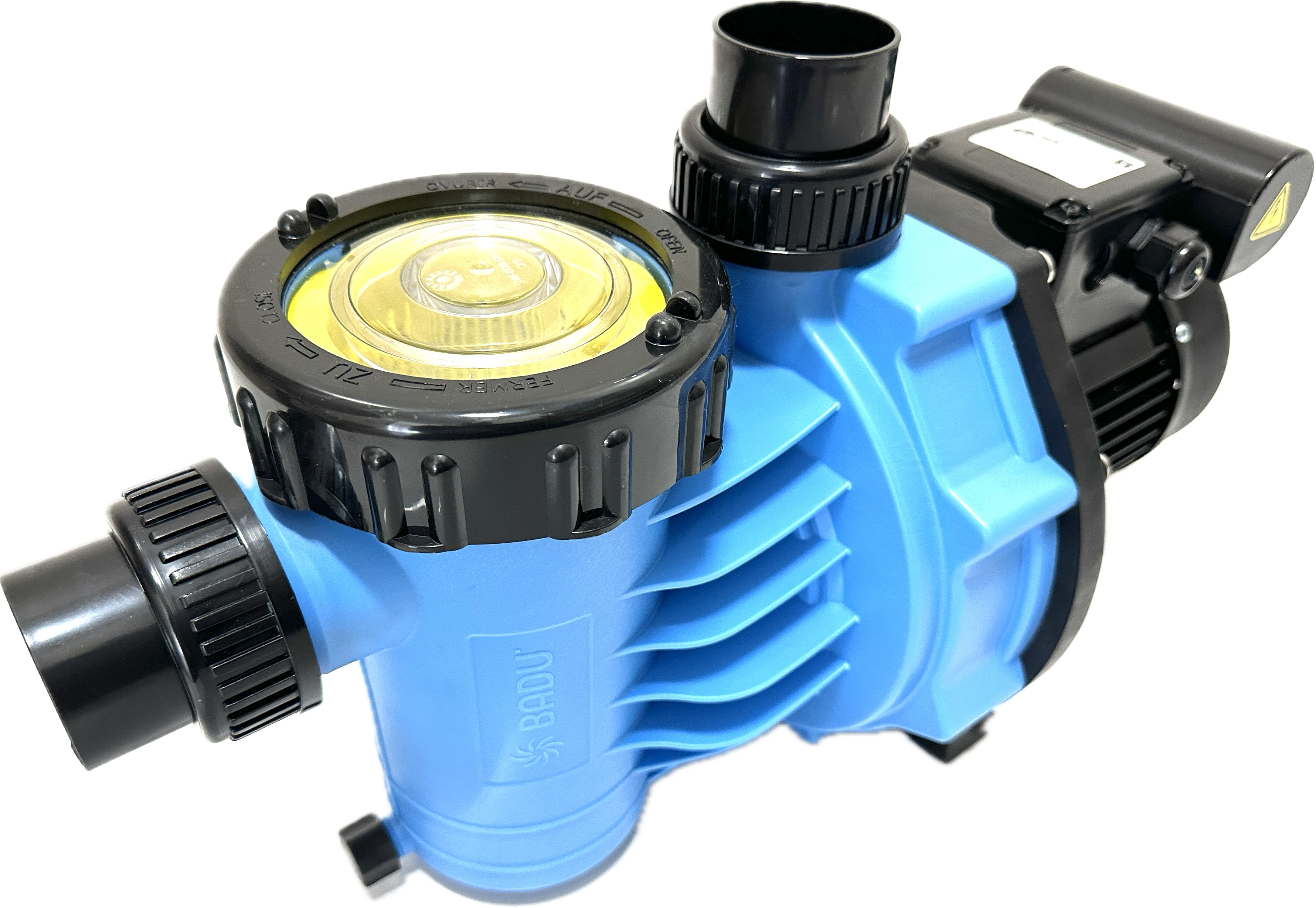

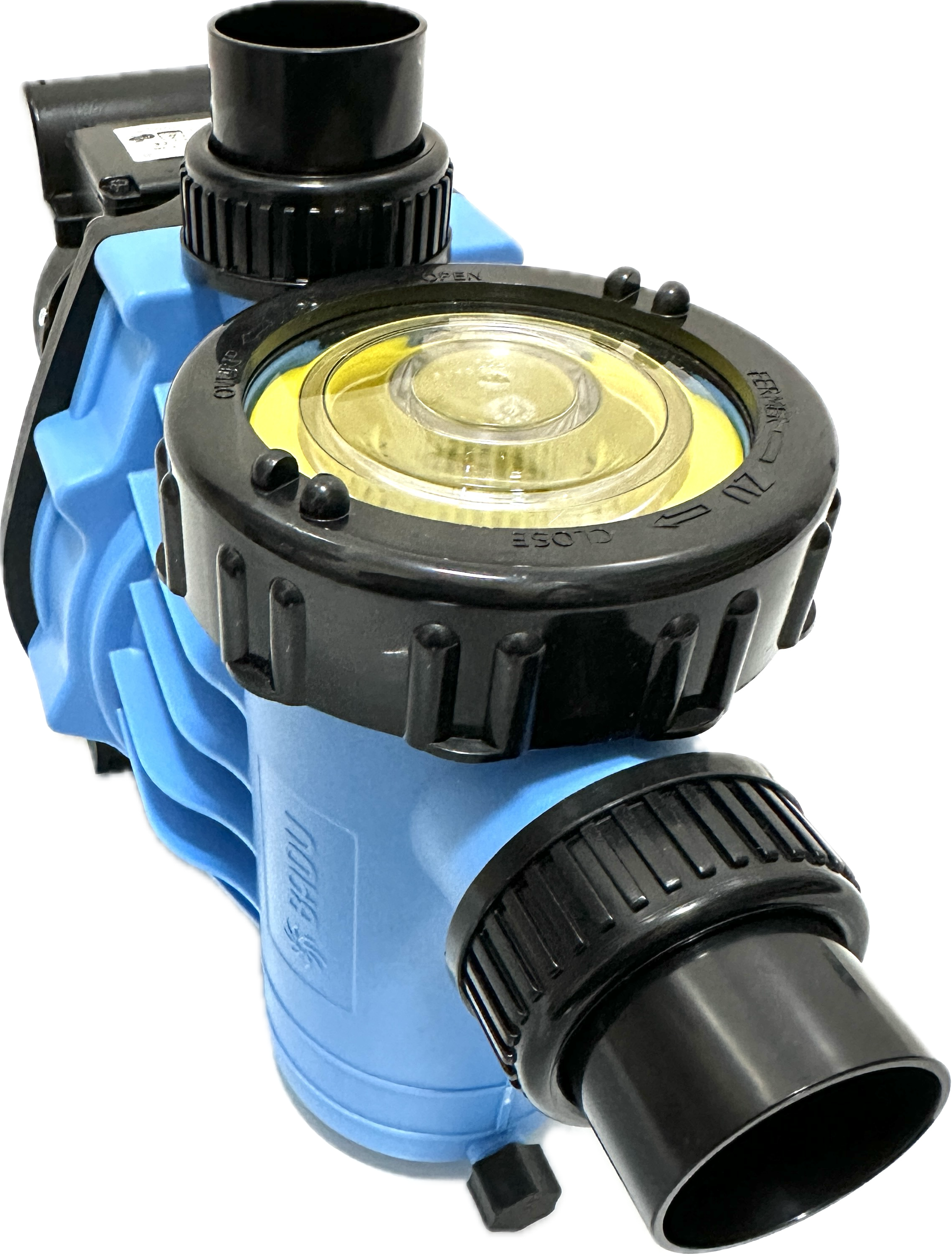

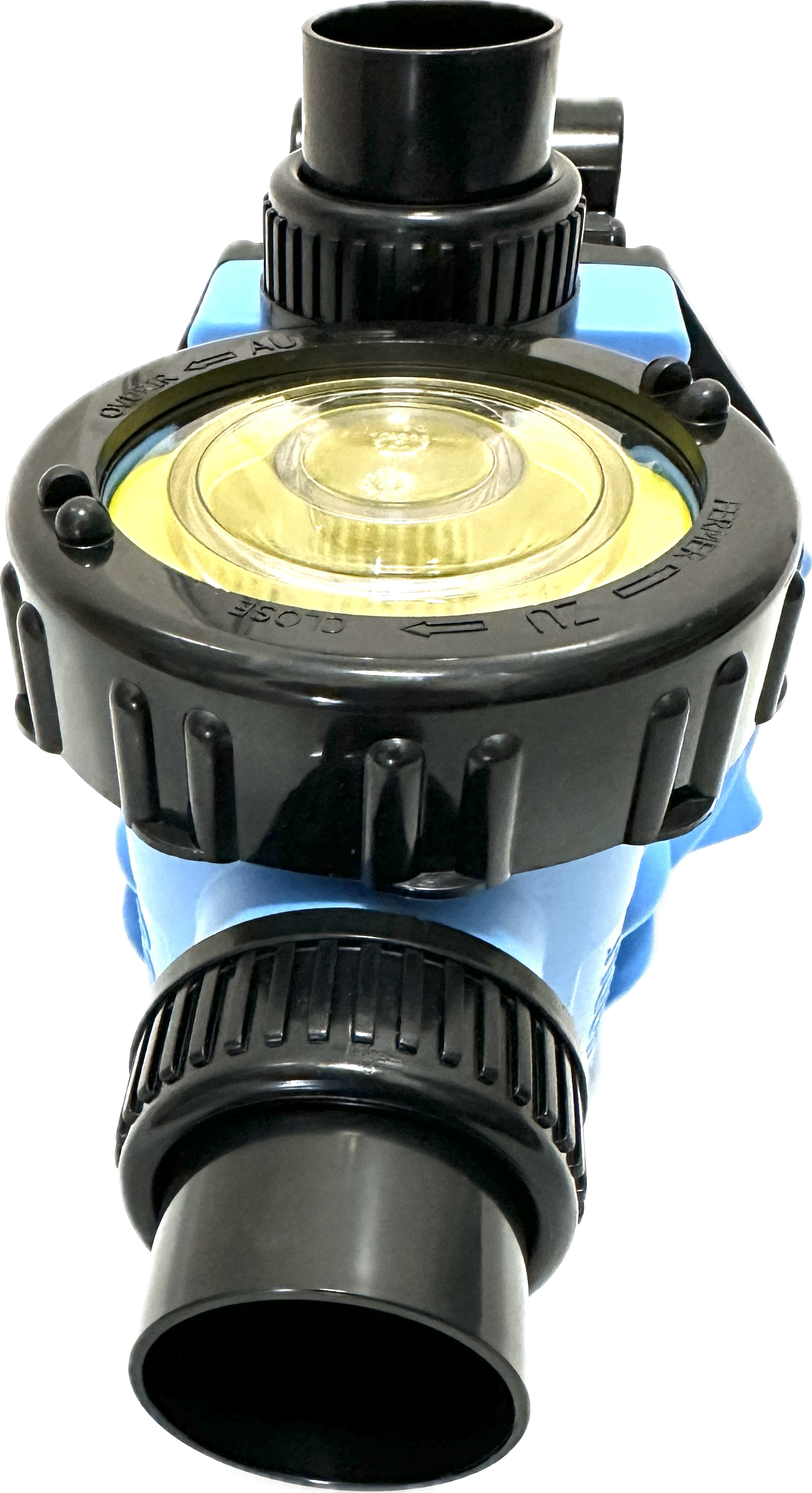

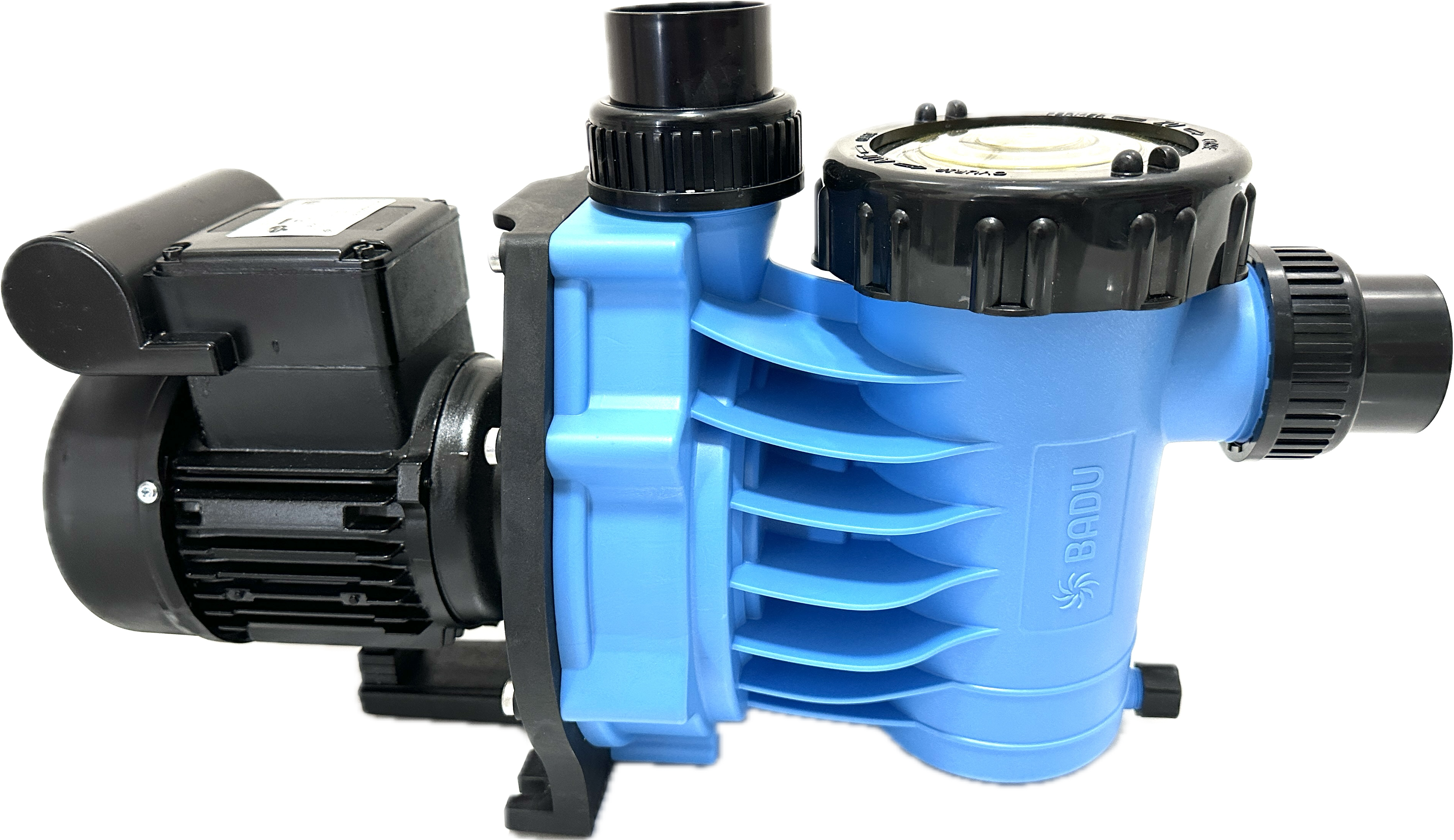

Self-priming filtration circulation pump BADU Alpha 12, 230 V, no cable and plug, alternating current version, with newly configured hydraulics and noise-optimised
1~ 230 Volt

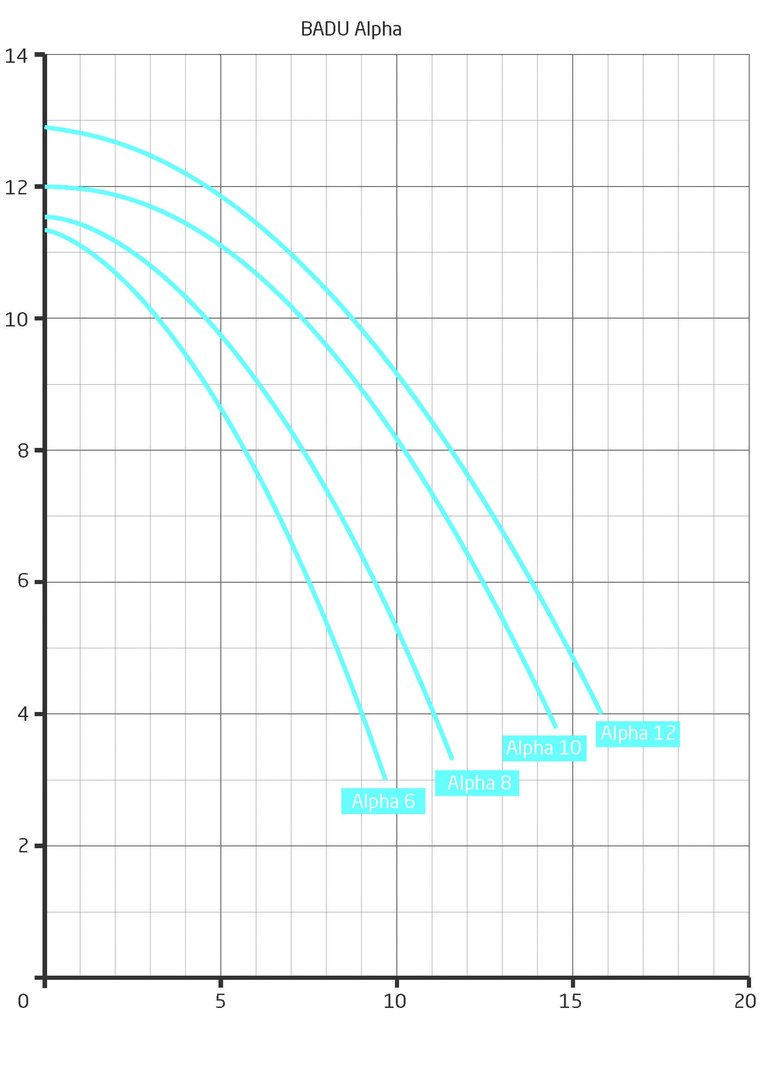

Hmax: approx. 12,9 m
Qmax: approx. 15,8 m³/h
techQ: approx. 12 m³/h
techH: approx. 8 m WS
Power output P2: 0.45 kW / Power input P1: 0.69 kW
Inlet / outlet connection(d): Special union with glue socket d=50
| Pool equipment: | Circulation pump |
| Flow rate Q in m³/h: | approx. 12 |
| Total head H in m WS: | approx. 8 |
| Motor performance in kW (P2): | 0.45 |
| Strainer capacity in l: | approx. 0.5 |
| Strainer basket mesh size in mm: | approx. 2.8 x 2.8 |
| Pool type: | Outdoor pool |
| Installation: | Above ground pool, Built-in pool |
| Class: | PREMIUM |
| Pump casing: | PP |
| Gland housing: | PP GF 30 |
| Impeller: | PPE GF 30 |
| Strainer basket: | PP |
| Mechanical seal: | carbon / ceramic / NBR |
| Glue socket: | ABS |
| Lid: | PC, transparent |

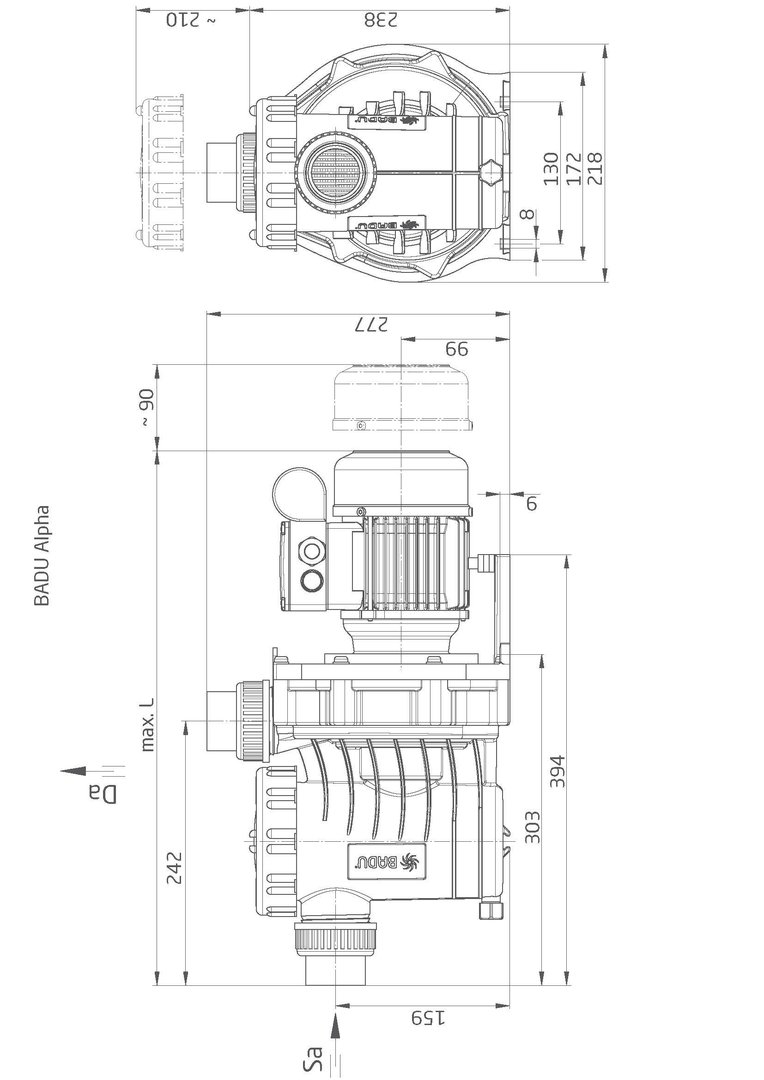

The BADU Alpha swimming pool pump has newly configured hydraulics and thus displays an excellent grade of efficiency. It is noise-optimised and can be simply adapted to existing pipework systems, as the installation dimensions are compatible with BADU Magic and BADU Magic II.
Swimming pool water circulation through a filter system. The pump can be installed max. 2 m above or max. 3 m below water level.
Monoblock-type pump with integrated strainer tank. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve. Motor/pump shaft has no contact with the pool water providing complete electrical separation.
Special motors on request.
The above mentioned pumps can be used for pool water with a salt concentration of up to 0.5%, i. e. 5 g/l.
For higher salt concentrations please contact us.
Also available in AK version
