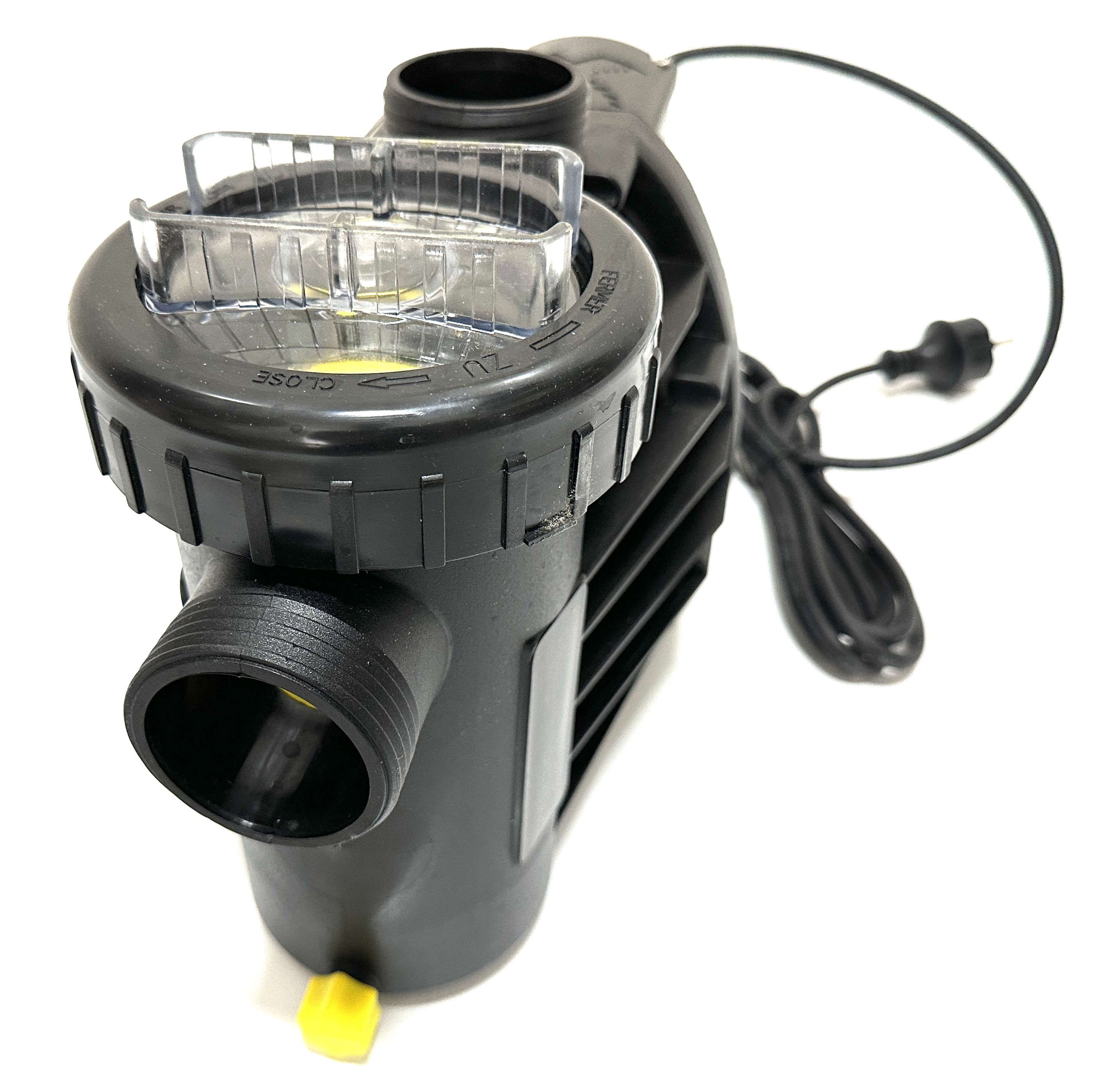

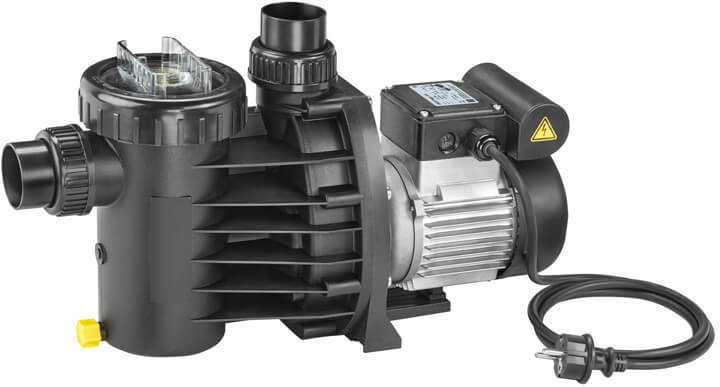

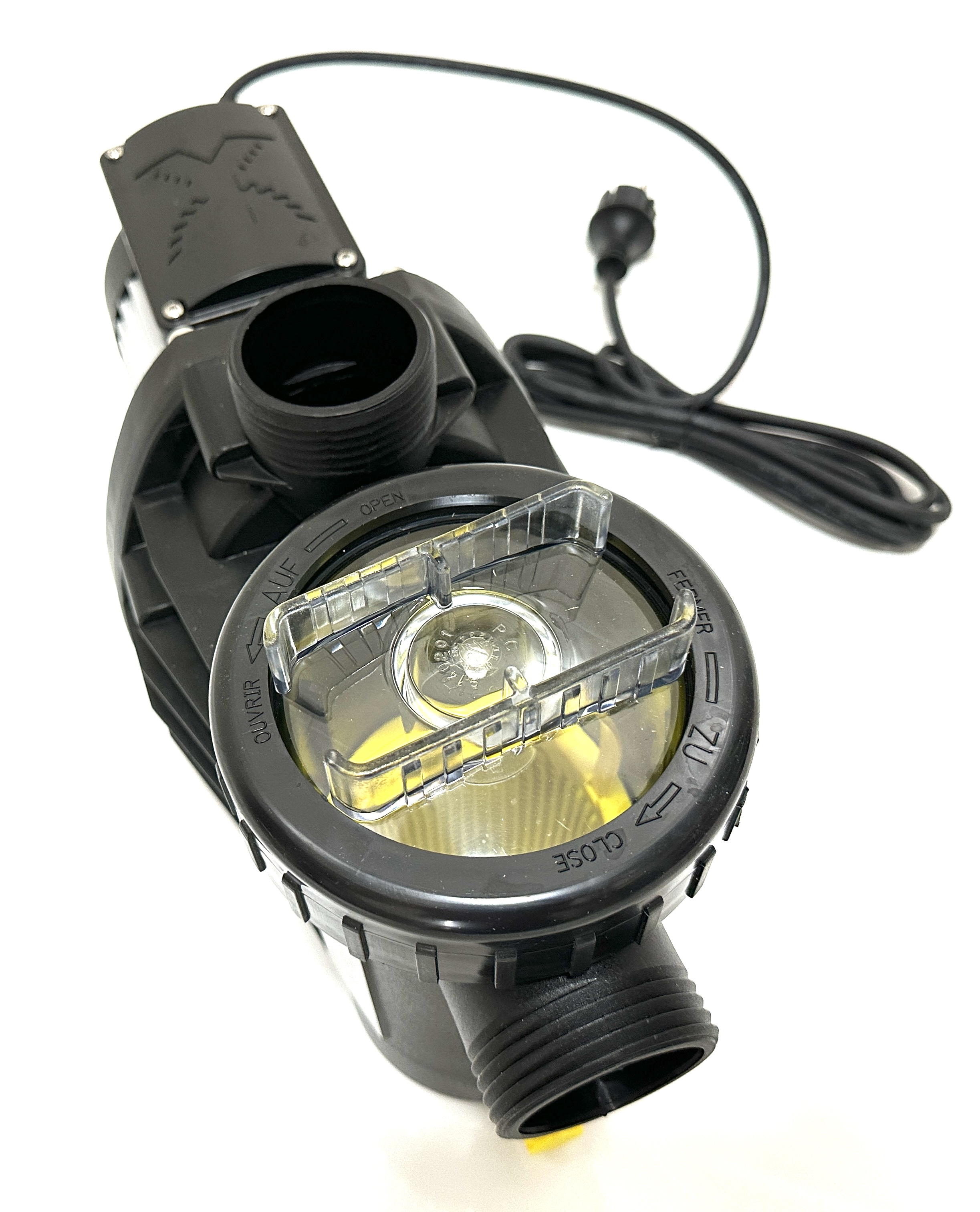

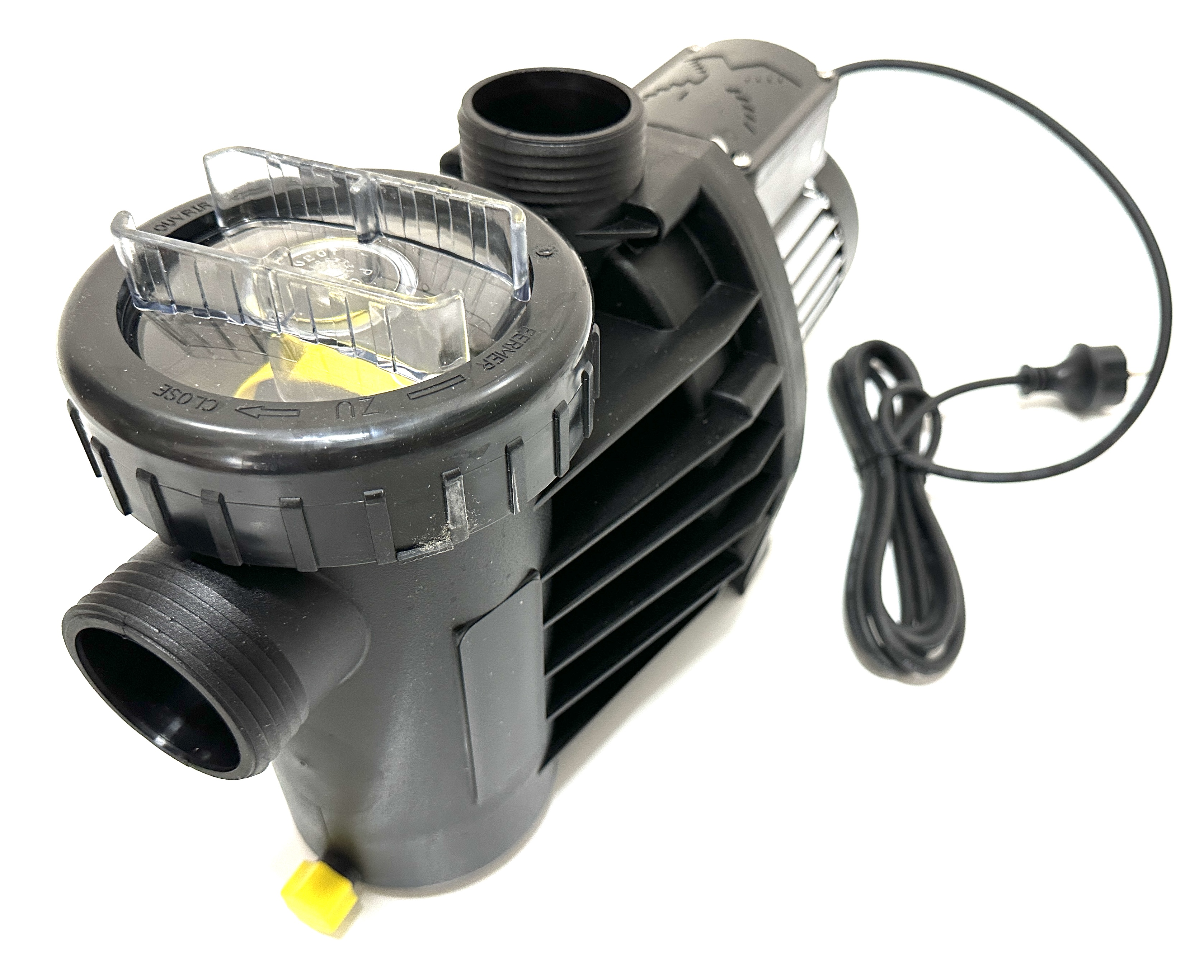

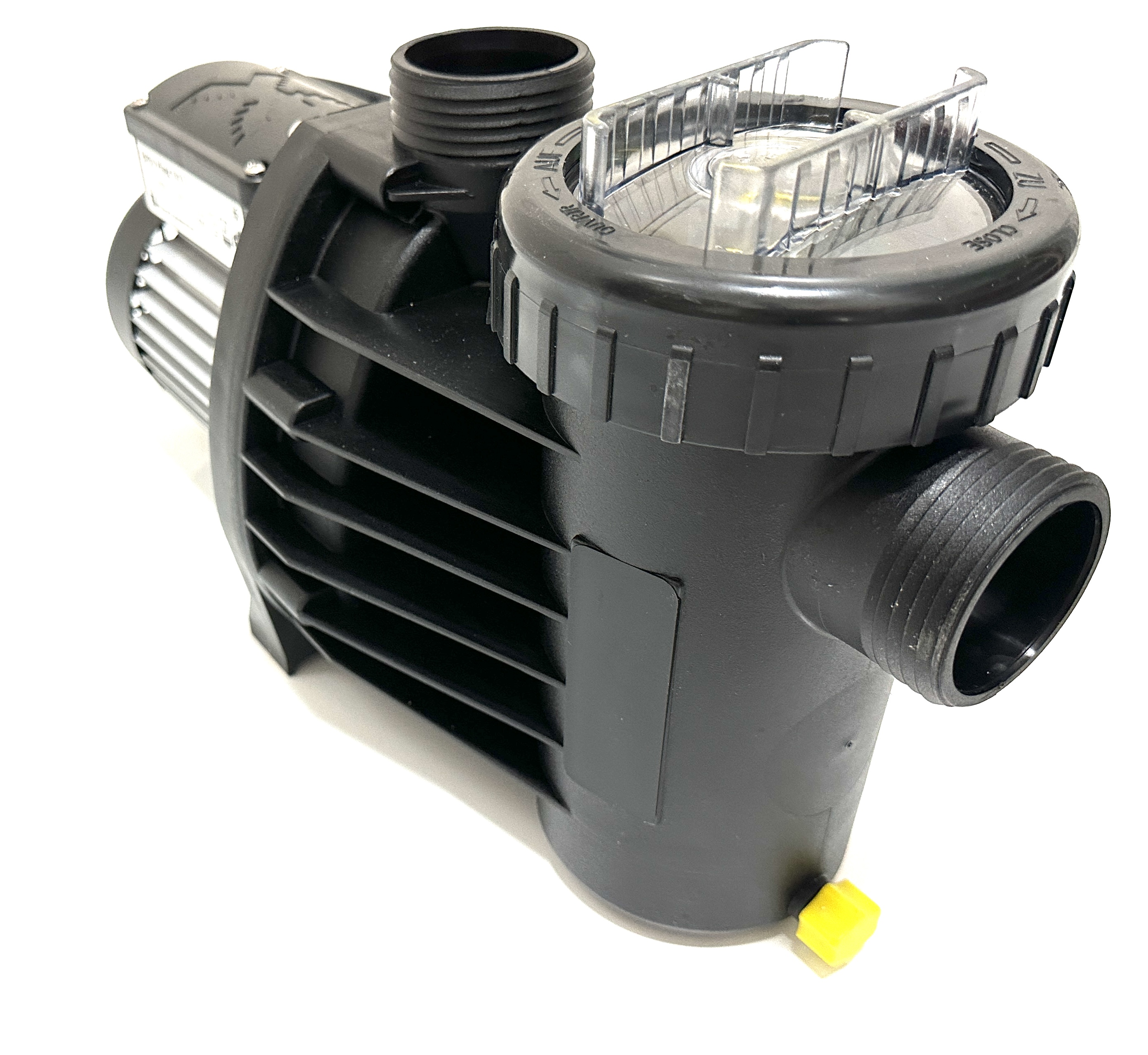

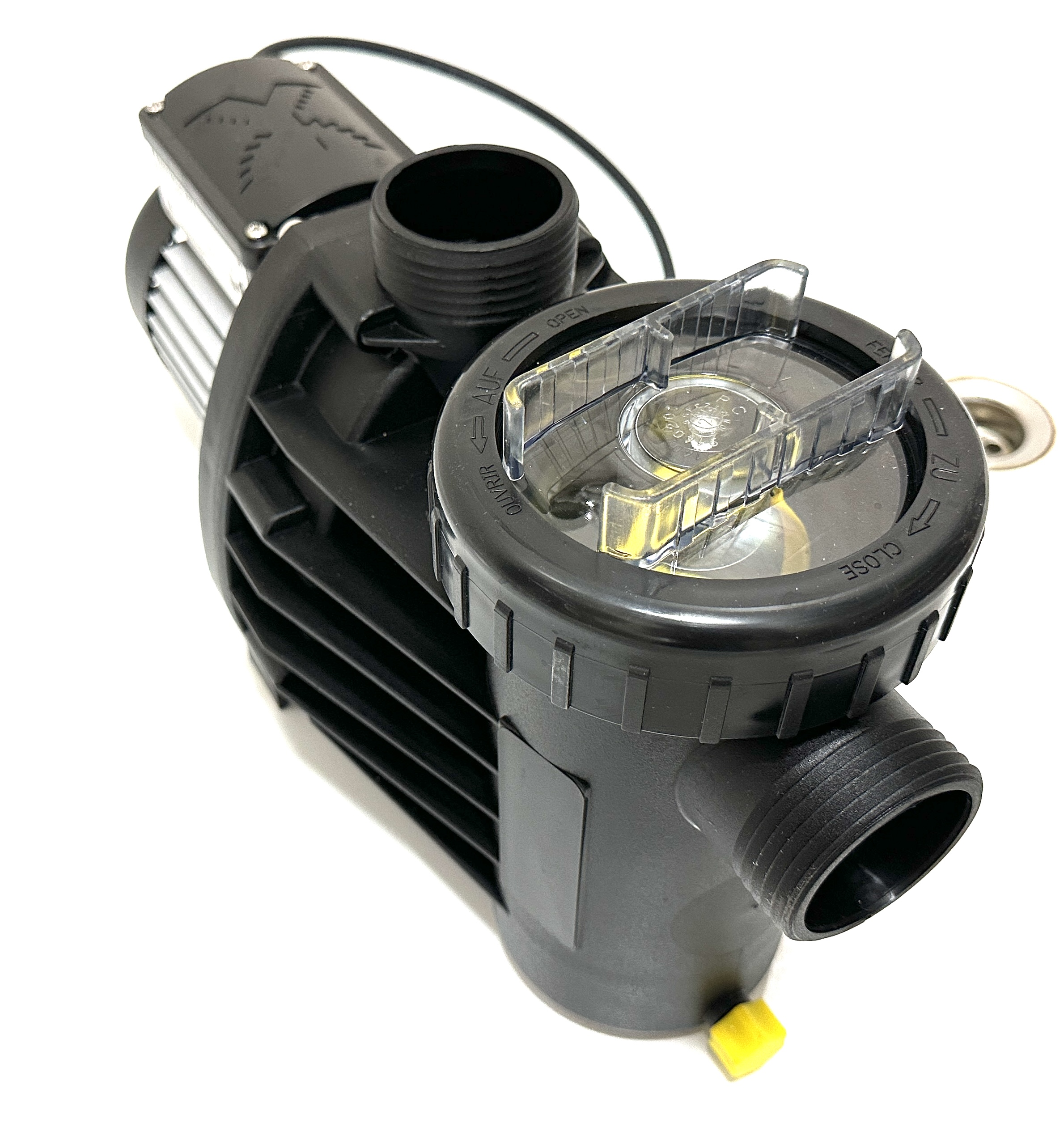

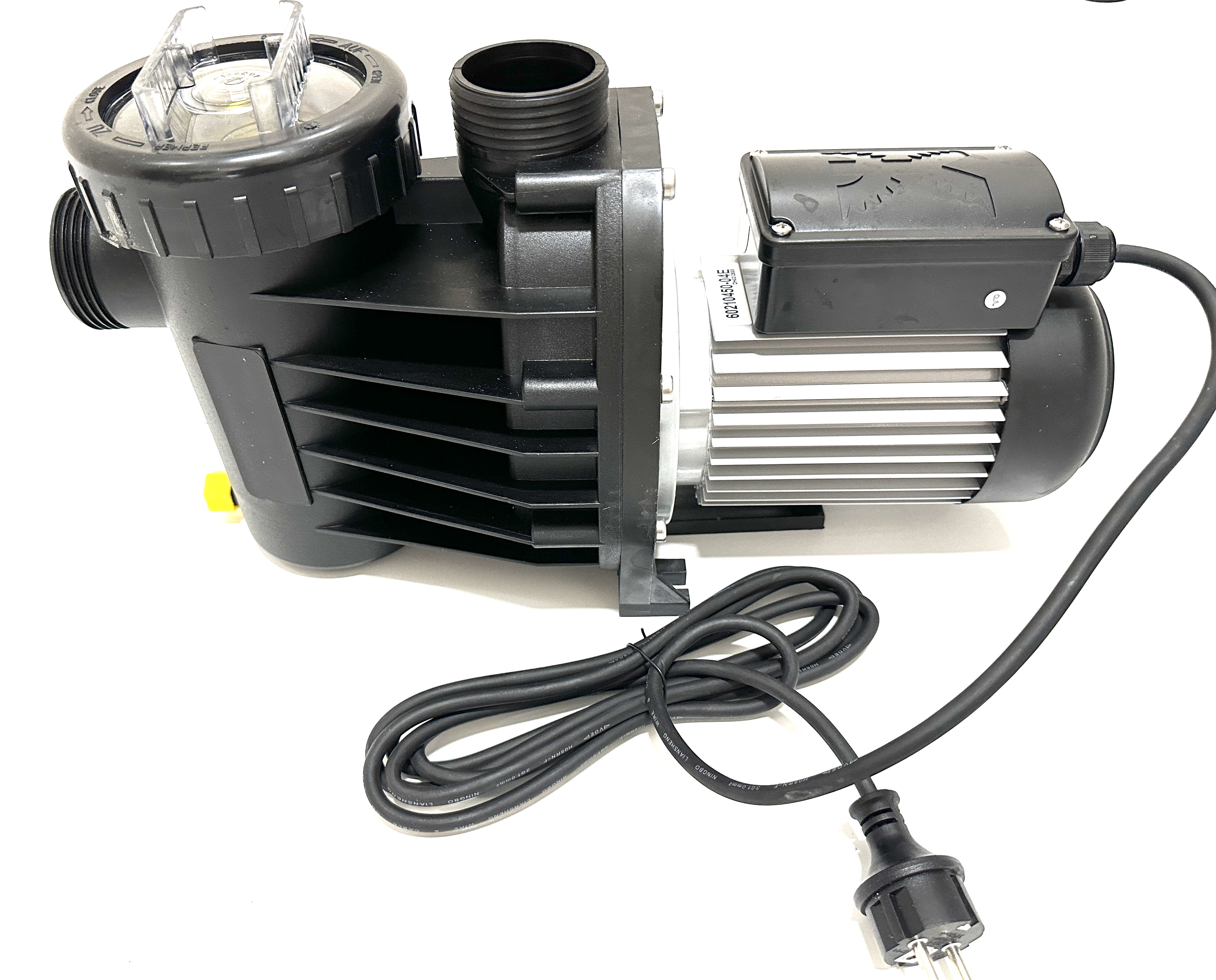

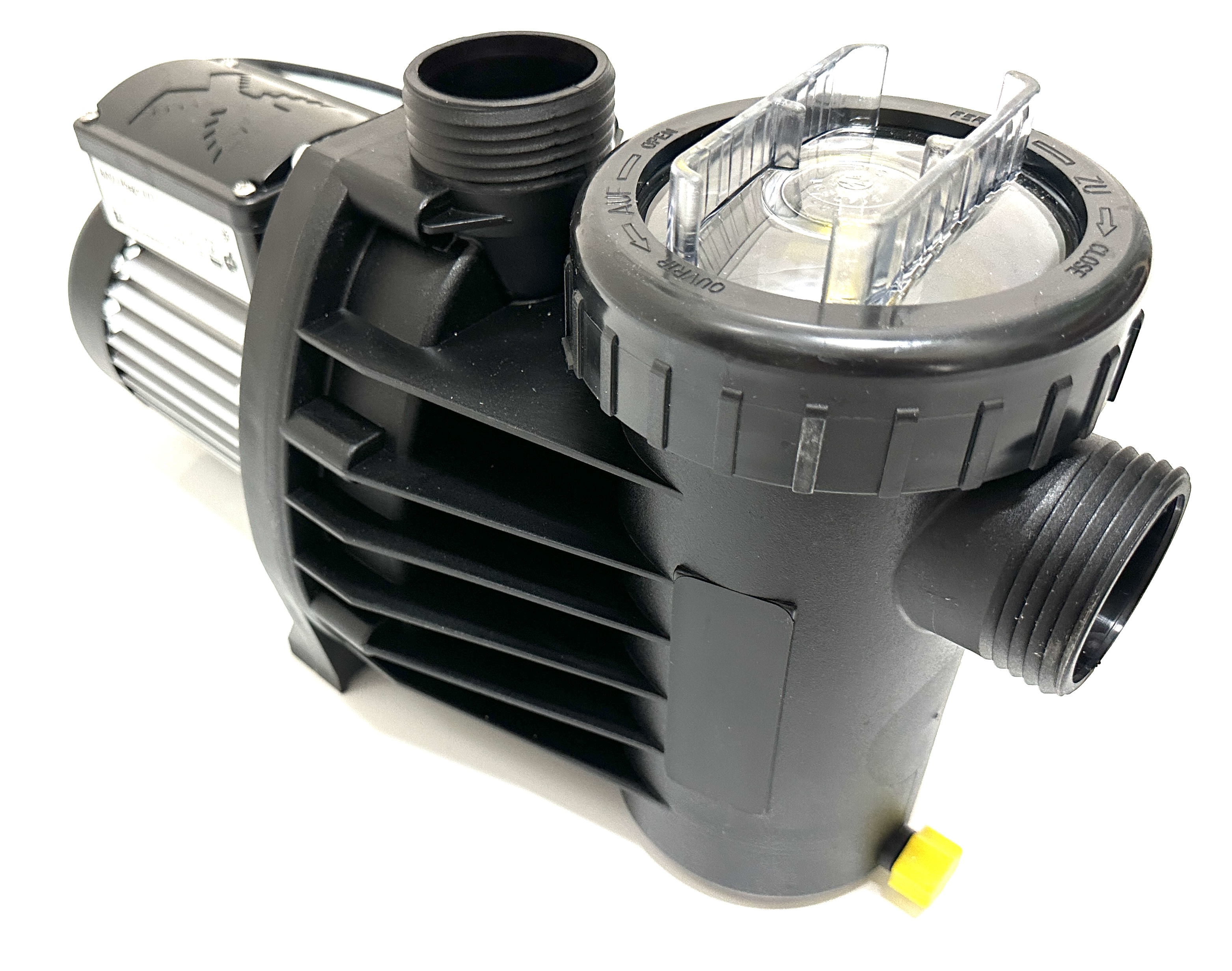

BADU Magic II/8
€335.00
Available in approx. 14 days, delivery time 2-4 days
Product information "BADU Magic II/8"

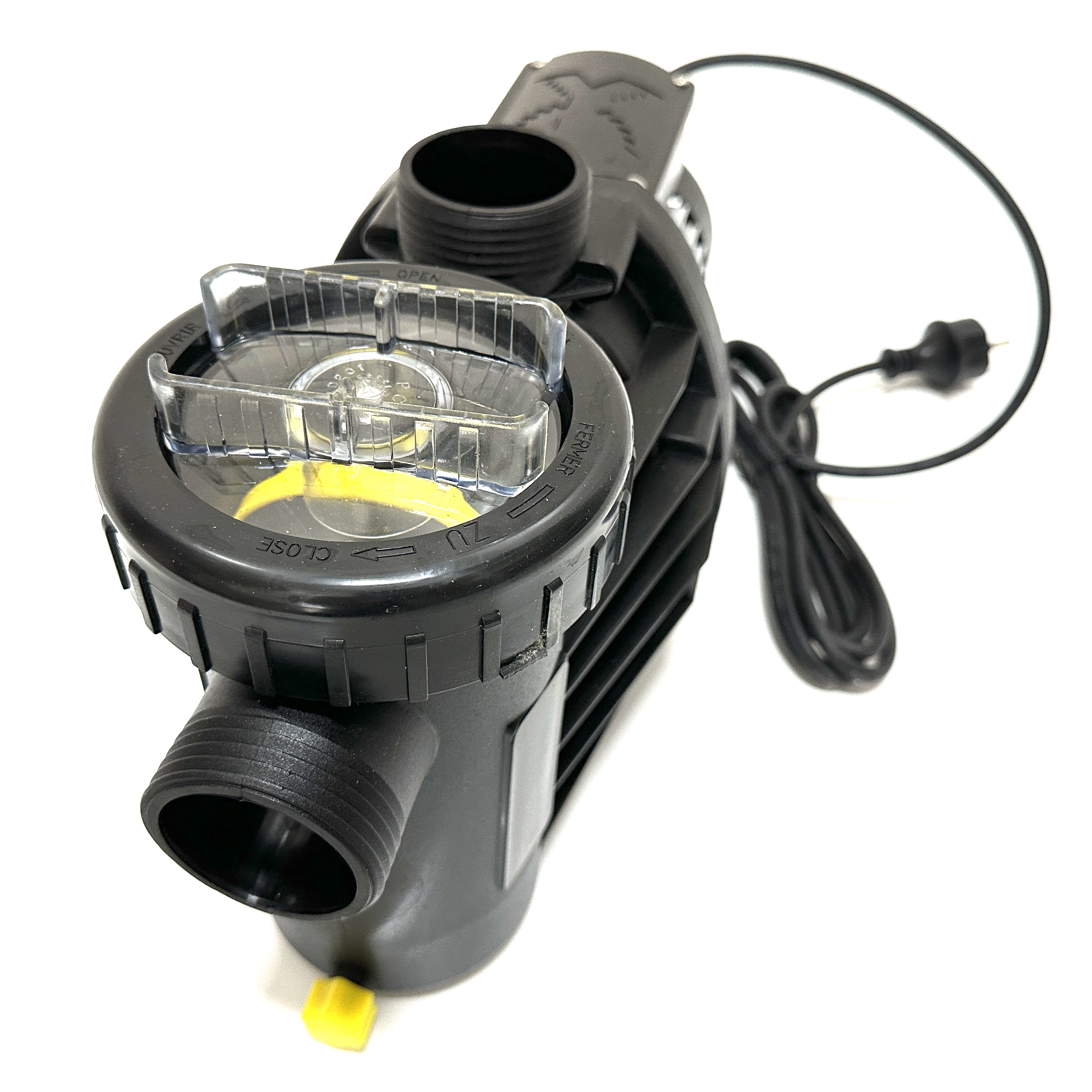

Self-priming filtration circulation pump BADU Magic II/8 for pool sizes of approximately 30-60 m³, replaces its predecessor model BADU Magic 8
1~ 230 V
Hmax: 14,0 m
Qmax: 11 m³/h
techQ: 8 m³/h
techH: 8 m WS
Pool size: 30 - 60 m³
Power output: 0.40 kW
Inlet / outlet connection(d): Special union with glue socket d=50 or hose adapter for 1¼" and/or 1½" hose
The introductory model for small to medium-size filter units offers an economical and reliable solution for above ground pools. Tried and tested, this pump reaches a high rate of efficiency during constant operation.
Field of application
Swimming pool water circulation through a filter system. The pump can be installed max. 2 m above or max. 3 m below water level.
Design
Monoblock-type pump with integrated strainer tank. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve.
Motor/pump shaft has no contact with the pool water providing complete electrical separation.
Pool size in m³: 30 - 60
Filter size in mm: 450 - 500
Flow rate Q in m³/h: 8
Total head H in m WS: 8
Motor performance in kW (P2): 0.40
Strainer capacity in l: approx. 0.5
Strainer basket mesh size in mm:approx. 2.8 x 2.8
Pump casing: PP
Gland housing: PP TV 40
Impeller: PA 66 GF 30 / PC
Strainer basket: PP
Mechanical seal: carbon / ceramic / NBR
Screws: stainless steel 1.4301
Special motors on request.
The above mentioned pumps can be used for pool water with a salt concentration of up to 0.5%, i. e. 5 g/l.
For higher salt concentrations please contact us.
Also available in AK version
