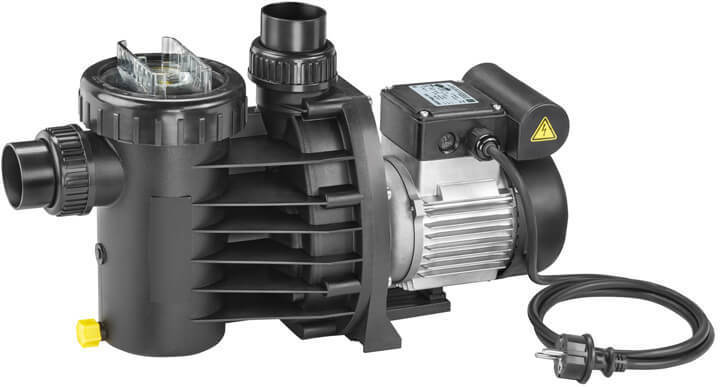

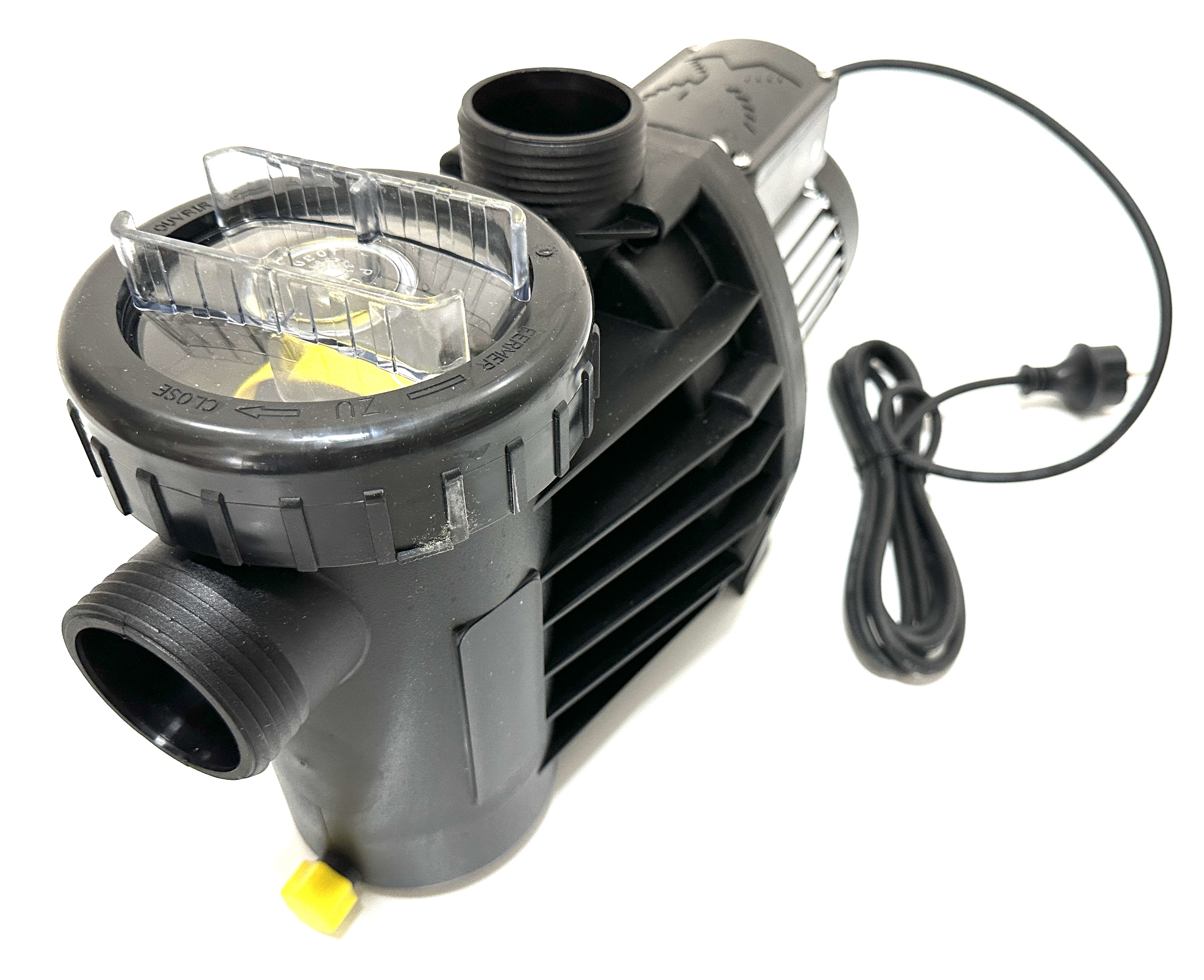

BADU Magic II/11

Self-priming filtration circulation pump BADU Magic II/11 for pool sizes of approximately 30-60 m³, replaces its predecessor model BADU Magic 11

1~ 230 V
Hmax: 14,0 m
Qmax: 15,2 m³/h
techQ: 11 m³/h
techH: 8 m WS
Pool size: 30 - 60 m³
Power output: 0.45 kW
Inlet / outlet connection(d): Special union with glue socket d=50 or hose adapter for 1¼" and/or 1½" hose

The introductory model for small to medium-size filter units offers an economical and reliable solution for above ground pools. Tried and tested, this pump reaches a high rate of efficiency during constant operation.

Field of application
Swimming pool water circulation through a filter system. The pump can be installed max. 2 m above or max. 3 m below water level.

Design
Monoblock-type pump with integrated strainer tank. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve.
Motor/pump shaft has no contact with the pool water providing complete electrical separation.

Pool equipment: Circulation pump
Pool size in m³: 30 - 60
Filter size in mm: 500 - 610
Flow rate Q in m³/h: 11
Total head H in m WS: 8
Motor performance in kW (P2): 0.45
Strainer capacity in l: approx. 0.5
Strainer basket mesh size in mm:approx. 2.8 x 2.8
Pool type: Outdoor pool
Installation: Built-in pool, Above ground pool
Class: Starter
Pump casing: PP
Gland housing: PP TV 40
Impeller: PA 66 GF 30 / PC
Strainer basket: PP
Mechanical seal: carbon / ceramic / NBR
Screws: stainless steel 1.4301

Special motors on request.

The above mentioned pumps can be used for pool water with a salt concentration of up to 0.5%, i. e. 5 g/l.

For higher salt concentrations please contact us.

Also available in AK version
