TM 33
€869.00
No longer available
Product number: 11981
Product information "TM 33"
TM 33 stainless steel borehole pump 3", with jacket cooling for continuous duty ***No longer available, for a suitable replacement, please contact us***
Product benefits:
- jacket cooling for continuous duty horizontal / emerged - no additional cooling pipe required
- slim design (78 mm outer diametre)
- available as complete set
- wear-resistant, glass fibre reinforced PP impellers and guide wheels for high durability
- factory-set extension of power cable possible
- switch device with integrated overload protection and capacitor for safe operation
Model
- oil-filled asynchronous motor within stainless steel housing with thermal contact
- jacket cooling for continuous duty horizontal / emerged
- sealed with high-grade mechanical seal
- brass bearing shield
- stainless steel pump housing and motor shaft
- modern, powerful pump hydraulics with impellers and guide wheels made of wear-resistant plastic
Application
- water pumping from deep wells and rainwater cisterns
- domestic water supply, garden irrigation
Scope of delivery
- pump with 20 m power cable and plug with integrated capacitor, power switch and motor protection
- Attention! Non-return valve is not included in scope of delivery
Technical data
- Article number11981
- Power supply 230 V
- Frequency 50 Hz
- Power P1 1.130 W
- Power P2 640 W
- Nominal current 5,2 A
- Drive 2800 rpm
- C 20 µF
- Max. temperature 035 °C

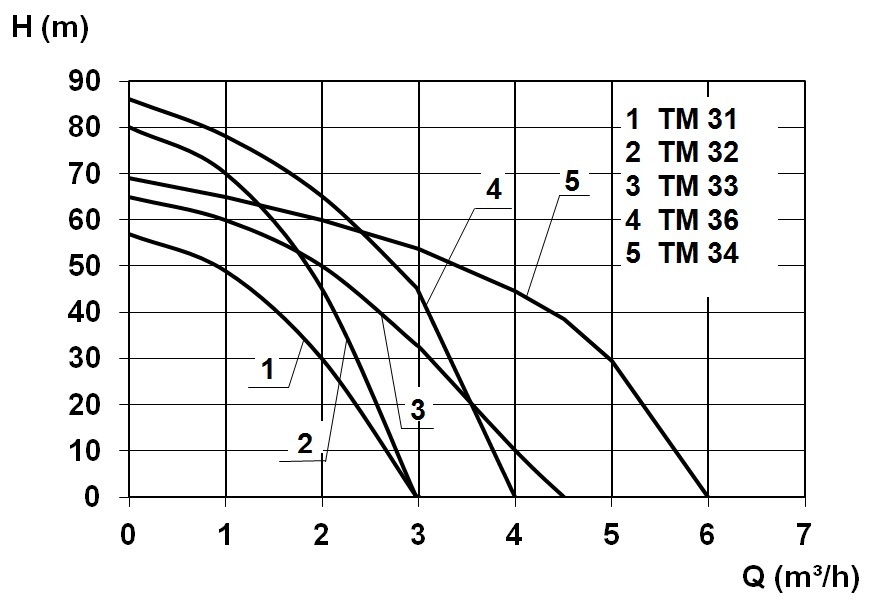

- Max. flow rate 4,5 m³/h
- Head up to 65,0 m

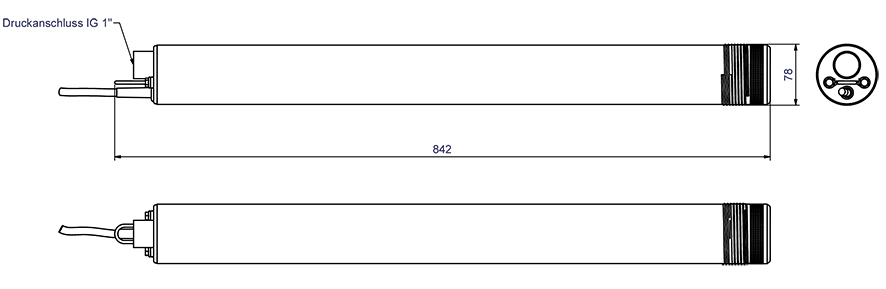

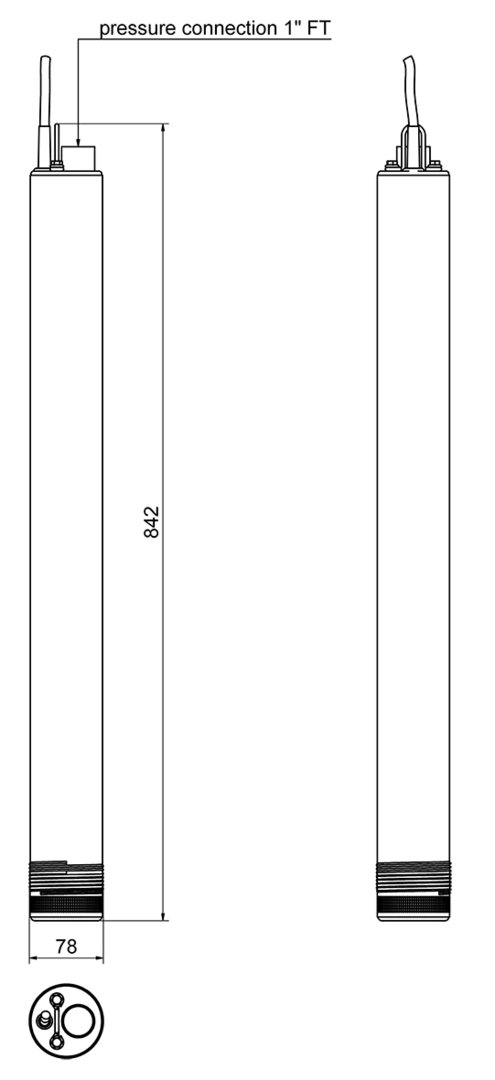

- Diameter 78 mm
- Length 845 mm
- P-dimensions (WxHxL) 260 mm x 105 mm x 1010 mm
