TM 31
€769.00
Available in approx. 14 days, delivery time 2-4 days
Product number: 11962
Product information "TM 31"
TM 31 stainless steel borehole pump 3", with jacket cooling for continuous duty
Product benefits:
- jacket cooling for continuous duty horizontal / emerged - no additional cooling pipe required
- slim design (78 mm outer diametre)
- available as complete set
- wear-resistant, glass fibre reinforced PP impellers and guide wheels for high durability
- factory-set extension of power cable possible
- switch device with integrated overload protection and capacitor for safe operation
Model
- oil-filled asynchronous motor within stainless steel housing with thermal contact
- jacket cooling for continuous duty horizontal / emerged
- sealed with high-grade mechanical seal
- brass bearing shield
- stainless steel pump housing and motor shaft
- modern, powerful pump hydraulics with impellers and guide wheels made of wear-resistant plastic
Application
- water pumping from deep wells and rainwater cisterns
- domestic water supply, garden irrigation
Scope of delivery
- pump with 20 m power cable and plug with integrated capacitor, power switch and motor protection
- Attention! Non-return valve is not included in scope of delivery
Technical data
- Article number 11962
- Power supply 230 V
- Frequency 50 Hz
- Power P1 860 W
- Power P2 460 W
- Nominal current 3,8 A
- Drive 2800 rpm
- C 16 µF
- Max. temperature 035 °C

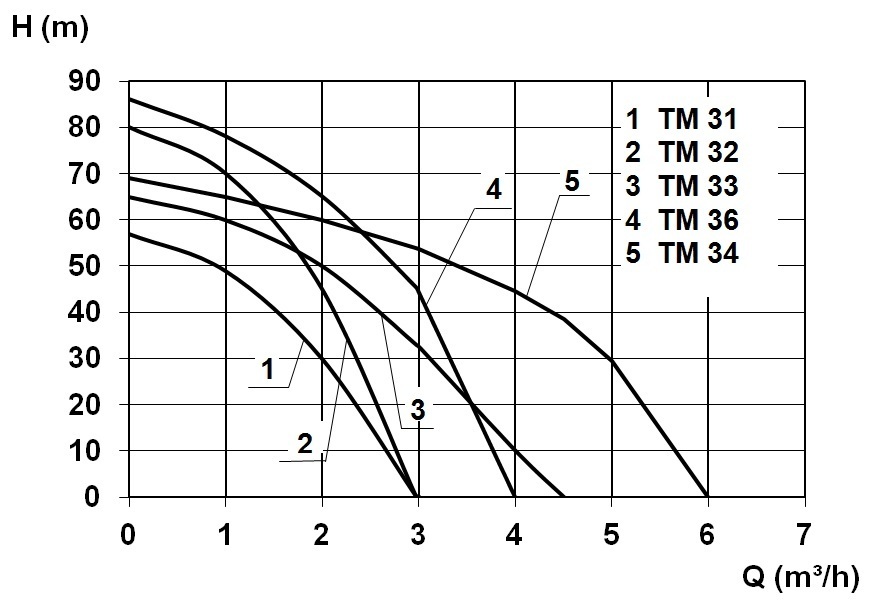

- Max. flow rate 3,1 m³/h
- Head up to 57,0 m

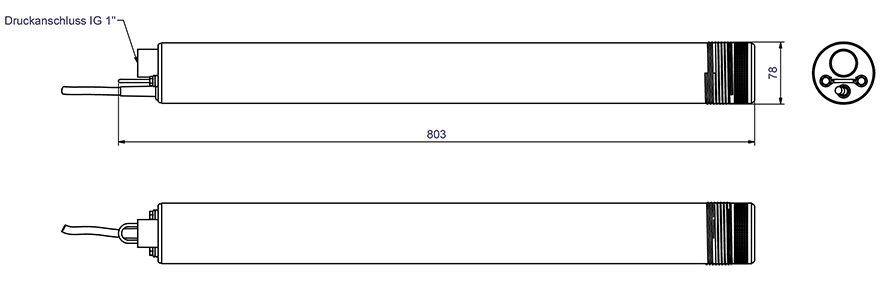

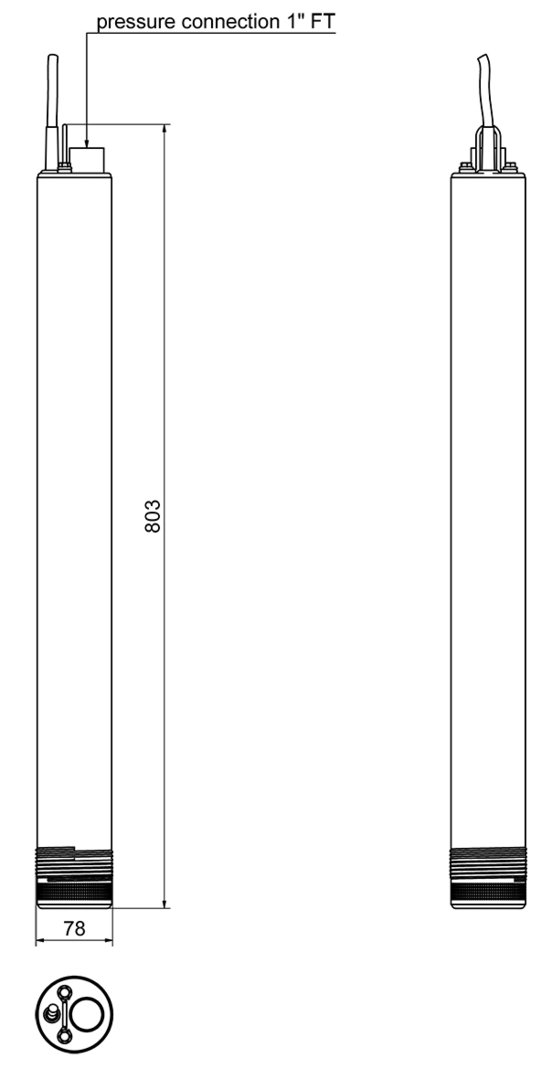

- Diameter 78 mm
- Length 805 mm
