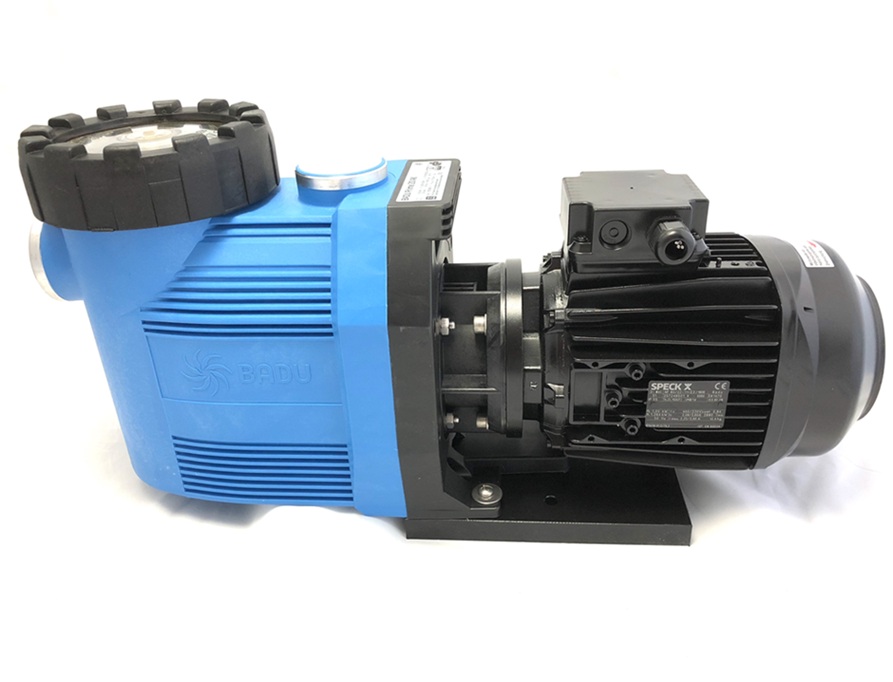

BADU Prime AK

The pumps of the BADU Prime AK-SSV series represent the top model of the SPECK pool pump range. Manufactured from glass-fibre-reinforced material, these pumps meet the highest standards with their wide operating range of 7 - 20 m³/h and high-quality workmanship.
The "AK" version, for saltwater, seawater and brine, corresponds to the standard BADU pump variant, but the seal chamber is not mounted directly at the A-side motor bearing; instead it is separated from the motor by an intermediate lantern, an air gap and a labyrinth disc. Any escaping medium and crystallising minerals or salts therefore do not come into contact with the motor and bearing. This significantly extends the service life compared with standard pumps for these applications.

Applications:
Thermal waters, thermal brine, marine aquaria with artificially treated saltwater, curing/salting plants, and various problematic media after verification of composition and concentration.
When ordering, the medium must always be specified precisely so that the pump's resistance can be checked.

Use of the pumps for swimming pools and their protected zones is only permitted if installed in accordance with DIN/VDE 0100 Part 702. Please consult your qualified electrician.
The electrical connection should in principle be carried out by a qualified electrical specialist.

Technical modifications reserved. Images similar.
