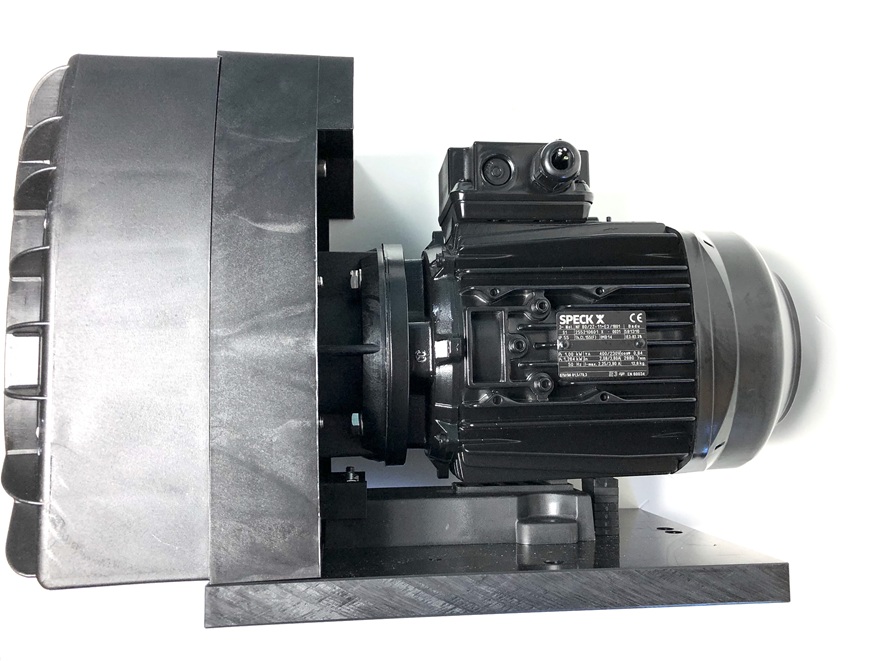

BADU 43 AK

The standard-suction circulation pumps BADU 43 AK-SSV in AK design with an intermediate lantern are suitable for circulating salt- and brine-containing swimming-pool water as jet and filter pumps. The "AK" version of the BADU pump corresponds to the standard variant, but due to an intermediate lantern the seal chamber is not mounted directly on the A-side motor bearing; it is additionally separated from the motor by an intermediate space and a labyrinth disc. Any escaping medium and crystallising minerals or salts therefore do not come into contact with the motor and the bearing. This enables a considerably longer service life compared with standard pumps for these applications.

Applications:
Thermal waters, thermal brine, marine aquaria with artificially treated saltwater, brining plants, and various problematic media after verification of their components and concentrations.
When ordering, the medium must always be specified precisely so that the pump's resistance can be checked.

The use of the pumps for swimming pools and their safety zones is only permitted if these are installed in accordance with DIN/VDE 0100 Part 702. Please consult your qualified electrician!
The electrical connection should in any case be carried out by a qualified electrician.

Technical modifications reserved. Illustrations similar.
