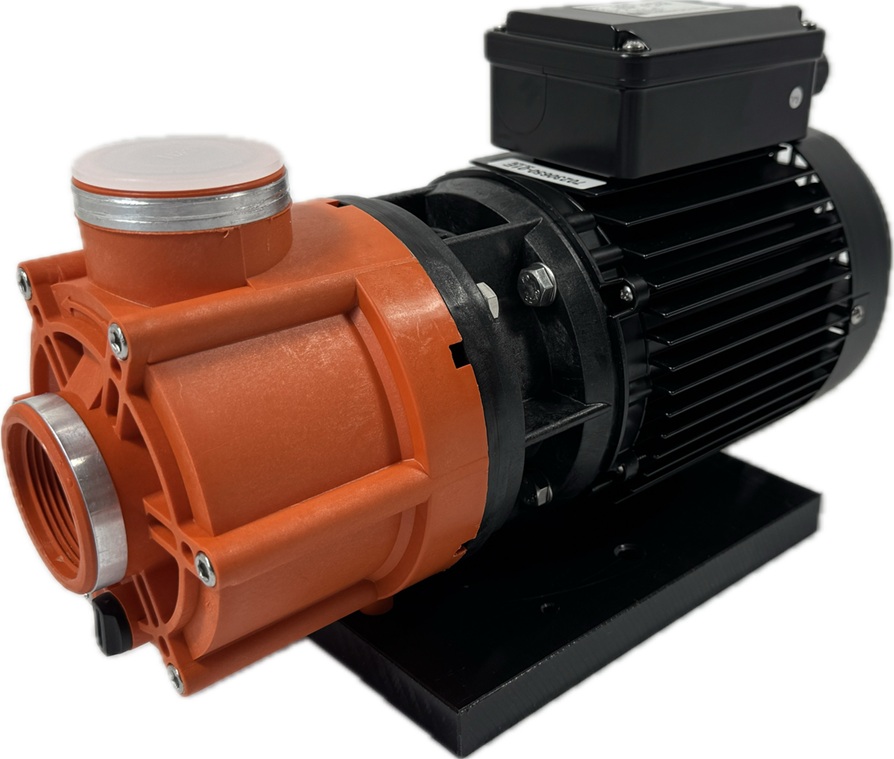

BADU 42 AK

The non-self-priming circulation pumps BADU 42 AK-SSV in AK design for saltwater, seawater and brine, with an intermediate lantern, are the ideal jet pumps for bathtubs and whirlpools. The "AK" version of the BADU pump corresponds to the standard variant; however, due to an intermediate lantern the seal chamber is not mounted directly at the A-side motor bearing but is separated from the motor by an intermediate space and a labyrinth disc. Any leaking medium and crystallising minerals or salts therefore do not come into contact with the motor and the bearing. This results in a significantly longer service life compared with standard pumps for these applications.

Applications:
Thermal waters, thermal brine, seawater aquaria with artificially treated saltwater, curing plants, and various problematic media subject to verification of components and concentrations.
When ordering, the medium must always be specified precisely so that pump resistance can be checked.

Use of the pumps for swimming pools and their protected areas is only permitted if they are installed in accordance with DIN/VDE 0100 Part 702. Please consult your qualified electrician!
The electrical connection should in any case be carried out by a qualified electrician.

Technical modifications reserved. Images for illustrative purposes only.
