SWH 500/80
€1,672.00
Available in approx. 14 days, delivery time 2-4 days
Product number: 11548
Product information "SWH 500/80"

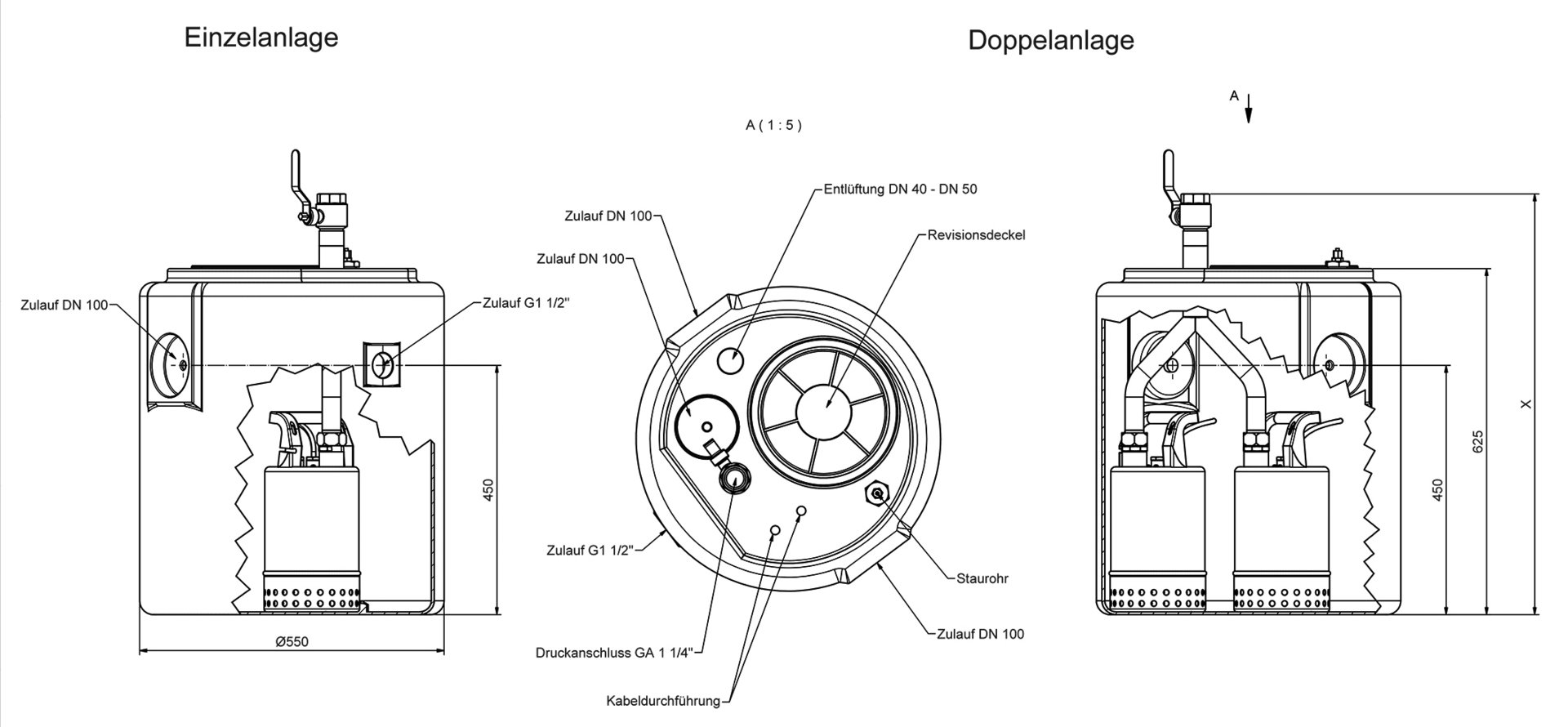

Zehnder Pumpen waste water lifting unit SWH 500/80 (above-ground)
Model
- polyethylene container with 135 litres capacity and up to 75 litres switching volume
- simplex units with submersible waste water pump E-ZW with float switch
- pump housing, motor housing, shaft and suction strainer made of stainless steel, impeller made of polyamide
- pressure outlet 1 ¼“ FPT
- operation temperature 40°C (short-term 90°C)
- protection grade IP 57 - temporary submersible
- features with float switch
- Free passage 30 mm
- Head up to 8,5 m
- Voltage 230 Volt
Application
- pumping of domestic waste water from washing machines, showers, washbasins etc.
- above-ground installation in frost-free rooms below the backflow level
Scope of delivery
- pre-assembled ready for connection with 3 m power cable and plug
- pressure outlet incl. non-return valve(s) and gate valve
- simplex unit incl. float switch
