SWH 170
€562.00
Available in approx. 14 days, delivery time 2-4 days
Product number: 11468
Product information "SWH 170"

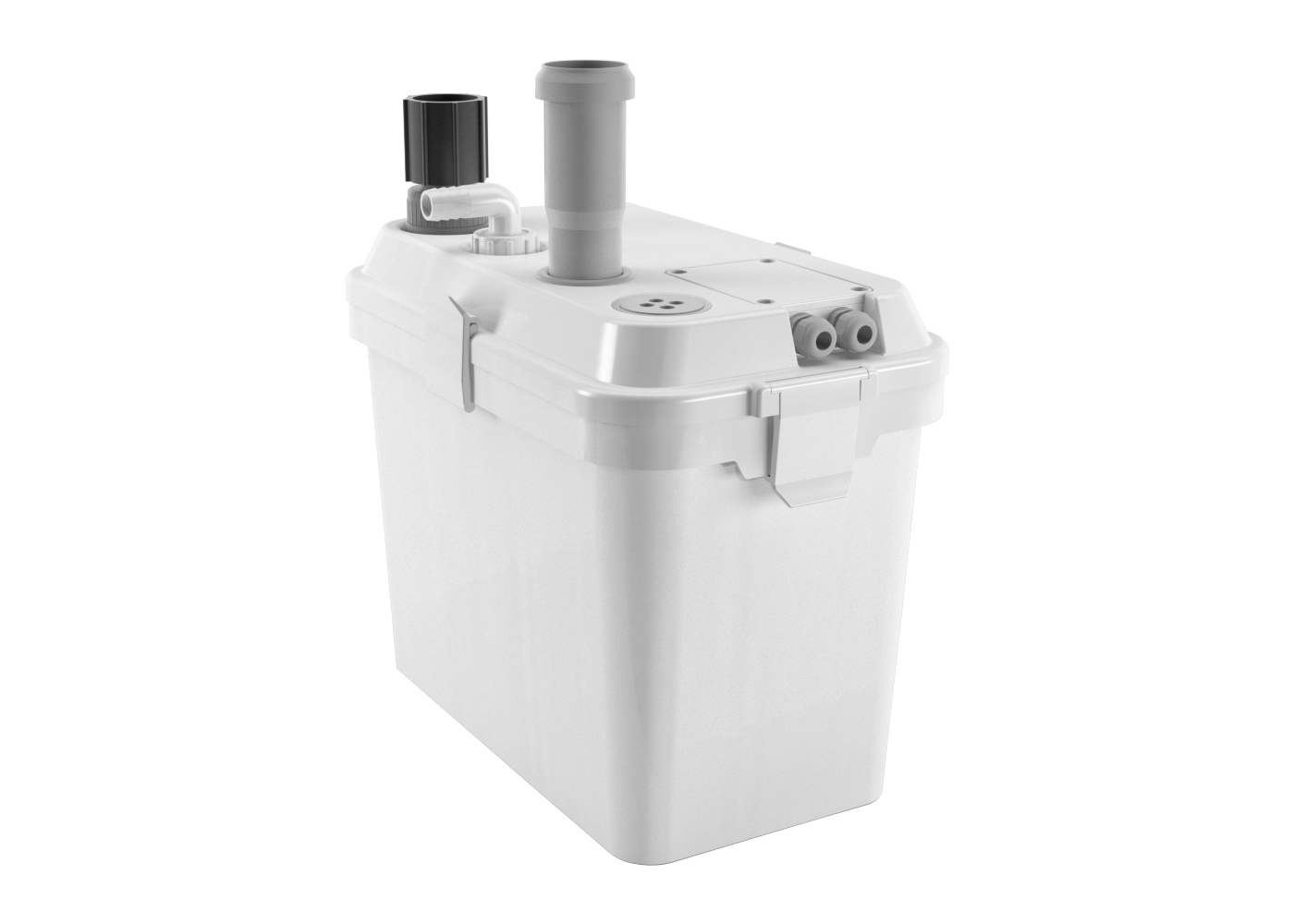

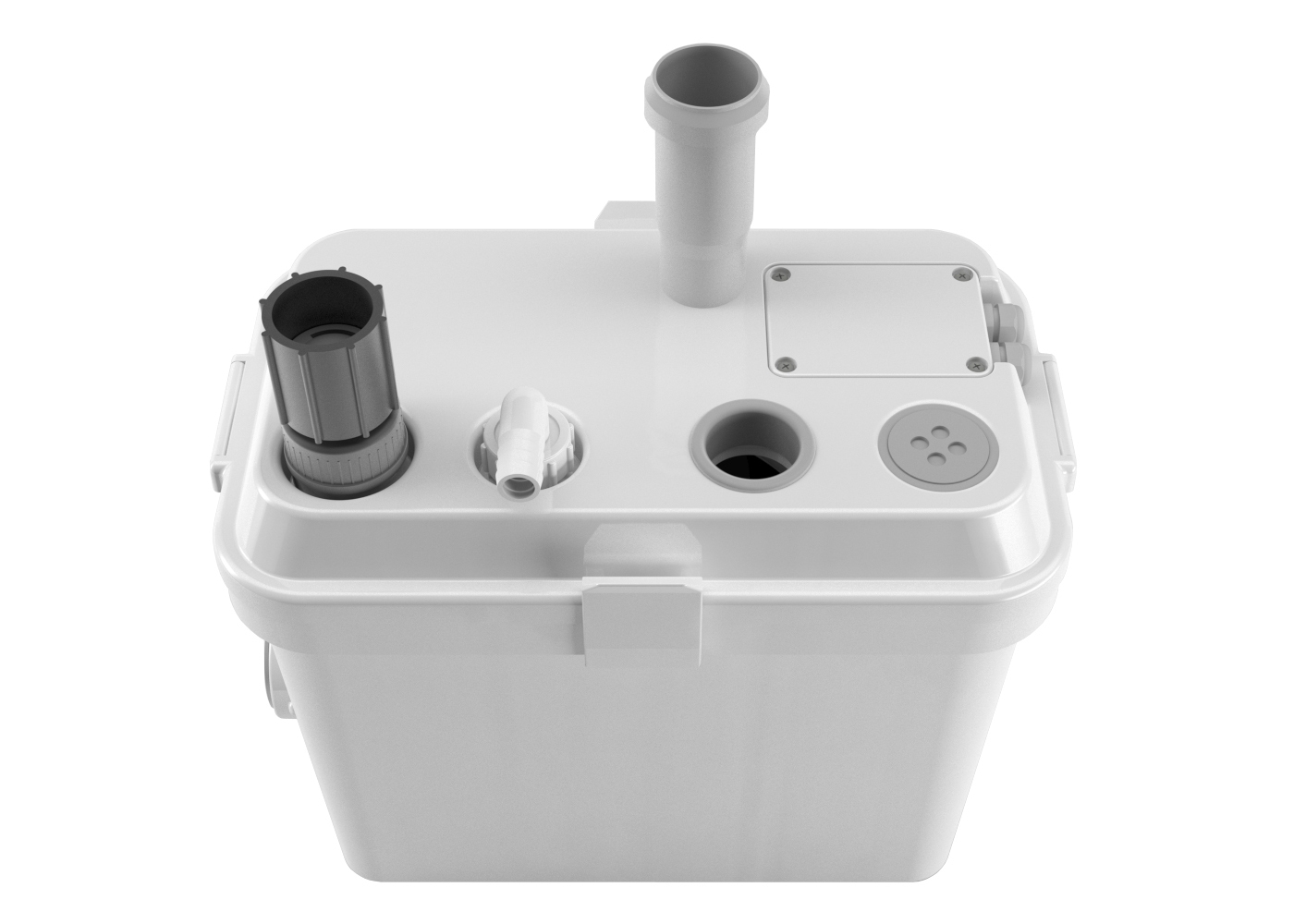

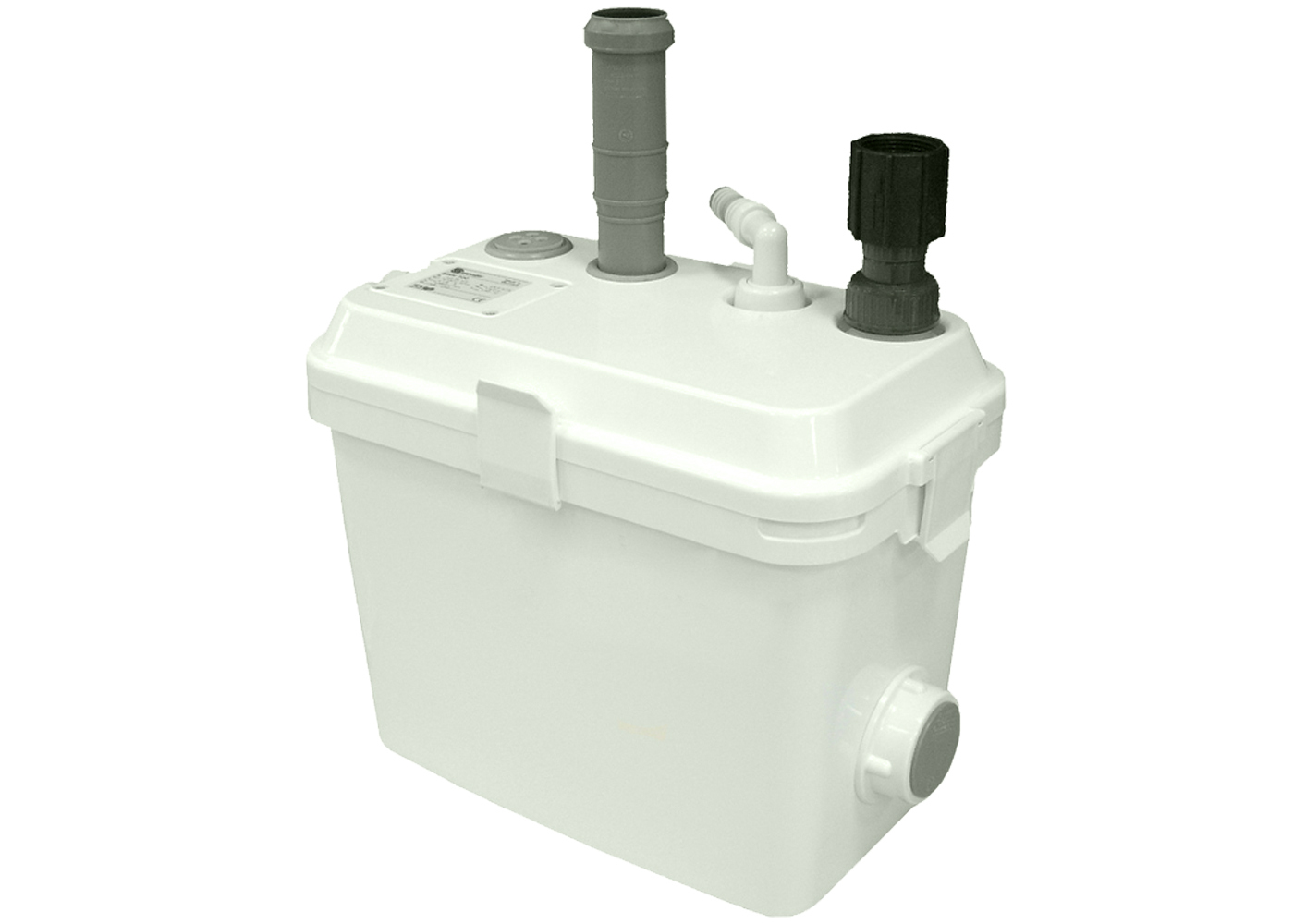

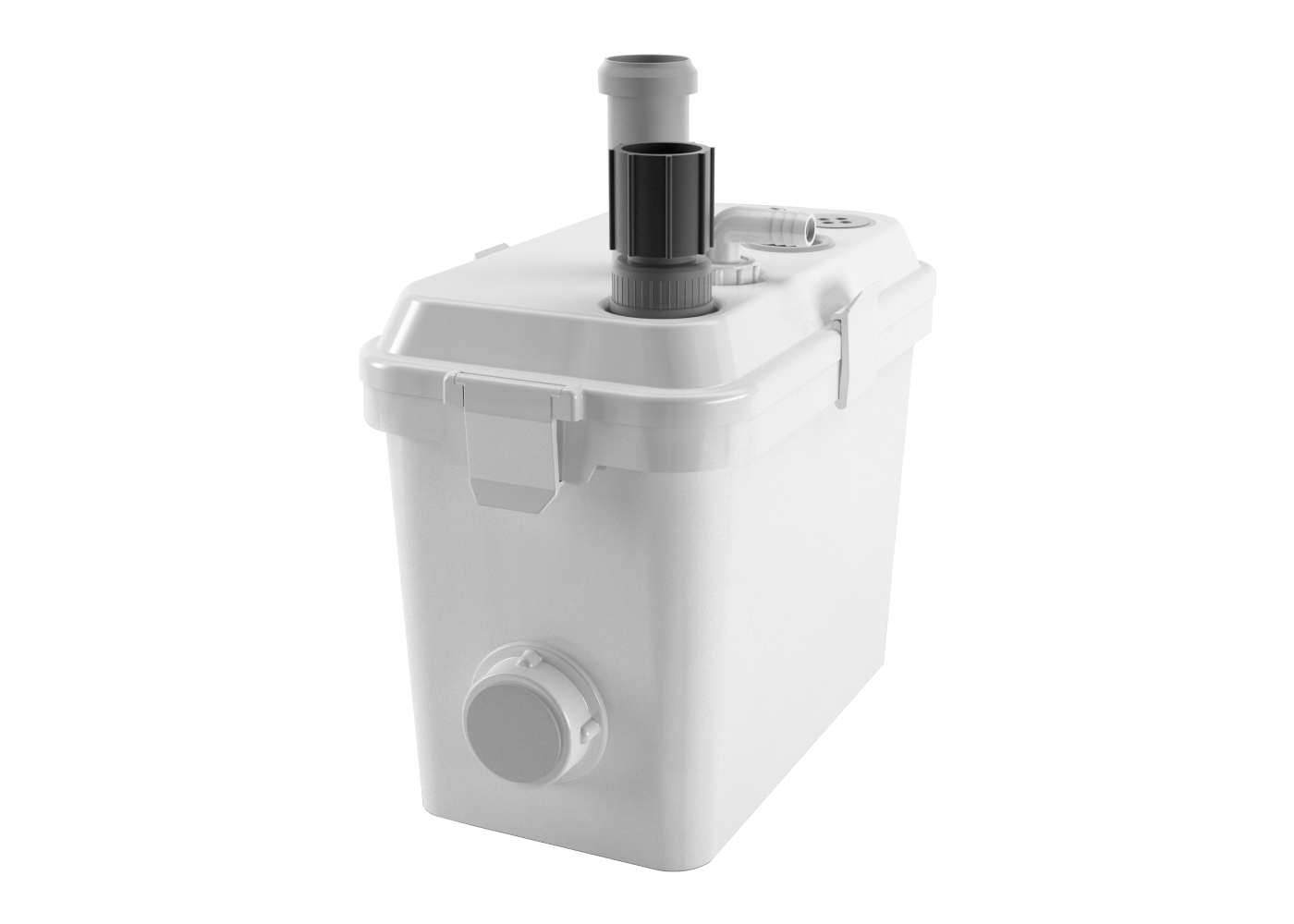

Zehnder Pumpen waste water lifting unit SWH 170 for above-ground installation
Model
- pre-assembled ready for connection - easy installation
- polypropylene container with 20 litres capacity and up to 10 litres switching volume
- switching device integrated in lid with audible high water alarm signal
- potential-free contact for external alarm or washing machine stop

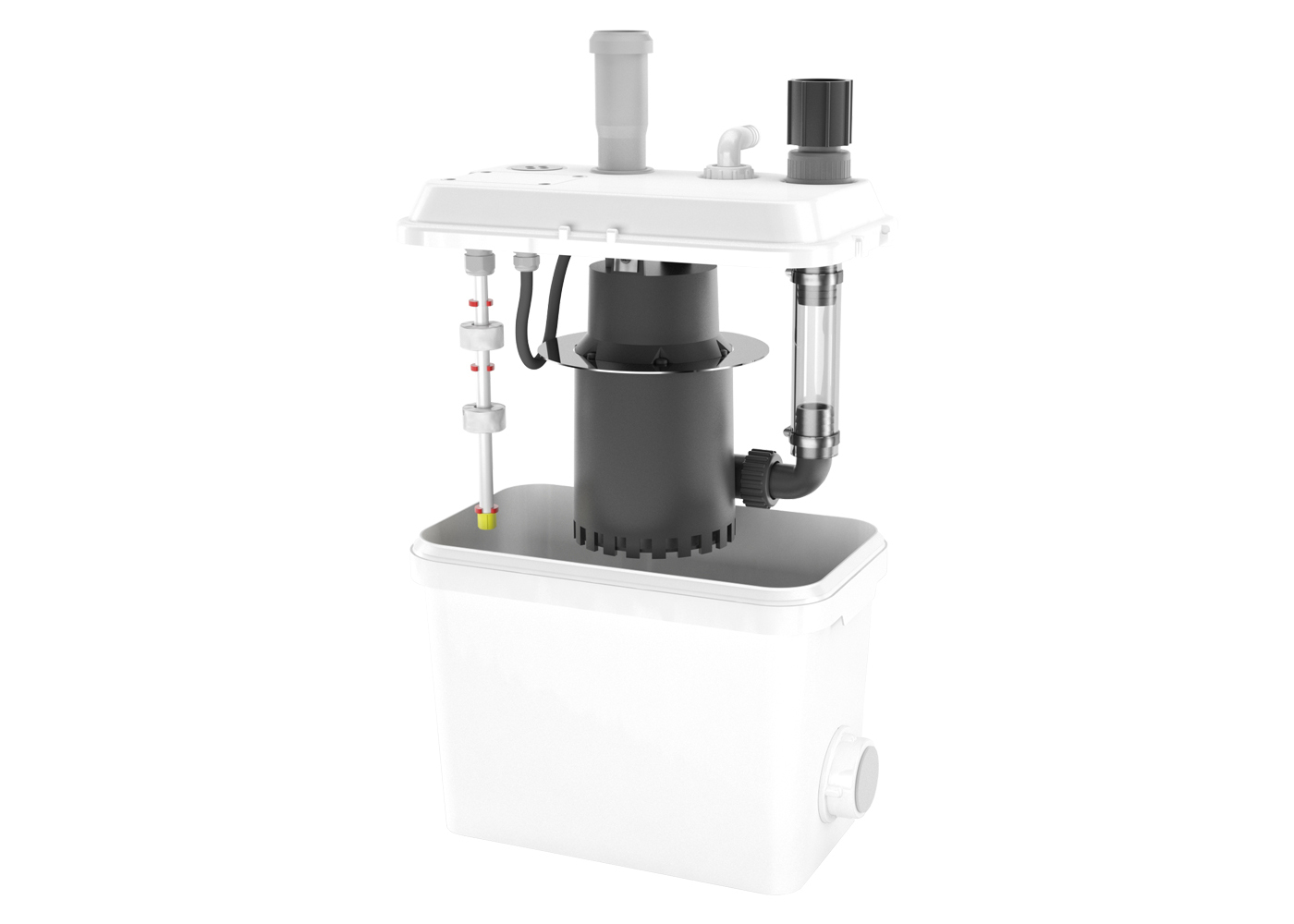

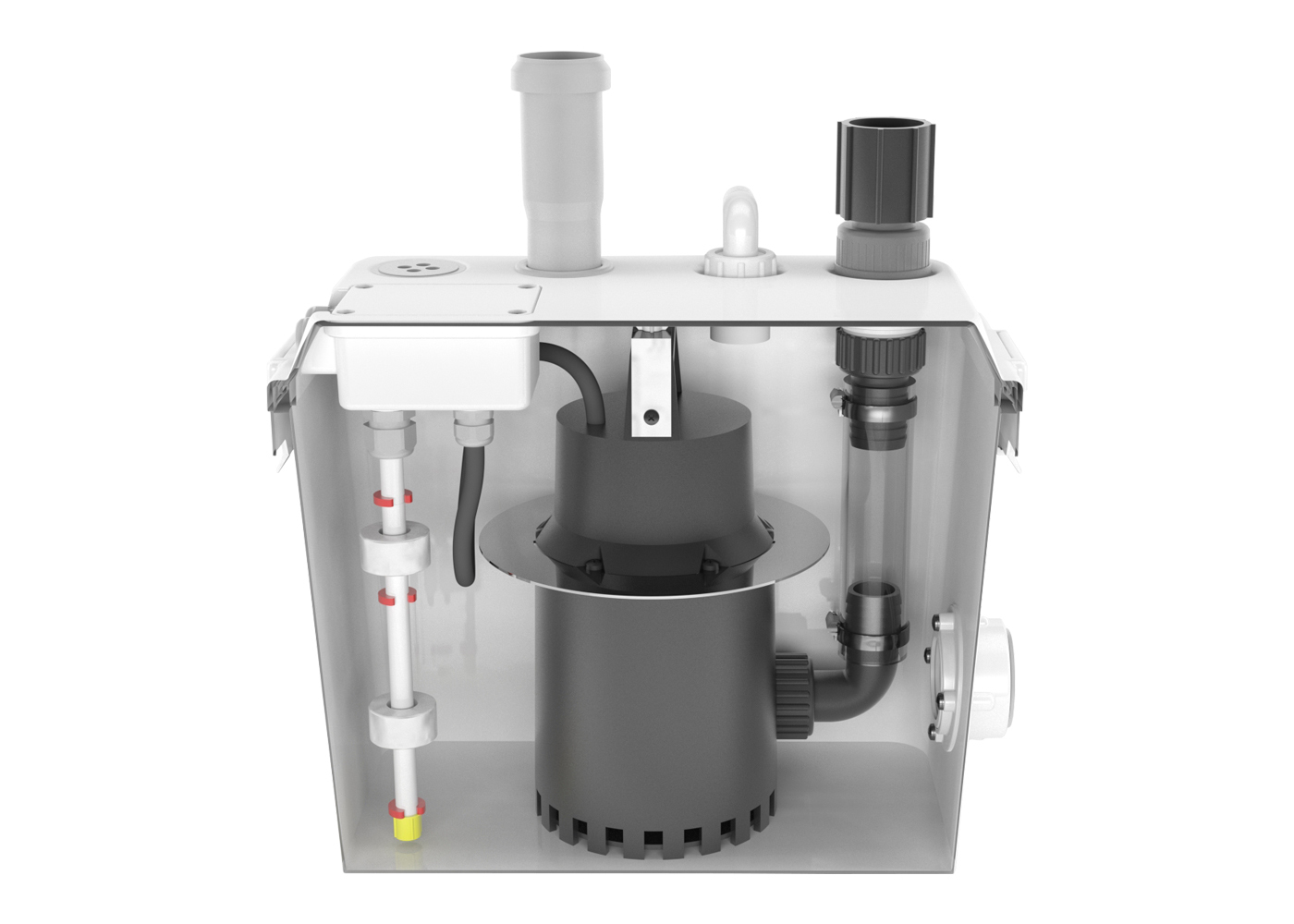

- pump fixed on lid for easy cleaning and maintenance

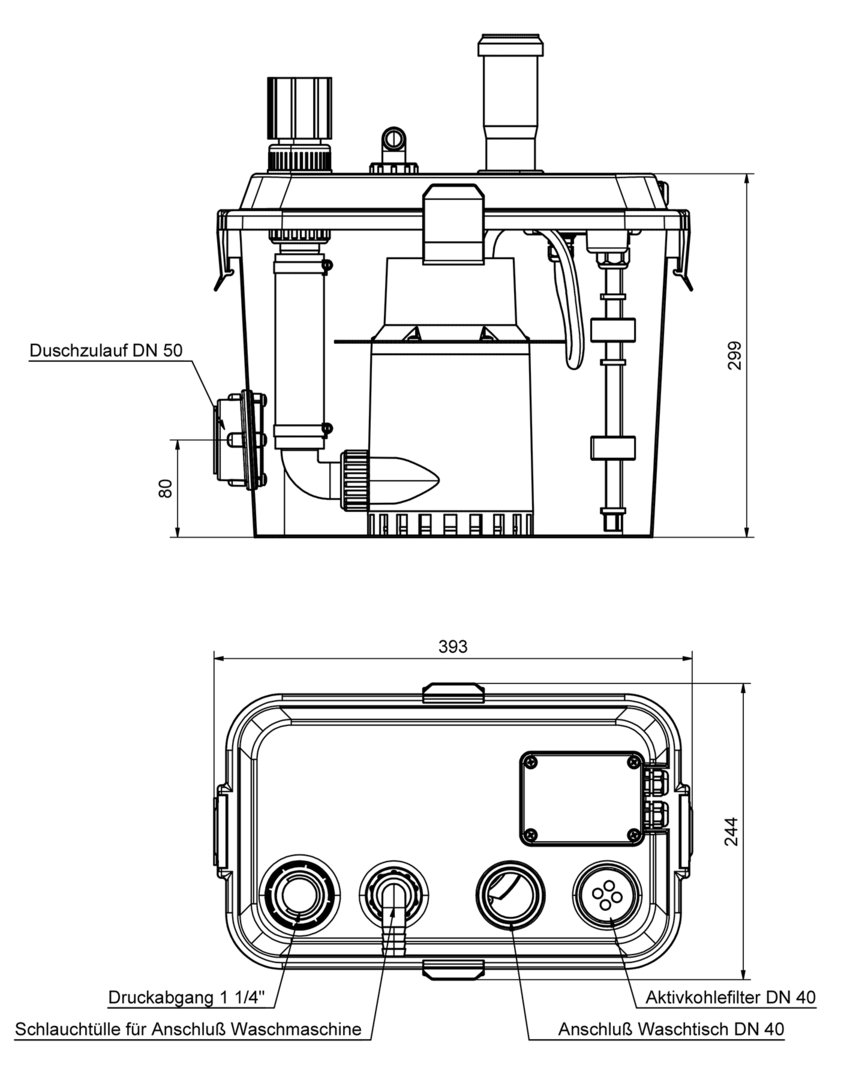

- prepared shower inlet DN 50 usable on both sides (container bottom edge til middle of shower inlet only 80 mm)
- operation temperature 40°C (short-term 90°C)
- pressure outlet 1 ¼“ FPT with integrated non-return valve
- active carbon filter for container ventilation
- protection grade IP 57
- features reed contact
- Free passage 10 mm

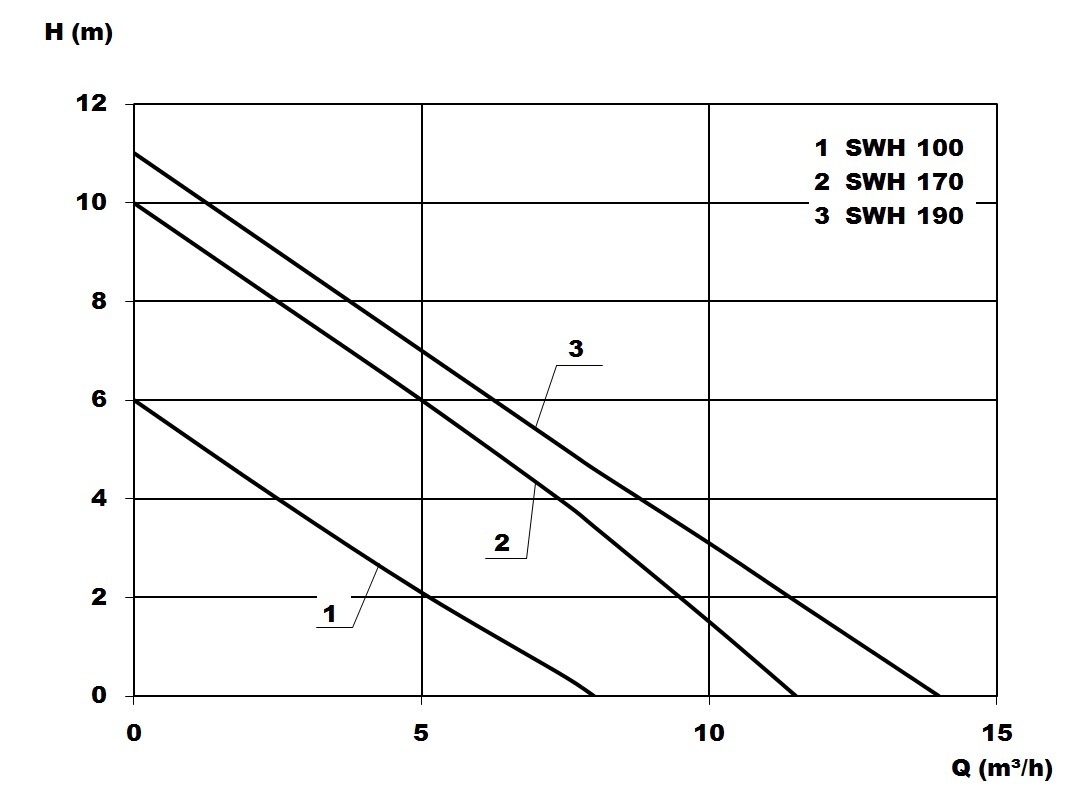

- Head up to 10,0 m
- Voltage 230 Volt
Application

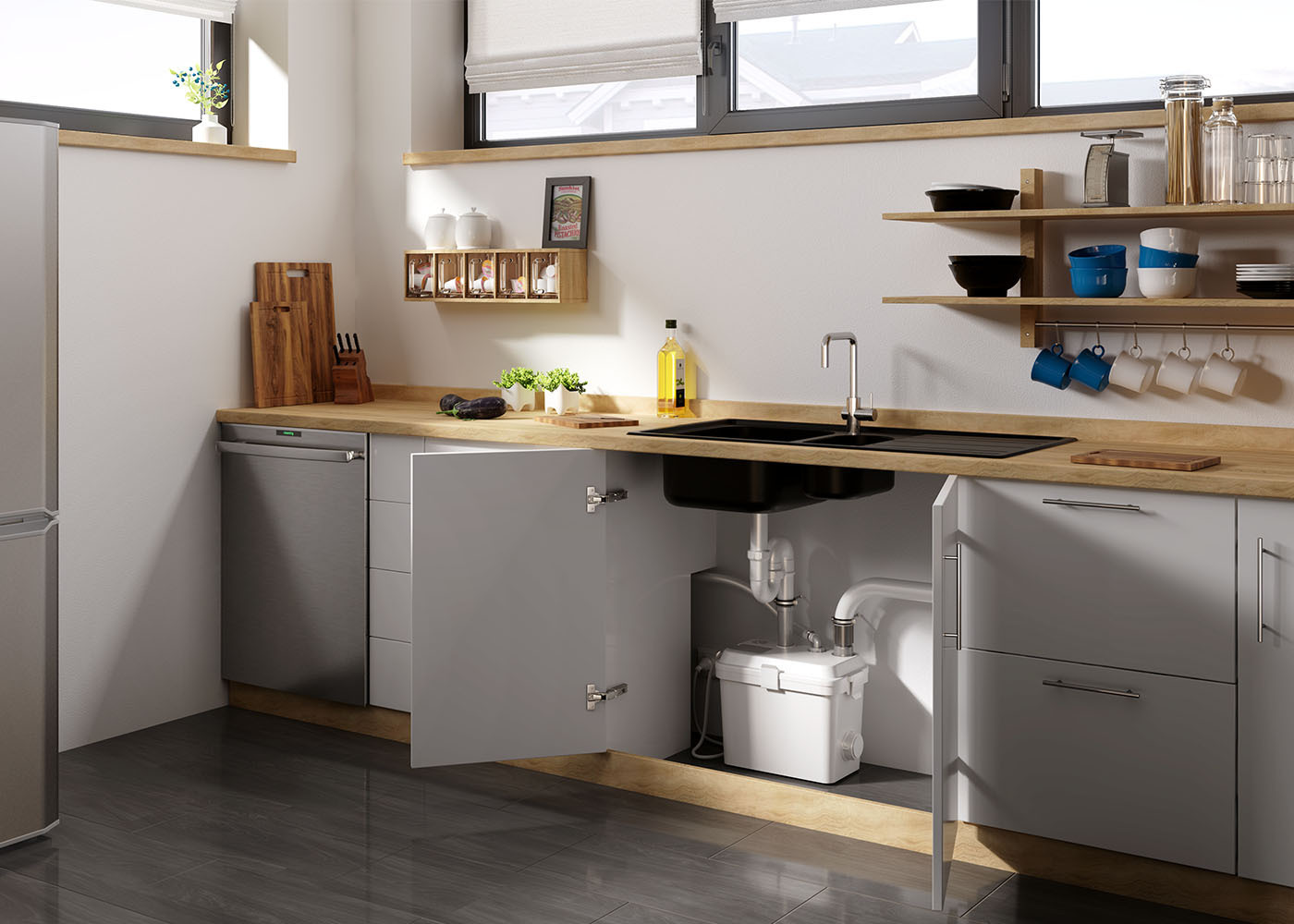

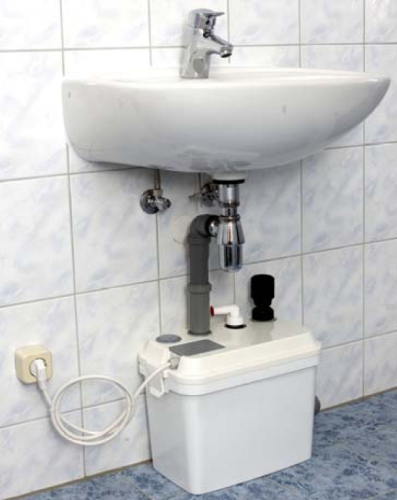

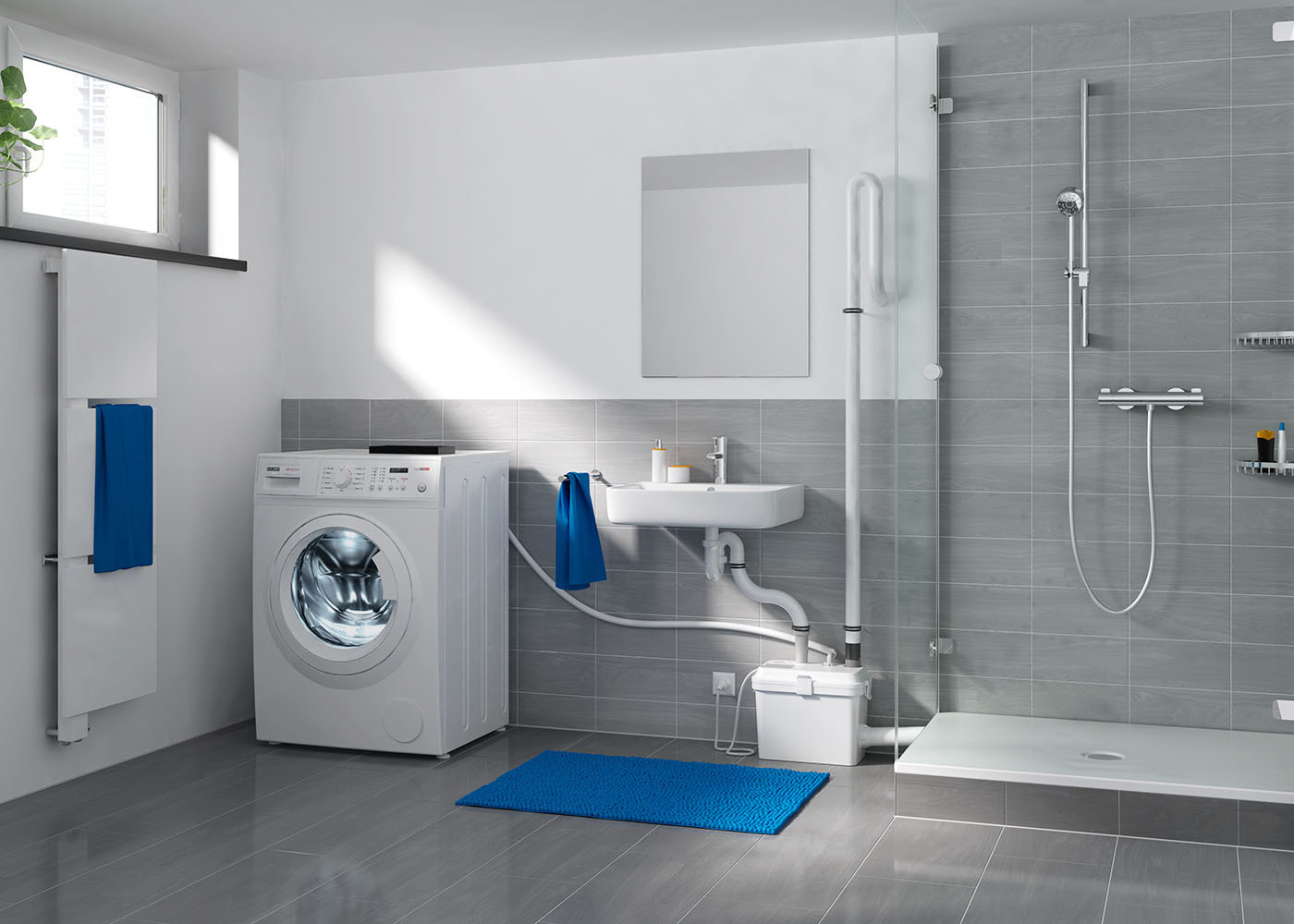

- pumping of domestic waste water from washing machines, showers, washbasins etc.
- above-ground installation in frost-free rooms below the backflow level
Scope of delivery
- pre-assembled ready for connection with 1,5 m power cable and plug
