S-UFB 200/40

• for use behind water softening systems and for calorific value condensate
• high-quality, silicon carbide mechanical seal, stainless steel motor housing (1.4404), stainless steel motor shaft
• with siphon and sand trap
• accessible, grated plastic cover (PVC) - closed cover available as accessory
• built-in submersible waste water pump with float switch
• pressure outlet 1 ¼“ MPT with integrated non-return valve
• top section available as an accessory
• connection for air vent and cable gland DN 50
• inlet DN 50 (supplied) - installation by drilling the container
• features with float switch
• Free passage 10 mm

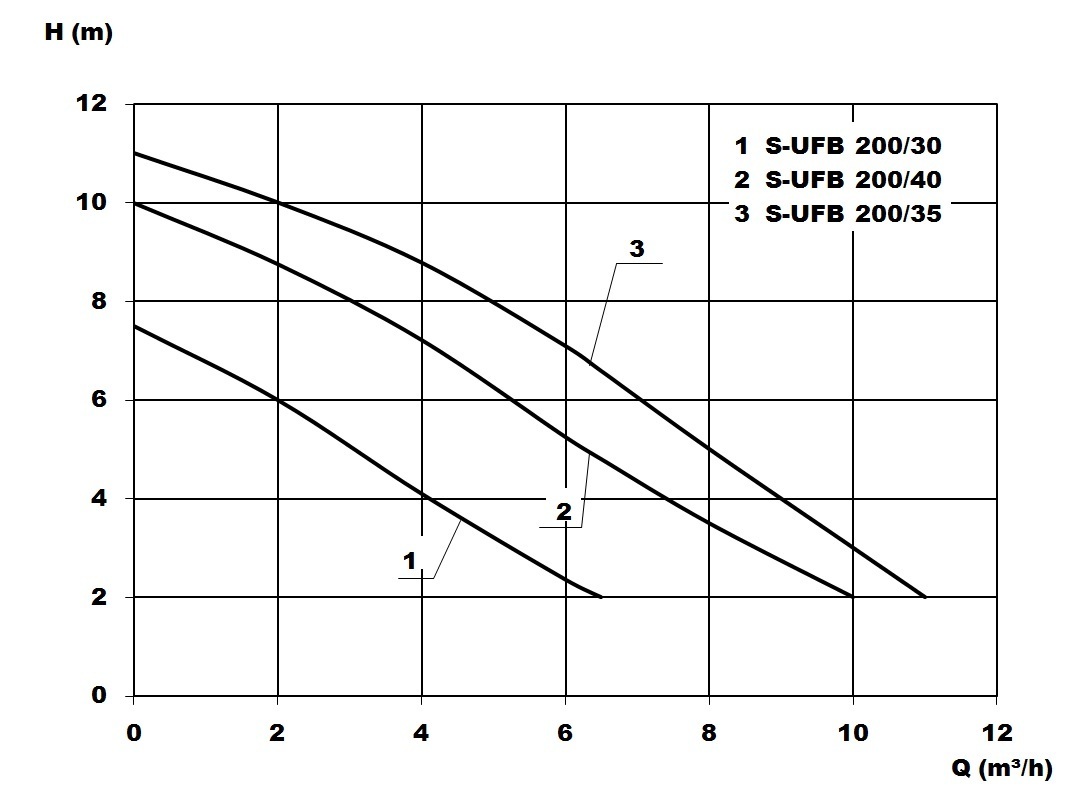

• Head up to 10,0 m
• Voltage 230 Volt

• drainage of slightly acidic condensate, aggressive or salty media (max. 15% salt content)
• lifting of domestic faecal-free waste water (operation temperature 40°C / short-term up to 90°C)

• pre-assembled ready for connection with 10 m power cable and plug
• accessible plastic grade, siphon, sand-trap
• inlet connection piece DN 50
• extended top section and closed cover plate available as accessories

TECHNICAL DATA manufacturer's page
