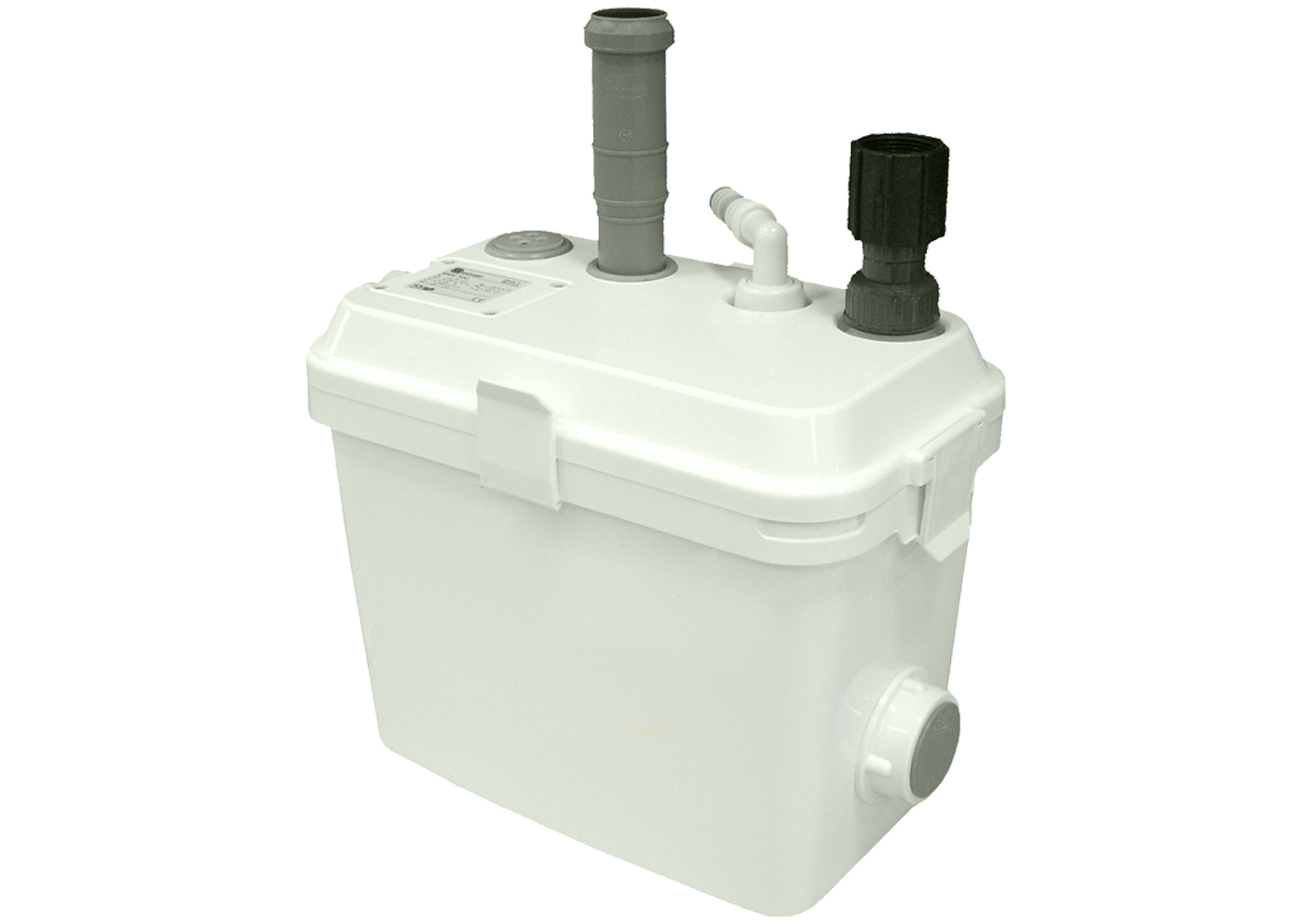

S-SWH 190

• for use behind water softening systems and for calorific value condensate
• high-quality, silicon carbide mechanical seal, stainless steel motor housing (1.4404), stainless steel motor shaft

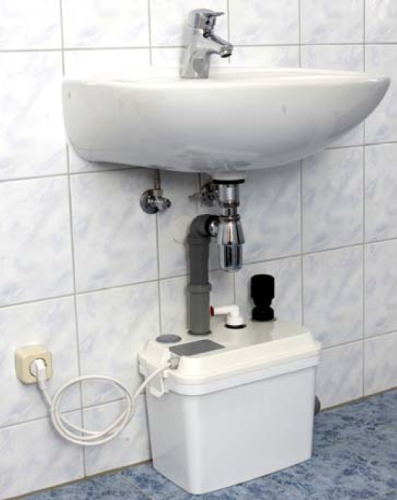

• additional connection of shower, washbasin and washing machine possible
• integrated audible alarm
• pump fixed on lid -> easy cleaning and maintenance
• potential-free alarm transmission
• 20 litres container volume

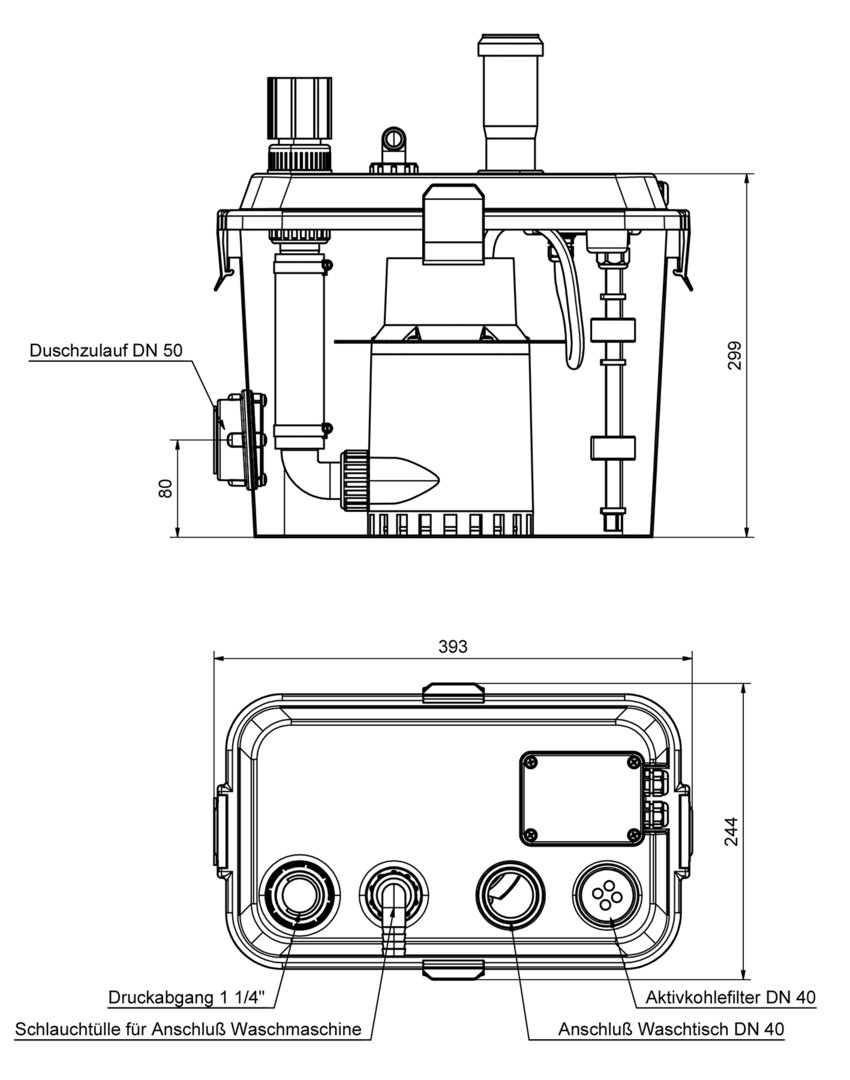

• pressure outlet 1 ¼“ FPT with integrated non-return valve
• active carbon filter for container ventilation
• protection grade IP 57
• features reed contact
• Free passage 10 mm

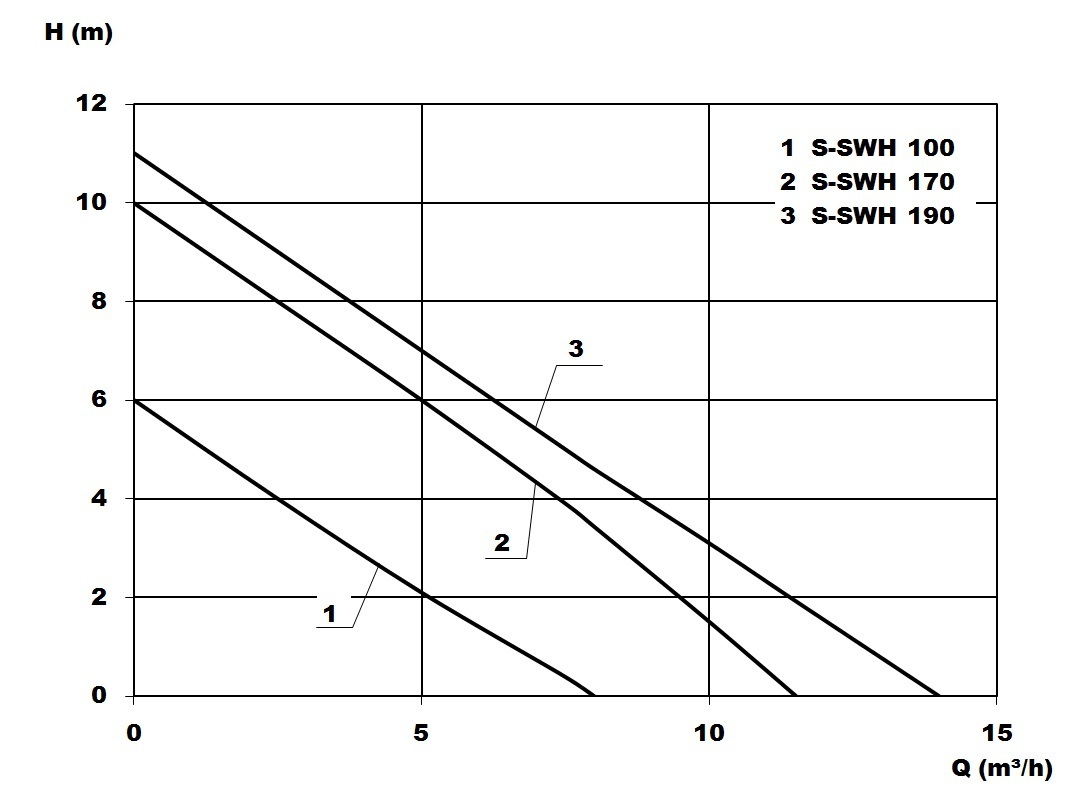

• Head up to 11,0 m
• Voltage 230 Volt

• drainage of slightly acidic condensate, aggressive or salty media (max. 15% salt content)
• lifting of domestic faecal-free waste water (operation temperature 40°C / short-term up to 90°C)

• pre-assembled ready for connection with 1,5 m power cable and plug

TECHNICAL DATA manufacturer's page
