Product information "RWNA CPS 15-5 B"
RWNA CPS 15-5 B plug-in compact system with electronic pressure switch ZP Speedcontrol Comfort for automatic use of rainwater from a cistern
Product benefits:
- plug-in, automatic rainwater utilisation system
- electronic Speed Control Comfort, in combination with the CPS pump, ensures performance- and noiseoptimised operation
- acoustic alarm message with forwarding option
- Quick to assemble (plug & pump: connect > plug in > ready for operation)
- automatic water feed from the drinking water network in case of water shortage
Model
- plug-in compact system for automatic use of rainwater from a cistern
- automatic water feed from the drinking water network in case of water shortage and acoustic alarm message in case of overflow
- Collection container made of PE with assembled, multi-stage, low-noise centrifugal pump model CPS
- Suction height up to 8.5 m
- Quality motor with thermal overload protection
- Switching between rain water and drinking water - and vice versa - takes place automatically
Application
- Garden irrigation
- Domestic water supply
Scope of delivery
- plug-in system, including float switch with 20 m connection cable (for cistern), 2 pieces of flexible connection hoses
- 1 piece KG elbow DN 100 - 87° with overflow set Ø 110
Technical data
- Article number 20065
- Power supply 230 V
- Frequency 50 Hz
- Power P1 1.100 W
- Power P2 850 W
- Nominal current 5,0 A
- Drive 2850 rpm
- C 20 µF
- Max. temperature 040 °C
- Max. flow rate 4,0 m³/h
- Head up to 50,0 m

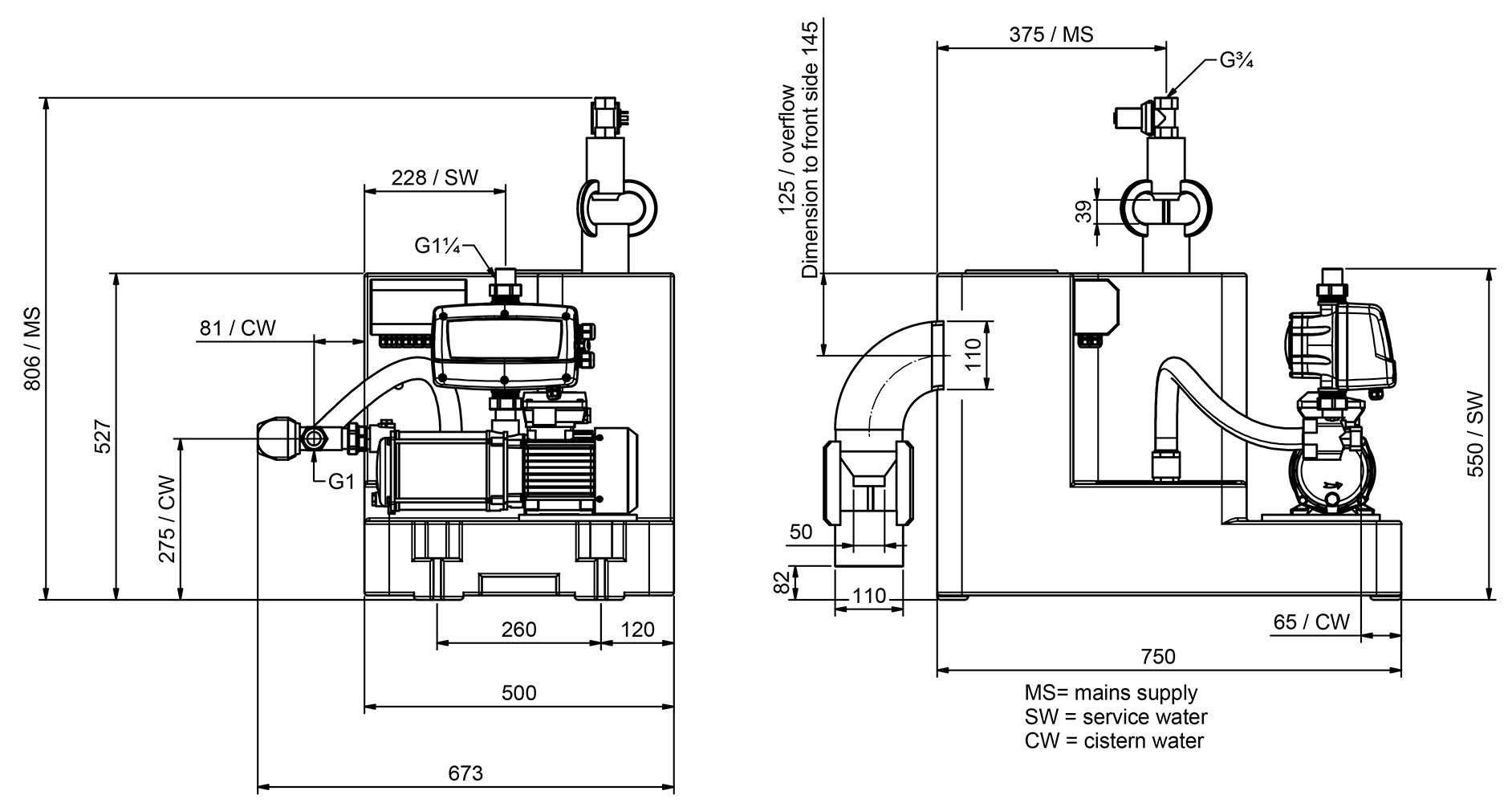

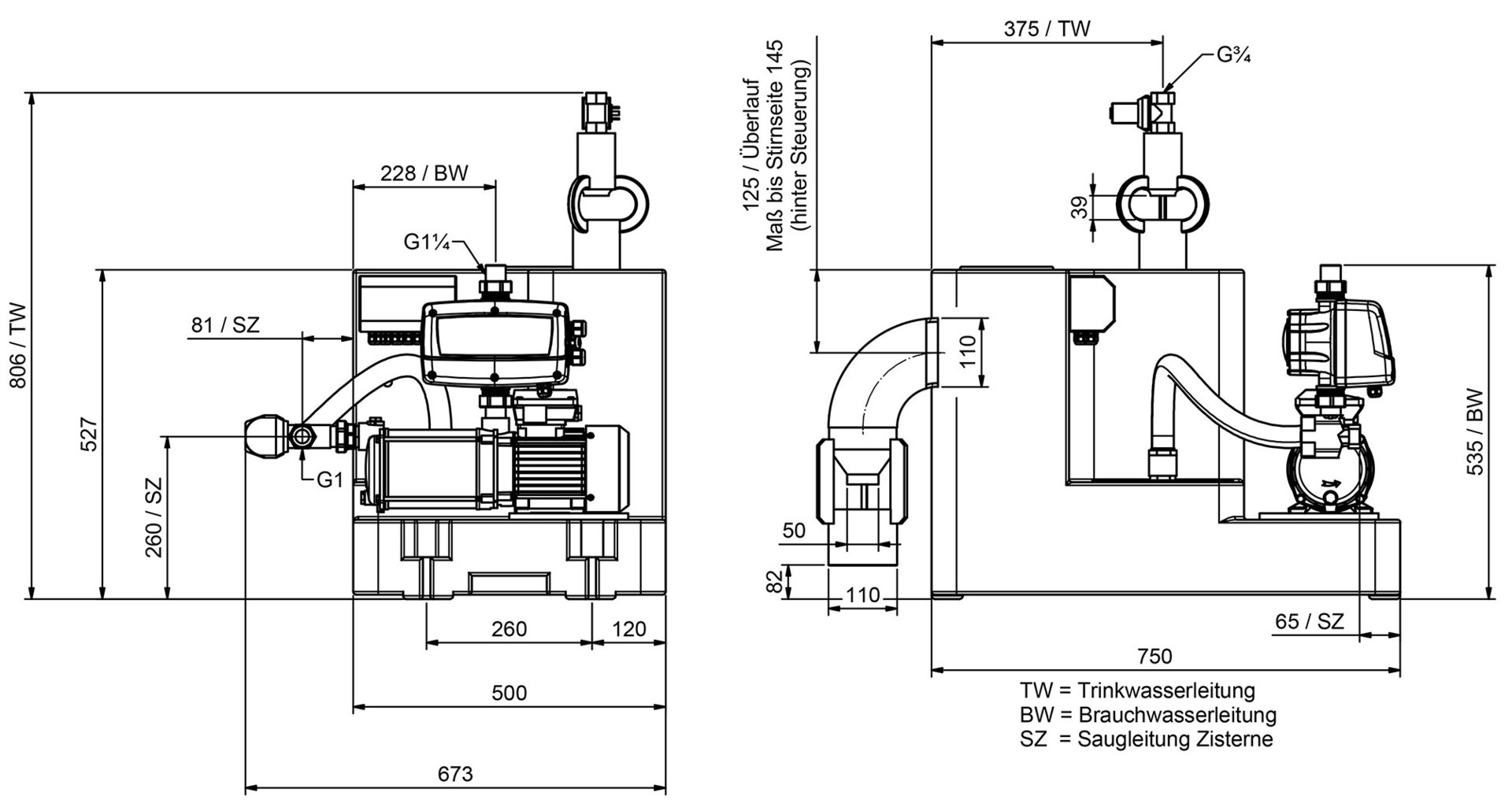

- P-dimensions (WxHxL) 580 mm x 600 mm x 790 mm
