Microboy Pro
€654.00
Available in approx. 14 days, delivery time 2-4 days
Product number: 18190
Product information "Microboy Pro"

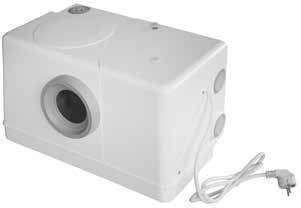

Zehnder Pumpen single-toilet faeces and sewage lifting unit with special, optimized cutting system pump Microboy Pro for above floor installation
Model
- reduced noise during cutting
- adjustable cutting gap for permanently optimal cutting results
- optimized cutting system made of corrosion-resistant special steel 1.4112 with special hardness, wear resistance and cutting performance
- terpolymer container for direct connection to EURO-Toilets with minimum inlet height
- 4 additional lateral inlets DN 40 for connection of washbasin, shower or bidet
- container ventilation via active carbon filter
- robust, dry installed vortex pump with stainless steel cutting system
- alarm signal in case of fault
- emergency discharge possible via motor shaft with slot
- pressure outlet 1 ¼“ IG with integrated non-return valve, optionally left or right
- operation temperature max. 40°C
- protection grade IP 54 - protected against splashing water
- features with pneumatic pump control for single pumps

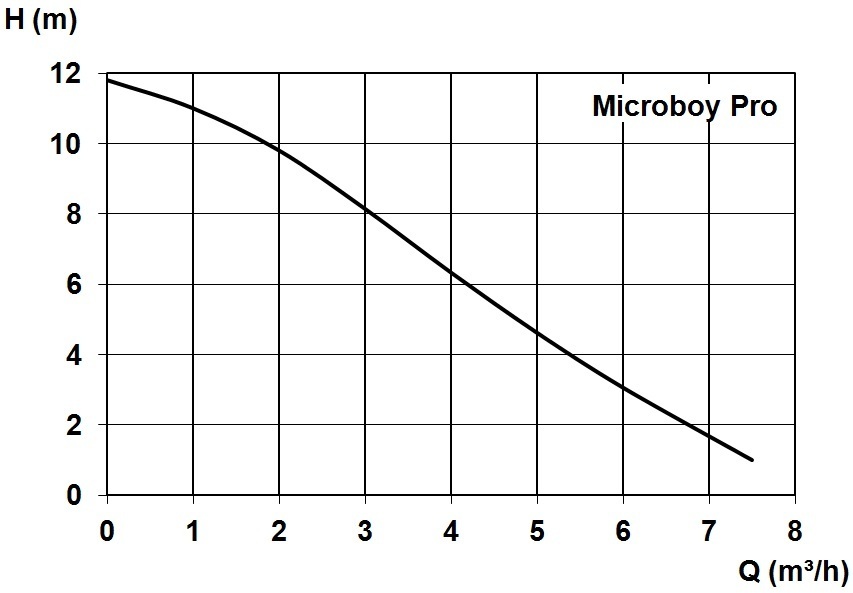

- Head up to 11,8 m
- Voltage 230 Volt
Application
- cuts wipes and female hygiene products
- particularly suitable for publicly accessible sanitary facilities
- single-toilet lifting unit for restricted domestic use according to EN 1825-3 below the backflow level e.g. in cellars or for the refurbishment of old buildings
Scope of delivery
- pre-assembled ready for connection with 1,5 m power cable and plug
- audible alarm included
TECHNICAL DATA manufacturer's page
