BADU Magic II/6-AK
Available in approx. 28 days, delivery time 2-4 days
Thank you for your understanding and patience.
Product information "BADU Magic II/6-AK"

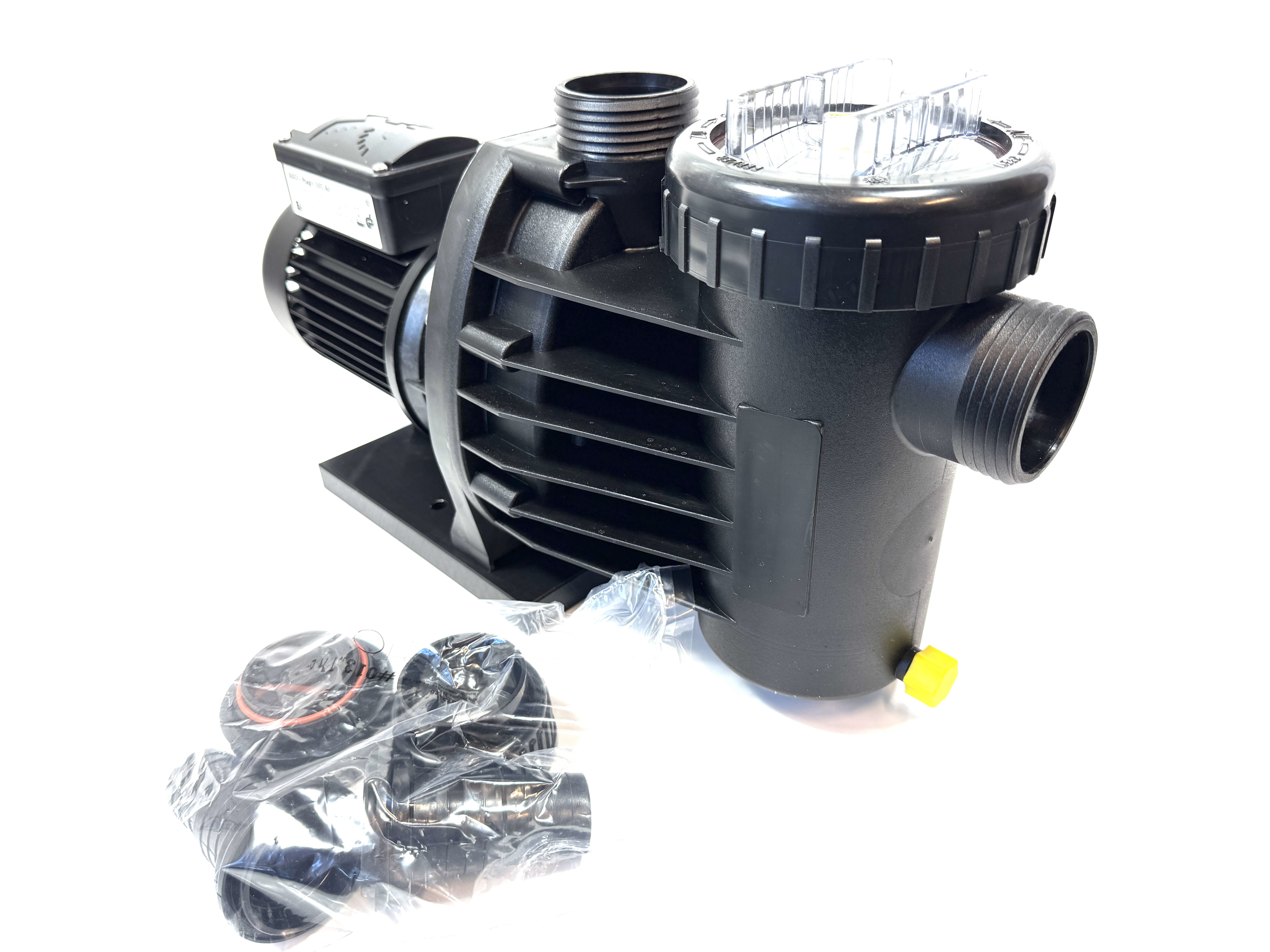

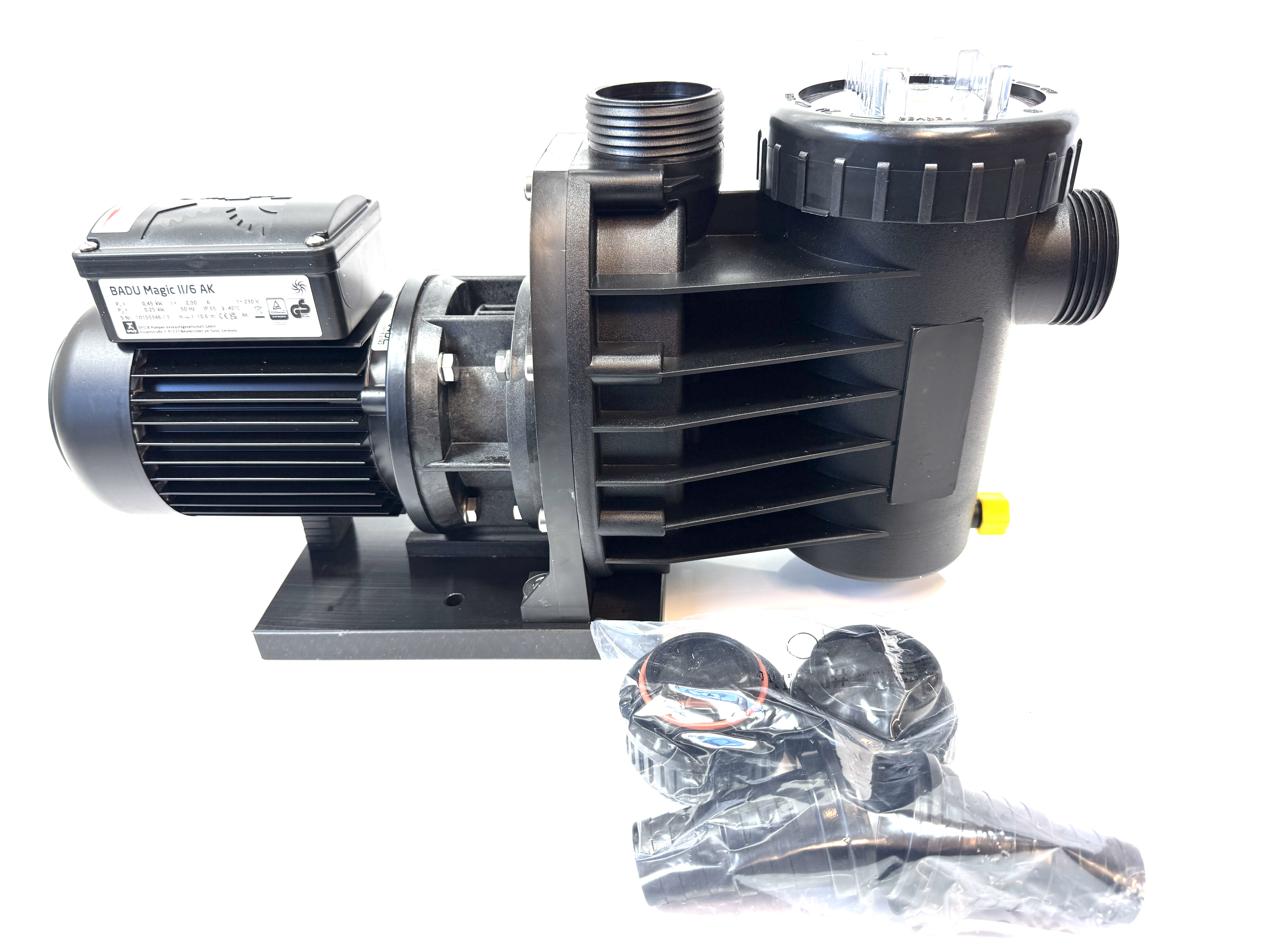

Self-priming filtration circulation pump BADU Magic II/6-AK, alternating current, lantern version. NO LONGER AVAILABLE - REPLACED BY BADU ALPHA 8-AK, 2104080048
Mechanical seal SIC/SIC + VITON
1~ 230 V
Hmax: approx. 10.6 m
Qmax: approx. 13.2 m³/h
techQ: 5.6 m³/h
techH: 8 m WS
Power output: P1=0.45 kW / P2=0.25 kW
Inlet / outlet connection(d): Special union with glue socket d=50
Constructional features:
Corrosion-resistant – due to high-grade, glass fiber reinforced plastic
Inured – against pollution by means of an integrated strainer tank
Self-priming – trouble-free filter operation and connection of pool floor cleaners
Field of application:
Swimming pool water circulation through a filter system. The pump can be installed max. 2 m above or max. 3 m below water level. Thermal water, thermal brine, seawater aquarium with artificially processed salt water, pickle units and several problem media after testing of components and concentration. Generally, the exact medium should be specified during the placement of the order, so that suitability and resistance of the pumps may be verified.
Design:
The special version AK pumps correspond to the standard versions in the BADU programme, however they are designed for use in diverse salt water and problem medias. Media that could potentially leak or minerals and salts which could crystallise do not come into contact with the motor or bearings. Therefore this ensures considerably longer operating times for these fields of application compared to the standard version.
