BADU Magic 4
€359.00
Available in approx. 7 days, delivery time 2-4 days
Product information "BADU Magic 4"

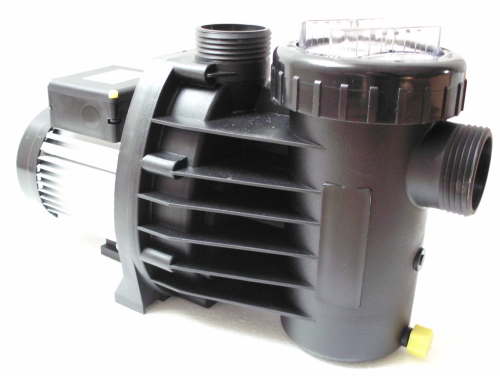

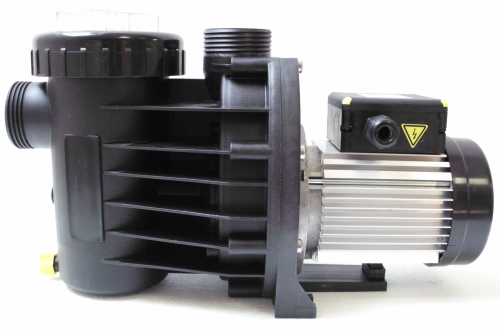

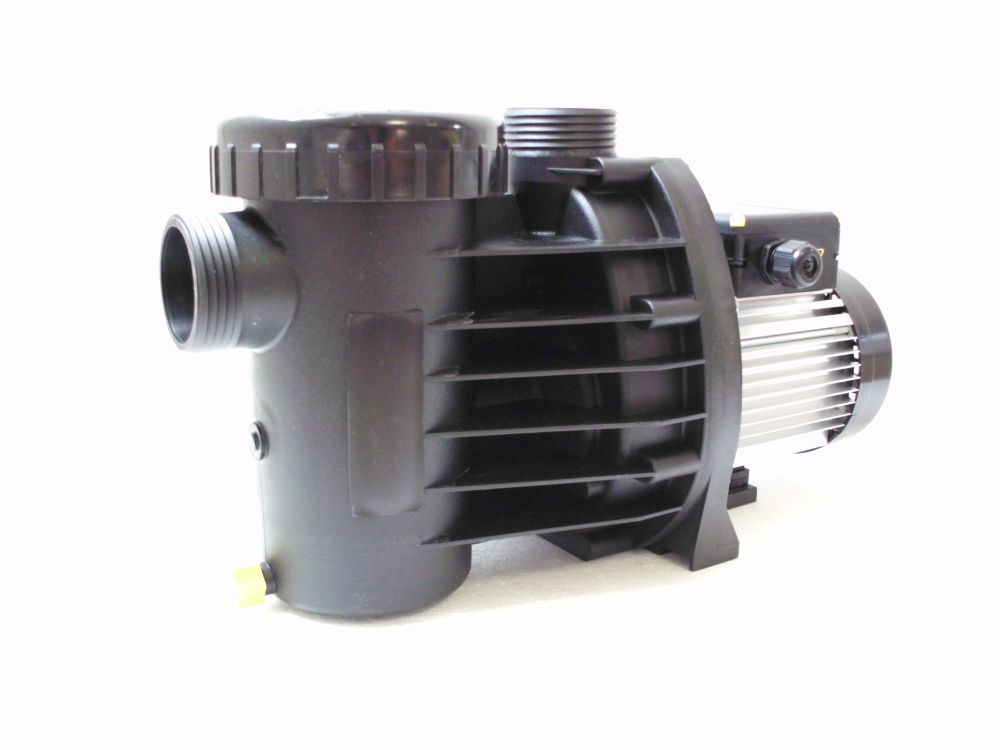

Self-priming filtration circulation pump BADU Magic II/4, replaces its interchangeable predecessor model BADU Magic 4
1~ 230 V
Hmax: approx. 9,7 m
Qmax: approx. 10,6 m³/h
techQ: approx. 3,2 m³/h
techH: 8 m WS
Power consumption P1: 0,35 kW / Power output P2: 0,18 kW
Inlet / outlet connection(d): Special union with glue socket d=50 or hose adapter for 1¼" and/or 1½" hose
The introductory model for small to medium-size filter units offers an economical and reliable solution for above ground pools. Tried and tested, this pump reaches a high rate of efficiency during constant operation.
Swimming pool water circulation through a filter system. The pump can be installed max. 2 m above or max. 3 m below water level.
Monoblock-type pump with integrated strainer tank. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve. Motor/pump shaft has no contact with the pool water providing complete electrical separation.
| Adhesive sleeve: | ABS |
|---|---|
| Housing cover: | PC, ABS |
| Elastomers: | NBR, NBR |
| Housing cover (stand): | PP TV 40 |
| Mechanical seal: | carbon/ ceramic/ NBR |
| Impeller: | PPE GF 30 |
| Pump housing: | PP |
| Suction strainer: | PP |
| Screws: | stainless steel |
| Screw connection: | ABS |
Special motors on request.
The above mentioned pumps can be used for pool water with a salt concentration of up to 0.5%, i. e. 5 g/l.
For higher salt concentrations please contact us.
