BADU Gamma 7, 400 V
€615.00
Available, delivery time: approx. 2-4 days
Thank you for your understanding and patience.
Product information "BADU Gamma 7, 400 V"

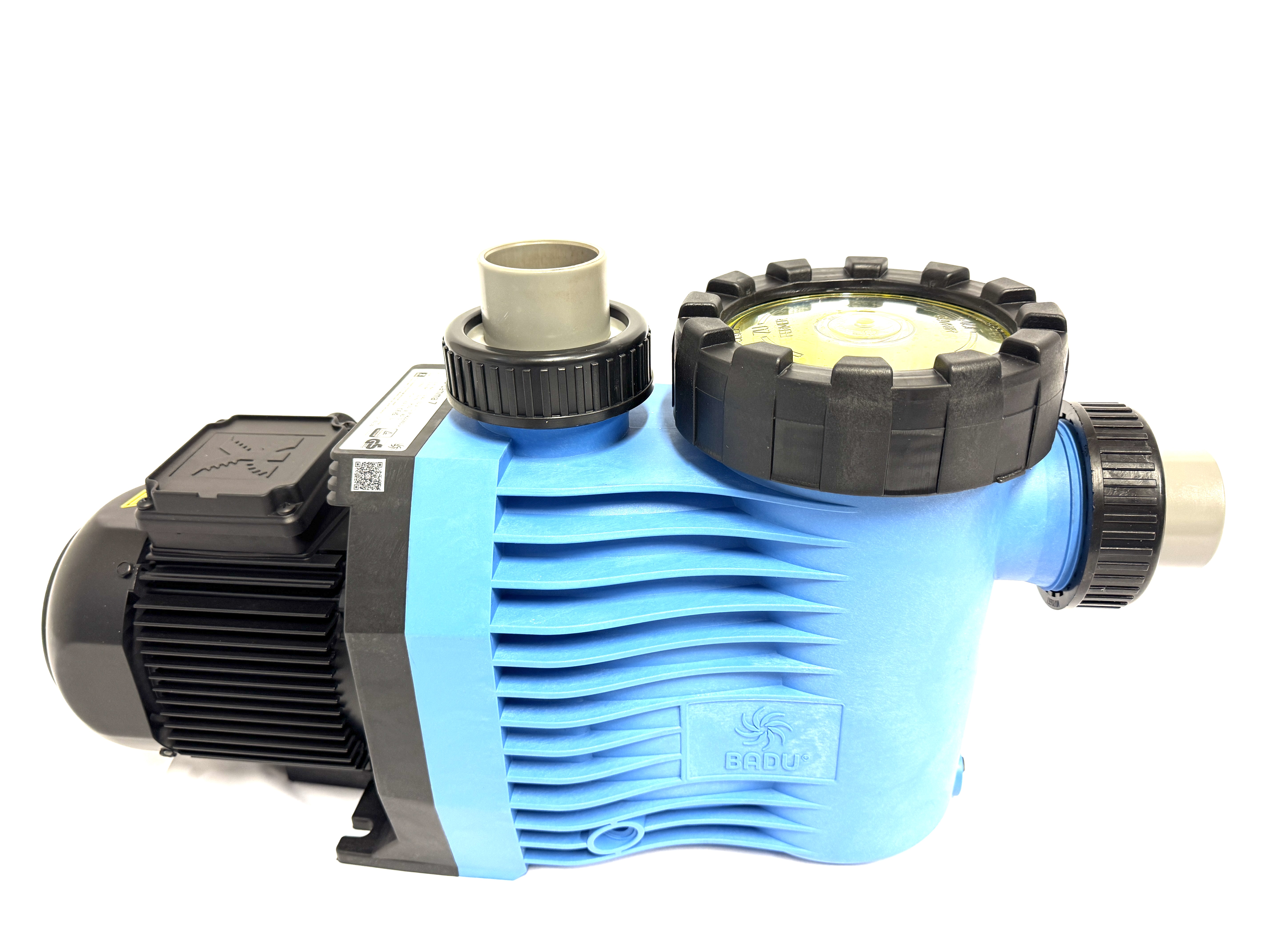

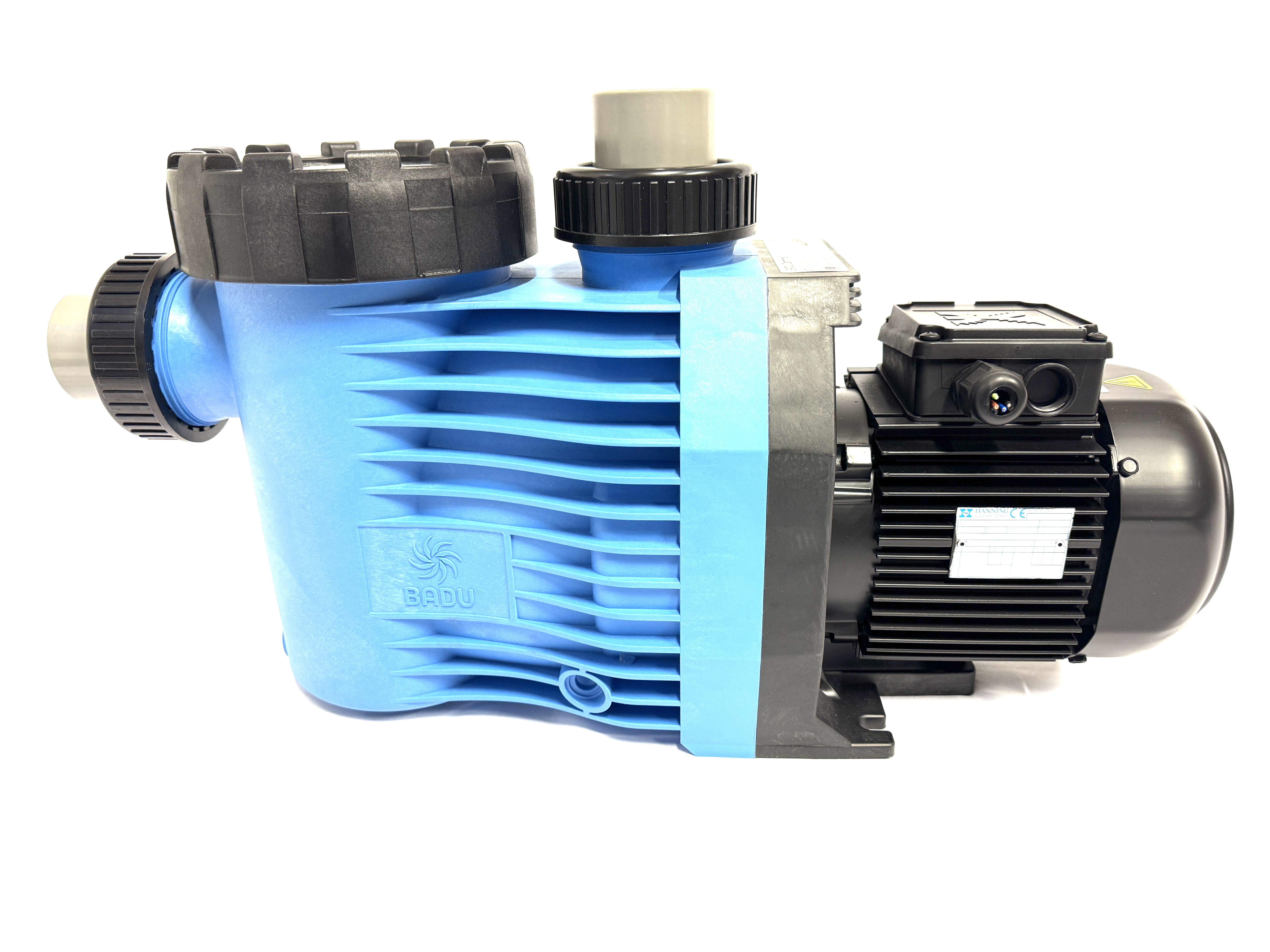

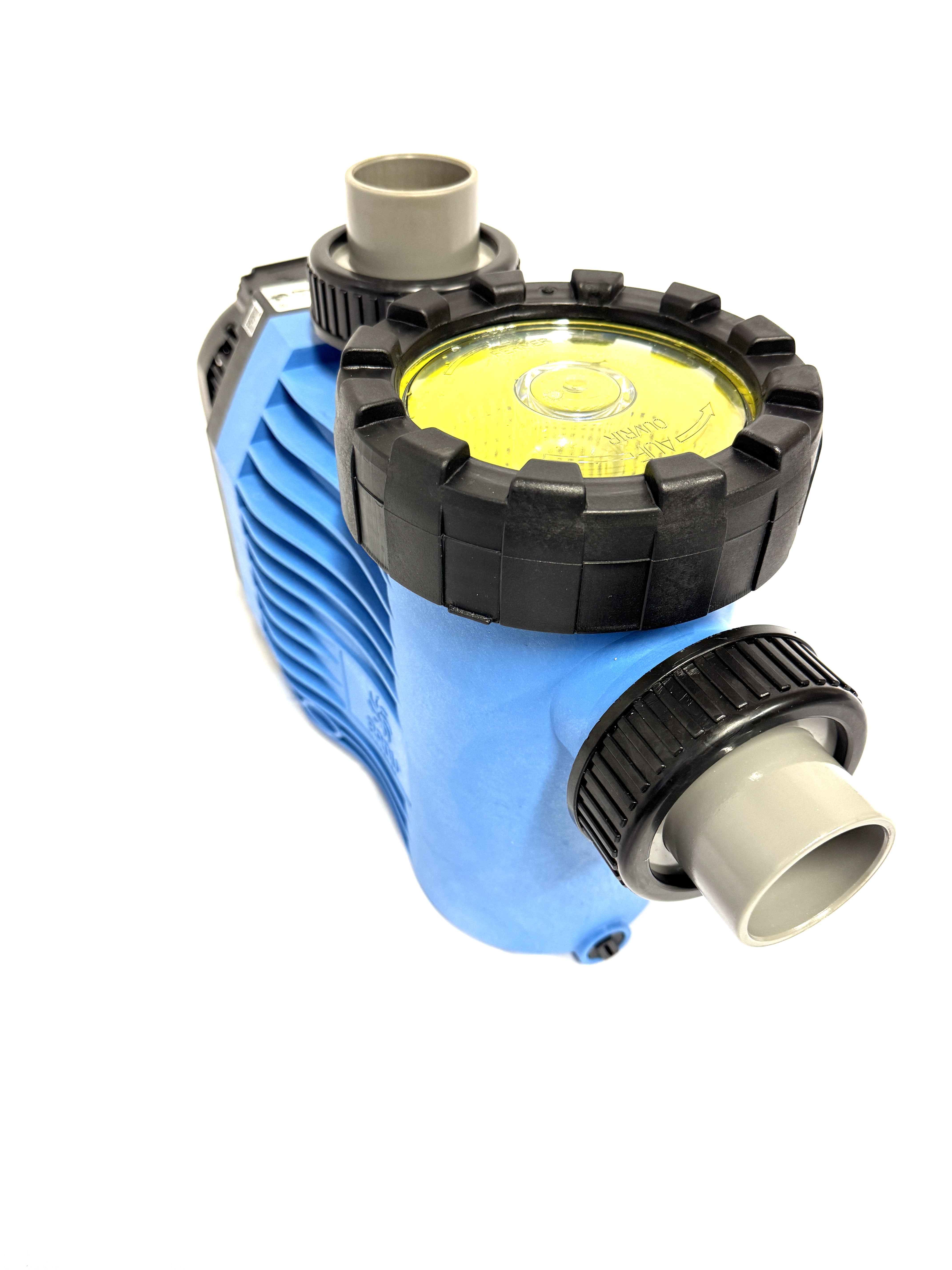

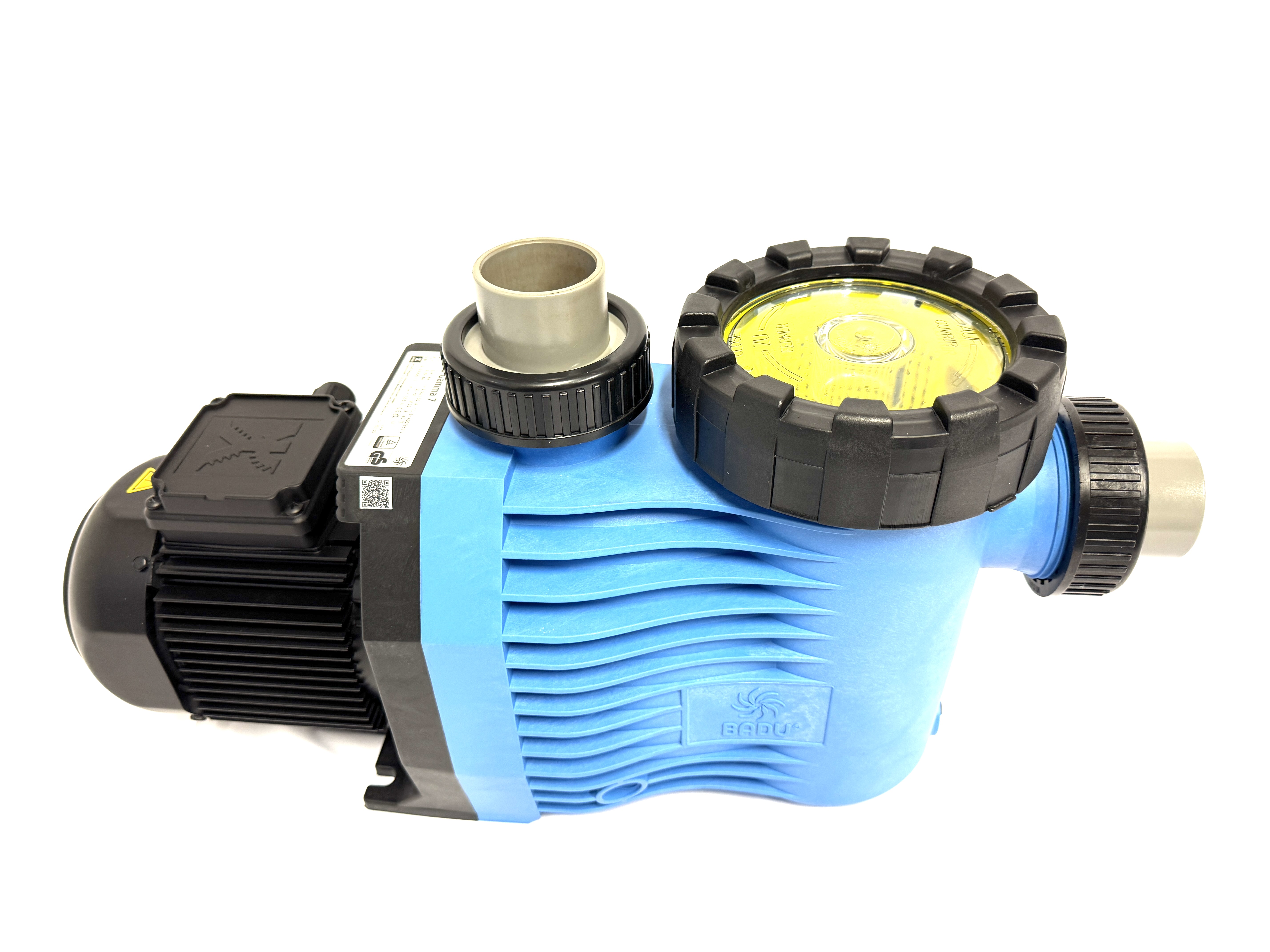

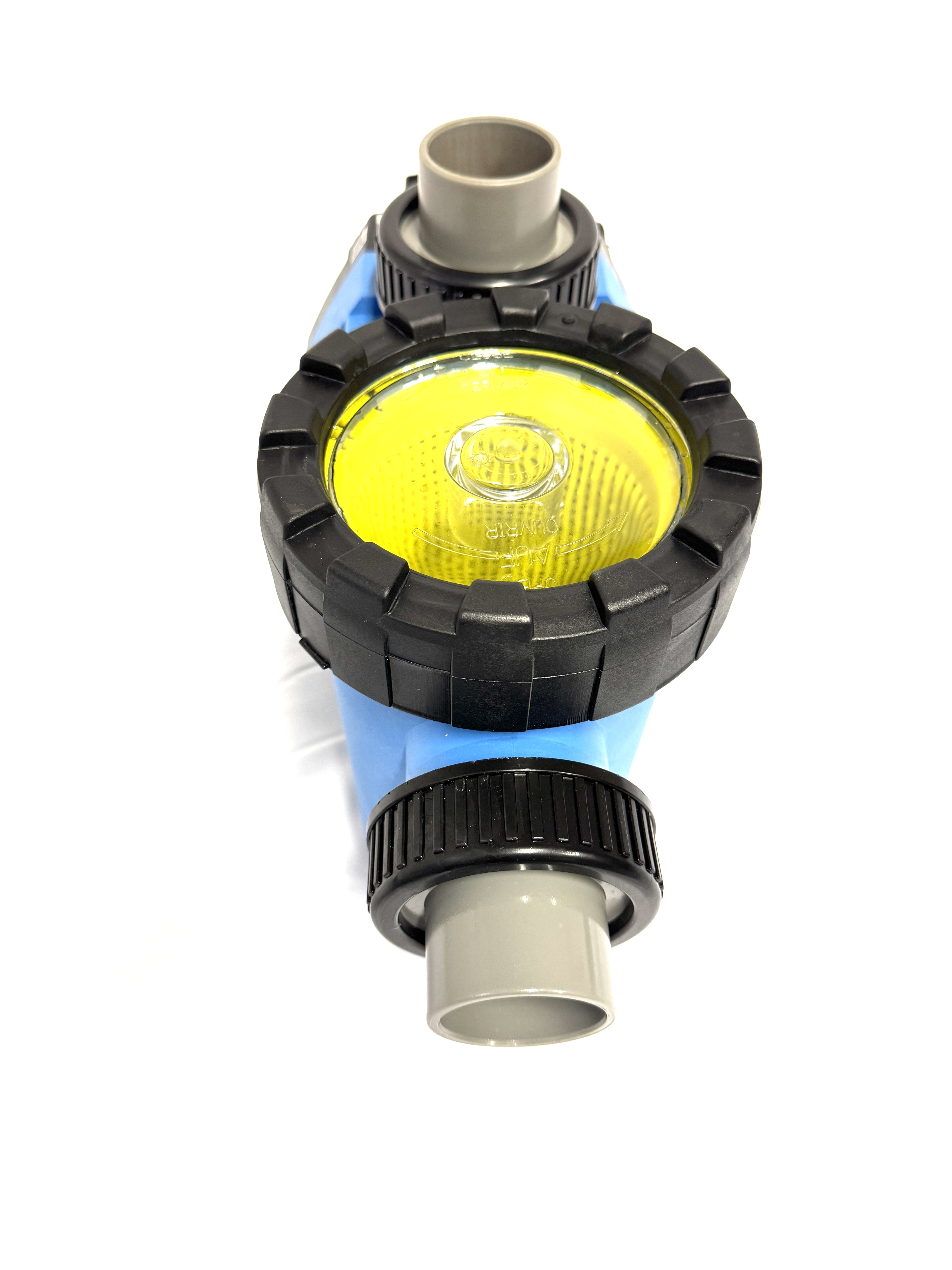

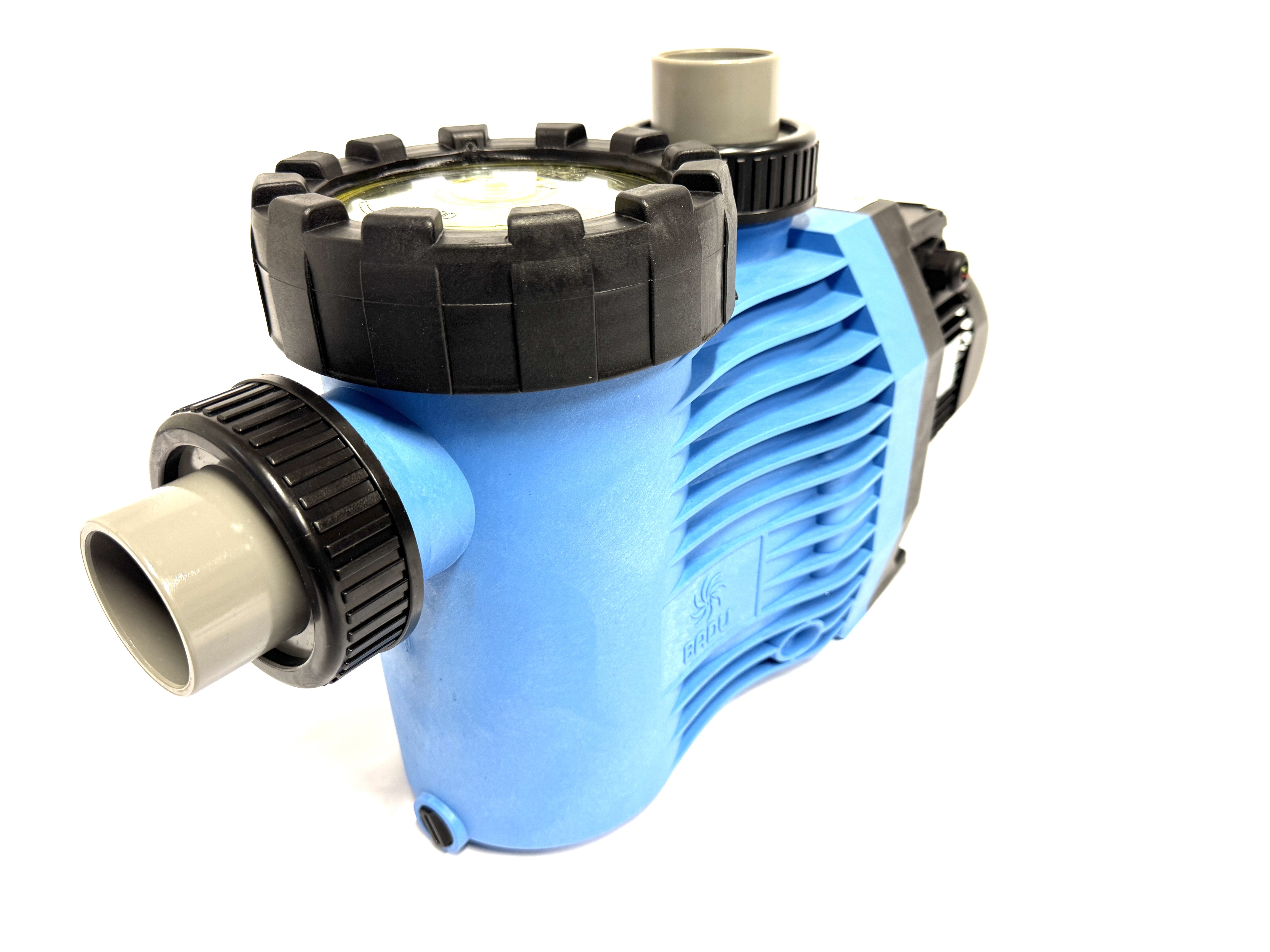

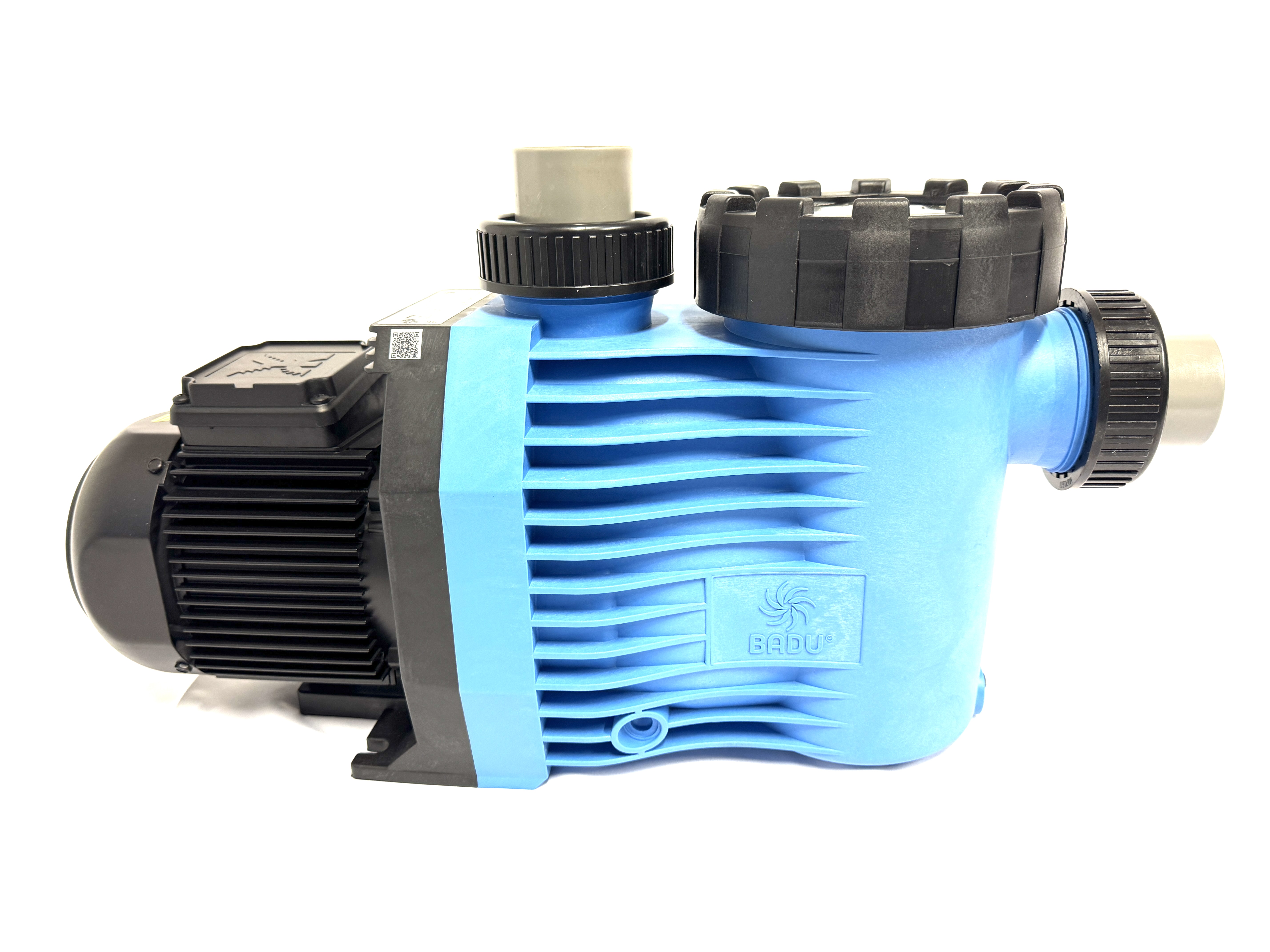

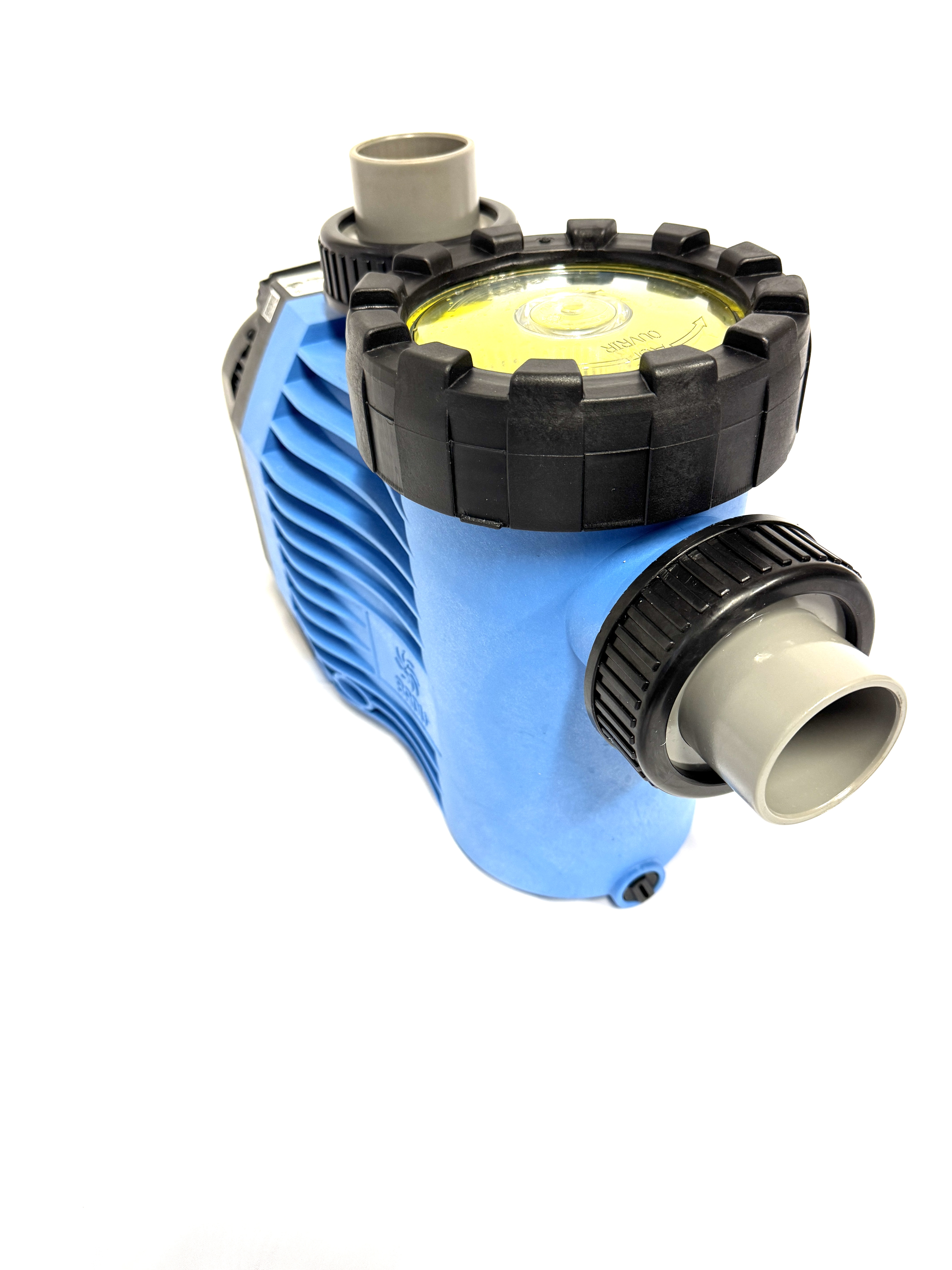

Self-priming filtration circulation pump BADU Gamma 7, 400 V, no cable and plug, three-phase current version, extremely quiet and with improved hydraulics
3~Y/Δ 400/230 Volt

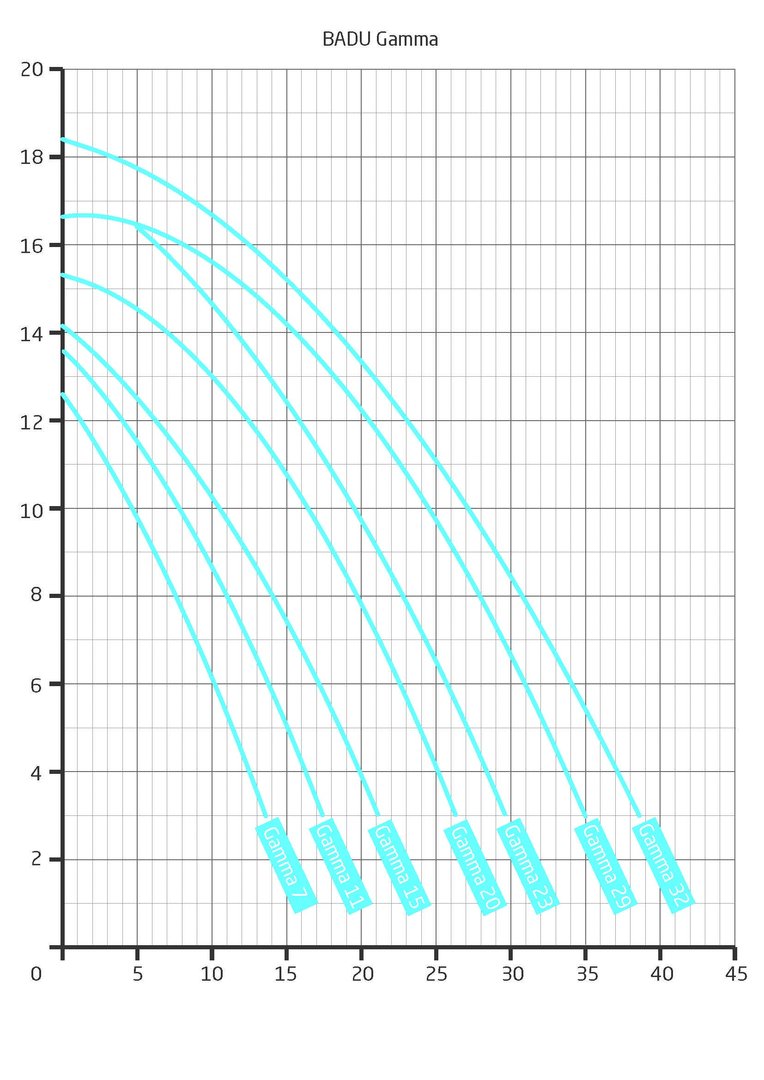

Hmax: approx. 12,5 m
Qmax: approx. 13,6 m³/h
techQ: approx. 7 m³/h
techH: approx. 8 m WS
Power output P2: 0.30 kW / Power input P1: 0.41 kW
Inlet / outlet connection(d and Rp): Special union with glue socket d=50 and threaded connection 2" female thread
| Pool equipment: | Circulation pump |
| Flow rate Q in m³/h: | approx. 7 |
| Total head H in m WS: | approx. 8 |
| Motor performance in kW (P2): | 0.30 |
| Strainer capacity in l: | approx. 3 |
| Strainer basket mesh size in mm: | approx. 3.2 x 2.6 |
| Pool type: | Outdoor pool, Indoor pool, Natural pool/swimming pond |
| Installation: | Above ground pool, Built-in pool |
| Class: | PREMIUM |
| Pump casing: | PP GF 30 |
| Diffuser: | PA 66 GF 30/PP GF 30 |
| Impeller: | PP GF 30 |
| Strainer basket: | PP |
| Mechanical seal: | carbon / ceramic / NBR |
| Screws: | stainless steel 1.4301 |
| Intermediate housing: | PP TV 40 |
| Gland housing: | PP TV 40 |
| Lid: | PC, transparent / PA 66 GF 30 |
With the BADU Gamma swimming pool pump you have the usual first-class material quality. It is extremely quiet and has improved hydraulics with optimised water flow. Optional inner or outer threads provide great flexibility during installation.
Swimming pool water circulation through a filter system. The pump can be installed max. 3 m above or below water level.
Monoblock-type pump with integrated strainer tank. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve. Motor/pump shaft has no contact with the pool water providing complete electrical separation.
Special motors on request.
The above mentioned pumps can be used for pool water with a salt concentration of up to 0.5%, i. e. 5 g/l.
For higher salt concentrations please contact us.
Also available in AK version
