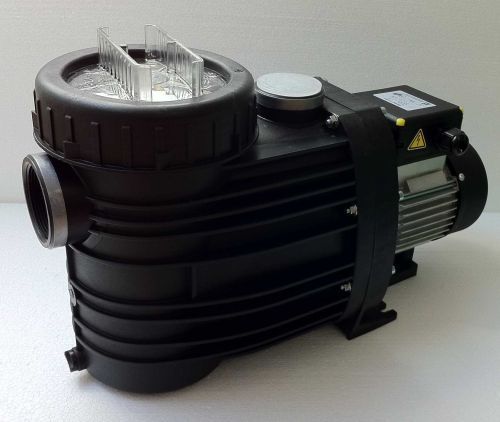

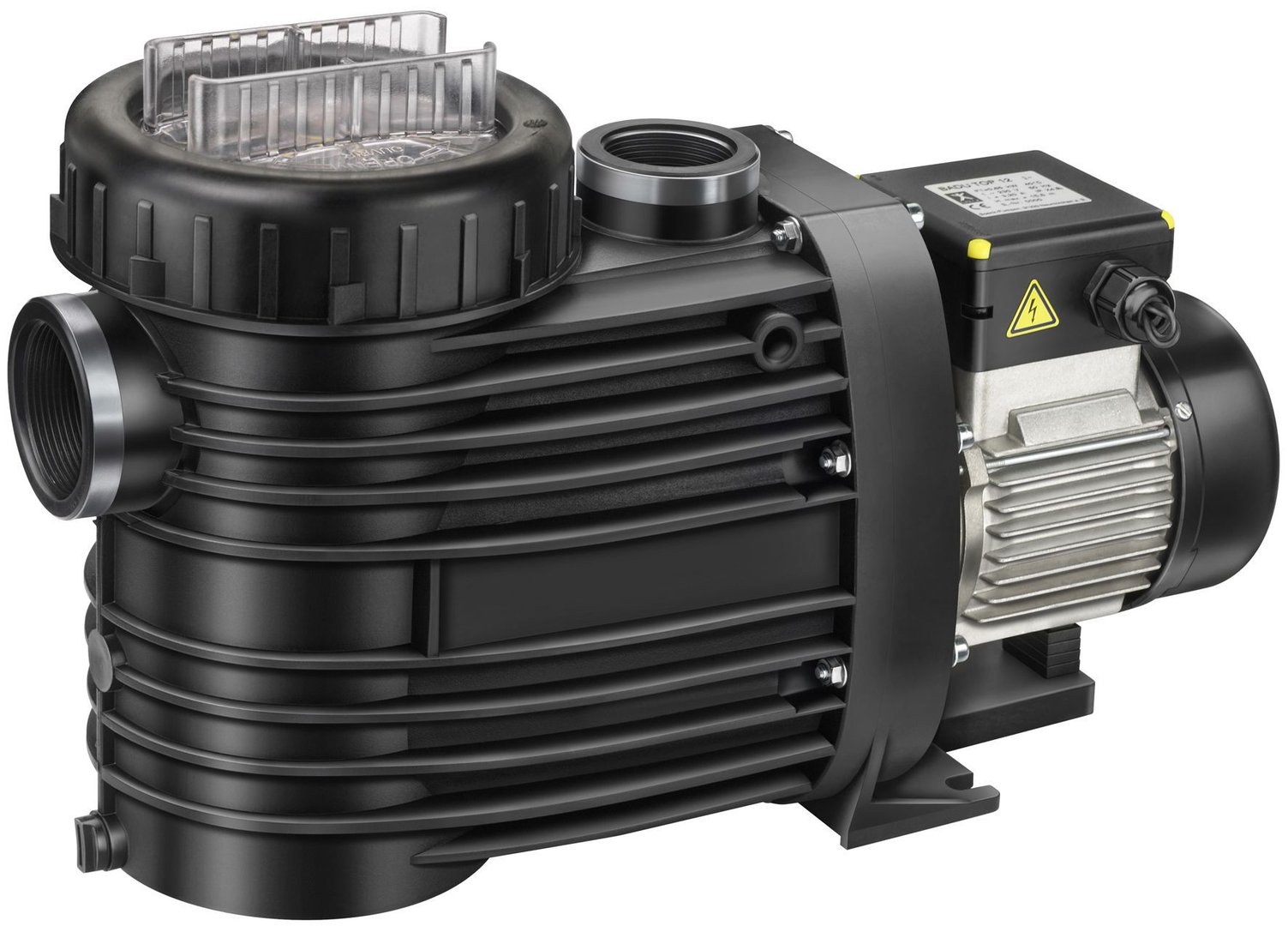

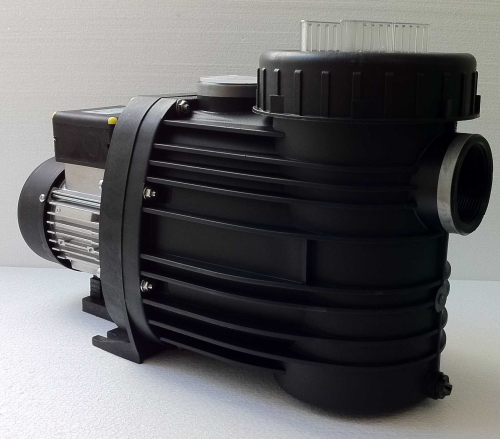

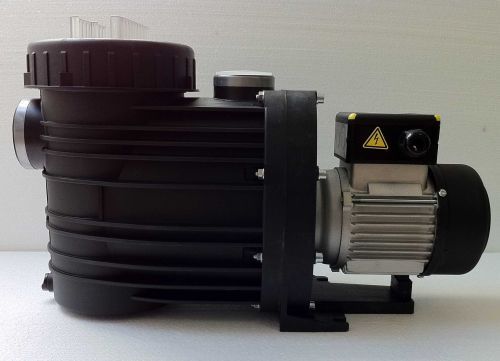

BADU Top II/12

Self-priming filtration circulation pump BADU Top II/12 for pool sizes of approximately 30-60 m³, replaces its predecessor model BADU Top 12 / Bettar 12

1~ 230 V
Hmax: 15,5 m
Qmax: 14,5 m³/h
techQ: 12 m³/h
techH: 8 m WS
Pool size: 30 - 60 m³
Power output: 0.45 kW
Inlet / outlet connection(Rp): 2" / 1 1/2"

A classic in the BADU series, this pump is especially designed for medium-size, above ground pools, partially embedded pools and smaller swimming ponds. Thanks to the large pumping capacity, an automatic pool cleaner can also be attached.

Field of application
Swimming pool water circulation through a filter system. The pump can be installed max. 3 m above or below water level.

Design
Monoblock-type pump with integrated strainer tank. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve.
Motor/pump shaft has no contact with the pool water providing complete electrical separation.

Pool equipment: Circulation pump
Pool size in m³: 30 - 60
Filter size in mm: 500 - 610
Flow rate Q in m³/h: 12
Total head H in m WS: 8
Motor performance in kW (P2): 0.45
Strainer capacity in l: approx. 3
Strainer basket mesh size in mm:approx. 3.2 x 2.6
Pool type: Indoor pool, Outdoor pool
Installation: Above ground pool, Built-in pool
Class: Middle class
Pump casing: PP TV 20
Diffuser: PP TV 40
Impeller: PA 66 GF 30 / PC
Strainer basket: PP
Mechanical seal: carbon / ceramic / NBR
Screws: Galvanised steel
Intermediate housing: PP TV 40
Gland housing: PP TV 40

Special motors on request.

The above mentioned pumps can be used for pool water with a salt concentration of up to 0.5%, i. e. 5 g/l.

For higher salt concentrations please contact us.

Also available in AK version
