BADU FA 21-50/36
€1,375.00
Available in approx. 14 days, delivery time 2-4 days
Product information "BADU FA 21-50/36"

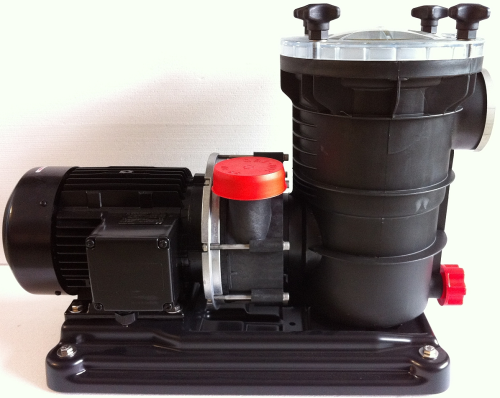

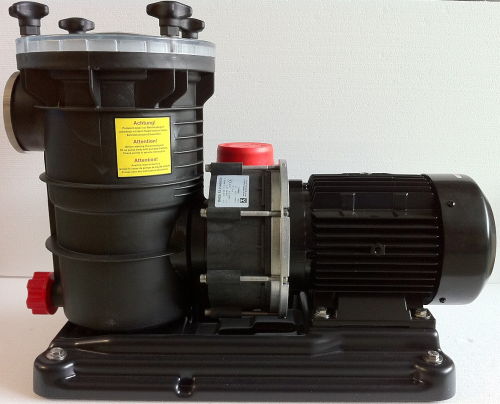

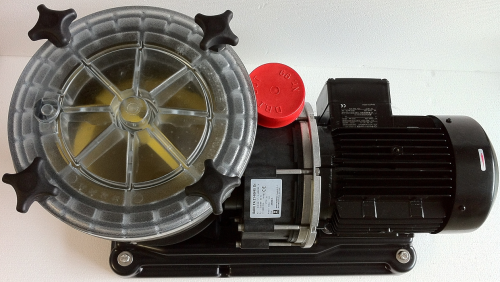

Non self-priming pool circulation pump BADU FA 21-50/36 mounted on base plate, with strainer tank, for use with swimming pool water circulation in filter systems, flooded suction up to a flow rate of 56 m³/h.
3~ Y/Δ 400/230 Volt
Hmax= 9,7 m
Qmax= 64 m³/h
techQ: 35 m³/h
techH: 12 m WS
Pool size: 90 - 120 m³
Power output: 2.20 kW
Inlet Sa / outlet connection Da (d): 3" / 63 mm
| Pool size in m³: | 90 - 120 |
| Flow rate Q in m³/h: | 35 |
| Total head H in m WS: | 12 |
| Motor performance in kW (P2): | 2.20 |
| Strainer basket mesh size in mm: | approx. 3.40 x 3.20 |
| Gland housing: | PPE GF 30 |
| Strainer basket: | PP |
| Mechanical seal: | carbon / ceramic / NBR |
| Screws: | stainless steel 1.4301 |
| Impeller nut: | PP GF 30 |
| Wear ring: | Stainless steel 1.4301 |
| Motor shaft: | Stainless steel 1.4057 |
| Strainer tank: | PP TV 40 |
| Knob: | PA 6 GF 30 |
Solid monoblock-type pump with large strainer tank. For attractions and creative water ideas.
Swimming pool water circulation in filter systems, flooded suction up to a flow rate of 56 m³/h.
Monoblock-type pump on base plate with attached strainer tank. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve.
Single phase and special motors on request.
The above mentioned pumps can be used for pool water with a salt concentration of up to 0.5%, i. e. 5 g/l.
For higher salt concentrations please contact us.
