BADU 40/32, 230 V

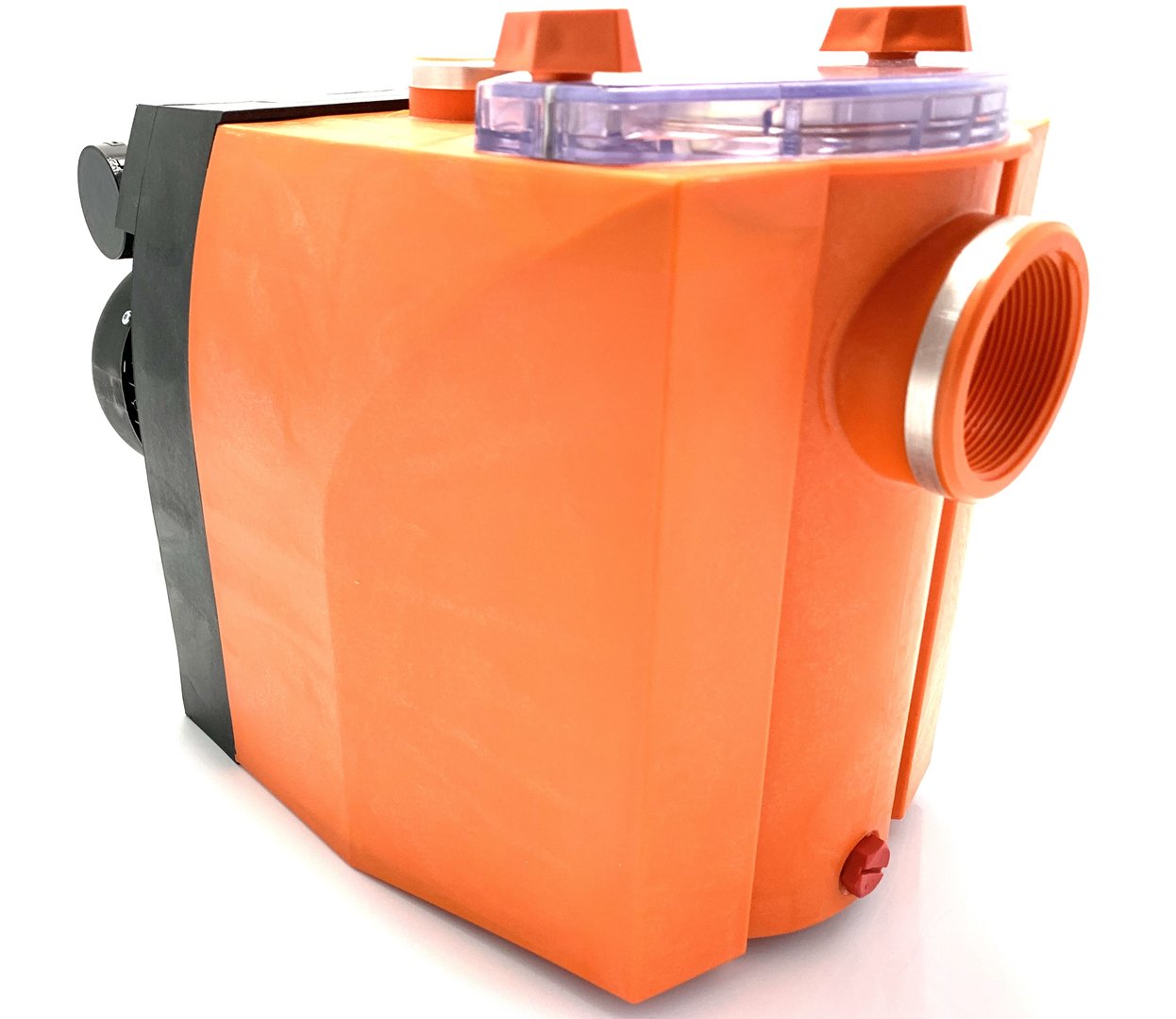

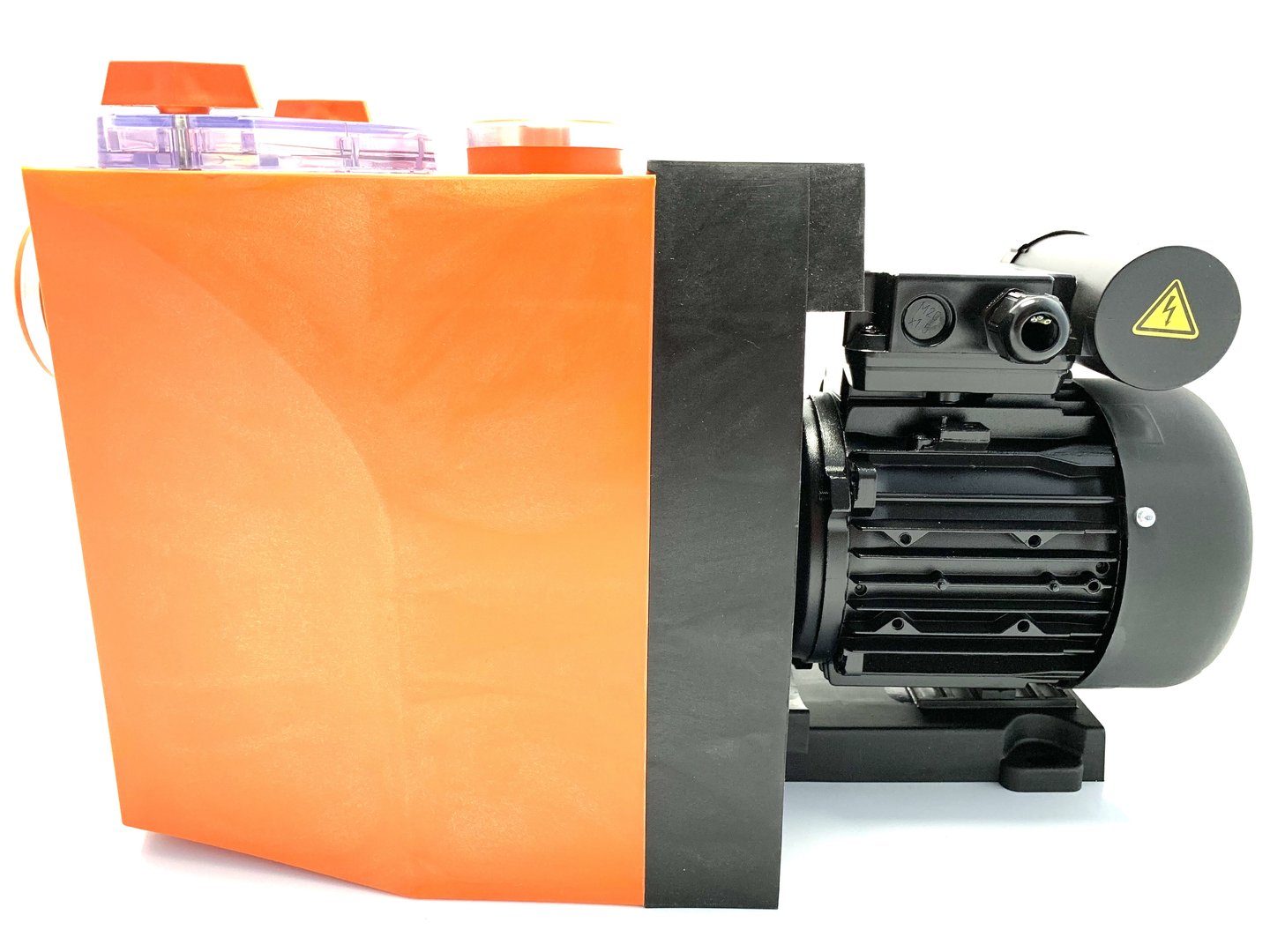

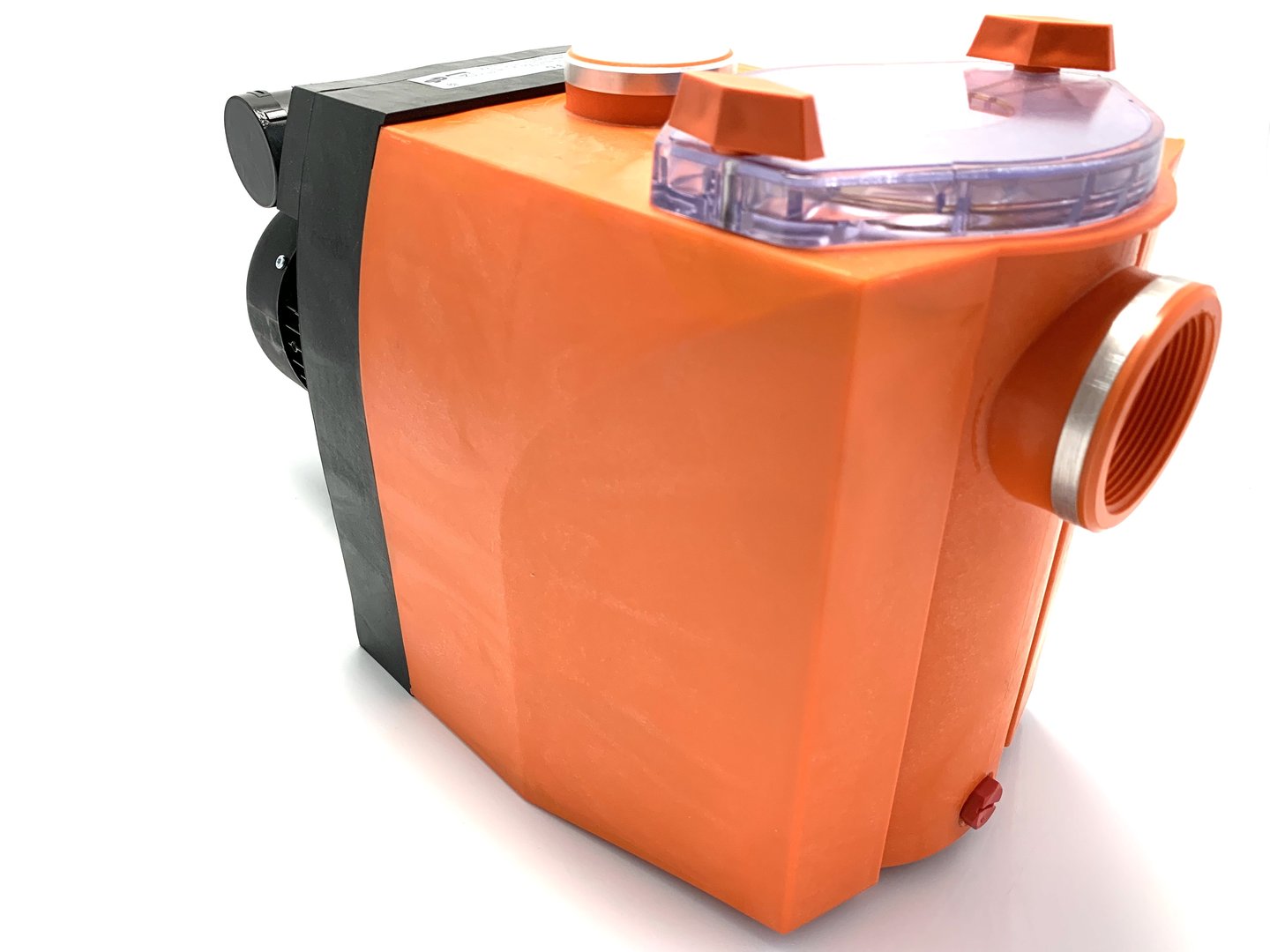

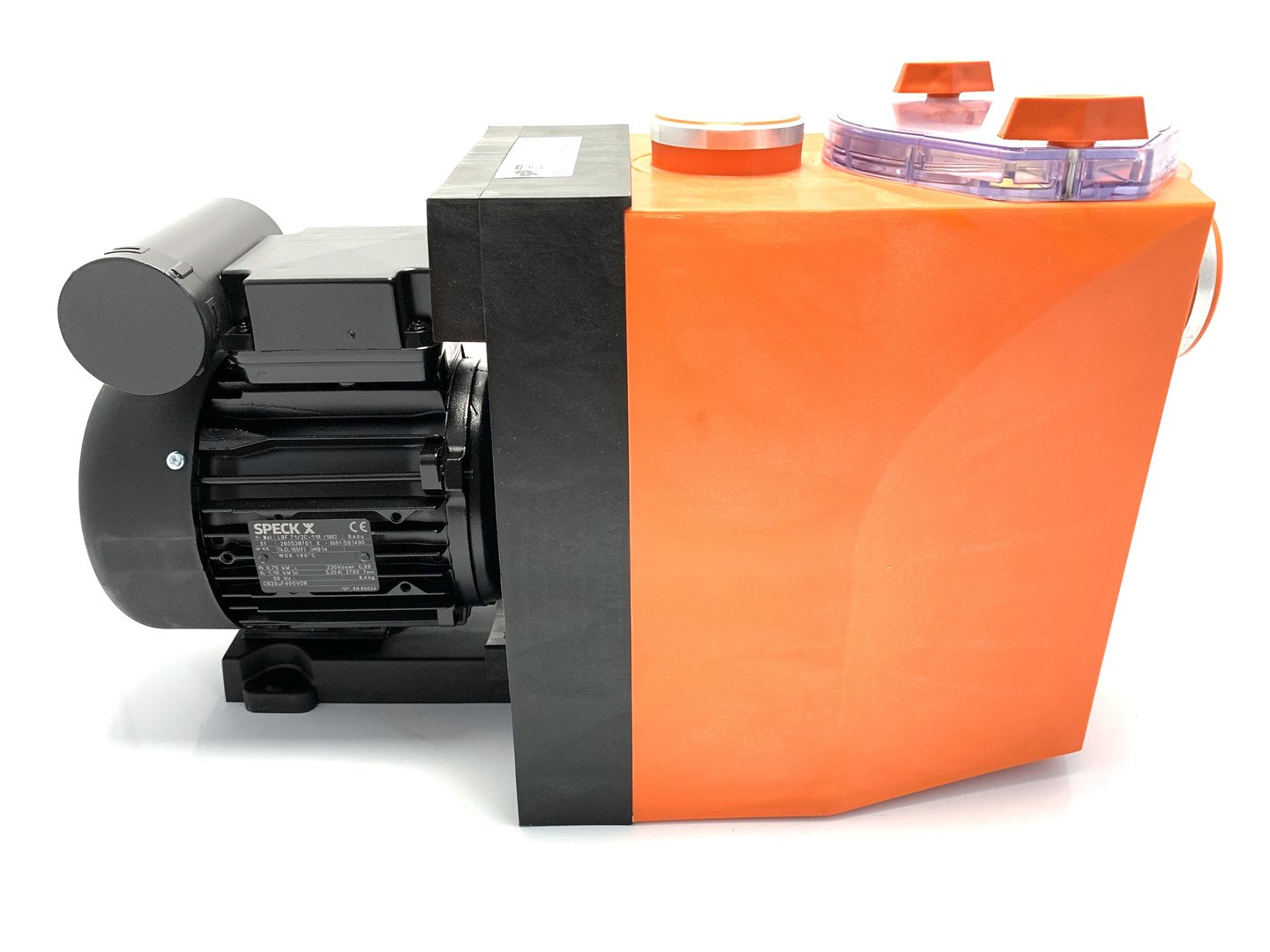

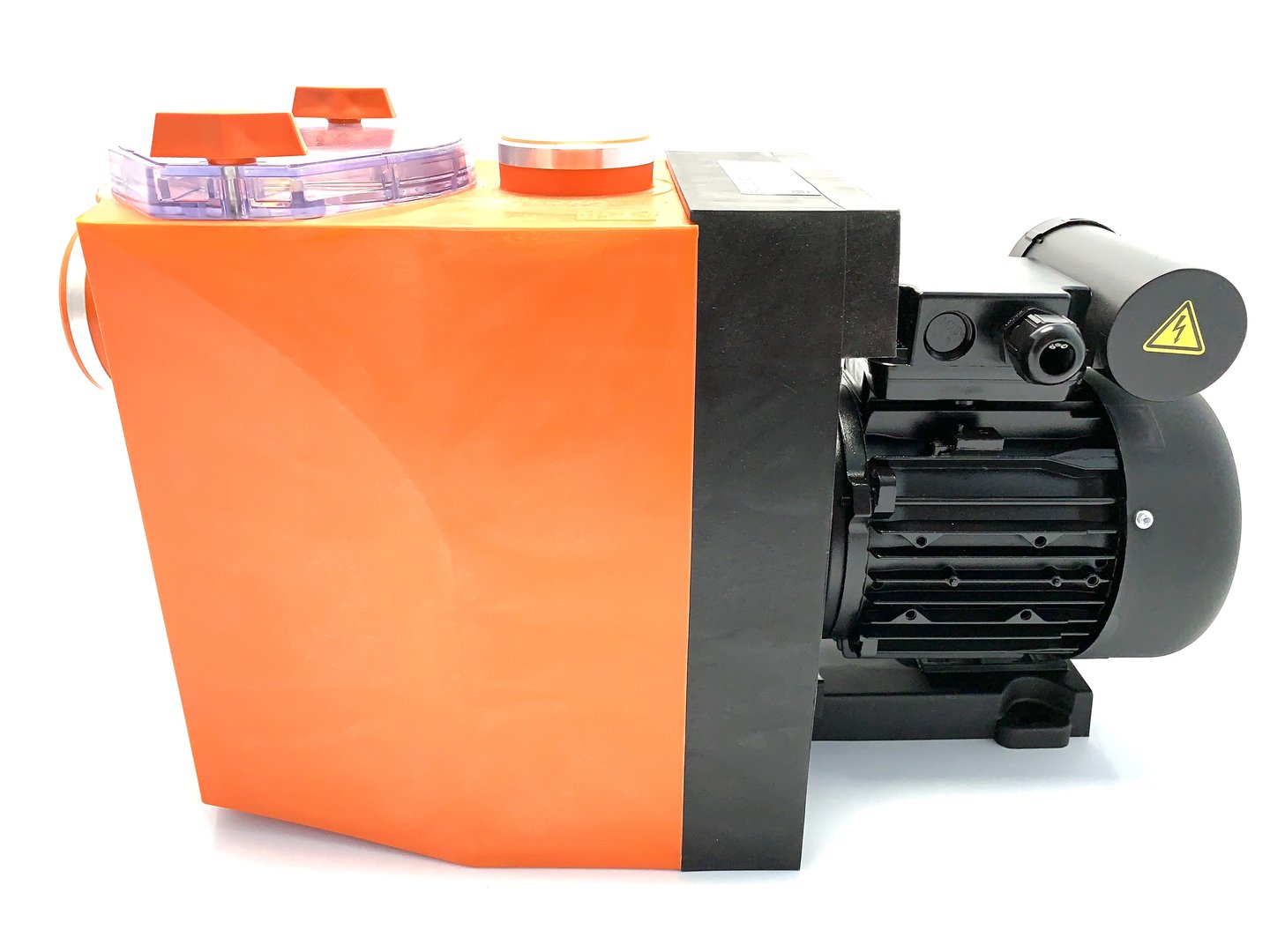

Self-priming filtration circulation pump BADU 40/32 We., alternating current version

1~ 230 V
Hmax: approx. 17.5 m
Qmax: approx. 35 m³/h
techQ: approx. 32 m³/h
techH: 8 m WS
Power output: 1.50 kW
Inlet / outlet connection(Rp): 2" / 2"

Field of application
Swimming pool water circulation through a filter system. The pump can be installed max. 3 m above or below water level.

Design
Monoblock-type pump with integrated strainer tank. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve.
Motor/pump shaft has no contact with the pool water providing complete electrical separation.

Pool equipment: Circulation pump
Motor performance in kW (P2): 1.50
Strainer capacity in l: approx. 3
Strainer basket mesh size in mm:approx. 3.2 x 2.6
Pool type: Outdoor pool, Indoor pool, Natural pool/swimming pond
Installation: Above ground pool, Built-in pool
Pump casing: PP GF 30
Diffuser: PP GF 30
Impeller: PP GF 30
Strainer basket: PP
Mechanical seal: carbon / ceramic / NBR
Intermediate housing: PP GF 30
Gland housing: PP GF 30

Special motors on request.

The above mentioned pumps can be used for pool water with a salt concentration of up to 0.5%, i. e. 5 g/l.

For higher salt concentrations please contact us.

Also available in AK version
