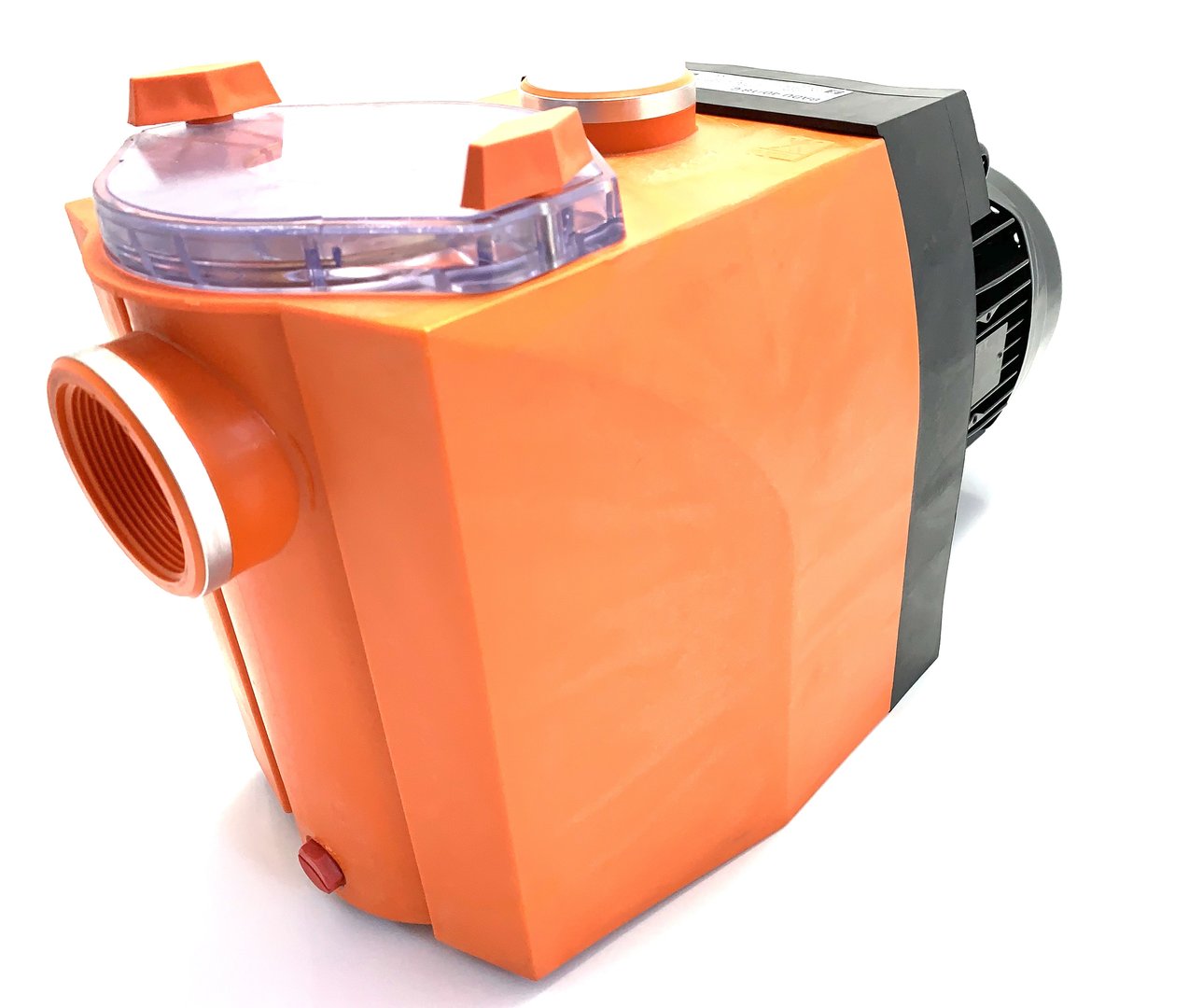

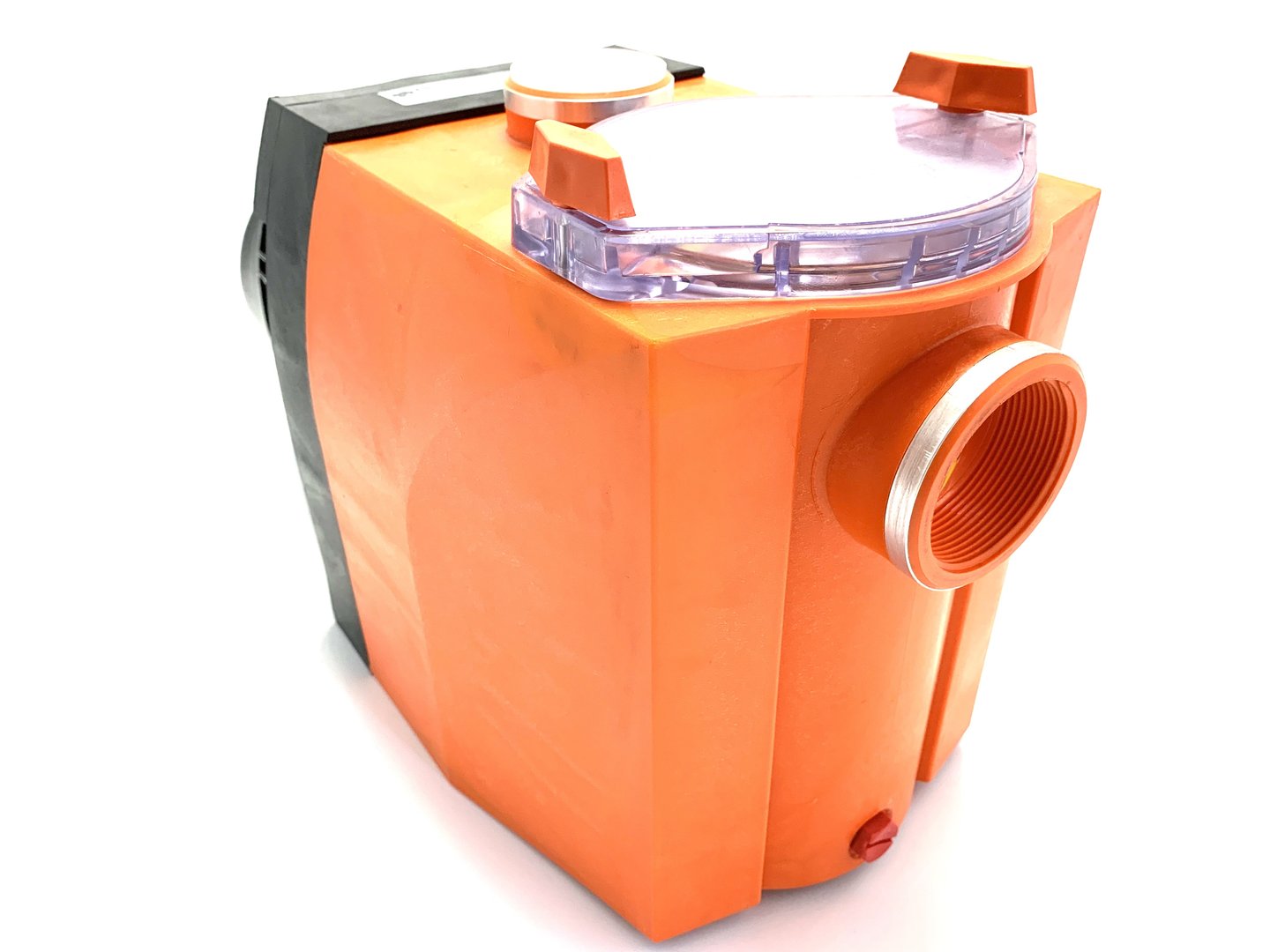

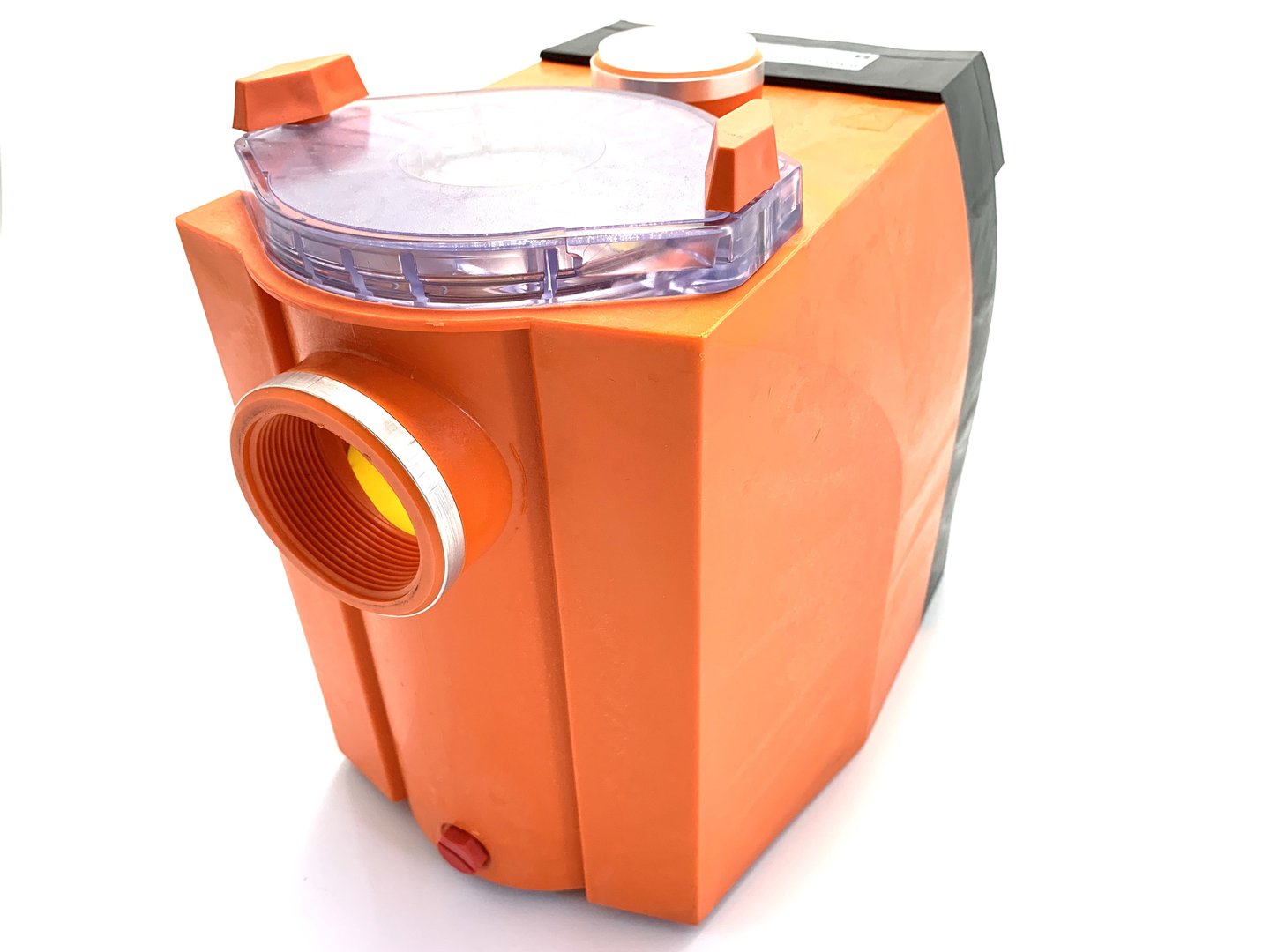

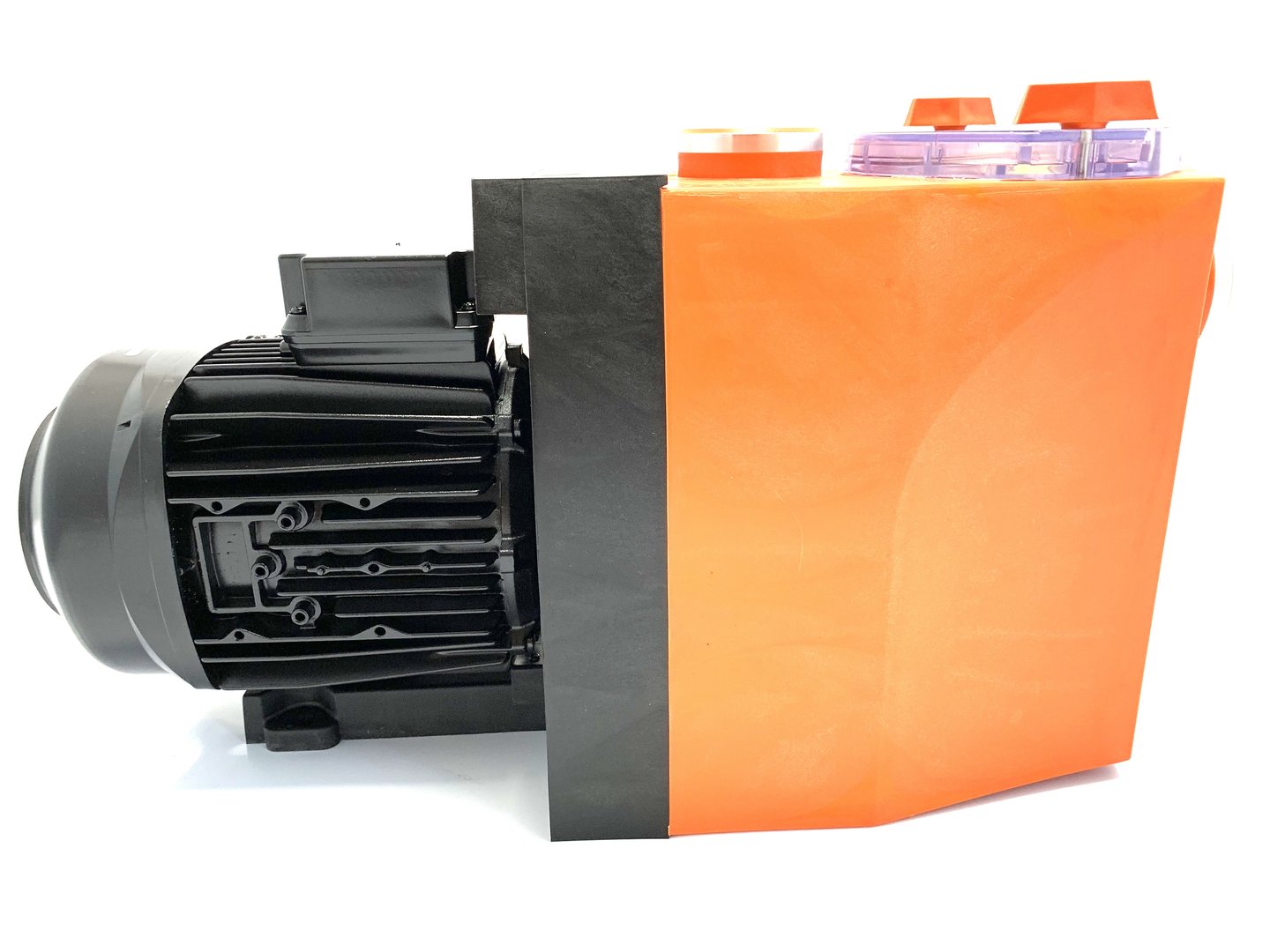

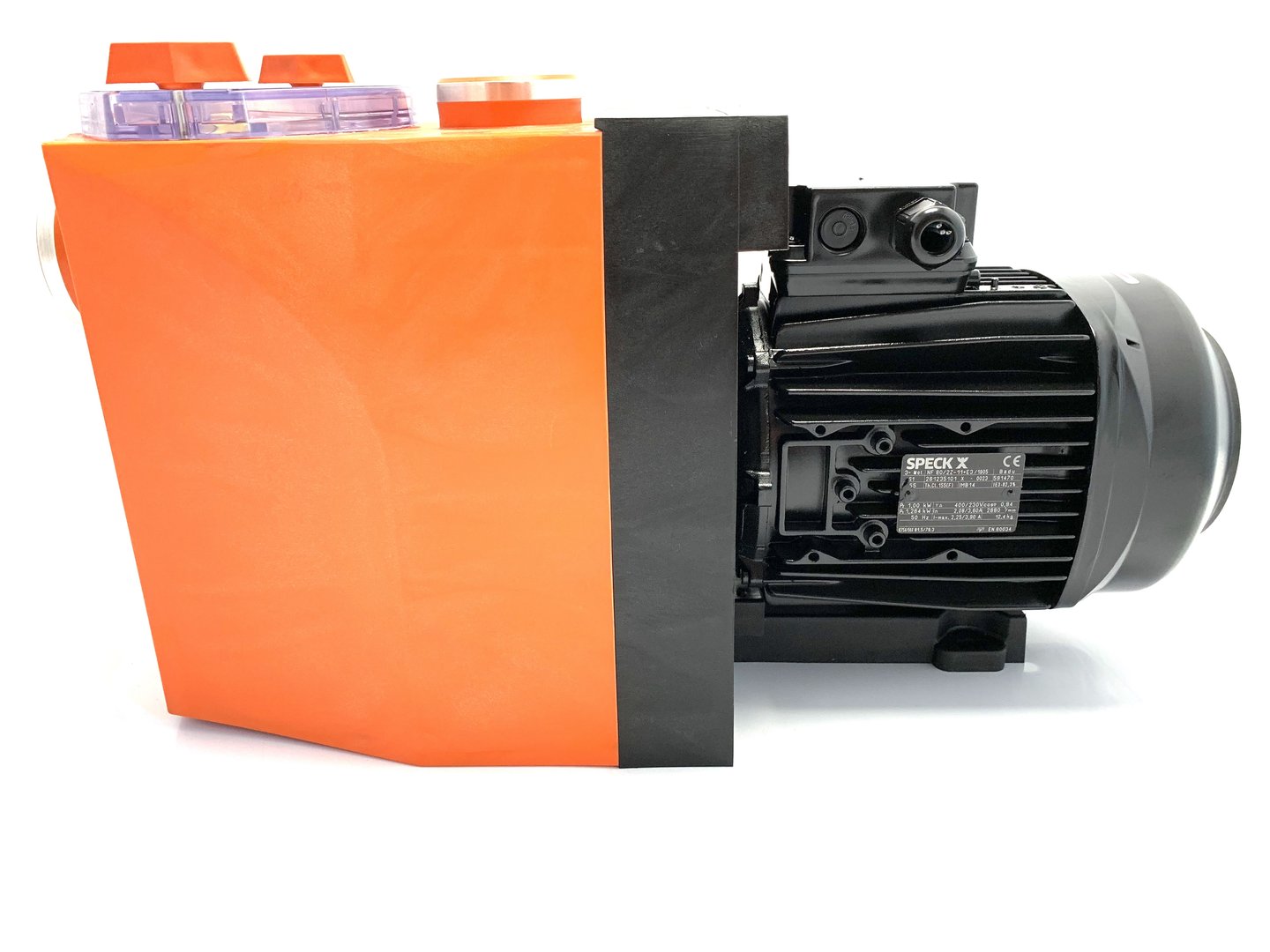

BADU 40/25 G, 400 V

Self-priming filtration circulation pump BADU 40/25 G Dr., three-phase version

3~Y/Δ 400/230 V
Hmax: approx. 15.5 m
Qmax: approx. 30 m³/h
techQ: approx. 25 m³/h
techH: 8 m WS
Power output (P2): 1.30 kW
Inlet / outlet connection(Rp): 2" / 2"

Field of application
Swimming pool water circulation through a filter system. The pump can be installed max. 3 m above or below water level.

Design
Monoblock-type pump with integrated strainer tank. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve.
Motor/pump shaft has no contact with the pool water providing complete electrical separation.

Pool equipment: Circulation pump
Strainer capacity in l: approx. 3
Strainer basket mesh size in mm:approx. 3.2 x 2.6
Pool type: Outdoor pool, Indoor pool, Natural pool/swimming pond
Installation: Above ground pool, Built-in pool
Pump casing: PP GF 30
Diffuser: PP GF 30
Impeller: PP GF 30
Strainer basket: PP
Mechanical seal: carbon / ceramic / NBR
Intermediate housing: PP GF 30
Gland housing: PP GF 30

Special motors on request.

The above mentioned pumps can be used for pool water with a salt concentration of up to 0.5%, i. e. 5 g/l.

For higher salt concentrations please contact us.

Also available in AK version
