BADU 21-50/43 GT 27°, 230 V
Product information "BADU 21-50/43 GT 27°, 230 V"

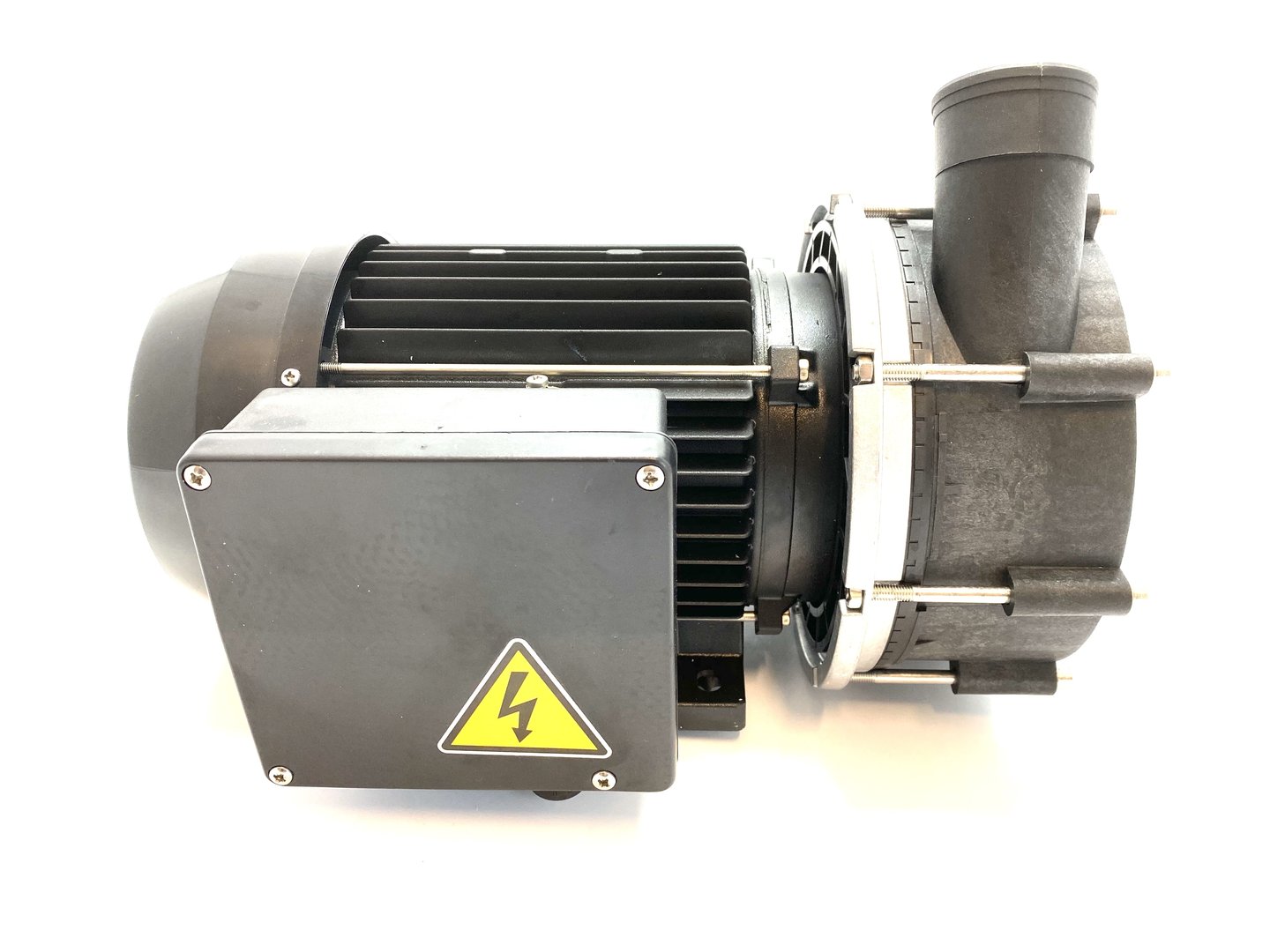

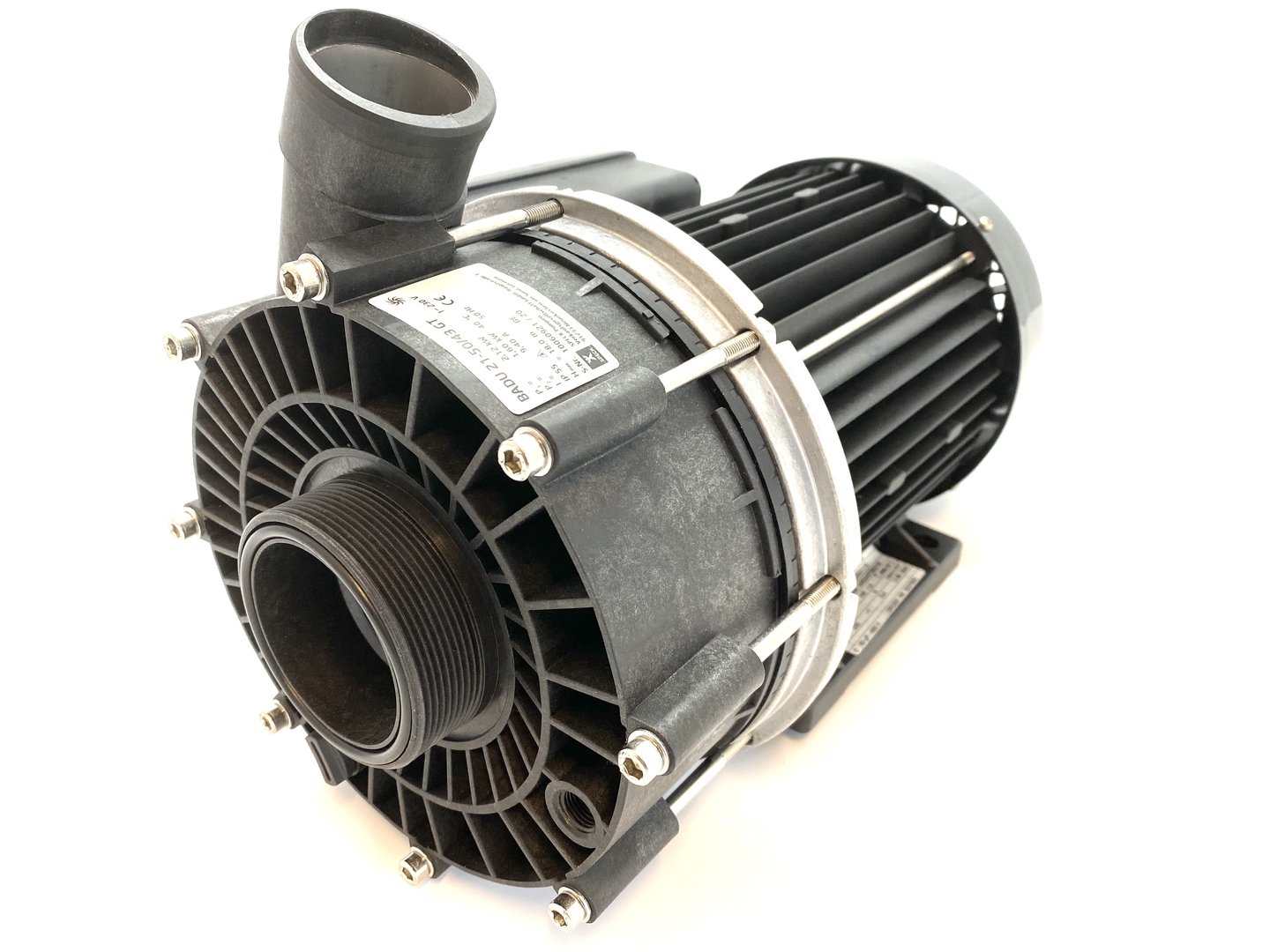

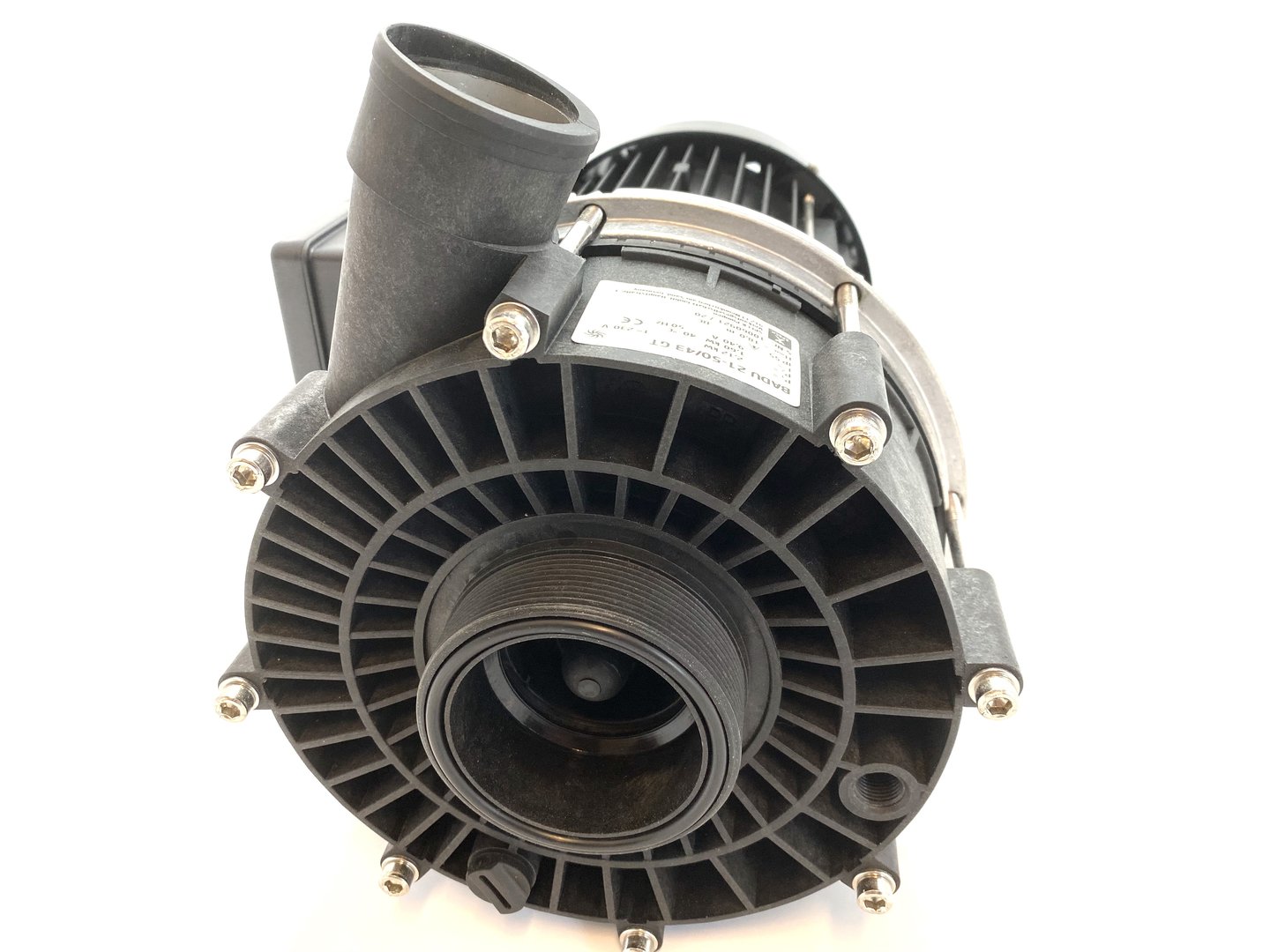

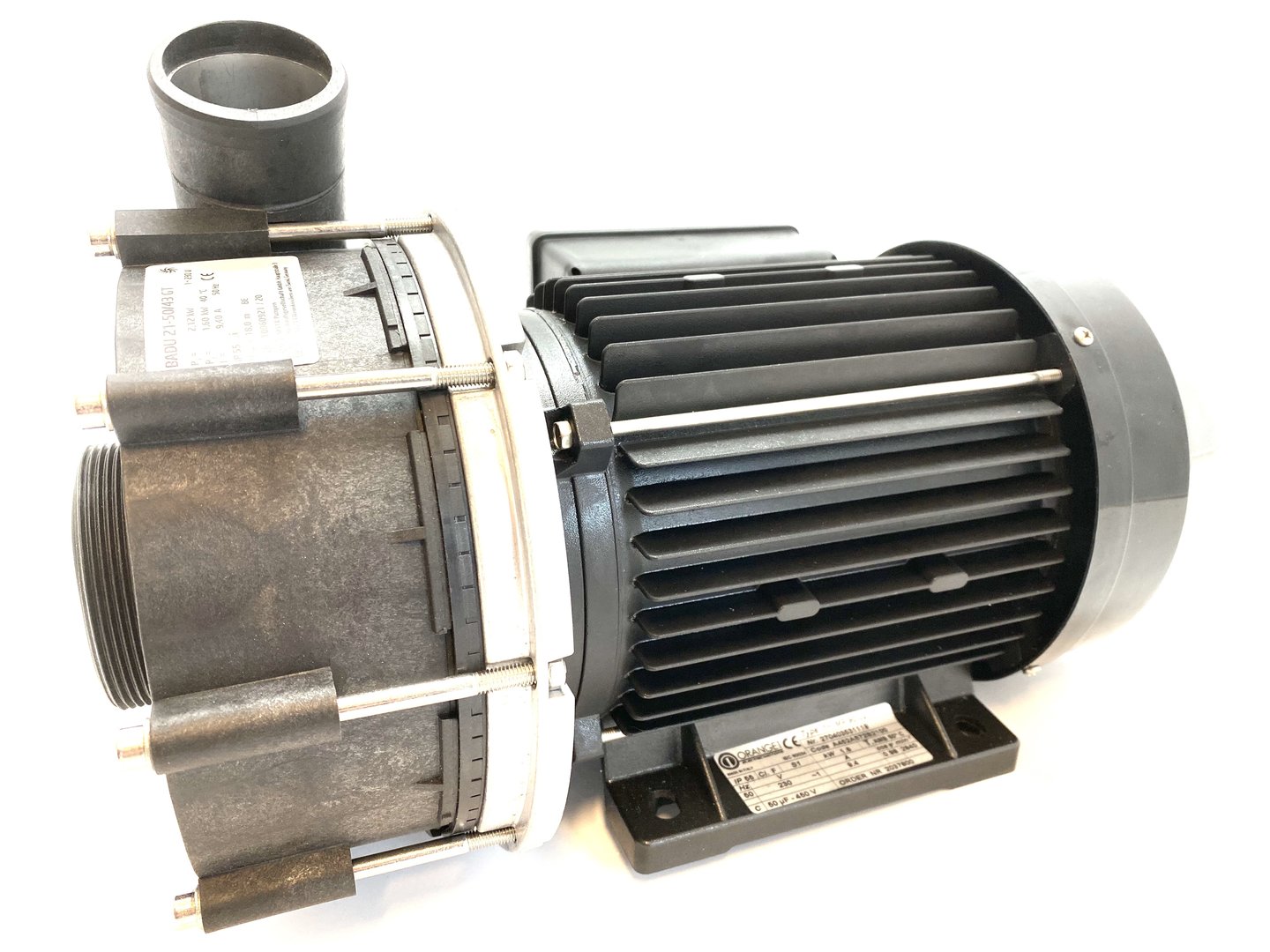

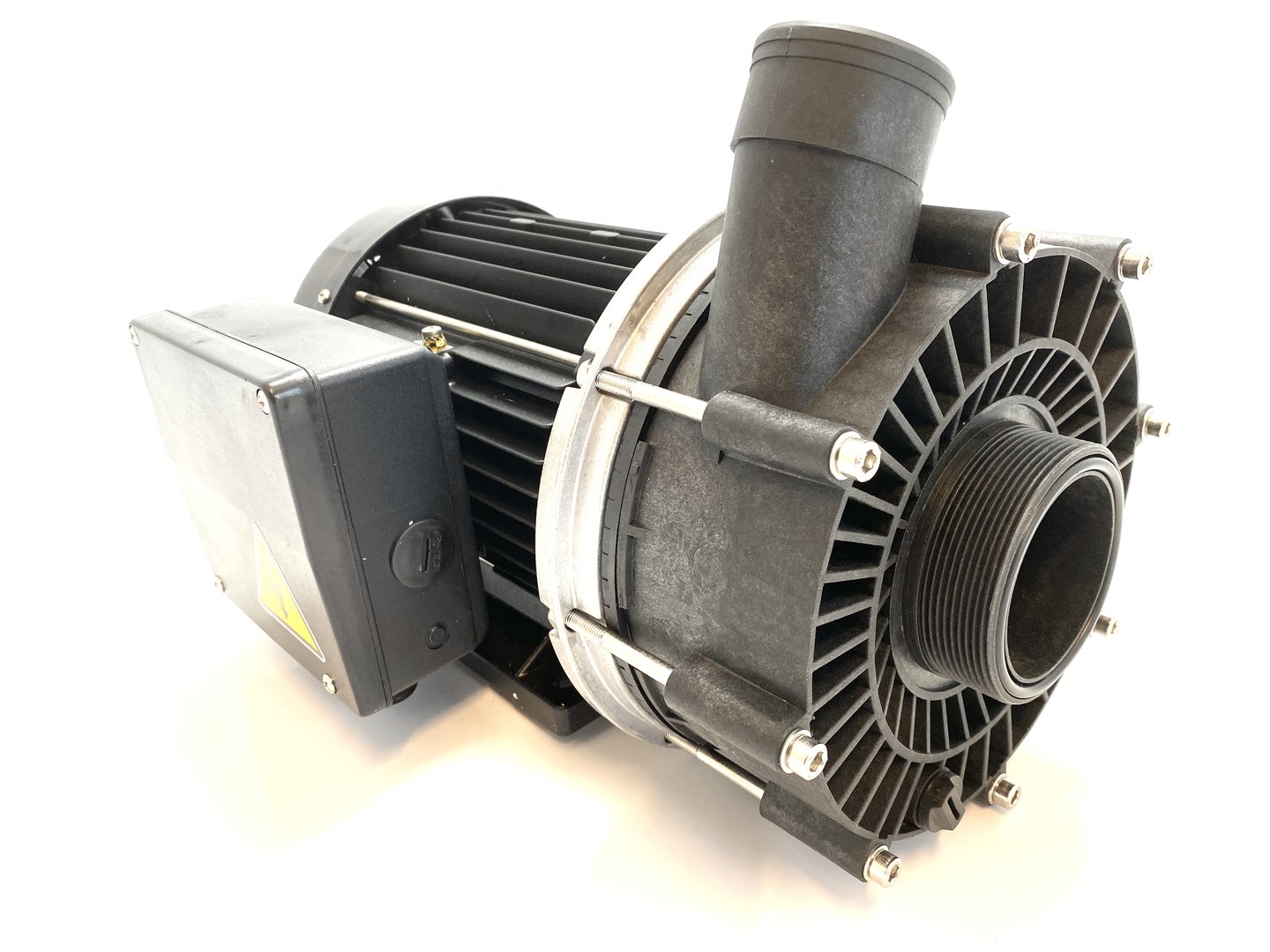

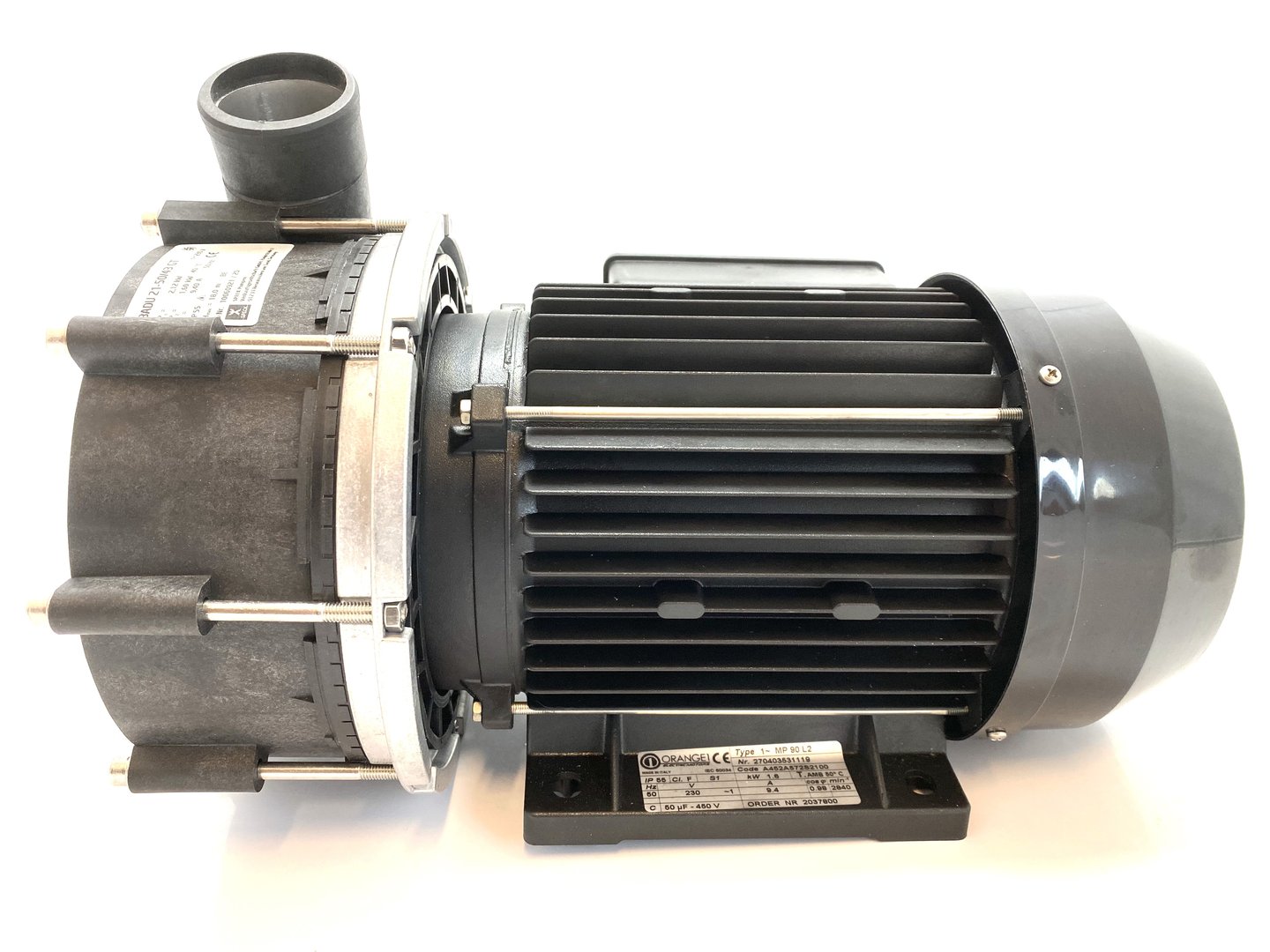

Non self-priming pool circulation pump BADU 21-50/43 GT 27° We., alternating current version, replacement pump for BADU Jet Smart "Standard", 1~ and BADU JET Smart "KH", We. counter swim unit
1~230 Volt
Hmax= approx. 17,8 m
Qmax= approx. 42 m³/h
techQ: approx. 35 m³/h
techH: approx. 12 m WS
Power output: 1.60 kW / Power input: 2.12 kW
Inlet Sa (G)/ outlet connection Da: 2 3/4" male thread / socket connection 52 mm
| Flow rate Q in m³/h: | approx. 35 |
| Total head H in m WS: | approx. 12 |
| Motor performance in kW (P2): | 1.60 |
| Gland housing: | PPE GF 30 |
| Mechanical seal: | carbon / ceramic / NBR |
| Screws: | Galvanised steel |
| Impeller nut: | PP GF 30 |
| Wear ring: | Stainless steel 1.4301 |
| Motor shaft: | Stainless steel 1.4057 |
| Clamping ring: | aluminium |
The BADU 21 range pumps are designed for the specific demands of bath tubs, whirlpools, counter swim units and cleaning devices. All models in this range are non-self-priming circulation pumps, which cannot handle air. These pumps are to be installed below the water level in order for the pool water to drain independantly.
Large whirlpools, hotel pools, pool and industrial filtration units, counter swim units, massage stations, air conditioning units, cleaning units and many other applications with a flow rate of up to 54 m³/h.
Monoblock-type pump with a bellow-type mechanical seal mounted on a plastic shaft protector sleeve. Discharge outlet swivels progressively. Complete electrical separation. Threaded inlet and outlet connections suitable for union.
Standard terminal box position on the left side.
Special motors on request.
The above mentioned pumps can be used for pool water with a salt concentration of up to 0.5%, i. e. 5 g/l.
For higher salt concentrations please contact us.
Also available in AK version
