BADU Resort 80, 690 V
€2,709.00
Available in approx. 14 days, delivery time 2-4 days
Product information "BADU Resort 80, 690 V"

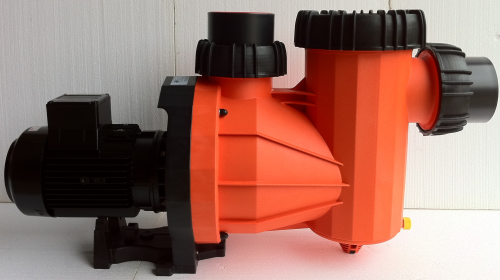

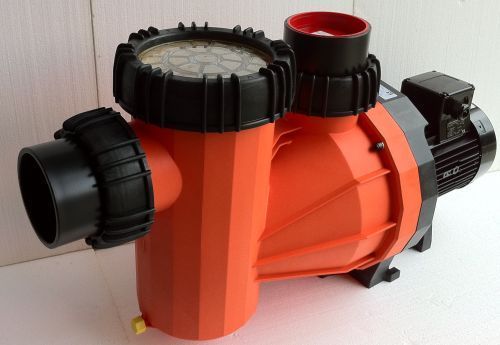

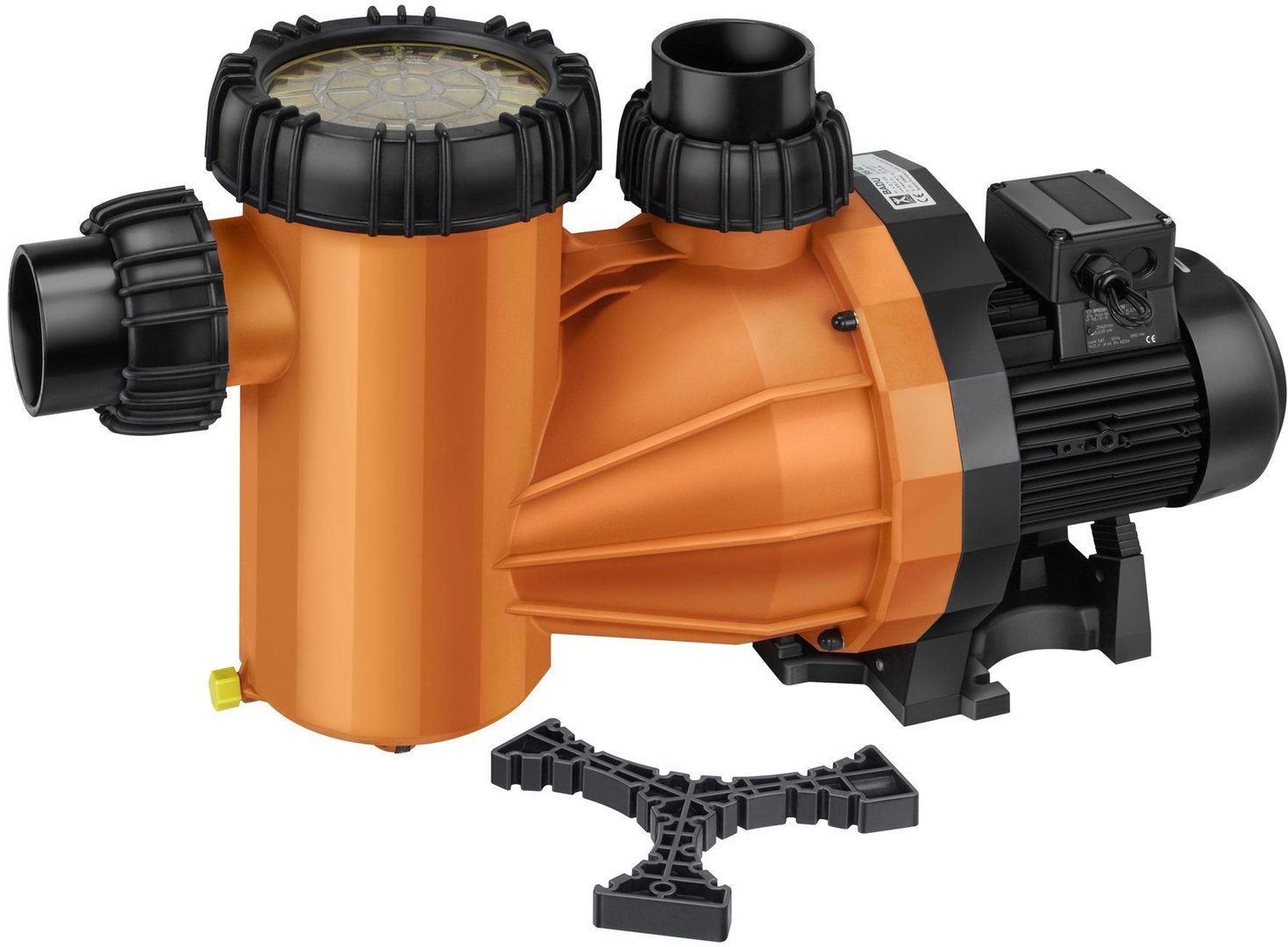

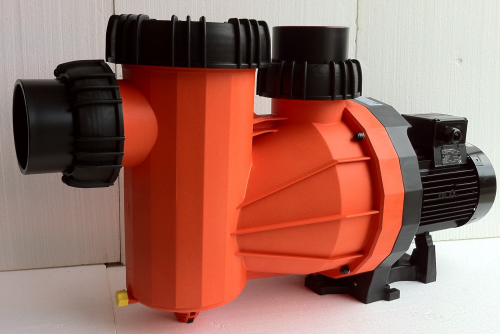

Self-priming filtration circulation pump BADU Resort 80 for pool sizes of approximately 350-400 m³.
3~ Y/Δ 690/400 V
H max. = 18 m
Q max. = 95 m³/h
techQ: 80 m³/h
techH: 10 m WS
Pool size: 350 - 400 m³
Power output: 4.00 kW
Inlet / outlet connection d(mm): 110/110
The BADU Resort covers fields of application which would otherwise be served by expensive, heavy duty bronze and cast-iron pumps. The BADU Resort's areas of expertise are wellness spas with large pools or attractions such as splash showers and waterfalls, hotel swimming pools and extraordinary private swimming pools. Thanks to the high quality reinforced fibreglass plastic version, investment costs are dramatically reduced without affecting the superior performance and durability.
Swimming pool water circulation through a filter system. The pump can be installed max. 3 m above or below water level.
Monoblock-type pump with integrated strainer tank. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve. Motor/pump shaft has no contact with the pool water providing complete electrical separation.
| Pool equipment: | Circulation pump |
| Pool size in m³: | 350 - 400 |
| Filter size in mm: | larger than 1100 |
| Flow rate Q in m³/h: | 103 |
| Total head H in m WS: | 10 |
| Motor performance in kW (P2): | 4.00 |
| Strainer capacity in l: | approx. 10 |
| Strainer basket mesh size in mm: | approx. 3.4 x 3.2 |
| Pool type: | Indoor pool, Natural pool/swimming pond, Outdoor pool |
| Installation: | Built-in pool |
| Class: | PREMIUM |
| Pump casing: | PP GF 30 |
| Diffuser: | PP GF 30 |
| Impeller: | PPE GF 30 / PP GF 30 |
| Strainer basket: | PP |
| Mechanical seal: | carbon / ceramic / NBR |
| Screws: | stainless steel |
| Intermediate housing: | PP TV 40 |
| Gland housing: | PP TV 40 |
| Glue socket: | ABS |
| Impeller nut: | PP GF 30 |
| Lid: | PC, transparent / PA 66 GF 30 |
Special motors on request.
The above mentioned pumps can be used for pool water with a salt concentration of up to 0.5%, i. e. 5 g/l.
For higher salt concentrations please contact us.
Also available in AK version
