BADU Resort 50-PM
€3,428.00
Available in approx. 28 days, delivery time 2-4 days
Thank you for your understanding and patience.
Product information "BADU Resort 50-PM"

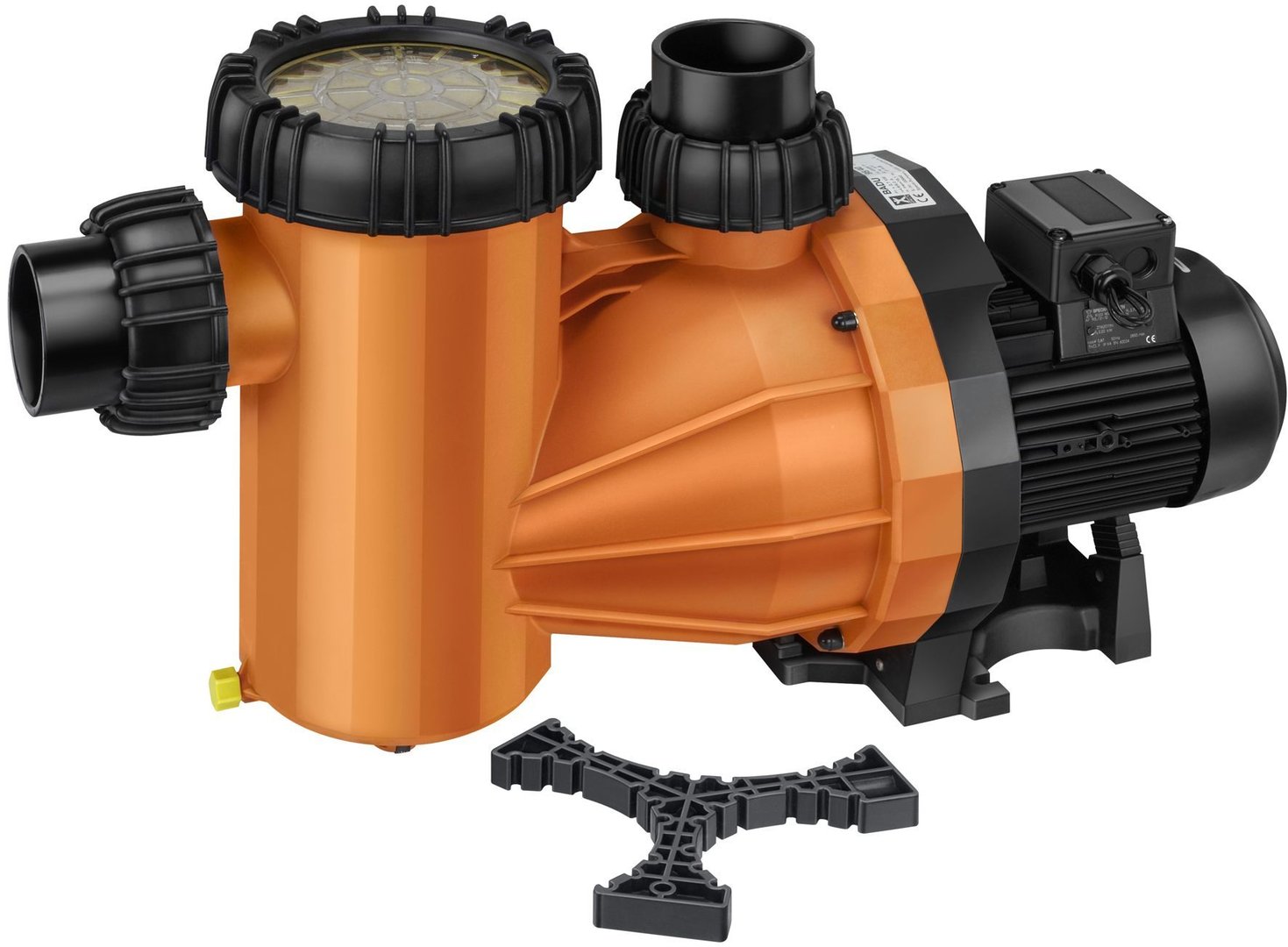

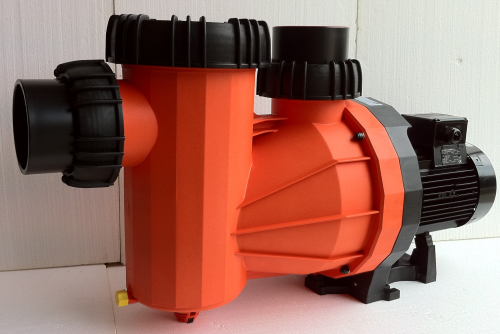

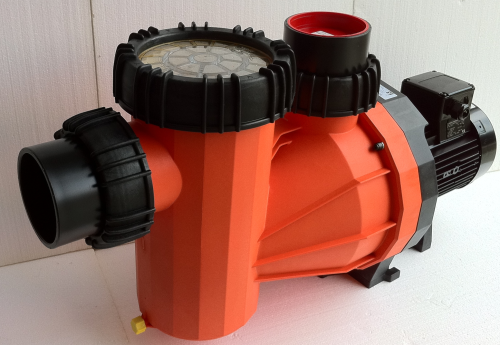

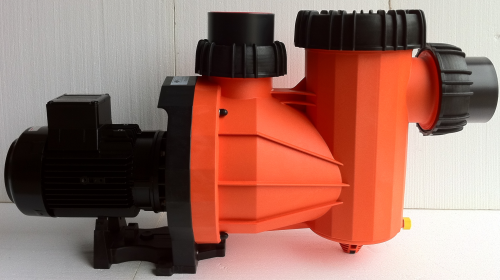

Self-priming filtration circulation pump BADU Resort 50-PM with permant magnet motor for pool sizes of approximately 210-240 m³.
3~ 400 V
H max. = 22,5 m
Q max. = 50 m³/h
techQ: 50 m³/h
techH: 10 m WS
Pool size: 210 - 240 m³
Power output: 3.00 kW
Inlet / outlet connection d(mm): 110/110
> Successful swimming pool pump with PM motor.
> Synchronous drive for external control units.
> Efficient circulation pump for large pools.
Swimming pool water circulation through a filter system. The pump can be installed max. 3 m above or below the water level.
Monoblock-type pump with integrated strainer tank. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve. Motor/pump shaft has no contact with the pool water providing complete electrical separation.
| Pool equipment: | Circulation pump |
| Pool size in m³: | 210 - 240 |
| Filter size in mm: | larger than 1100 |
| Flow rate Q in m³/h: | 50 |
| Total head H in m WS: | 10 |
| Motor performance in kW (P2): | 3.00 |
| Strainer capacity in l: | approx. 10 |
| Strainer basket mesh size in mm: | approx. 3.4 x 3.2 |
| Pool type: | Indoor pool, Outdoor pool, Natural pool/swimming pond |
| Installation: | Built-in pool |
| Class: | PREMIUM, GREEN |
| Pump casing: | PP GF 30 |
| Diffuser: | PP GF 30 |
| Impeller: | PPE GF 30 / PP GF 30 |
| Strainer basket: | PP |
| Mechanical seal: | carbon / ceramic / NBR |
| Screws: | stainless steel |
| Intermediate housing: | PP TV 40 |
| Gland housing: | PP TV 40 |
| Glue socket: | ABS |
| Impeller nut: | PP GF 30 |
| Lid: | PC, transparent / PA 66 GF 30 |
The above mentioned pumps can be used for pool water with a salt concentration of up to 0.5%, i. e. 5 g/l.
For higher salt concentrations please contact us.
Also available in AK version
