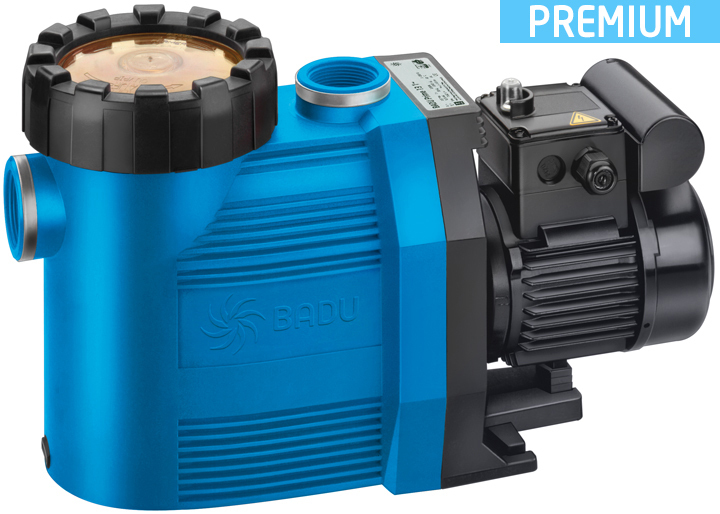

BADU Prime 7, 400 V
€806.59
Available, delivery time: approx. 2-4 days
Product information "BADU Prime 7, 400 V"
Self-priming filtration circulation pump BADU Prime 7 Dr., three-phase version for pool sizes of approximately 30-60 m³, replaces its predecessor model BADU 90/7 Dr.
3~Y/Δ 400/230 V
Hmax: 12,2 m
Qmax: 10 m³/h
techQ: 7 m³/h
techH: 8 m WS
Pool size: 30 - 60 m³
Power output: 0.30 kW
Inlet / outlet connection(Rp): 1 1/2" / 1 1/2"
Casing colour: blue
Swimming pool water circulation through a filter system. The pump can be installed max. 3 m above or below water level.
Monoblock-type pump with integrated strainer tank. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve. Motor/pump shaft has no contact with the pool water providing complete electrical separation.
| Pool equipment: | Circulation pump |
| Pool size in m³: | 30 - 120 |
| Filter size in mm: | 450 - 500 |
| Flow rate Q in m³/h: | 7 |
| Total head H in m WS: | 8 |
| Motor performance in kW (P2): | 0.30 |
| Strainer capacity in l: | approx. 3 |
| Strainer basket mesh size in mm: | approx. 3.2 x 2.6 |
| Pool type: | Indoor pool, Outdoor pool, Natural pool/swimming pond |
| Installation: | Built-in pool, Above ground pool |
| Class: | PREMIUM |
| Guarantee: | 5 year premium guarantee |
| Pump casing: | PP GF 30 |
| Diffuser: | PA 66 GF 30/PP GF 30 |
| Impeller: | PP GF 30 |
| Strainer basket: | PP |
| Mechanical seal: | carbon / ceramic / NBR |
| Screws: | stainless steel 1.4301 |
| Intermediate housing: | PP TV 40 |
| Gland housing: | PP TV 40 |
| Lid: | PC, transparent / PA 66 GF 30 |
Special motors on request.
The above mentioned pumps can be used for pool water with a salt concentration of up to 0.5%, i. e. 5 g/l.
For higher salt concentrations please contact us.
Also available in AK version
