BADU Prime 20, 230 V
€991.00
Available in approx. 14 days, delivery time 2-4 days

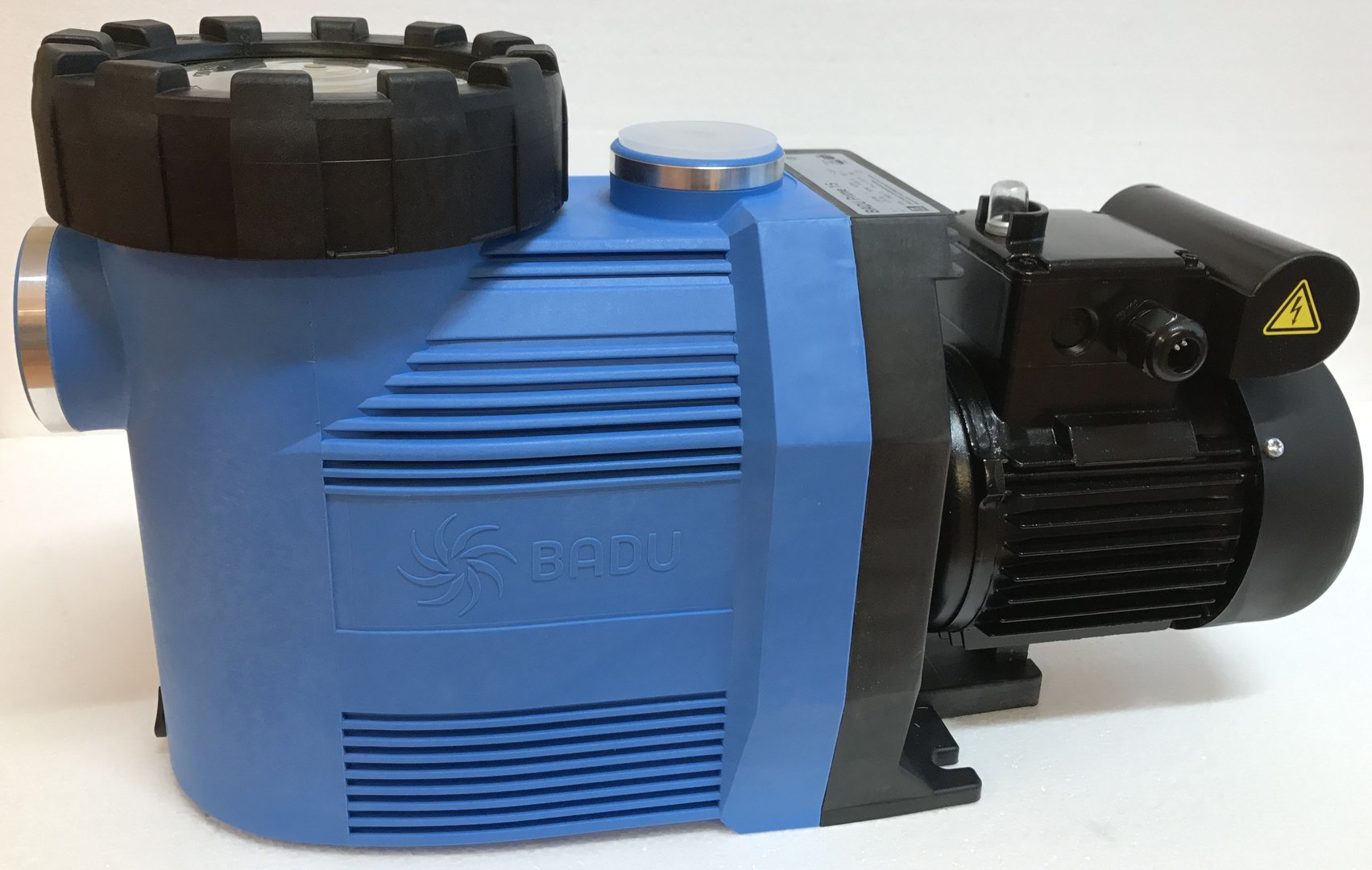

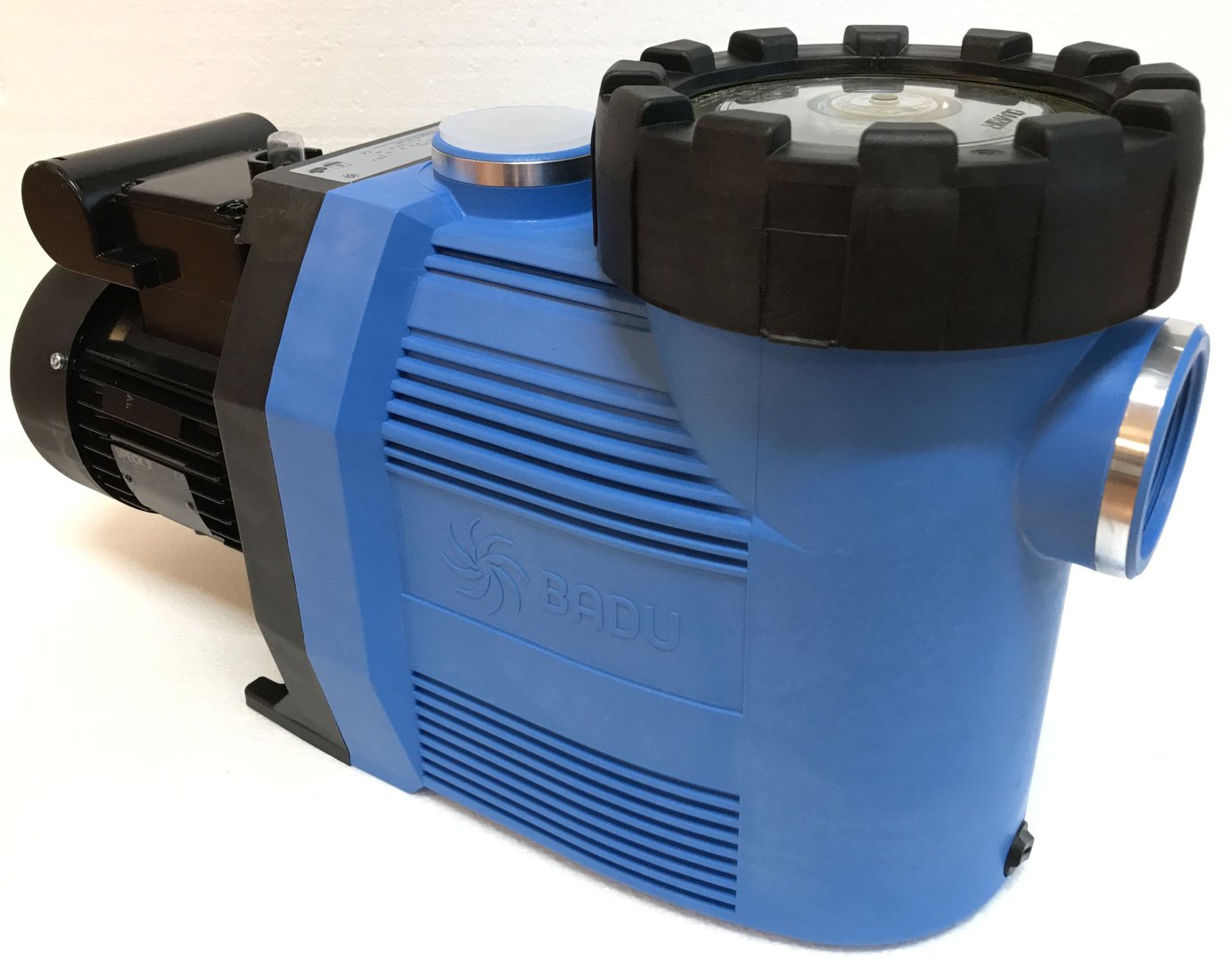

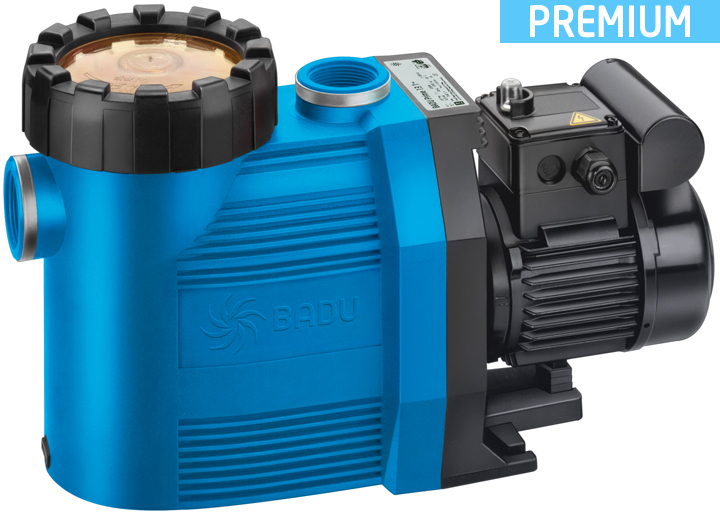

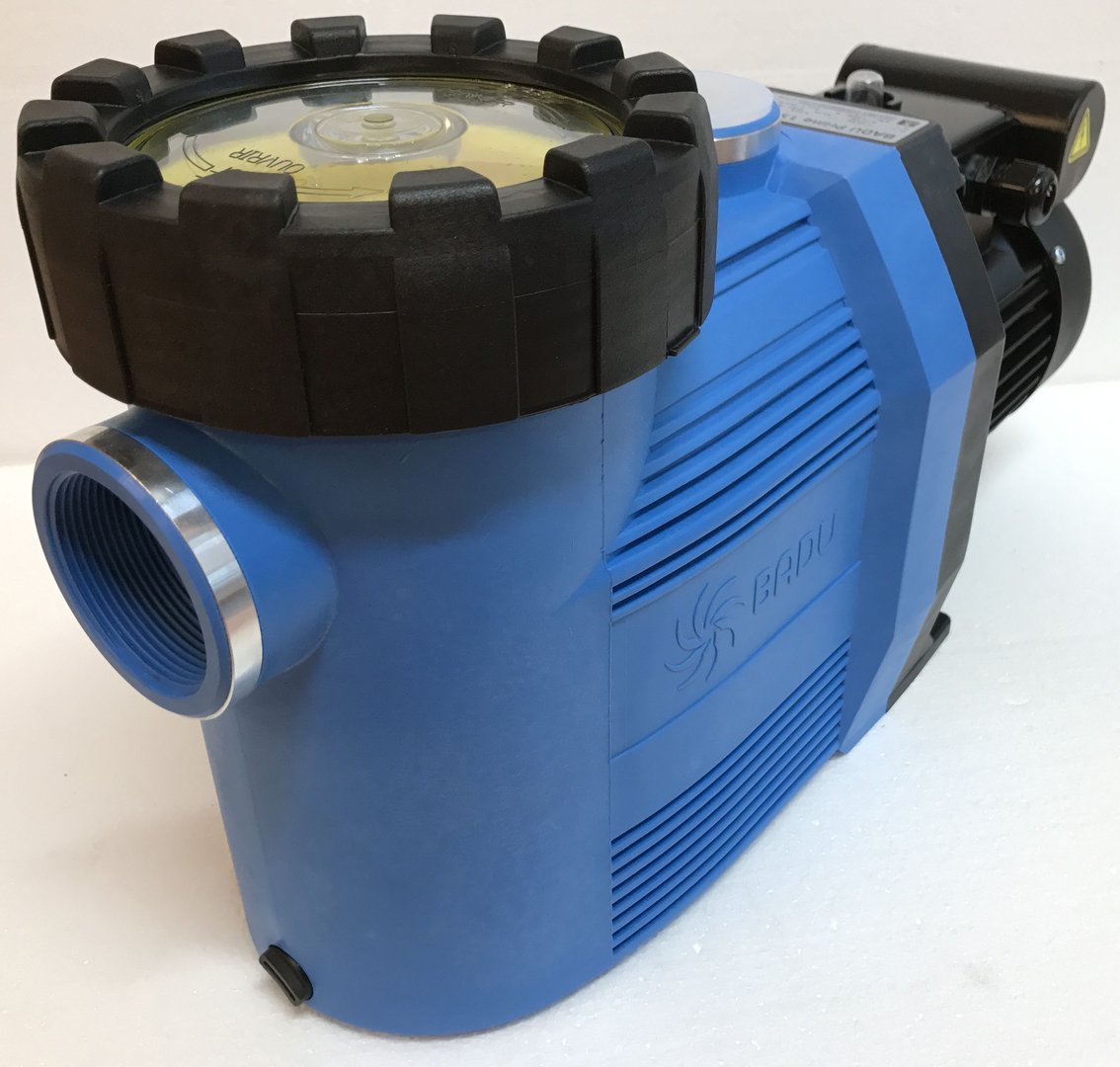

Product information "BADU Prime 20, 230 V"
Self-priming filtration circulation pump BADU Prime 20 We., alternating current version. Scope of delivery by manufacturer without cable and without plug. Interchangeable replacement (modification to the piping system not required) for predecessor model BADU 90/20 We.
1~230 V
H max. = 17,0 m
Q max. = 25 m³/h
techQ: 20 m³/h
techH: 8 m WS
Pool size: 85 - 100 m³
Power output: 1.00 kW
Inlet / outlet connection(Rp): 2" / 1 1/2"
Casing colour: blue
Swimming pool water circulation through a filter system. The pump can be installed max. 3 m above or below water level.
Monoblock-type pump with integrated strainer tank. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve. Motor/pump shaft has no contact with the pool water providing complete electrical separation.
| Pool equipment: | Circulation pump |
| Pool size in m³: | 85 - 100 |
| Filter size in mm: | 750 - 800 |
| Flow rate Q in m³/h: | 20 |
| Total head H in m WS: | 8 |
| Motor performance in kW (P2): | 1.00 |
| Strainer capacity in l: | approx. 3 |
| Strainer basket mesh size in mm: | approx. 3.2 x 2.6 |
| Pool type: | Natural pool/swimming pond, Outdoor pool, Indoor pool |
| Installation: | Above ground pool, Built-in pool |
| Class: | PREMIUM |
| Guarantee: | 5 year premium guarantee |
| Pump casing: | PP GF 30 |
| Diffuser: | PA 66 GF 30/PP GF 30 |
| Impeller: | PP GF 30 |
| Strainer basket: | PP |
| Mechanical seal: | carbon / ceramic / NBR |
| Screws: | stainless steel 1.4301 |
| Intermediate housing: | PP TV 40 |
| Gland housing: | PP TV 40 |
| Lid: | PC, transparent / PA 66 GF 30 |
Special motors on request.
The above mentioned pumps can be used for pool water with a salt concentration of up to 0.5%, i. e. 5 g/l.
For higher salt concentrations please contact us.
Also available in AK version
