BADU Magic 6
€319.00
Available in approx. 14 days, delivery time 2-4 days
Product information "BADU Magic 6"
Self-priming filtration circulation pump BADU Magic II/6 for pool sizes of approximately 10-30 m³, replaces its identical predecessor model BADU Magic 6
1~ 230 V
Hmax: 12,0 m
Qmax: 9 m³/h
techQ: 6 m³/h
techH: 8 m WS
Pool size: 10 - 30 m³
Power output: 0.25 kW
Inlet / outlet connection(d): Special union with glue socket d=50 or hose adapter for 1¼" and/or 1½" hose
The introductory model for small to medium-size filter units offers an economical and reliable solution for above ground pools. Tried and tested, this pump reaches a high rate of efficiency during constant operation.
Swimming pool water circulation through a filter system. The pump can be installed max. 2 m above or max. 3 m below water level.

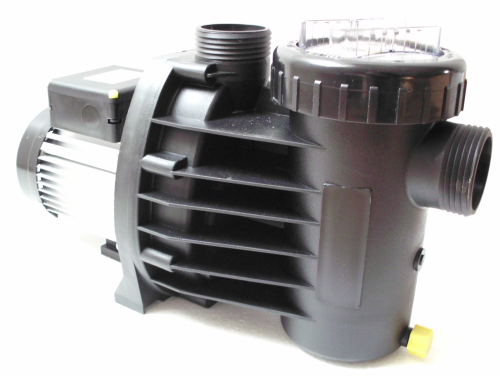

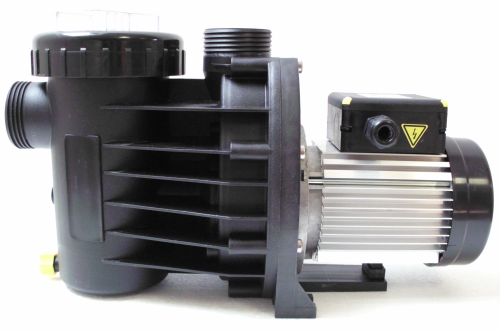

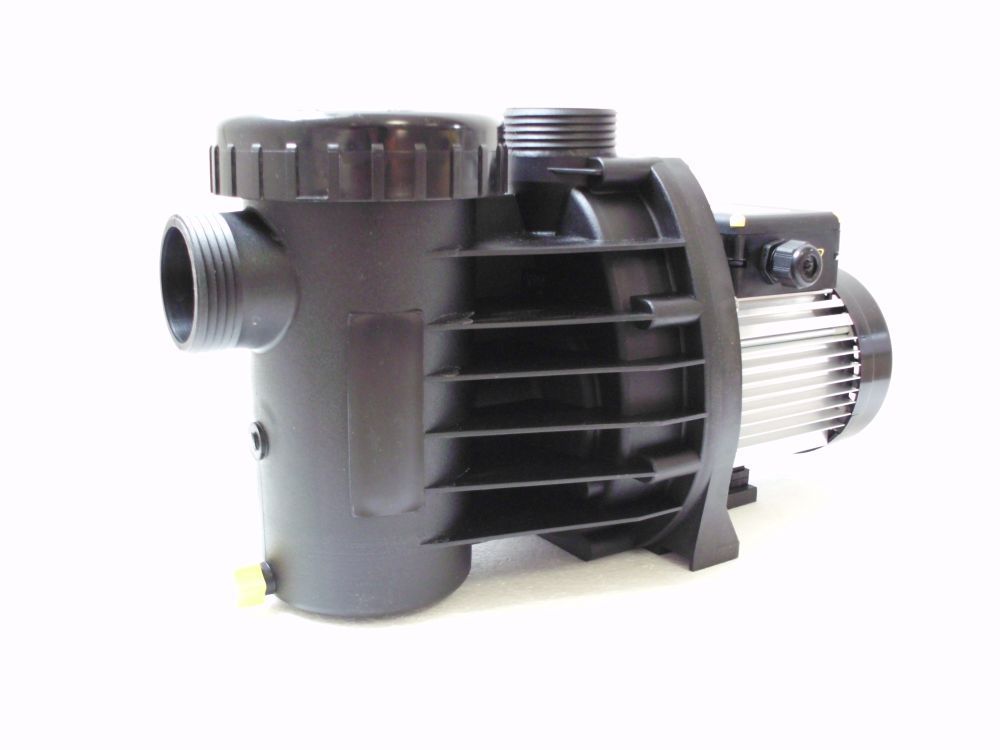

Monoblock-type pump with integrated strainer tank. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve. Motor/pump shaft has no contact with the pool water providing complete electrical separation.
| Pool equipment: | Circulation pump |
| Pool size in m³: | 10 - 30 |
| Filter size in mm: | 400 - 450 |
| Flow rate Q in m³/h: | 6 |
| Motor performance in kW (P2): | 0.25 |
| Strainer capacity in l: | approx. 0.5 |
| Strainer basket mesh size in mm: | approx. 2.8 x 2.8 |
| Pool type: | Outdoor pool |
| Installation: | Built-in pool, Above ground pool |
| Class: | Starter |
| Pump casing: | PP |
| Gland housing: | PP TV 40 |
| Impeller: | PA 66 GF 30 / PC |
| Strainer basket: | PP |
| Mechanical seal: | carbon / ceramic / NBR |
| Screws: | stainless steel 1.4301 |
Special motors on request.
The above mentioned pumps can be used for pool water with a salt concentration of up to 0.5%, i. e. 5 g/l.
For higher salt concentrations please contact us.
Also available in AK version
TECHNICAL DATA manufacturer's page
