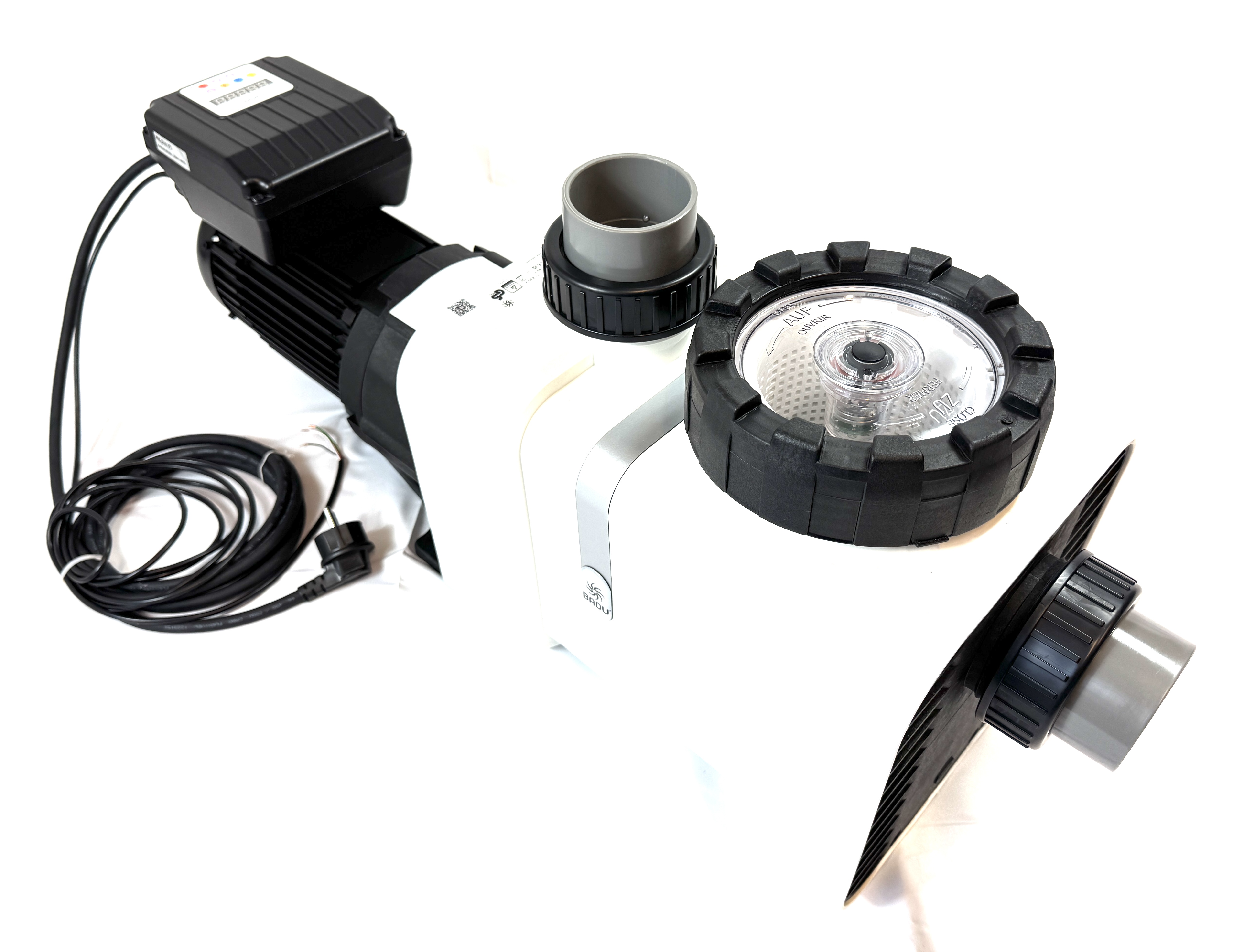

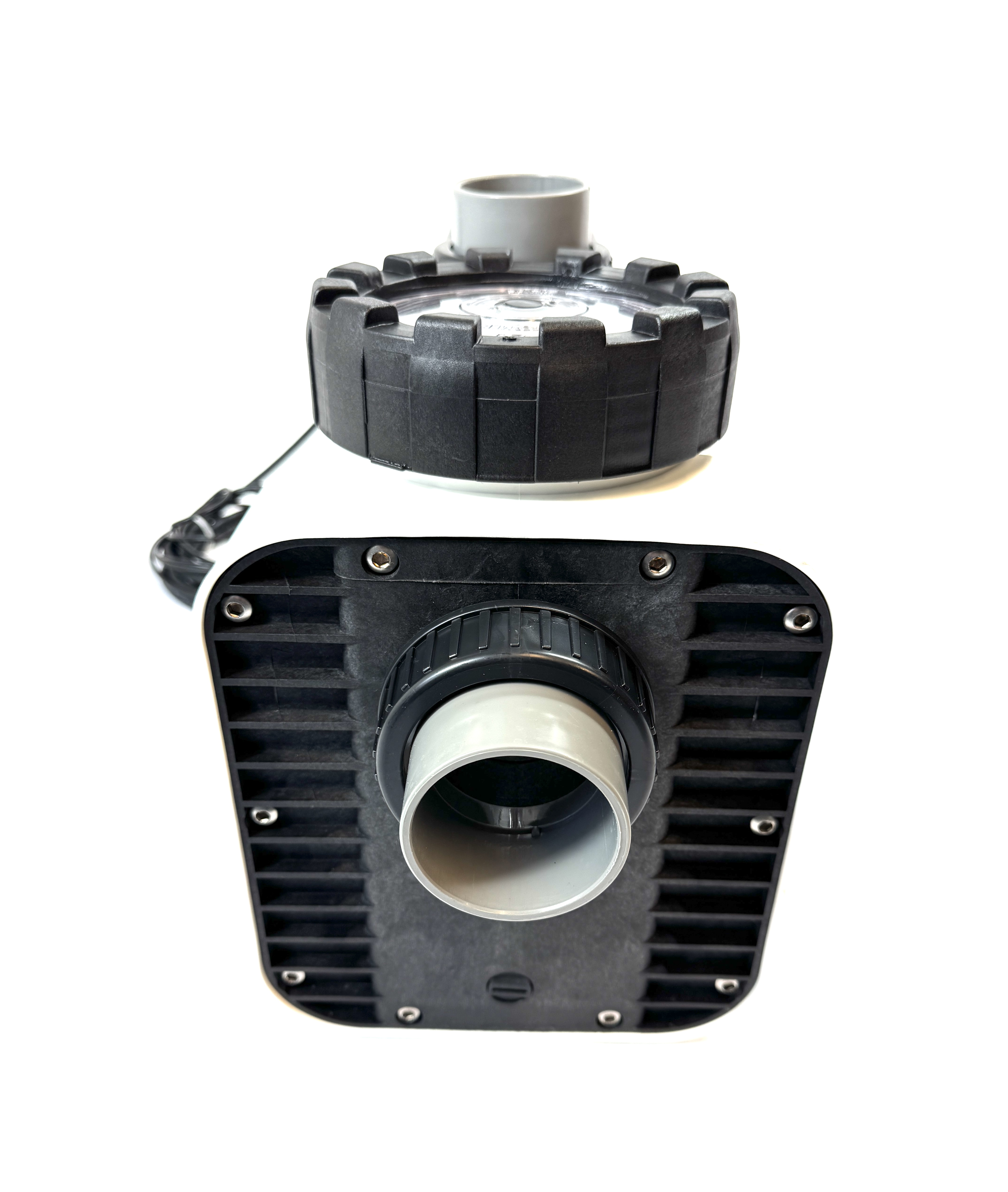

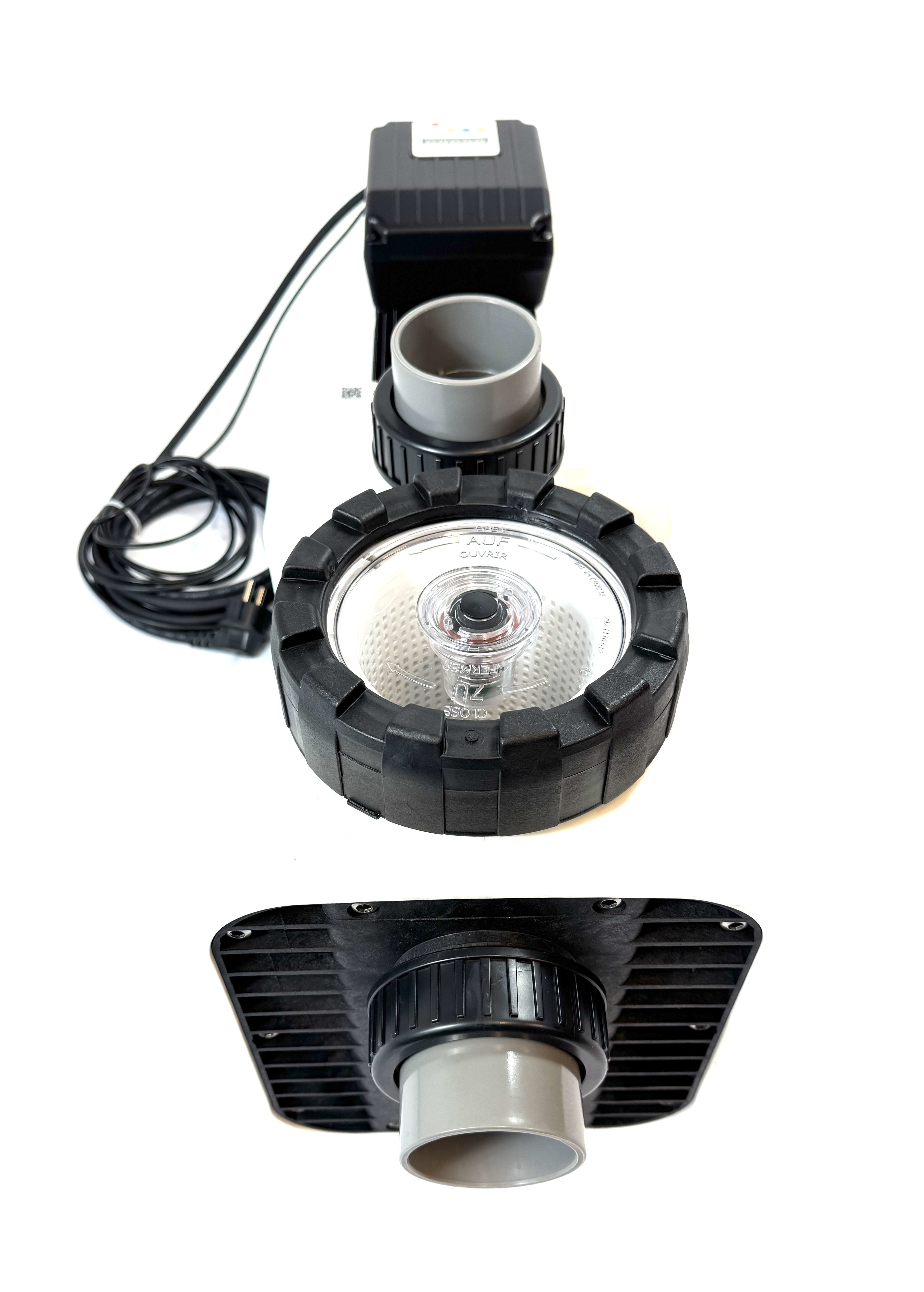

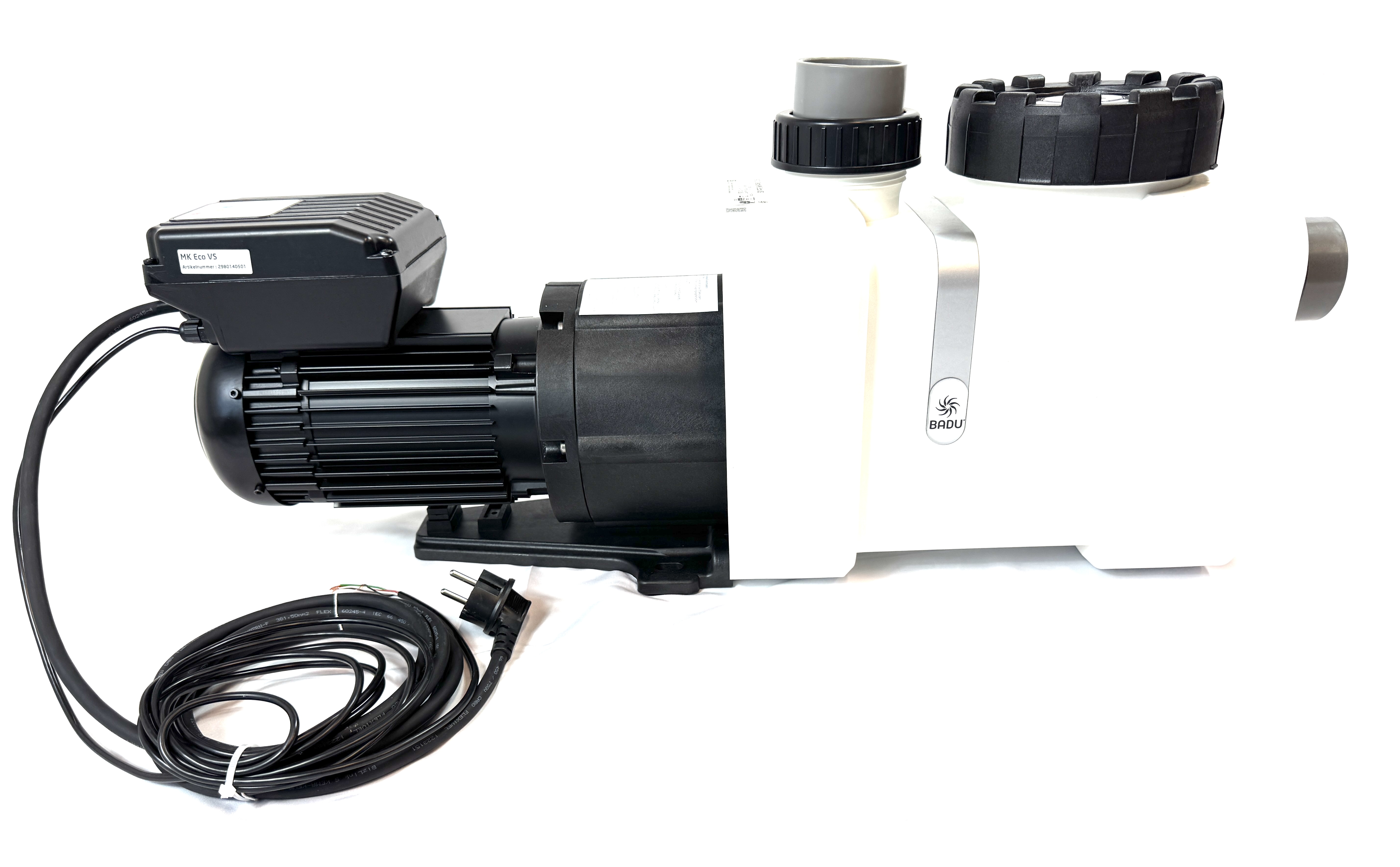

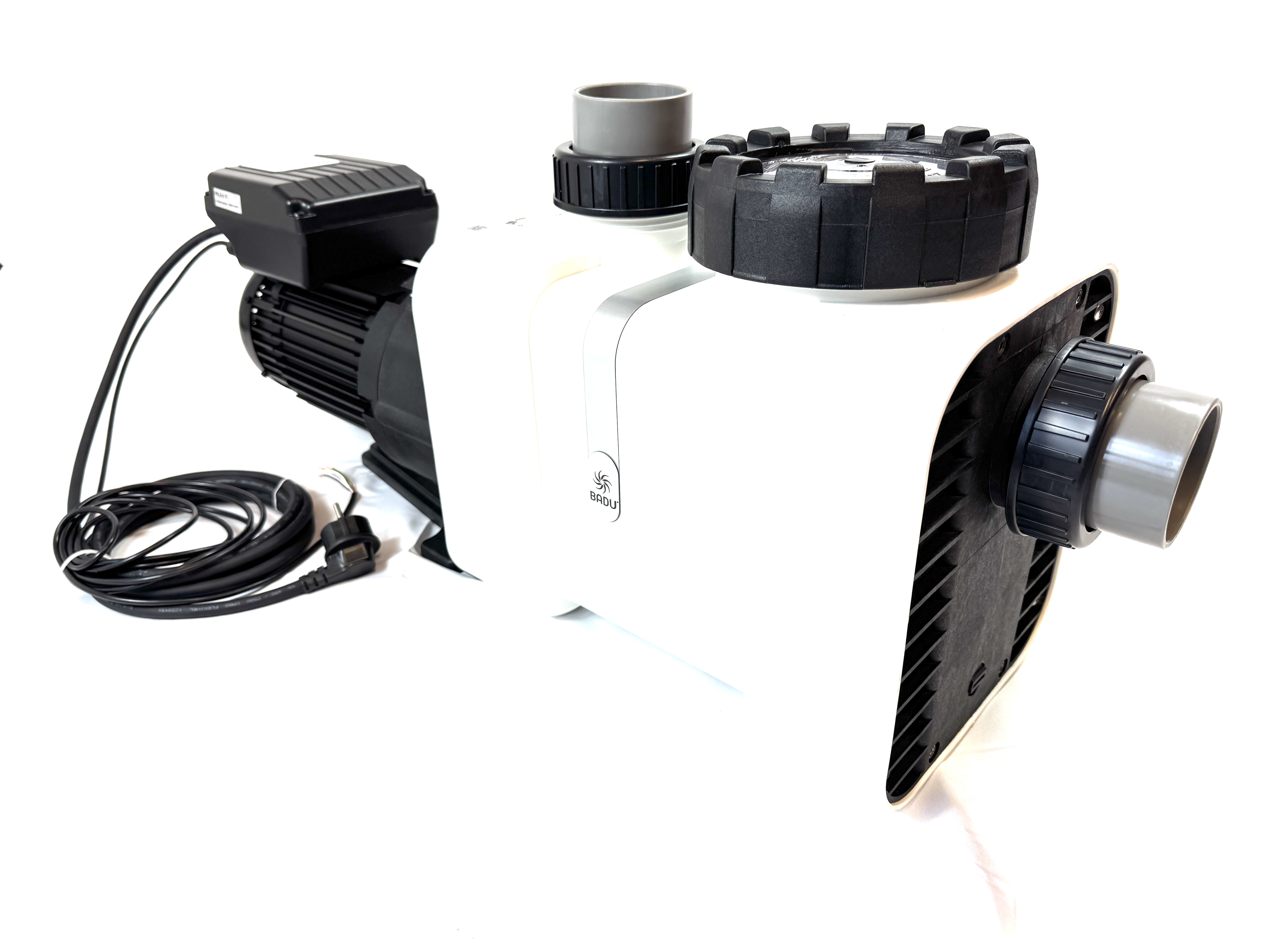

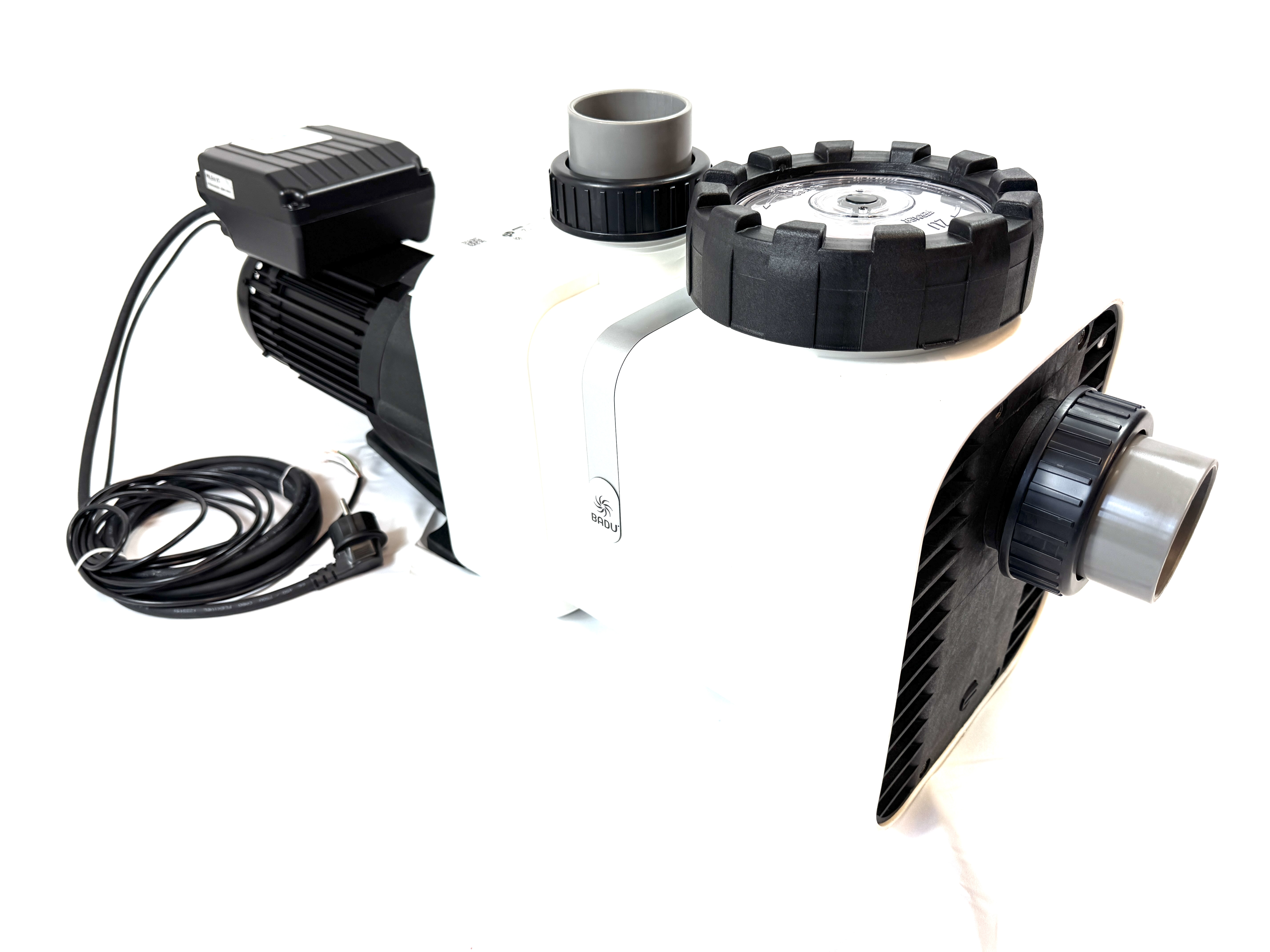

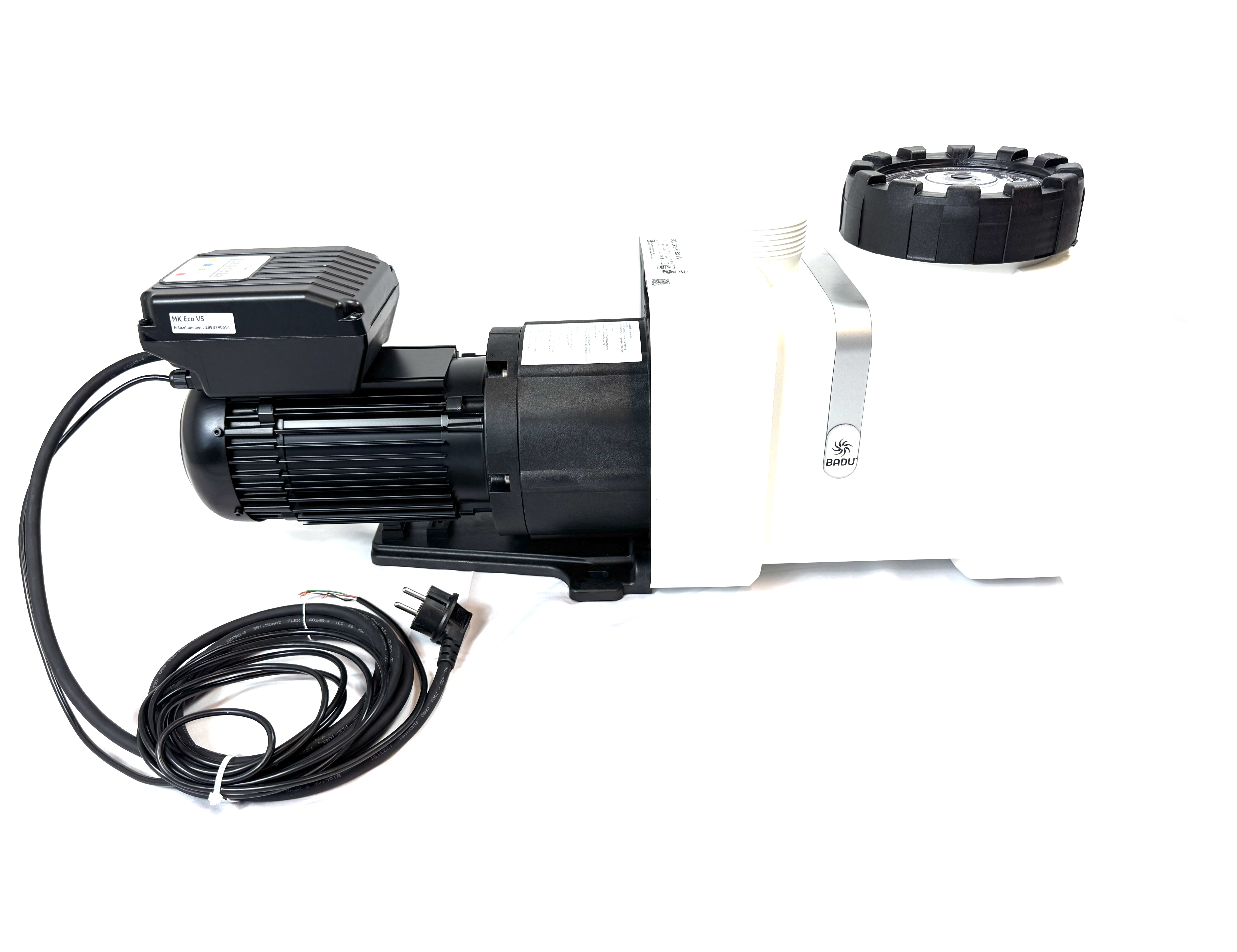

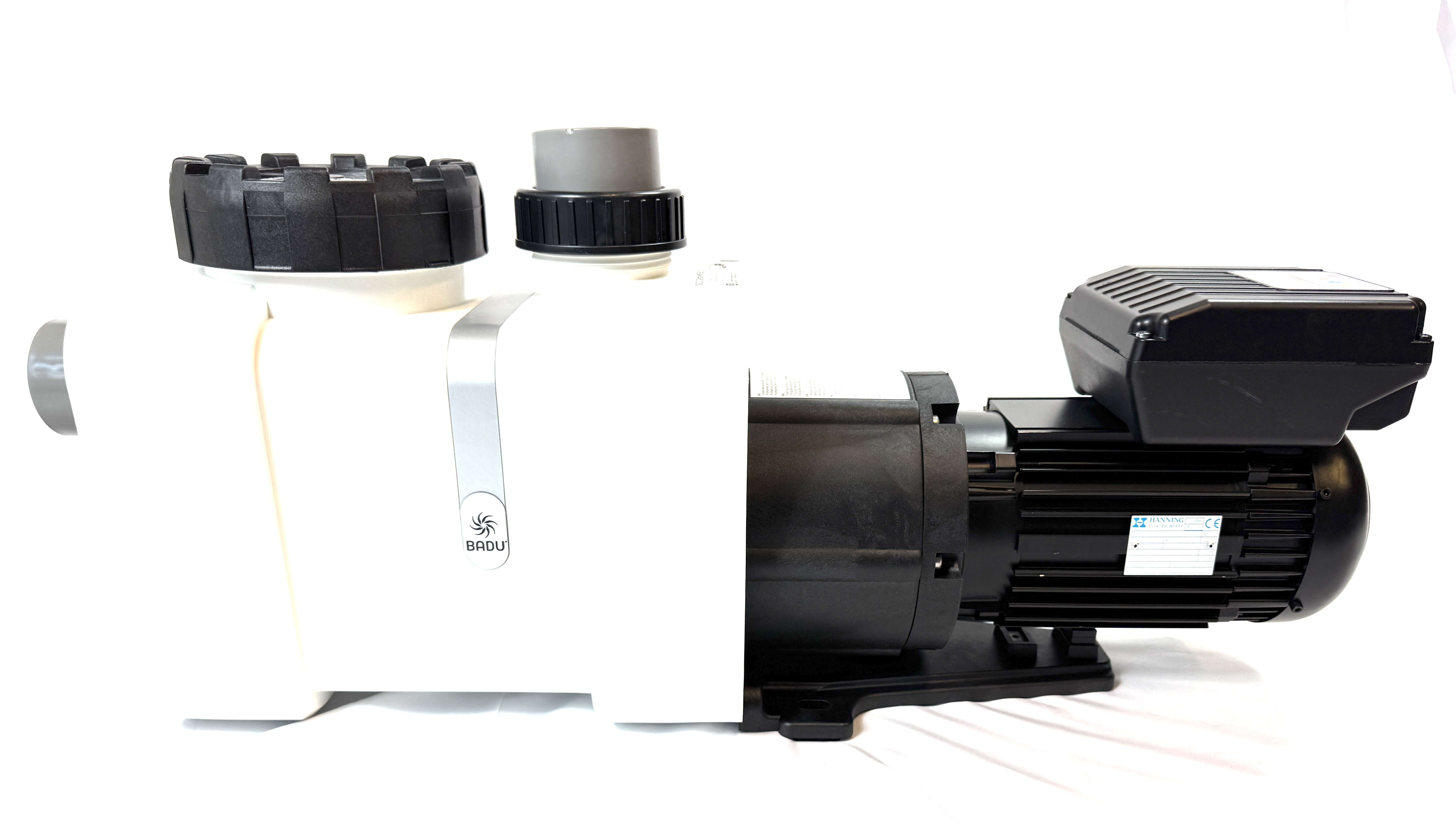

BADU Delta-MK Eco VS
€2,160.71
Available in approx. 14 days, delivery time 2-4 days
Product information "BADU Delta-MK Eco VS"
Self-priming, sealless filtration circulation pump BADU Delta-MK Eco VS, 230 V, single phase current version, higher flow rates with lower energy consumption
1~ 230 Volt
Hmax: approx. 16,5 m
Qmax: approx. 38 m³/h
Power input (P1): 0,48-1,80 kW
Power output (P2): 0,37-1,40 kW
Inlet / outlet connection(d): 63/63 outside, 63/63 inside
| Total head H in m WS | |
|---|---|
| Strainer basket | |
| Mechanical seal | |
| Installation | |
| Pool equipment | |
| Pool type | |
| Pump casing | |
| Impeller | |
| Screws | |
| Intermediate housing | |
| Class | |
| Motor performance in kW (P2) | |
| Lid | |
| Strainer capacity in l | |
| Strainer basket in mm |

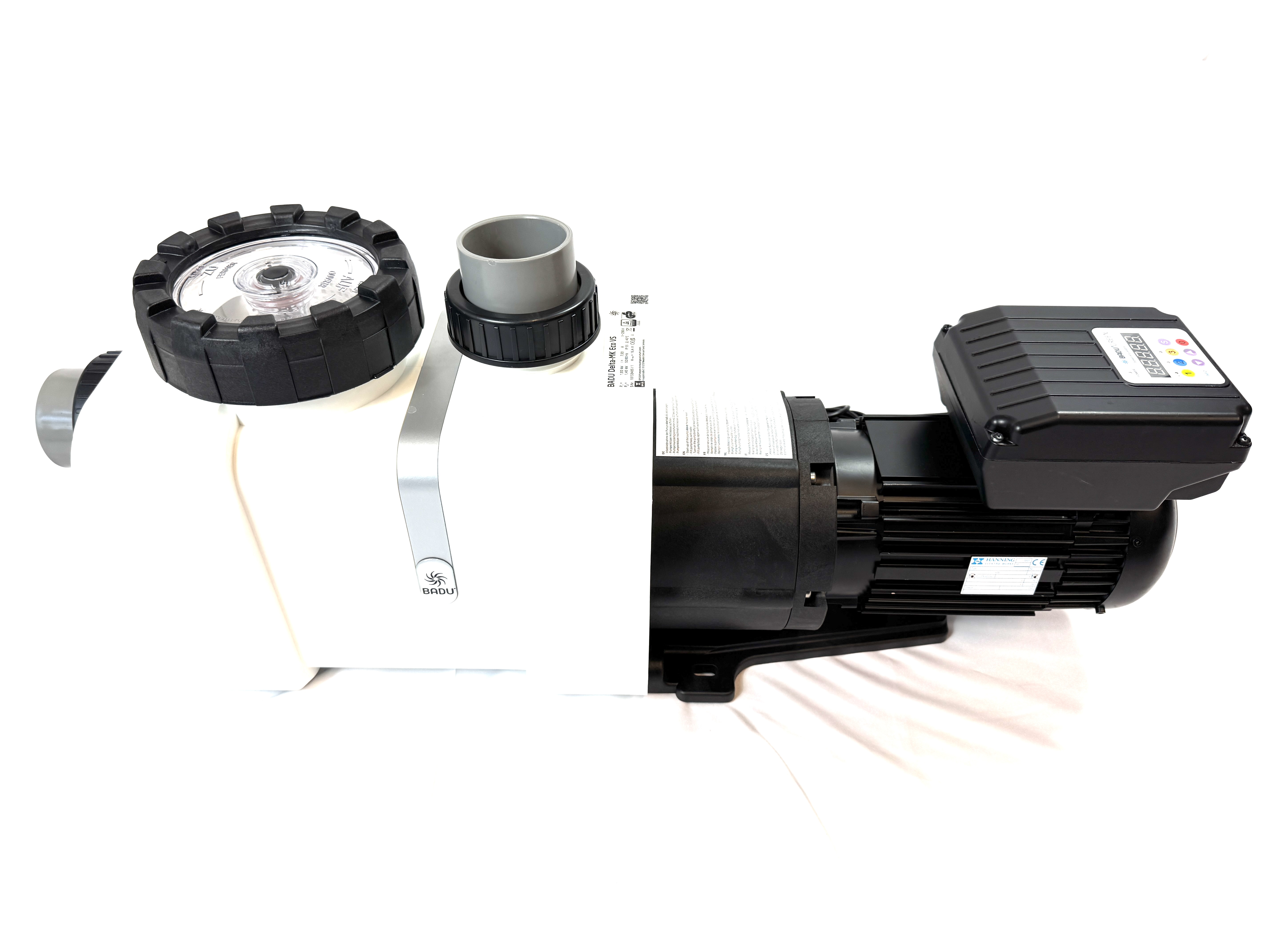

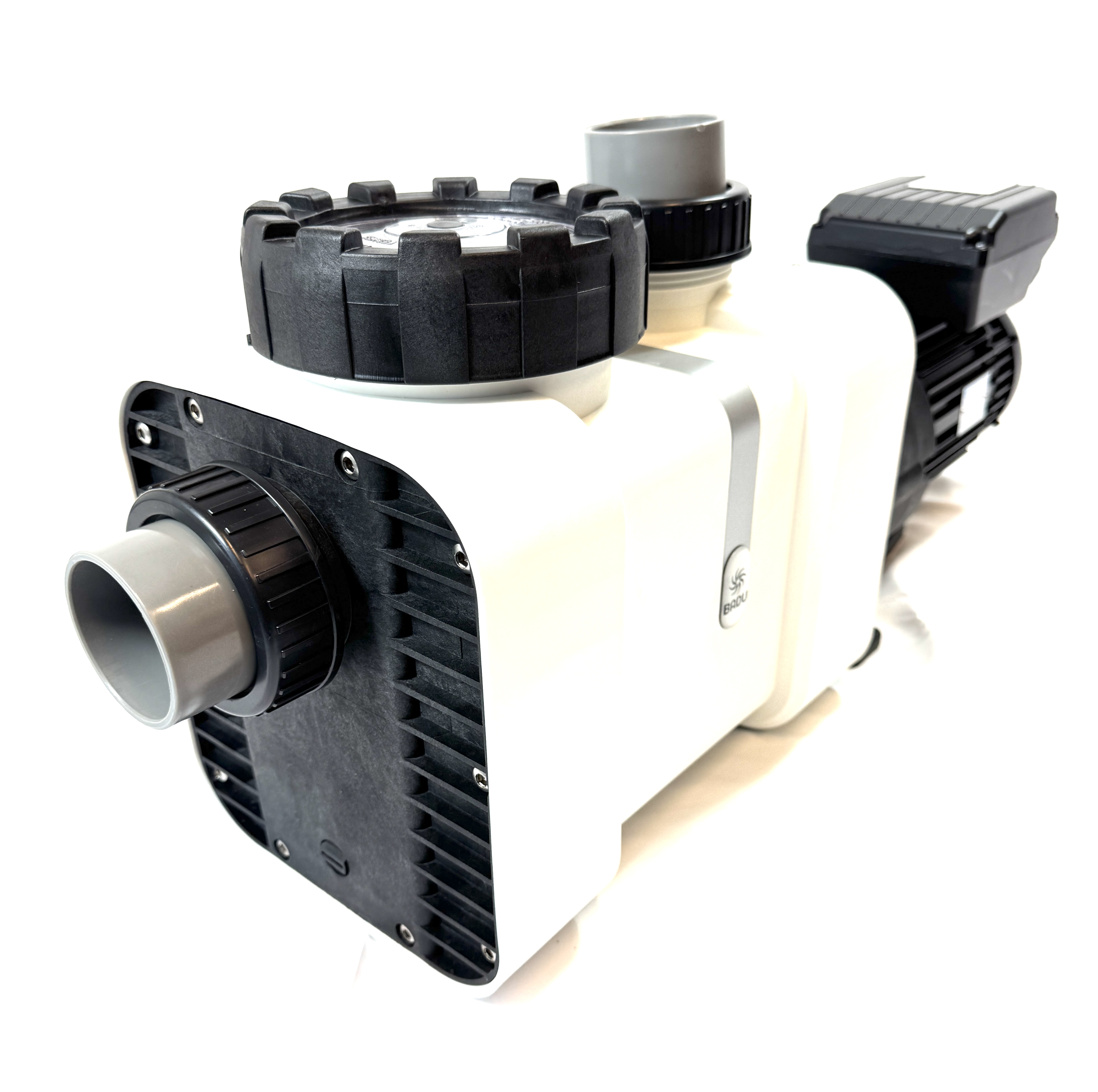

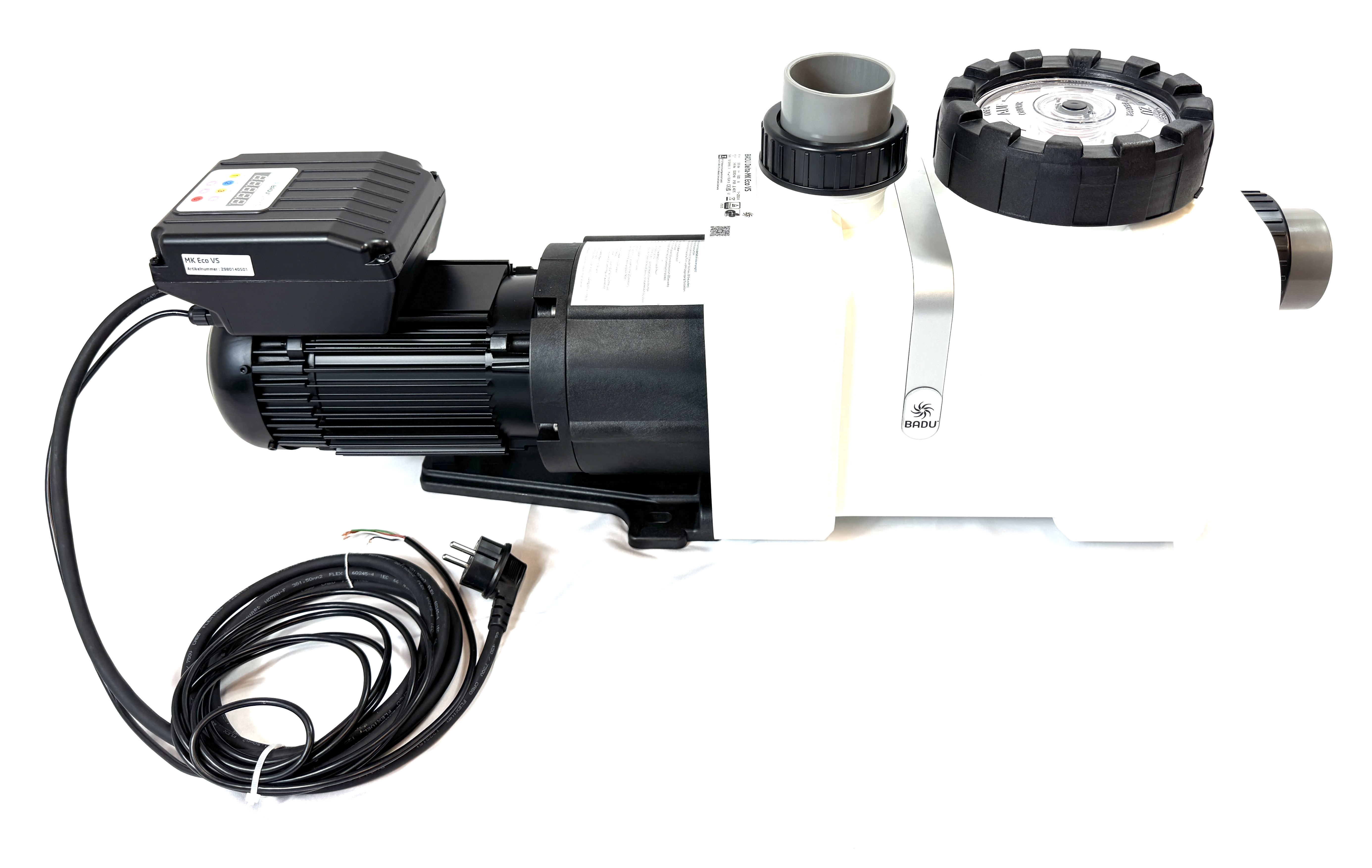

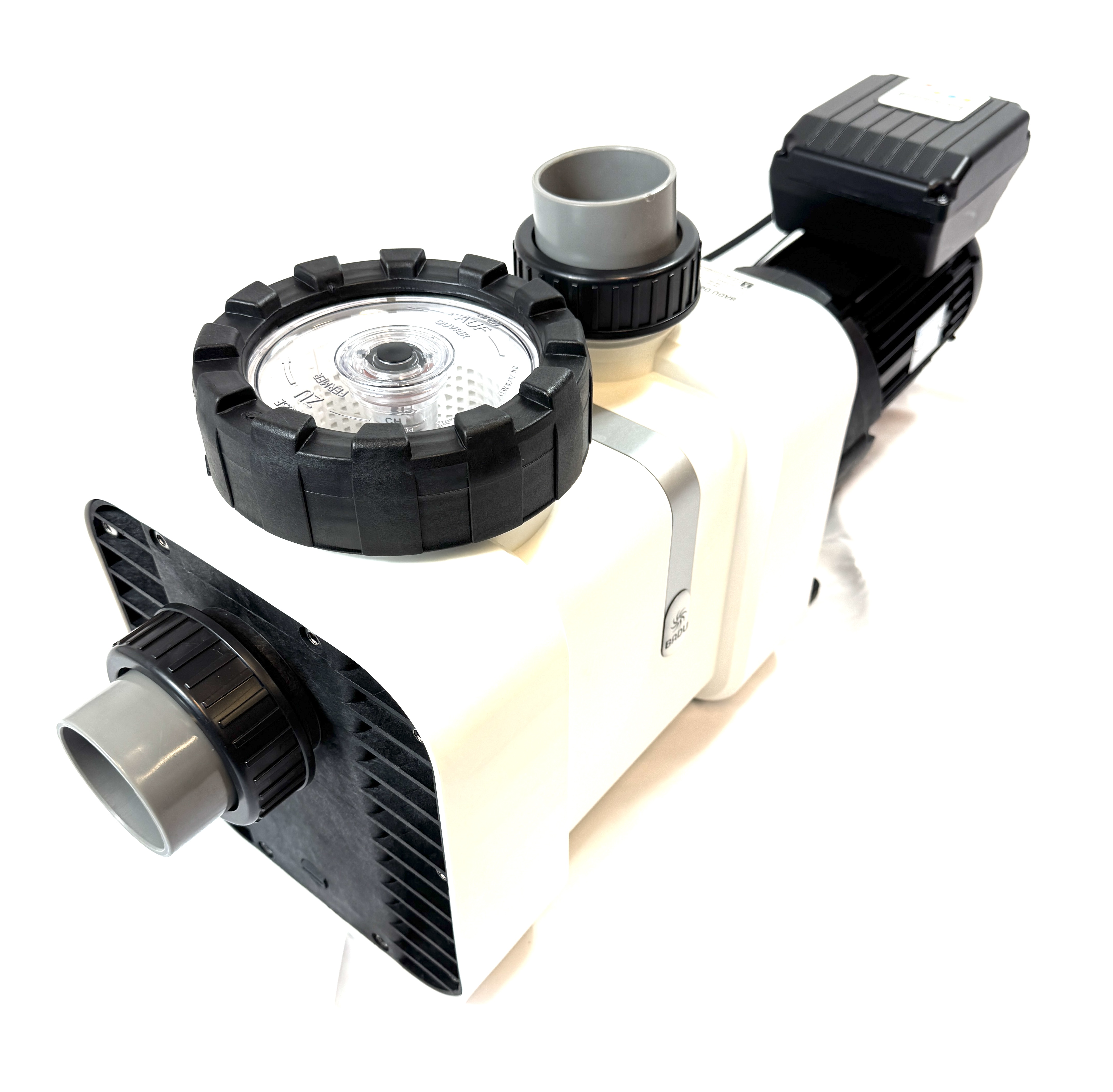

The BADU Delta-MK Eco VS swimming pool pump features a permanent magnet motor with magnetic coupling sealing technology instead of a mechanical seal, to avoid leakages. It is especially quiet and efficient due to newly configured hydraulics. LED lighting in the transparent lid aids sight inspections. Inset drain plugs avoid risk of breakage and highly efficient technology leads to higher flow rates with lower energy consumption.
Swimming pool circulation through a filter system. The pump can be installed max. 1,5 m above or max. 3,0 m below the water level.
Monoblock-type pump with integrated strainer tank. Motor/pump shaft has no contact with the pool water, providing complete electrical separation.
Special motors on request.
The above mentioned pumps can be used for pool water with a salt concentration of up to 0.5%, i. e. 5 g/l.
For higher salt concentrations please contact us.
