BADU Bronze Eco VS, 230 V
€3,060.00
Available in approx. 14 days, delivery time 2-4 days

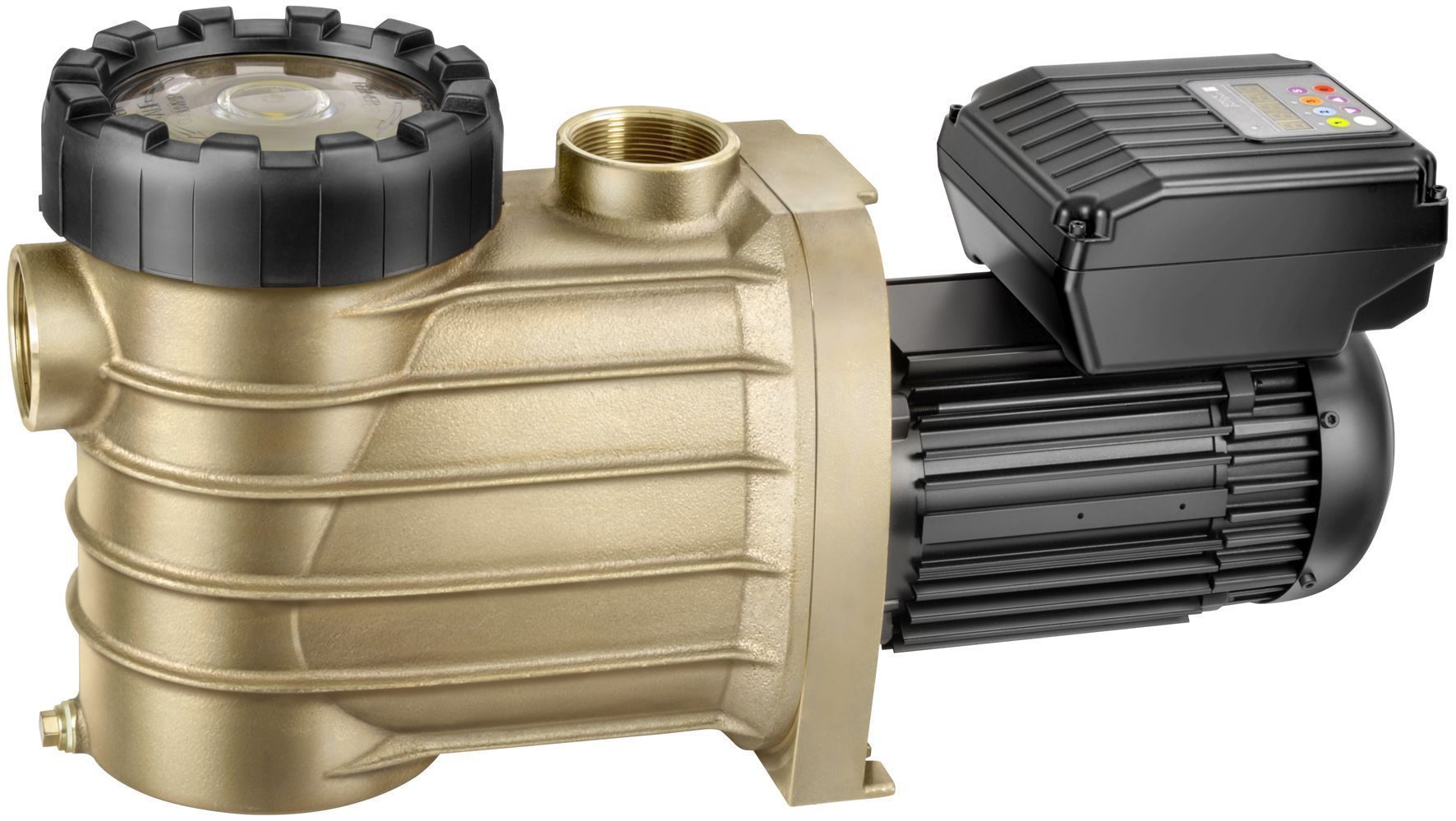

Product information "BADU Bronze Eco VS, 230 V"
Self-priming, corrosion resistant filtration circulation pump BADU Bronze Eco VS, alternating current version, with adjustable, efficient permanent magnet motor with integrated control and display, for pool sizes of approximately 30 - 90 m³
1~230 Volt
Hmax: 18,0 m
Qmax: 28,5 m³/h
techQ: 28 m³/h
techH: 8 m WS
Pool size: 30 - 90 m³
Power input P1=0,08-1,40 kW / power output P2=0,03-1,10 kW
Inlet / outlet connection(Rp): 2" / 2"
| Pool equipment: | Circulation pump |
| Pool size in m³: | 30 - 90 |
| Filter size in mm: | 400 - 500 |
| Flow rate Q in m³/h: | 28 |
| Total head H in m WS: | 8 |
| Motor performance in kW (P2): | 1.10 |
| Strainer capacity in l: | approx. 4.5 |
| Strainer basket mesh size in mm: | approx. 3.2 x 2.6 |
| Pool type: | Outdoor pool, Natural pool/swimming pond, Indoor pool |
| Installation: | Built-in pool |
| Class: | GREEN, PREMIUM |
| Pump casing: | G-Cu Sn 10 |
| Gland housing: | G-Cu Sn 10 |
| Diffuser: | PA 66 GF 30 |
| Impeller: | PP GF 30 |
| Strainer basket: | PP |
| Mechanical seal: | carbon / ceramic / NBR |
| Screws: | stainless steel |
| Lid: | PC, transparent / PA 66 GF 30 |
BADU GREEN Pumps are developed with the aims of saving energy and protecting the environment. Made from very high value bronze alloy, this circulation pump is extremely corrosion resistant and suited for the trouble-free delivery of seawater. The power and the electronics correspond to those of the BADU 90 Eco VS: a synchronously compact power unit of the highest efficiency – space saving and low-noise construction.
Swimming pool water circulation through a filter system. The pump can be installed max. 3 m above or below water level.
Monoblock-type pump with integrated strainer tank. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve. Heavy bronze housing, quiet running and high stability.
The above mentioned pumps can be used for pool water with a salt concentration of up to 0.5%, i. e. 5 g/l.
For higher salt concentrations please contact us.
