BADU 90/40, 400 V
€1,769.01
Available in approx. 14 days, delivery time 2-4 days

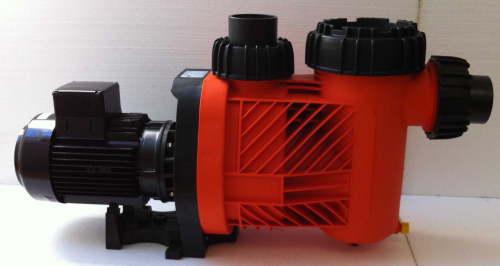

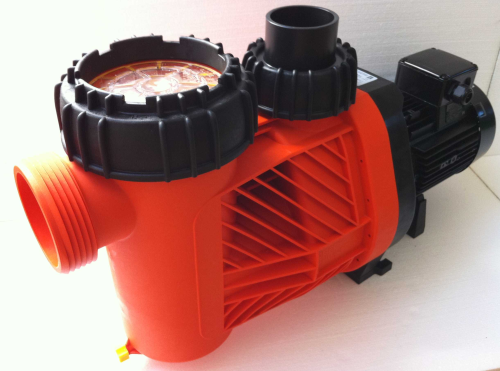

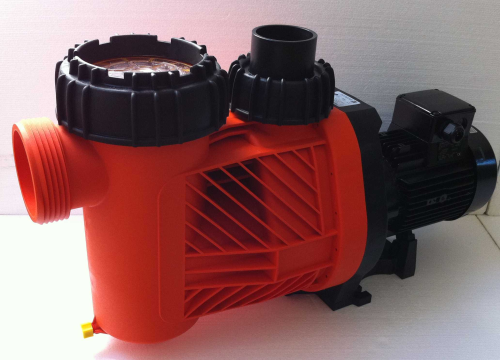

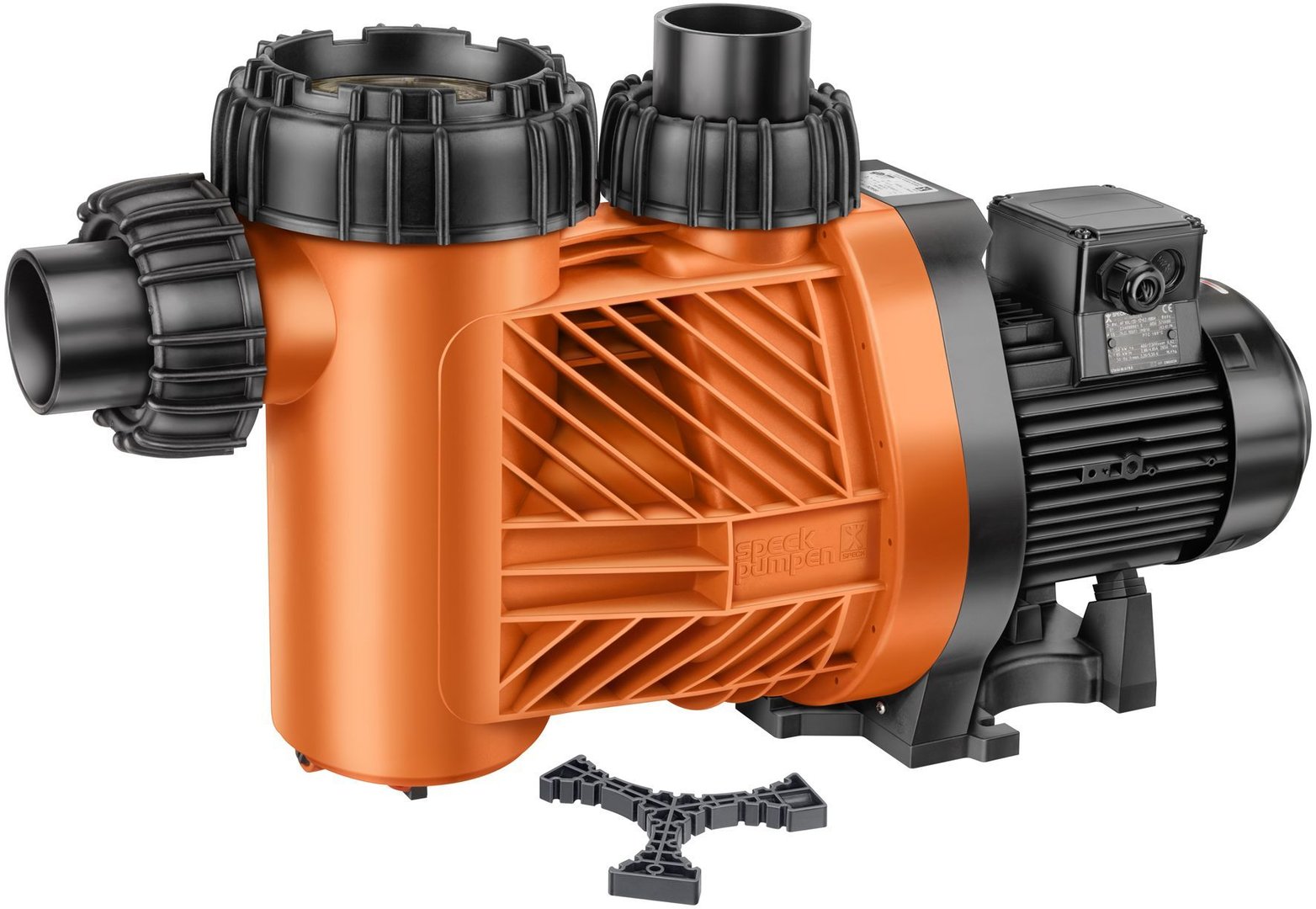

Product information "BADU 90/40, 400 V"
Self-priming filtration circulation pump BADU Prime 40 Dr., three-phase version (replaces BADU 90/40 Dr.) for pool sizes of approximately 150-200 m³
3~ Y/Δ 400/230 V
H max. = 20,0 m
Q max. = 46,0 m³/h
techQ: 40 m³/h
techH: 8 m WS
Pool size: 150 - 200 m³
Power output: 2.20 kW
Inlet / outlet connection(d): 90mm/90mm
A logical extension of the BADU Prime (BADU 90), this pump offers great potential for large private swimming pools. Height differences from up to 22 m can be overcome. Therefore a swimming pool solar panel can also be integrated into the system without requiring a second pump.
Swimming pool water circulation through a filter system. The pump can be installed max. 3 m above or below water level.
Monoblock-type pump with integrated strainer tank. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve. Motor/pump shaft has no contact with the pool water providing complete electrical separation.
| Pool equipment: | Circulation pump |
| Pool size in m³: | 90 - 210 |
| Filter size in mm: | larger than 1100 |
| Flow rate Q in m³/h: | 40 |
| Total head H in m WS: | 8 |
| Motor performance in kW (P2): | 2.20 |
| Strainer capacity in l: | approx. 6 |
| Strainer basket mesh size in mm: | approx. 3.0 x 2.8 |
| Pool type: | Indoor pool, Outdoor pool, Natural pool/swimming pond |
| Installation: | Built-in pool |
| Class: | PREMIUM |
| Guarantee: | 5 year premium guarantee |
| Pump casing: | PP GF 30 |
| Diffuser: | PP GF 30 |
| Impeller: | PPE GF 30 |
| Strainer basket: | PP |
| Mechanical seal: | carbon / ceramic / NBR |
| Screws: | stainless steel |
| Intermediate housing: | PP GF 30 |
| Gland housing: | PP TV 40 |
| Glue socket: | ABS |
| Lid: | PC, transparent / PA 66 GF 30 |
Special motors on request.
The above mentioned pumps can be used for pool water with a salt concentration of up to 0.5%, i. e. 5 g/l.
For higher salt concentrations please contact us.
Also available in AK version
