BADU 90/13, 400 V
€912.46
Available in approx. 14 days, delivery time 2-4 days
Product information "BADU 90/13, 400 V"

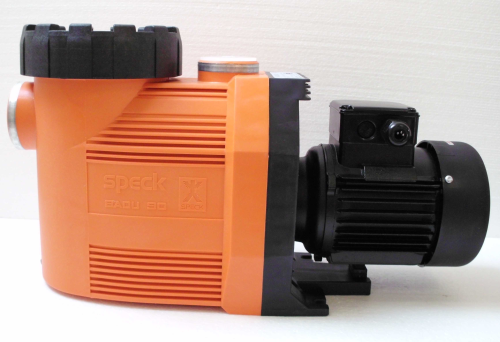

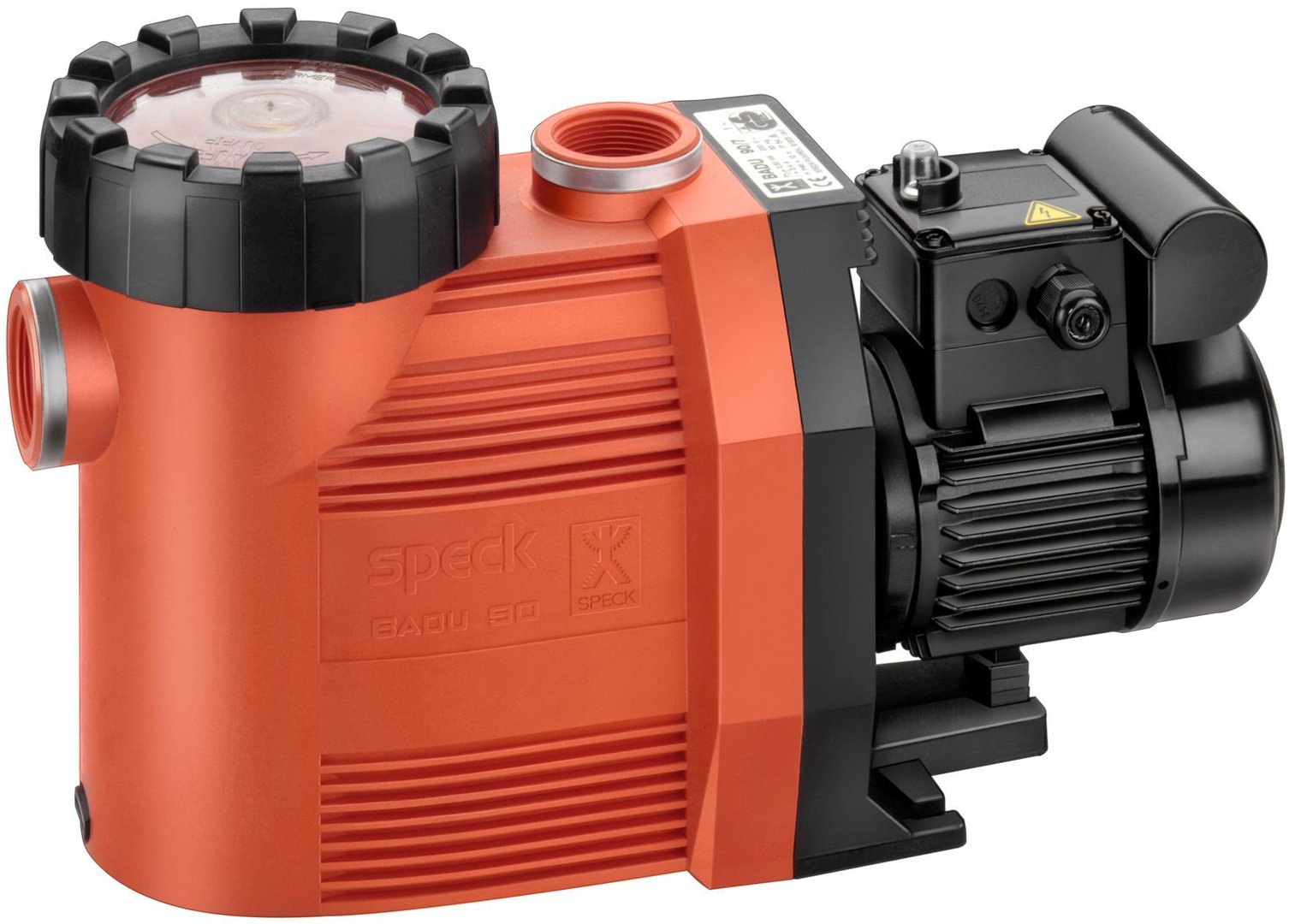

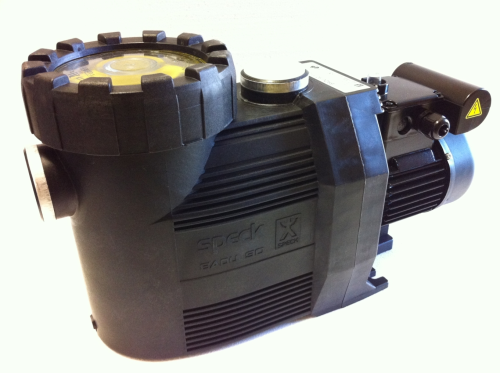

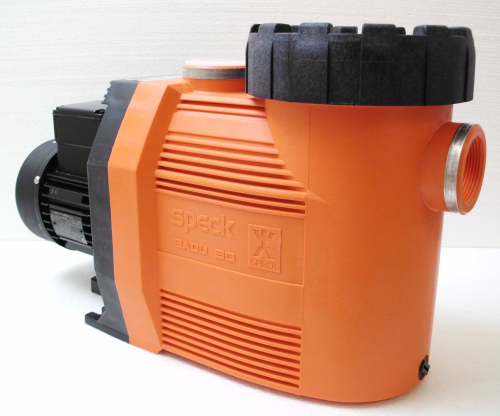

Self-priming filtration circulation pump BADU Prime 13 Dr., three-phase version (replaces BADU 90/13 Dr.) for pool sizes of approximately 60-90 m³
3~Y/Δ 400/230 V
Hmax: 14.7 m
Qmax: 17.5 m³/h
techQ: 13 m³/h
techH: 8 m WS
Pool size: 60 - 90 m³
Power output: 0.55 kW
Inlet / outlet connection(Rp): 2" / 1 1/2"
Casing colour: blue
Swimming pool water circulation through a filter system. The pump can be installed max. 3 m above or below water level.
Monoblock-type pump with integrated strainer tank. The bellow-type mechanical seal is mounted on a plastic shaft protector sleeve. Motor/pump shaft has no contact with the pool water providing complete electrical separation.
| Pool equipment: | Circulation pump |
| Pool size in m³: | 60 - 90 |
| Filter size in mm: | 500 - 610 |
| Flow rate Q in m³/h: | 13 |
| Total head H in m WS: | 8 |
| Motor performance in kW (P2): | 0.55 |
| Strainer capacity in l: | approx. 3 |
| Strainer basket mesh size in mm: | approx. 3.2 x 2.6 |
| Pool type: | Outdoor pool, Indoor pool, Natural pool/swimming pond |
| Installation: | Above ground pool, Built-in pool |
| Class: | Premium |
| Guarantee: | 5 year premium guarantee |
| Pump casing: | PP GF 30 |
| Diffuser: | PP GF 30 |
| Impeller: | PP GF 30 |
| Strainer basket: | PP |
| Mechanical seal: | carbon / ceramic / NBR |
| Screws: | stainless steel 1.4301 |
| Intermediate housing: | PP TV 40 |
| Gland housing: | PP TV 40 |
Special motors on request.
The above mentioned pumps can be used for pool water with a salt concentration of up to 0.5%, i. e. 5 g/l.
For higher salt concentrations please contact us.
Also available in AK version
